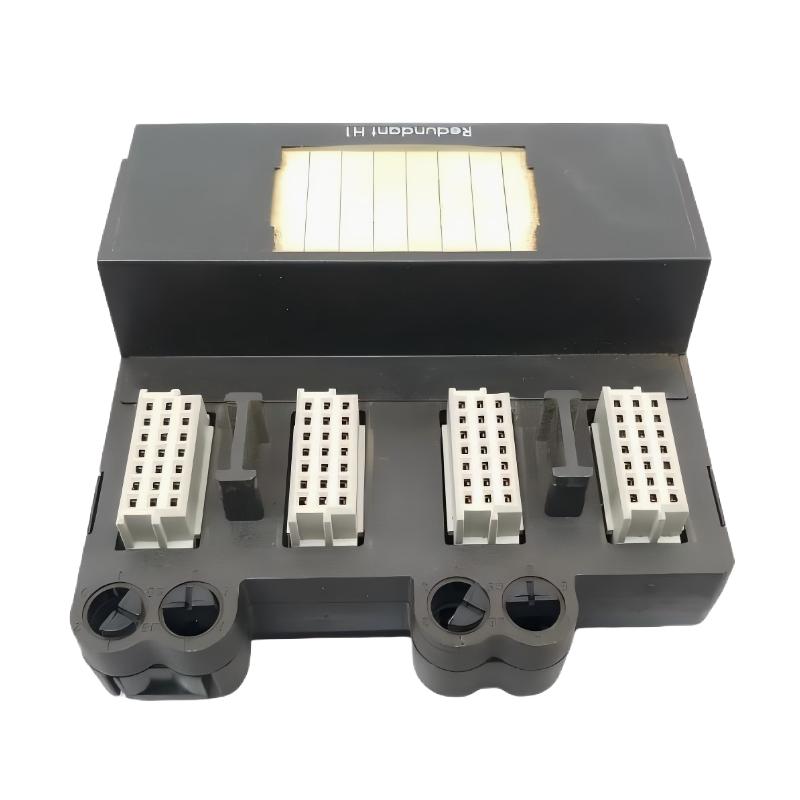

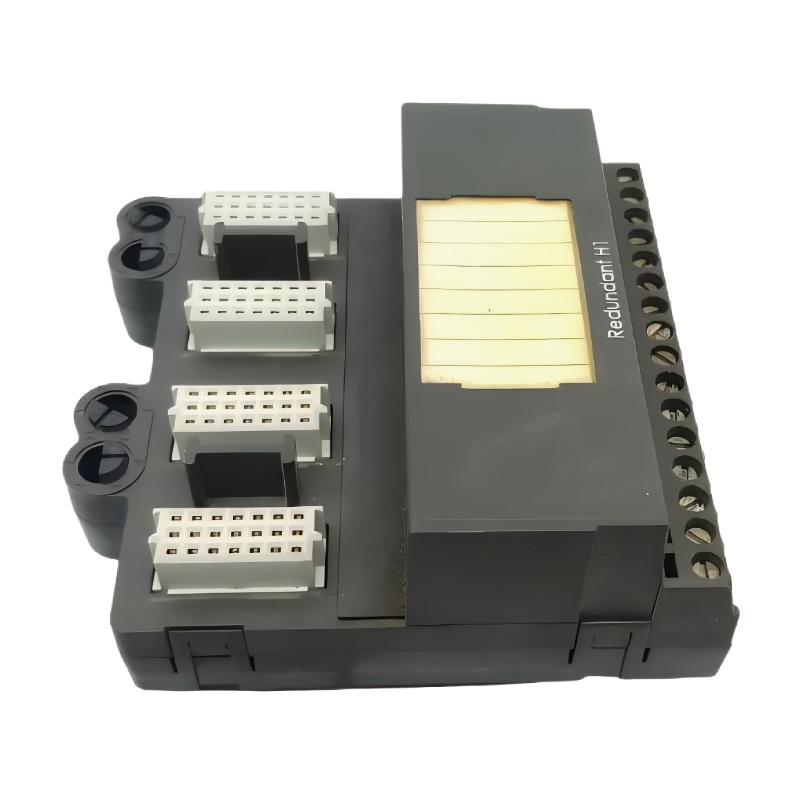

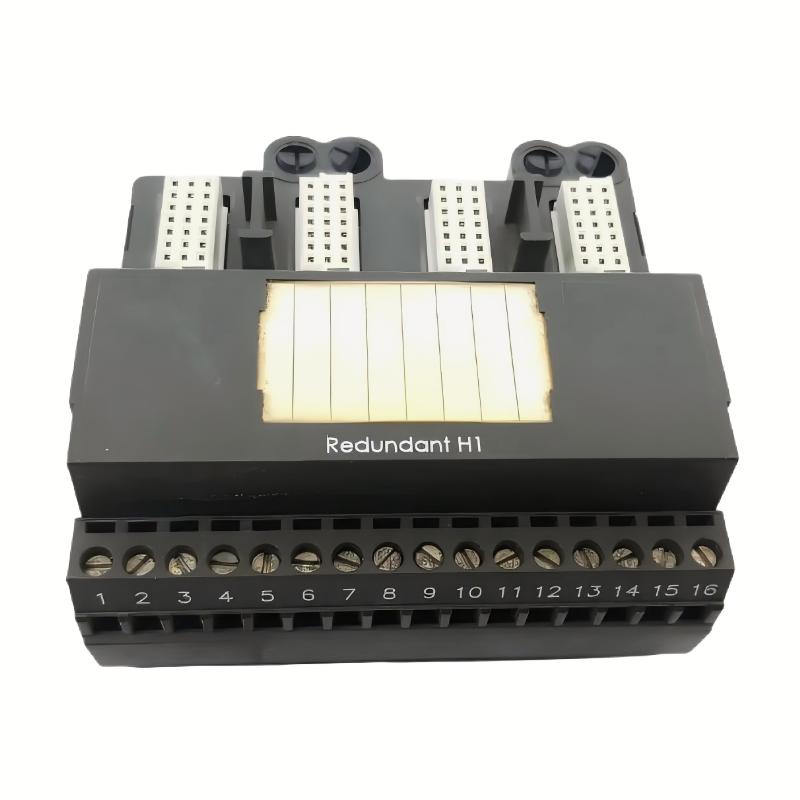

Q1: What is the primary function of the KJ3242X1-FA1 Terminal Block?
A: The KJ3242X1-FA1 is designed to provide a structured and reliable termination point for field wiring in Emerson DeltaV systems. Its main function is to connect field instruments such as sensors, switches, and actuators to I/O modules through a centralized terminal interface. It does not perform signal processing or control logic; instead, it ensures safe and organized electrical connectivity between field devices and the control system.

Q2: Why is a terminal block used in industrial control systems?
A: In industrial automation environments, large numbers of field cables must be connected to control systems. Direct wiring to I/O modules can become complex, error-prone, and difficult to maintain. A terminal block simplifies this by centralizing all field connections into a structured interface, improving wiring clarity, reducing installation errors, and making troubleshooting and maintenance significantly easier.

Q3: How does this terminal block fit into a DeltaV architecture?
A: In a DeltaV system, the KJ3242X1-FA1 sits between field devices and I/O modules. Field wiring is first connected to the terminal block, and then routed to the corresponding I/O channels. This layered architecture separates physical wiring from electronic processing, making the system easier to scale, maintain, and troubleshoot in large industrial installations.

Q4: What types of signals can be routed through this terminal block?
A: The module supports both analog and digital field signals, depending on the connected I/O configuration. Typical devices include transmitters, pressure sensors, temperature sensors, limit switches, solenoids, and relay contacts. The terminal block itself does not interpret or modify these signals; it only provides a secure physical connection path.

Q5: What are the advantages of using a terminal block interface instead of direct wiring?
A: Using a terminal block significantly improves system organization and maintainability. It reduces the complexity of direct I/O wiring, minimizes wiring errors, and allows technicians to quickly disconnect or reconnect field circuits during maintenance. It also improves scalability, making system expansion easier without redesigning existing wiring layouts.

Q6: Does the KJ3242X1-FA1 perform any signal processing or control logic?
A: No. The module is purely a passive interface device. It does not amplify, convert, or process signals. All signal interpretation, control logic, and decision-making are handled by the DeltaV controllers and I/O modules. This separation ensures clearer system design and higher reliability.

Q7: What should be checked when a signal fault occurs?
A: When signal issues occur, the first step is to verify field device operation. Next, inspect wiring connections at the terminal block for looseness, corrosion, or incorrect termination. Cable integrity and shielding should also be checked. If the physical layer is confirmed to be correct, troubleshooting should move to the I/O module and controller configuration.

Q8: What practices help ensure long-term reliability?
A: Long-term reliability depends on proper installation and periodic maintenance. Terminal screws should be checked regularly for tightness, and wiring should be inspected for wear or damage. The control cabinet should remain clean, dry, and free of excessive vibration. Proper grounding and shielding practices should be followed to minimize electromagnetic interference and ensure stable signal transmission over time.
