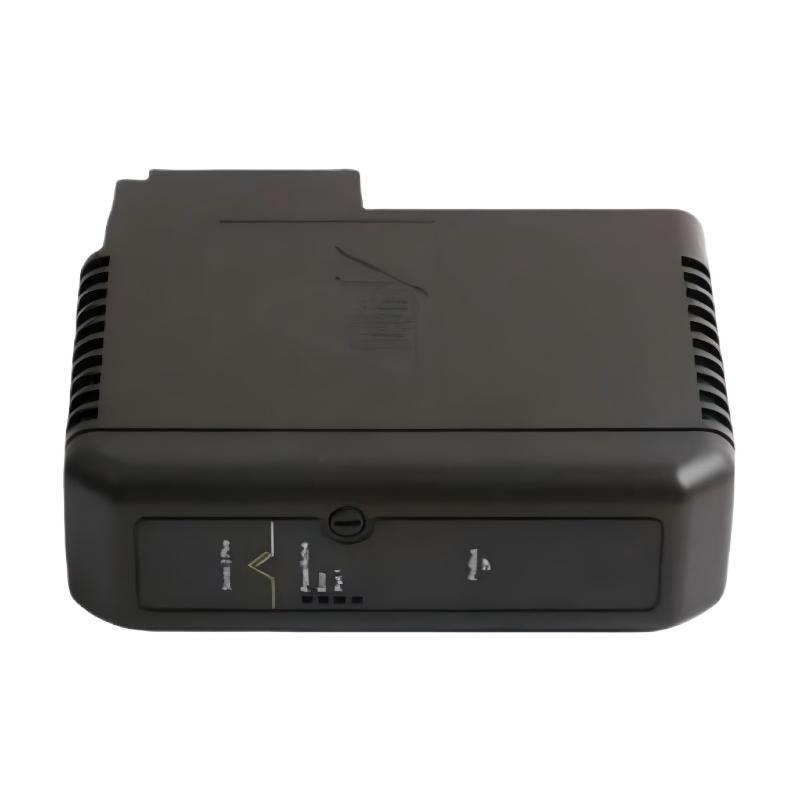

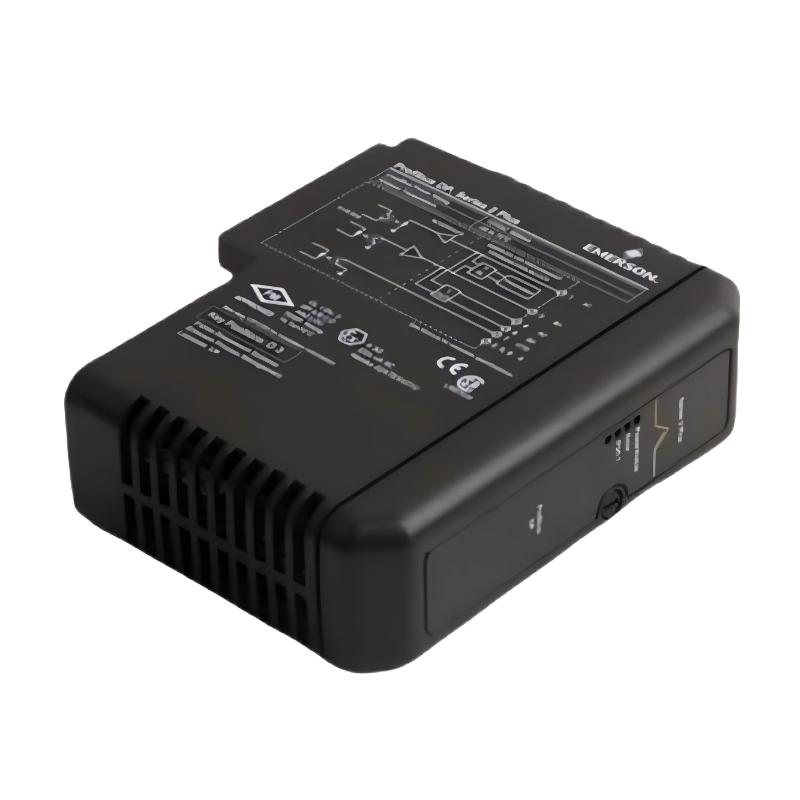

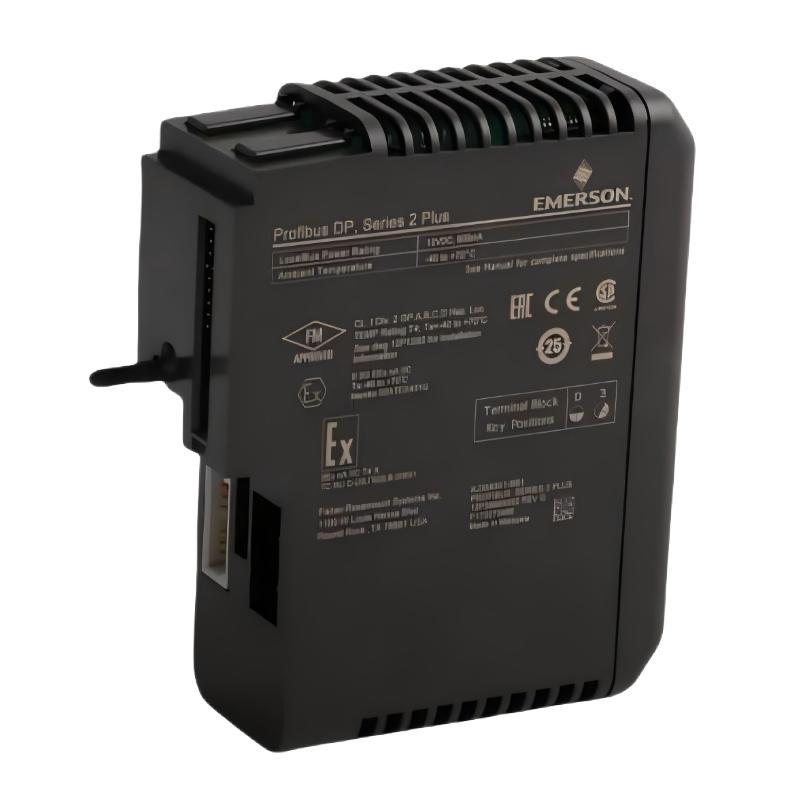

Q1: What is the primary function of the KJ3243X1-BB1 Profibus DP Interface Card?
A: The KJ3243X1-BB1 is designed to connect the Emerson DeltaV control system with Profibus DP field devices. It acts as a communication gateway, enabling high-speed cyclic data exchange between the controller and distributed field equipment. This includes reading process values, transmitting control commands, and collecting diagnostic information from connected devices. It plays a key role in integrating fieldbus-based automation systems into a centralized control architecture.

Q2: What advantages does PROFIBUS DP provide in industrial automation?
A: PROFIBUS DP is a widely used high-speed fieldbus protocol optimized for deterministic communication in industrial environments. It supports multiple devices on a single network, reducing wiring complexity and installation cost. It also ensures fast and reliable data exchange, making it suitable for real-time control applications such as drives, remote I/O systems, and process instrumentation.

Q3: What types of field devices can be connected through this module?
A: The module supports all PROFIBUS DP-compliant slave devices, including remote I/O modules, variable frequency drives (VFDs), smart sensors, actuators, and process instruments. These devices communicate using standardized DP protocol services, allowing them to be fully integrated into the DeltaV control system for monitoring and control.

Q4: How does the module operate within a DeltaV system architecture?
A: The KJ3243X1-BB1 is installed in a DeltaV I/O rack and communicates with the controller via the system backplane. It functions as the PROFIBUS DP master, continuously polling slave devices on the network. It collects process data, transfers it to the controller, and sends control commands back to field devices, ensuring synchronized system operation.

Q5: How should PROFIBUS DP communication faults be diagnosed?
A: Troubleshooting should begin by checking cable integrity, connector condition, and proper termination resistance at both ends of the bus. Device addressing must be verified to avoid conflicts, and baud rate settings must be consistent across the network. Diagnostic tools within the DeltaV system can be used to identify specific slave errors, communication interruptions, or bus load issues.

Q6: How does this module improve system reliability?
A: The KJ3243X1-BB1 is designed with industrial-grade electronics and strong EMI immunity, ensuring stable operation in harsh environments. It continuously monitors network health and device status, allowing early detection of communication faults or device failures. This improves system availability and reduces the risk of unexpected downtime.

Q7: Does the module support online diagnostics and maintenance?
A: Yes. The module supports real-time diagnostics of network status, including device connectivity, communication errors, and performance metrics. It also supports online replacement in compatible system configurations, minimizing process interruptions during maintenance activities.

Q8: What practices ensure long-term stable operation?
A: Proper installation and maintenance are critical. PROFIBUS cabling should be shielded, correctly terminated, and separated from power cables to avoid interference. Periodic inspection of connectors, grounding systems, and network diagnostics is recommended. Maintaining proper network configuration and monitoring diagnostic data helps ensure long-term stability and reliable operation.
