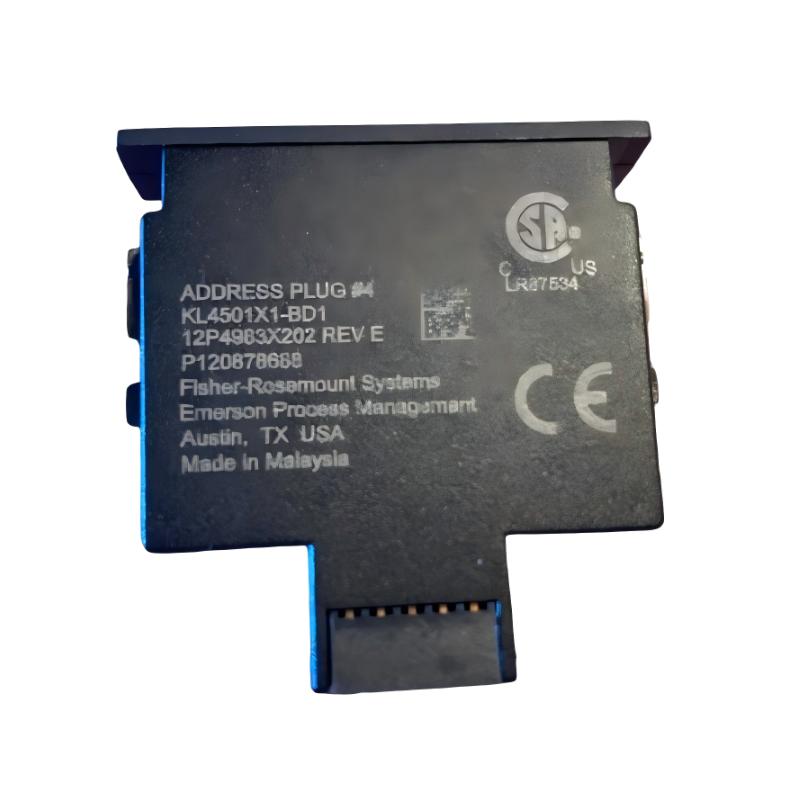

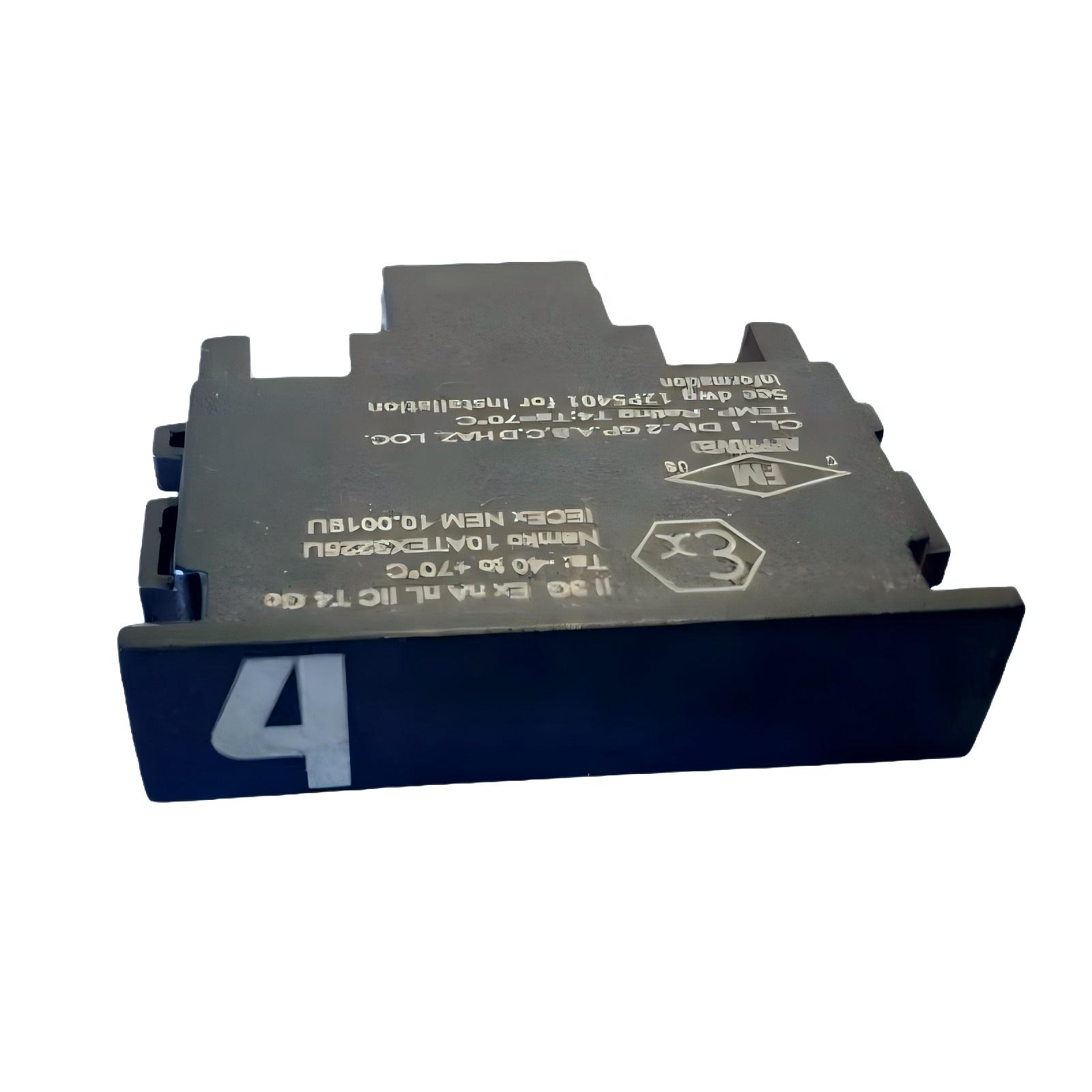

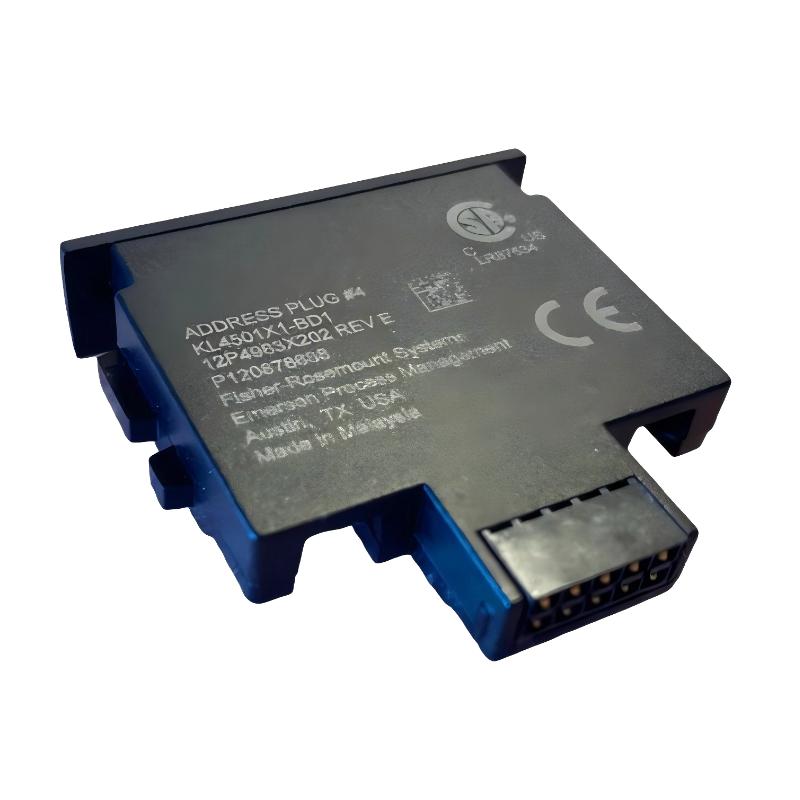

Q1: What is the primary function of the Emerson KL4501X1-BD1 CHARM Address Plug?
A: The KL4501X1-BD1 CHARM Address Plug is a hardware-based identification component used in Emerson DeltaV CHARM I/O systems. Its main function is to assign a unique physical address to each CHARM module so that the control system can correctly identify, configure, and manage individual I/O points. Instead of relying entirely on software-based configuration, the system uses this physical plug to encode module identity. This ensures that every input and output signal is accurately mapped to the correct logic point in the control strategy. As a result, it plays a critical role in maintaining data integrity, system consistency, and reliable communication between field devices and the control system.

Q2: How does the KL4501X1-BD1 operate within a CHARM I/O system?
A: When inserted into a CHARM base, the KL4501X1-BD1 provides encoded address information that is automatically read by the DeltaV system during initialization or system startup. This information defines how the system should interpret and map the associated I/O module. Because of this, the controller can recognize the module configuration without requiring extensive manual engineering input. This hardware-based approach streamlines system setup, ensures consistency across multiple modules, and reduces dependency on software configuration, which is especially valuable in large-scale distributed control systems.

Q3: Why does DeltaV use hardware-based addressing instead of only software configuration?
A: Hardware-based addressing significantly reduces complexity and improves reliability in industrial automation systems. In purely software-configured systems, engineers must manually assign and verify I/O addresses, which increases engineering workload and the possibility of human error. The KL4501X1-BD1 eliminates much of this risk by physically encoding module identity. This ensures repeatable configuration, faster commissioning, and more consistent system behavior across different installations. It is particularly useful in large plants where hundreds or thousands of I/O points must be configured accurately and efficiently.

Q4: Does the KL4501X1-BD1 process or transmit field signals?
A: No, the KL4501X1-BD1 does not process, convert, or transmit any field signals. Its function is strictly limited to providing identification and addressing information for CHARM I/O modules. All actual signal acquisition, conditioning, and transmission are handled by the CHARM I/O modules themselves. The address plug only ensures that the control system correctly recognizes which logical configuration corresponds to which physical module, enabling accurate signal mapping within the DeltaV architecture.

Q5: Can the KL4501X1-BD1 be replaced during operation or maintenance?
A: Yes, the KL4501X1-BD1 is designed for plug-and-play replacement. It can be removed and replaced during system maintenance or reconfiguration activities. However, any change in addressing must be carefully aligned with the system configuration to ensure that hardware and software remain synchronized. If mismatched, I/O mapping inconsistencies may occur. For this reason, replacement is typically performed under controlled maintenance procedures to ensure system integrity is maintained.

Q6: What advantages does this component provide during system commissioning?
A: During commissioning, the KL4501X1-BD1 significantly simplifies the configuration process by reducing or eliminating the need for manual I/O address assignment in software. Engineers install the appropriate address plugs according to the system design, and the DeltaV system automatically detects and applies the configuration. This reduces engineering time, minimizes configuration errors, and ensures consistent setup across multiple CHARM modules. In large-scale automation projects, this can greatly accelerate startup schedules and improve commissioning efficiency.

Q7: In which industries is this component typically used?
A: The KL4501X1-BD1 is widely used in industries that rely on Emerson DeltaV control systems, including oil and gas production, petrochemical refining, chemical processing, power generation, pharmaceutical manufacturing, and other continuous process industries. These environments require highly reliable I/O configuration and consistent system behavior. The use of hardware-based addressing helps ensure system stability, simplifies maintenance, and supports large-scale distributed control applications where reliability is critical.

Q8: What are the main benefits of hardware-based addressing compared to software-only configuration?
A: Hardware-based addressing offers several important advantages. It reduces engineering workload by eliminating repetitive manual configuration tasks, and it significantly lowers the risk of human error in I/O mapping. It also improves system consistency, since physical configuration remains stable even after software updates or maintenance activities. Additionally, it accelerates commissioning and system expansion, making it easier to scale large automation systems. Overall, it enhances reliability, maintainability, and operational predictability in complex industrial environments.
