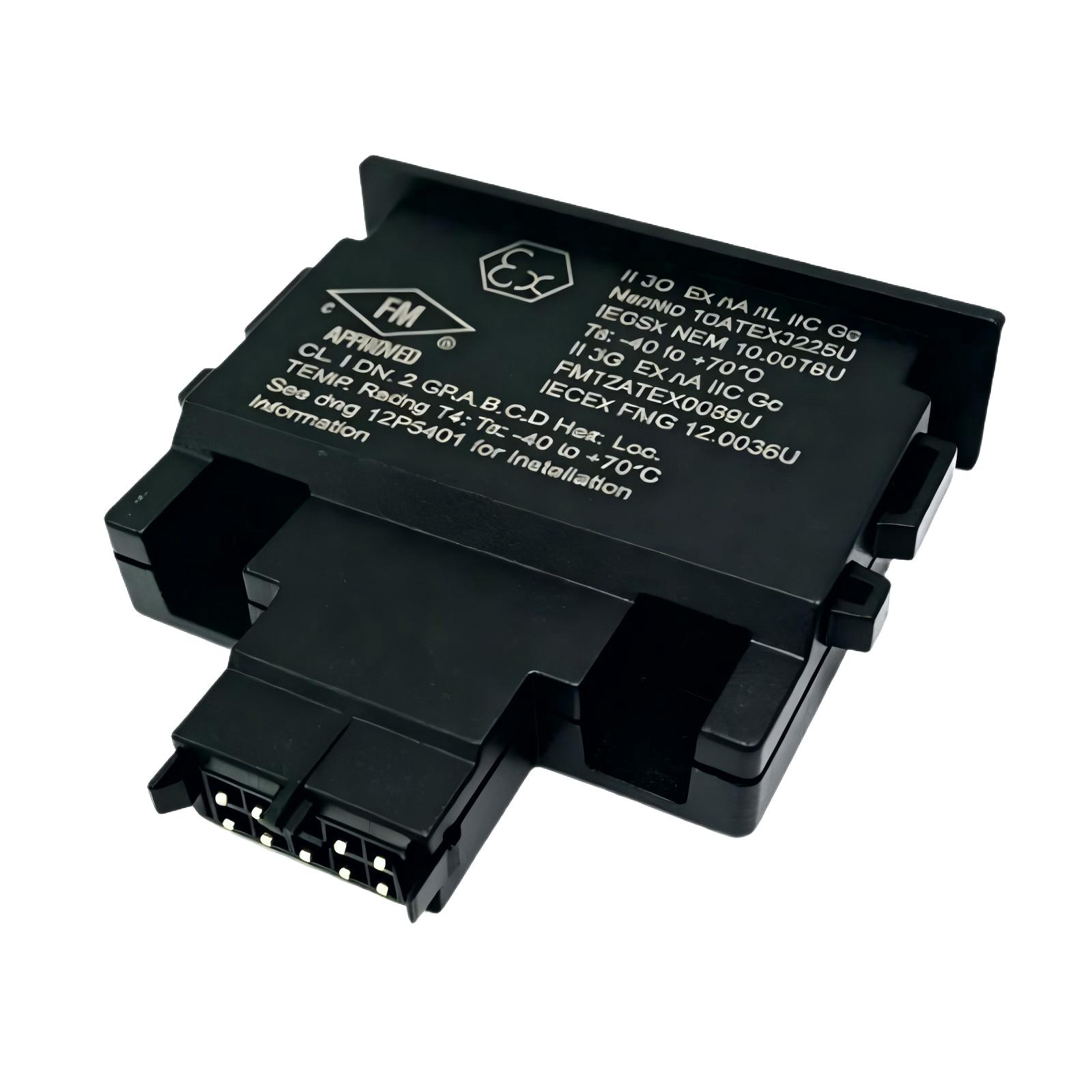

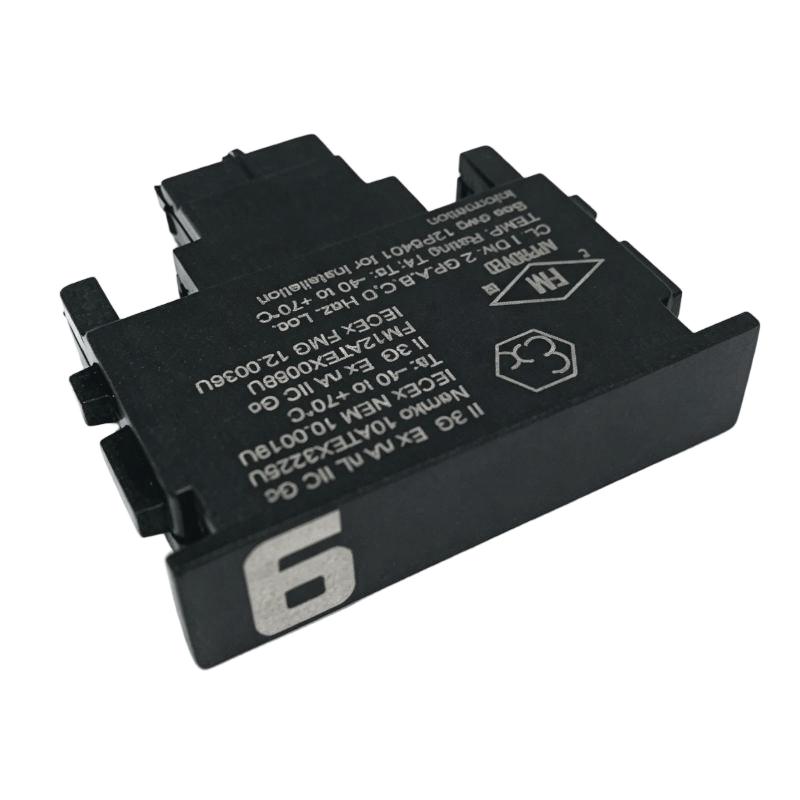

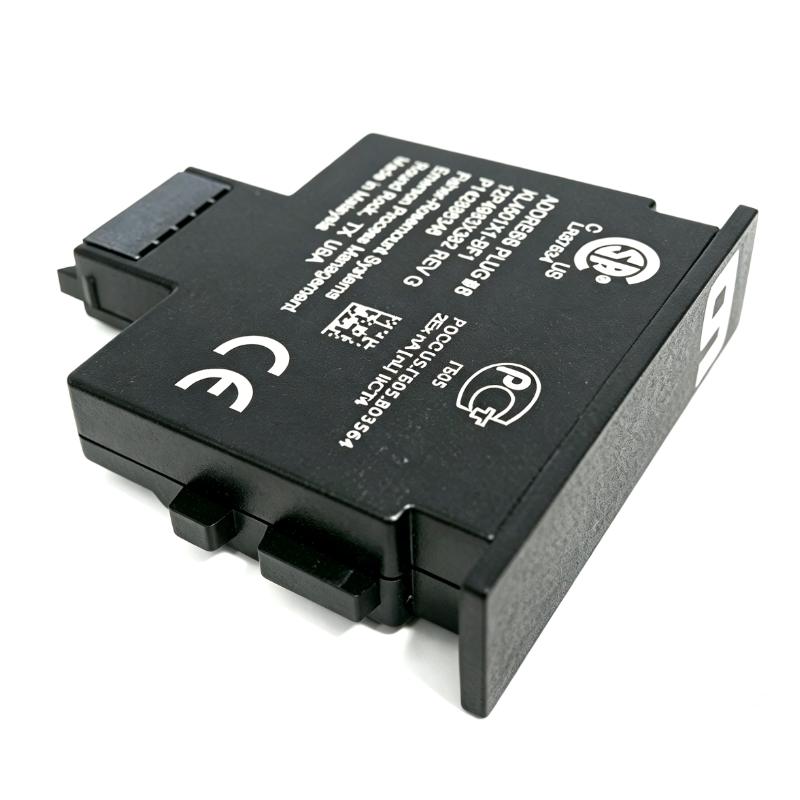

Q1: What is the primary function of the Emerson KL4501X1-BF1 CHARM Address Plug?
A: The KL4501X1-BF1 CHARM Address Plug is a hardware-based identification component used within Emerson DeltaV CHARM I/O systems. Its primary function is to assign a unique physical address to each CHARM module so that the control system can correctly identify, configure, and manage individual I/O points. Instead of relying solely on software configuration, the system uses this plug to encode module identity at the hardware level. This ensures that every input and output signal is correctly mapped to its corresponding control logic, improving overall system integrity, traceability, and reliability in distributed automation environments.

Q2: How does the KL4501X1-BF1 work inside a CHARM I/O system?
A: Once installed into a CHARM base, the KL4501X1-BF1 provides encoded address information that is automatically detected by the DeltaV system during initialization. The controller reads this hardware-based identity and uses it to assign I/O mappings without requiring extensive manual configuration. This means that the system can instantly recognize the structure of I/O modules at startup, significantly simplifying engineering work, reducing commissioning time, and ensuring consistent configuration across multiple installations or system expansions.

Q3: Why does DeltaV use hardware-based addressing instead of software-only configuration?
A: Hardware-based addressing is used to reduce complexity and eliminate many of the risks associated with manual configuration. In large-scale automation systems, software-only addressing requires engineers to manually assign and verify I/O points, which can be time-consuming and prone to human error. The KL4501X1-BF1 eliminates much of this dependency by physically encoding address information. This approach improves repeatability, ensures configuration consistency across projects, and makes system expansion significantly more reliable and predictable, especially in complex industrial environments with thousands of I/O signals.

Q4: Does the KL4501X1-BF1 process or influence field signals directly?
A: No, the KL4501X1-BF1 does not process, modify, or transmit any field signals. It is strictly an identification device. All signal acquisition, conditioning, conversion, and transmission are handled by the CHARM I/O modules themselves. The address plug’s role is purely to provide identification data so that the control system knows how to interpret and map those signals correctly within the DeltaV architecture. This separation of functions improves system modularity and reliability.

Q5: Can the KL4501X1-BF1 be replaced or changed in an operating system?
A: Yes, the KL4501X1-BF1 is designed for plug-and-play replacement. It can be removed and replaced during maintenance or system reconfiguration. However, any change in hardware addressing must be carefully synchronized with the system’s configuration to ensure that software mappings remain consistent with physical hardware. If this alignment is not maintained, I/O misinterpretation could occur. Therefore, replacement is typically performed under controlled maintenance procedures following engineering guidelines to ensure system integrity is preserved.

Q6: What role does this component play during system commissioning?
A: During commissioning, the KL4501X1-BF1 plays a significant role in simplifying configuration and reducing engineering workload. Instead of manually configuring every I/O point in software, engineers install the appropriate address plugs according to the system design. The DeltaV system then automatically reads these hardware identifiers and applies the correct I/O mapping. This approach significantly reduces setup time, minimizes configuration errors, and ensures that large-scale systems can be brought online more quickly and consistently.

Q7: In which industries is the KL4501X1-BF1 commonly used?
A: The KL4501X1-BF1 is widely used in process industries that rely on Emerson DeltaV control systems, including oil and gas production, petrochemical refining, chemical manufacturing, power generation, pharmaceutical production, and other continuous process industries. These sectors require high levels of system reliability, consistent I/O mapping, and efficient maintenance practices. The use of hardware-based addressing supports these requirements by ensuring stable system configuration and reducing operational complexity.

Q8: What are the main advantages of hardware-based addressing compared to traditional software configuration?
A: Hardware-based addressing offers several key advantages over software-only configuration. It reduces engineering effort by eliminating repetitive manual mapping tasks, lowers the risk of human error, and ensures consistent configuration across multiple systems or project phases. It also improves system scalability, making it easier to expand or modify large installations without disrupting existing configurations. Additionally, it enhances system reliability because physical addressing remains stable even if software is updated or reloaded, ensuring predictable and repeatable system behavior in critical industrial environments.
