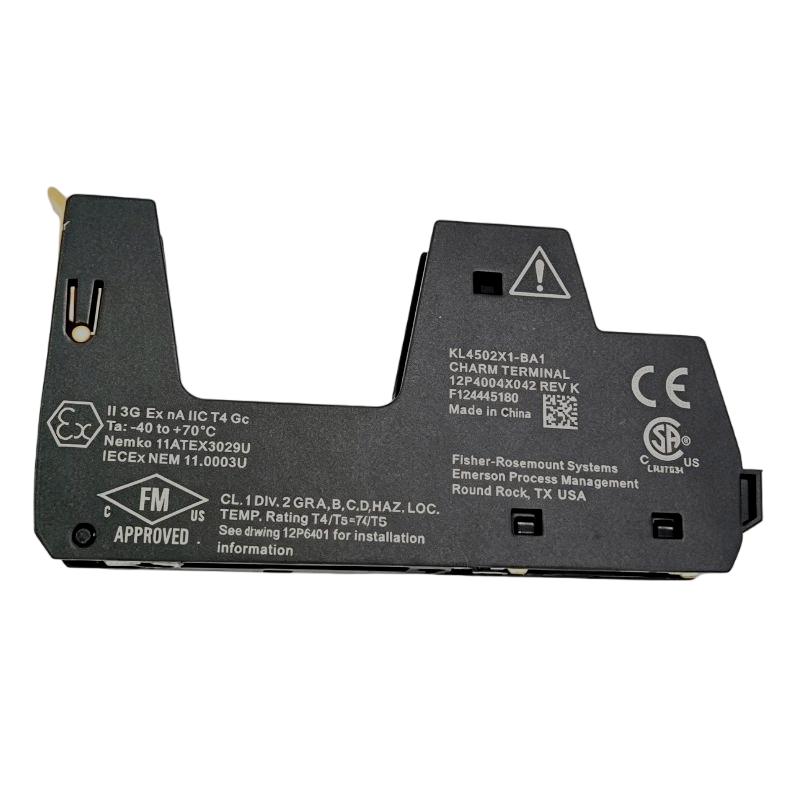

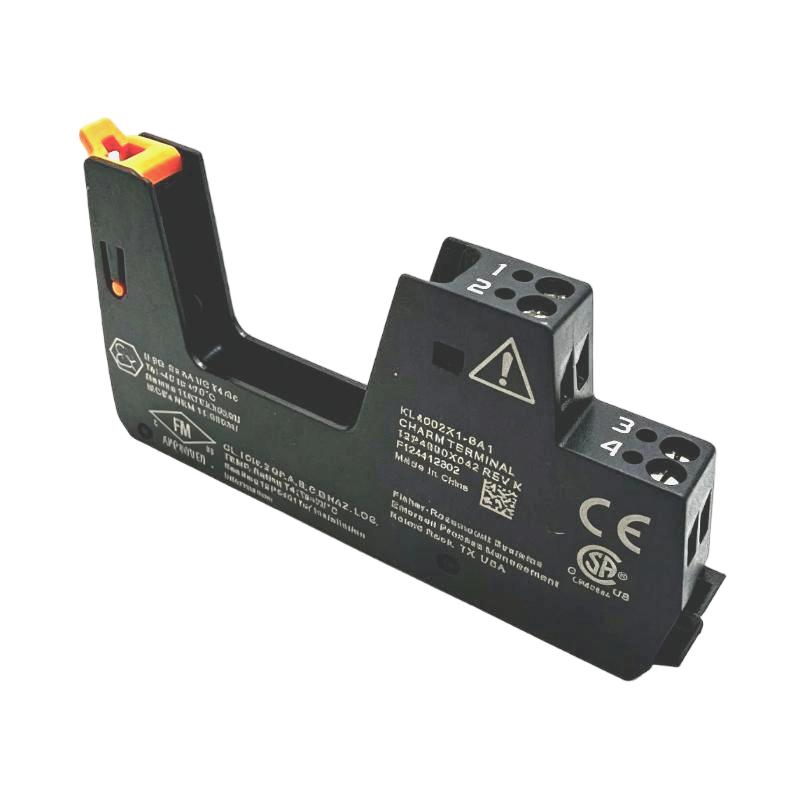

Q1: What is the primary function of the Emerson KL4502X1-DA1 CHARM Terminal Block?
A: The KL4502X1-DA1 CHARM Terminal Block is a key interface component in Emerson DeltaV CHARM I/O systems. Its primary function is to provide a structured and reliable termination point for field wiring and to route those signals into CHARM I/O modules. In practical terms, it acts as the physical bridge between external field devices—such as sensors, switches, transmitters, and actuators—and the control system. It does not perform any signal processing itself; instead, it ensures that electrical signals are safely and accurately delivered to the correct CHARM modules. This structured wiring interface is essential for maintaining order, safety, and signal integrity in large industrial automation systems.

Q2: How does the KL4502X1-DA1 integrate into a CHARM I/O system architecture?
A: In a CHARM-based DeltaV system, the KL4502X1-DA1 is installed as part of the field termination layer. Field devices are wired directly into the terminal block, and from there, signals are passed to CHARM I/O modules for processing. The terminal block ensures that each signal follows a clearly defined path, reducing wiring complexity and minimizing the risk of misconnection. It also supports modular expansion, meaning additional field connections can be added or modified without redesigning the entire wiring system. This makes it an essential part of scalable and maintainable DCS architecture.

Q3: Does the KL4502X1-DA1 perform any signal conversion or processing?
A: No, the KL4502X1-DA1 does not perform any signal conversion, conditioning, or processing. It is a purely passive electrical interface device. Its sole purpose is to provide secure and organized physical connections between field wiring and CHARM I/O modules. All signal interpretation, filtering, digitization, and control logic execution are handled downstream by the CHARM modules and the DeltaV controller. This separation of functions improves system reliability and simplifies troubleshooting, as wiring issues and control logic remain clearly separated.

Q4: Why is a dedicated terminal block necessary in CHARM I/O systems?
A: A dedicated terminal block like the KL4502X1-DA1 is necessary because industrial automation systems involve large numbers of field signals that must be organized, labeled, and reliably connected. Without a structured termination system, wiring would become complex, error-prone, and difficult to maintain. The terminal block provides a standardized interface that ensures consistent wiring practices across the entire plant. It also simplifies installation, reduces commissioning errors, and makes maintenance significantly easier by clearly separating field wiring from control electronics.

Q5: Can the KL4502X1-DA1 be replaced or serviced in the field?
A: Yes, the KL4502X1-DA1 is designed for modular replacement and maintenance. It can be removed and replaced without disturbing the entire CHARM I/O system, provided that proper safety and wiring procedures are followed. During replacement, field wiring must be carefully documented and reconnected to ensure signal continuity. This modular design significantly reduces downtime during maintenance and allows for efficient system upgrades or reconfiguration without major rewiring efforts.

Q6: What types of field signals are typically connected through this terminal block?
A: The KL4502X1-DA1 is used to connect a wide variety of industrial field signals, depending on system configuration. These may include digital inputs from switches and sensors, relay contacts, analog signals from transmitters, and discrete control signals used for interlocking and monitoring. In all cases, the terminal block serves as a secure physical interface that ensures signals are properly routed to the corresponding CHARM modules for further processing within the DeltaV control system.

Q7: In which industries is the KL4502X1-DA1 commonly used?
A: The KL4502X1-DA1 is widely used in industries that rely on Emerson DeltaV control systems, including oil and gas production, petrochemical refining, chemical processing, power generation, pharmaceuticals, and water treatment facilities. These industries require highly reliable and well-organized field wiring infrastructure due to the complexity and scale of their automation systems. The terminal block plays a key role in ensuring safe, maintainable, and efficient field signal management in these environments.

Q8: What are the main advantages of using a modular CHARM terminal block system?
A: A modular CHARM terminal block system offers several important advantages. First, it significantly improves wiring organization by providing a structured and standardized connection point for field devices. Second, it simplifies installation and maintenance by allowing individual modules to be replaced without affecting the entire system. Third, it reduces the risk of wiring errors during commissioning and system expansion. Finally, it enhances long-term maintainability by clearly separating field wiring from control logic, making troubleshooting faster and more efficient in complex industrial environments.
