Q1: What is the main function of the Emerson SE4001S2T2B5 with terminal blocks?

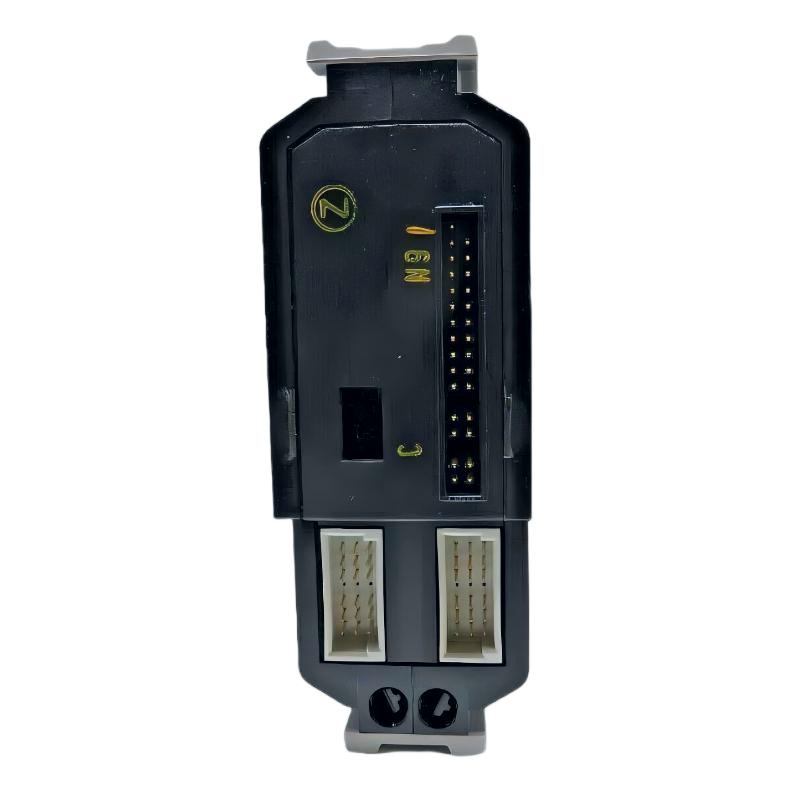

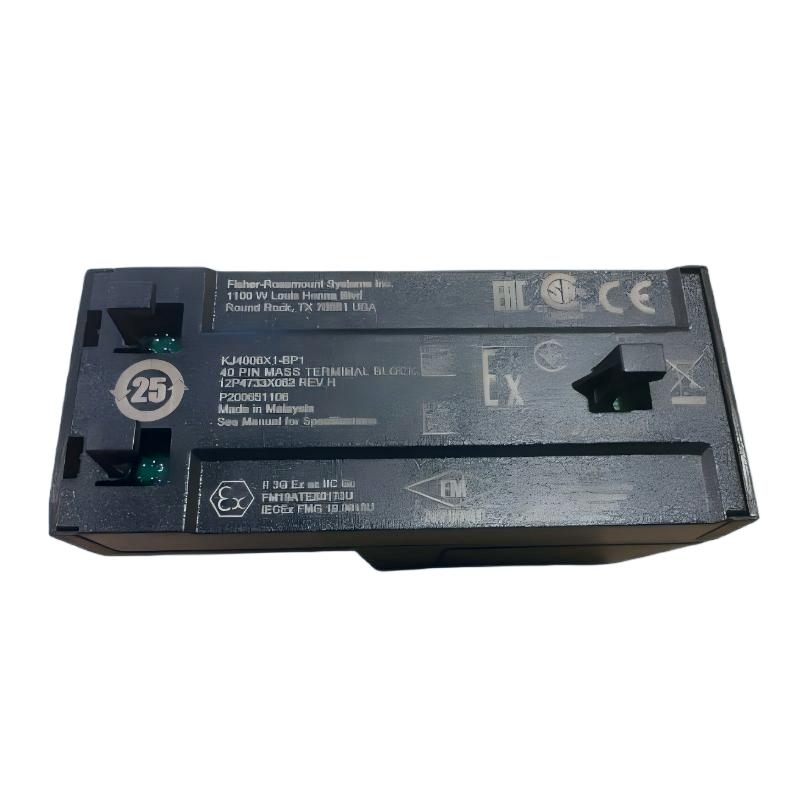

A: This module is designed to collect discrete ON/OFF signals from field devices and transmit them to the DeltaV control system for processing. The integrated terminal block assembly (KJ4006X1-BP1 + KJ3203X1-BK1) provides a structured and reliable interface for field wiring, ensuring stable electrical connections. It is widely used for monitoring switch states, relay contacts, proximity sensors, and other digital field devices. The collected signals are used for control logic execution, interlocking, alarm handling, and system sequencing within industrial automation environments.

Q2: How does the terminal block configuration improve system usability?

A: The dedicated terminal block design simplifies field wiring by providing clearly organized connection points for each input channel. This reduces wiring errors and improves installation efficiency. It also enhances maintainability, as technicians can easily trace and replace field connections without affecting the module itself. In addition, the modular terminal design improves electrical stability by ensuring secure contact pressure and reducing the risk of loose connections in high-vibration environments.

Q3: How does the module process discrete input signals?

A: The module continuously scans all input channels using an internal high-speed sampling mechanism. When a field device changes state, such as a switch opening or closing, the module detects the electrical transition and converts it into a digital signal. This signal is then filtered, validated, and transmitted through the system backplane to the DeltaV controller. Each channel operates independently, allowing simultaneous multi-point signal acquisition with high accuracy and stability.

Q4: What role does signal filtering play in this system?

A: Signal filtering is essential for eliminating false triggers caused by contact bounce, electrical noise, or transient disturbances. In industrial environments, mechanical switches and relay contacts often generate unstable signals during state transitions. The module applies internal debounce logic and digital filtering algorithms to ensure only stable and verified state changes are recognized. This significantly improves control system reliability and prevents incorrect logic execution.

Q5: Why is electrical isolation important in this module?

A: Electrical isolation protects the control system from field-side disturbances such as voltage spikes, grounding differences, and electromagnetic interference. Each channel is electrically separated to prevent fault propagation between inputs. This design ensures that a failure or disturbance in one field circuit does not affect other channels or the central control system, greatly improving operational safety and system robustness in industrial environments.

Q6: What types of field devices can be connected to this input system?

A: The module supports a wide range of discrete field devices, including mechanical limit switches, pushbuttons, selector switches, relay contacts, proximity sensors, pressure switches, and flow switches. It is commonly used in applications such as equipment start/stop monitoring, valve position feedback, safety interlocks, alarm status collection, and production line state detection. Its flexibility makes it suitable for nearly all industrial discrete signal applications.

Q7: How does this module communicate with the DeltaV system?

A: Communication is achieved through the internal system backplane, which allows direct and high-speed data exchange between the module and the DeltaV controller. This eliminates the need for external communication wiring, reducing installation complexity and improving reliability. The backplane architecture also provides low-latency transmission and strong resistance to electromagnetic interference, ensuring stable real-time performance in demanding industrial environments.

Q8: What factors influence long-term reliability of this module?

A: Long-term reliability depends on installation quality, environmental conditions, and maintenance practices. Poor wiring practices, such as loose terminals or improper grounding, can introduce signal instability. Harsh environments with high temperature, humidity, dust, or vibration can accelerate component aging. Additionally, strong electromagnetic interference from nearby industrial equipment may affect signal integrity if shielding is insufficient. Regular inspection of terminal connections, proper cabinet ventilation, and adherence to installation guidelines are essential to ensure stable long-term operation.
