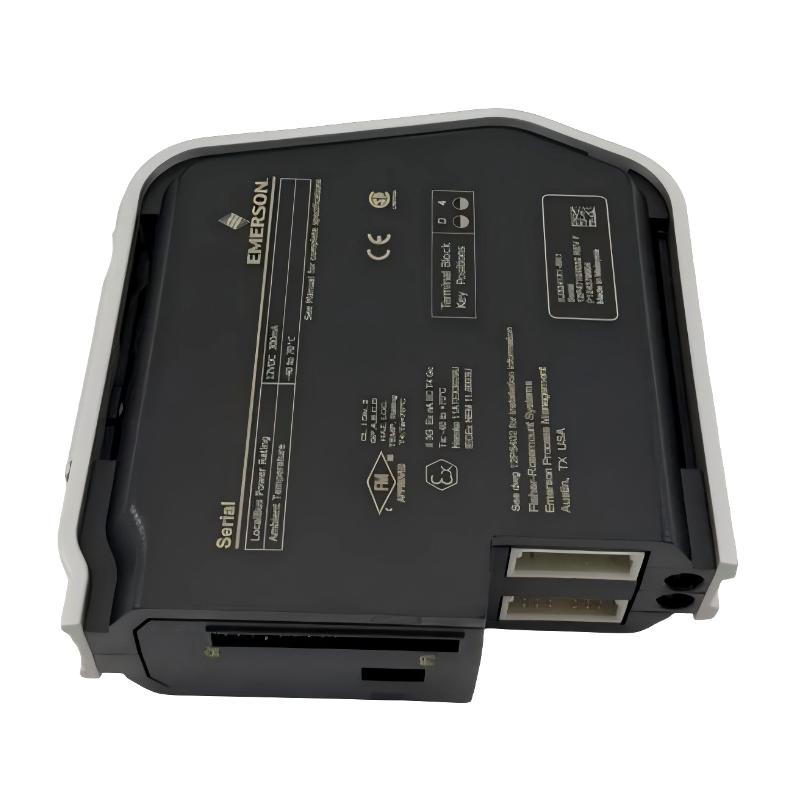

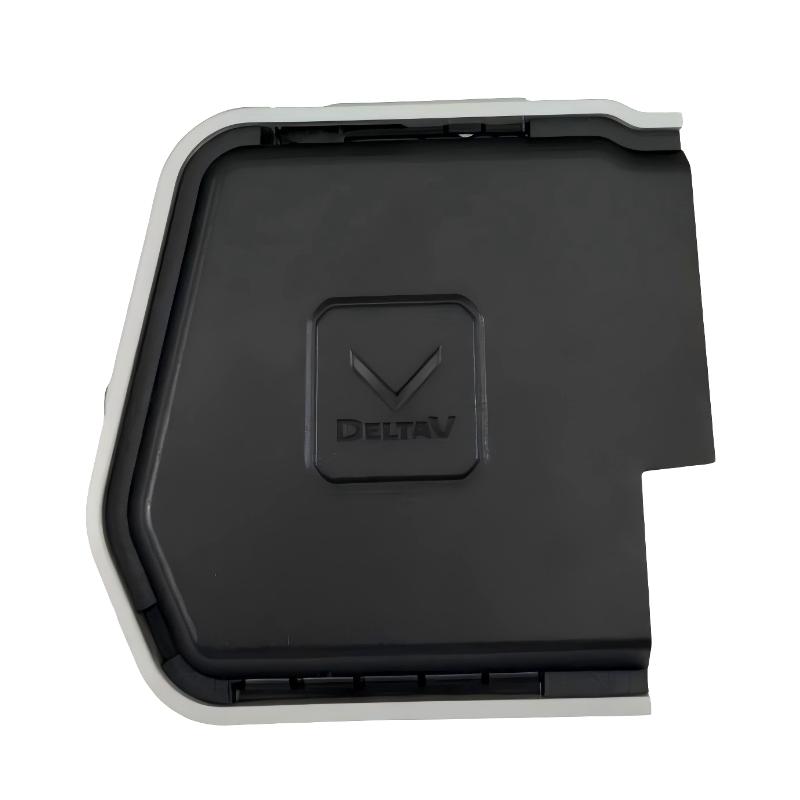

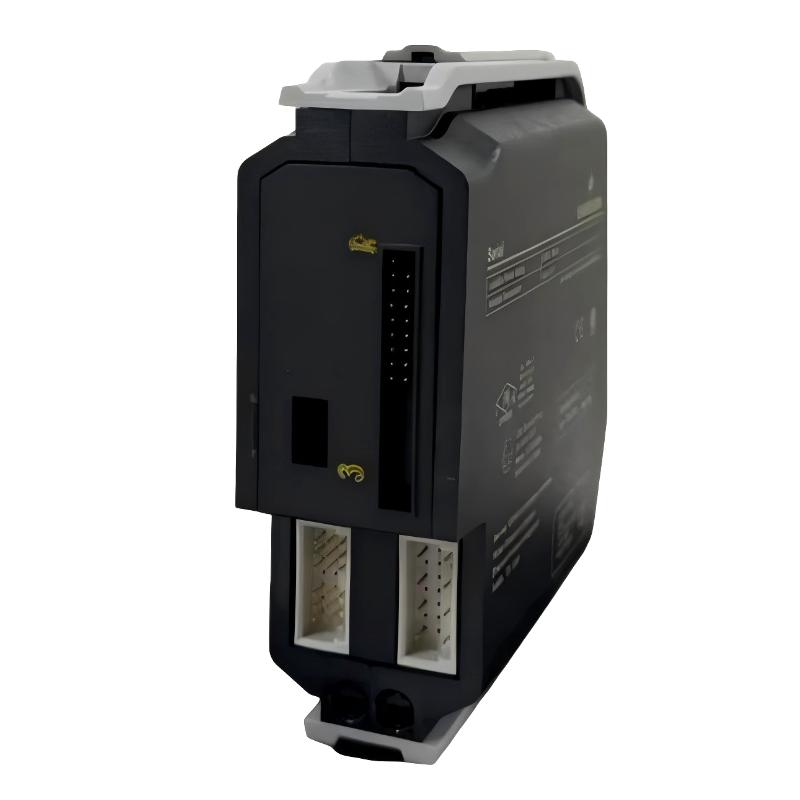

Q1: What is the primary function of the Emerson SE4001S3T1B1 Discrete Input Card?

A: The SE4001S3T1B1 Discrete Input Card is designed to acquire ON/OFF status signals from field devices and transmit them to the DeltaV control system for processing. It serves as a fundamental interface between field instrumentation and the control logic layer. The module collects signals from devices such as limit switches, pushbuttons, relay contacts, proximity sensors, and other discrete field instruments. These signals represent equipment status information and are used by the control system for real-time monitoring, sequencing, interlocking, alarm generation, and safety logic execution. In industrial automation systems, this module is essential for ensuring that the controller has accurate visibility of field conditions.

Q2: How does the SE4001S3T1B1 process incoming field signals?

A: The module continuously scans each input channel using an internal high-speed sampling mechanism. When a field device changes state, such as a switch opening or closing, the module detects the corresponding electrical transition. This signal is then converted into a stable digital logic state. After internal processing and validation, the signal is transmitted through the system backplane to the DeltaV controller. Each channel operates independently, allowing simultaneous acquisition of multiple signals without interference. This ensures that the system can accurately capture real-time changes across many field devices at once.

Q3: What is the purpose of signal filtering and debounce processing in this module?

A: In industrial environments, mechanical switches and relay contacts often produce unstable transient signals during state changes. These short pulses, known as contact bounce, can lead to false triggering if not properly handled. The SE4001S3T1B1 includes built-in debounce logic and digital filtering algorithms that ignore these transient fluctuations. Only when a signal remains stable for a defined period does the module confirm the state change. This ensures that the control system receives only valid and reliable input data, improving overall system stability and preventing unintended control actions.

Q4: Why is channel-level electrical isolation important in this design?

A: Channel-level isolation ensures that each input circuit is electrically separated from other channels and from the internal electronics of the module. Industrial environments often contain high-energy equipment such as motors, solenoids, and contactors that generate voltage spikes, electromagnetic noise, and grounding differences. Without isolation, these disturbances could propagate through the system and affect multiple channels or even damage sensitive electronics. Isolation protects the module, improves safety, and ensures that faults in one field circuit do not impact the rest of the system.

Q5: What types of field devices are compatible with this input card?

A: The SE4001S3T1B1 supports a wide range of discrete field devices, including mechanical limit switches, pushbuttons, selector switches, proximity sensors, pressure switches, flow switches, relay contacts, and equipment status feedback signals. It is commonly used in applications such as machine start/stop monitoring, valve position feedback, safety interlock systems, alarm status collection, and production line state detection. Its flexibility allows it to be used in nearly all industrial applications requiring reliable discrete signal acquisition.

Q6: In which industries is this module commonly used?

A: This module is widely used across industries such as oil and gas, petrochemical processing, chemical manufacturing, power generation, pharmaceuticals, water and wastewater treatment, pulp and paper production, mining, and general manufacturing. These industries require reliable monitoring of equipment status to ensure safe and efficient operations. The SE4001S3T1B1 provides stable and accurate signal acquisition, making it suitable for both standard process control and safety-related applications in continuous industrial environments.

Q7: How does the module communicate with the DeltaV system?

A: The SE4001S3T1B1 communicates with the DeltaV system through the internal backplane architecture of the control rack. All input data is transmitted directly to the controller without the need for external communication wiring. This backplane communication method provides high-speed data transfer, low latency, and strong immunity to electromagnetic interference. It also simplifies system installation by reducing wiring complexity and improving overall reliability, since fewer external connection points are required.

Q8: What factors can affect long-term reliability of this module?

A: Long-term reliability depends on several key factors including installation quality, electrical environment, and maintenance practices. Poor wiring practices such as loose terminals, improper grounding, or insufficient shielding can lead to unstable signal behavior. Harsh environmental conditions like high temperature, humidity, dust accumulation, and vibration can accelerate component aging. Strong electromagnetic interference from nearby industrial equipment may also affect signal integrity if proper shielding is not implemented. Regular inspection of wiring, ensuring proper cabinet ventilation, maintaining clean installation conditions, and following Emerson installation guidelines are essential to ensure stable and reliable long-term operation.
