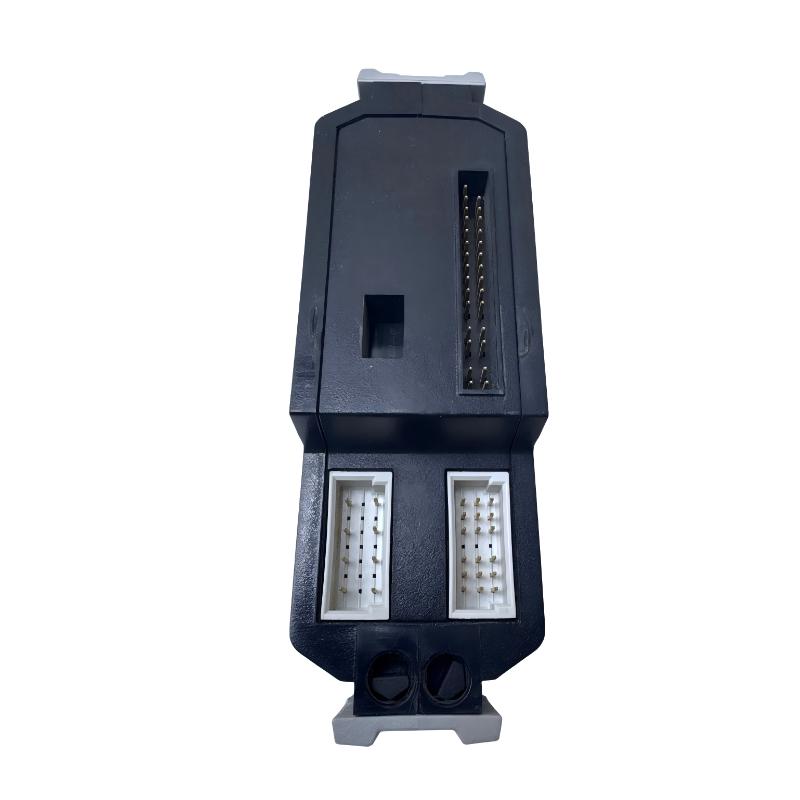

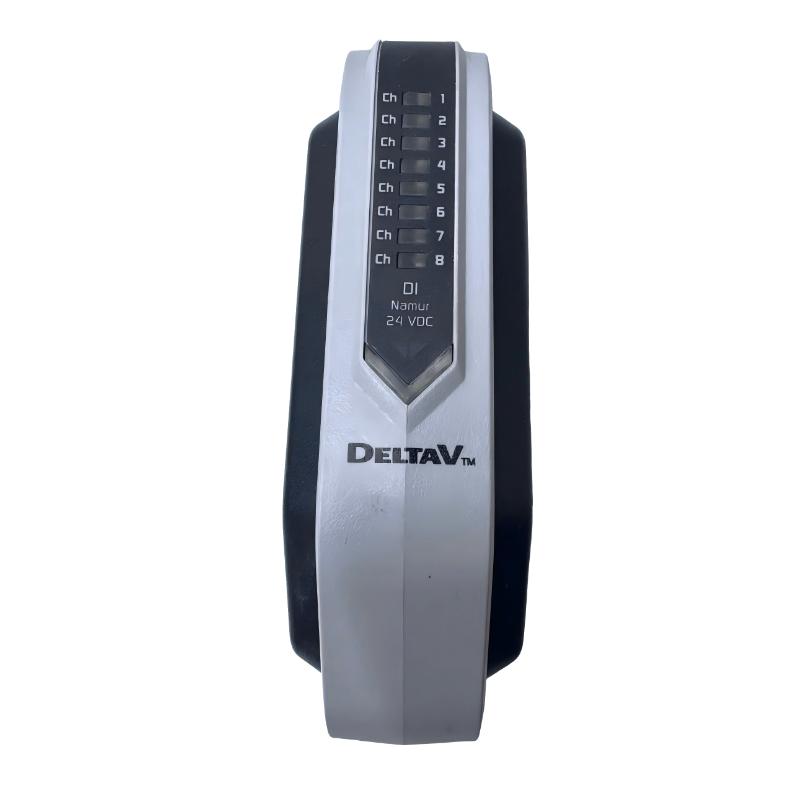

Q1: What is the primary function of the Emerson SE4001S3T1B2 Discrete Input Card?

A: The SE4001S3T1B2 is designed to acquire ON/OFF status signals from field devices and convert them into digital data for processing within the DeltaV control system. It acts as a critical interface between field instrumentation and the control logic layer. The module continuously monitors devices such as limit switches, pushbuttons, relay contacts, proximity sensors, and other discrete field instruments. These signals are used for real-time equipment status monitoring, sequence control, interlocking logic, alarm generation, and safety-related operations. It ensures the control system maintains accurate awareness of field conditions at all times.

Q2: How does the SE4001S3T1B2 process incoming field signals?

A: The module continuously scans each input channel using a high-speed internal sampling mechanism. When a field device changes state, such as a contact opening or closing, the module detects the corresponding electrical transition. This change is converted into a stable digital signal after internal processing. The signal is then transmitted through the system backplane to the DeltaV controller. Each channel operates independently, allowing simultaneous acquisition of multiple signals without interference. This ensures reliable and real-time data acquisition even in complex industrial environments.

Q3: Why is signal filtering and debounce processing important in this module?

A: In industrial environments, mechanical switches and relay contacts often generate unstable transient signals during switching operations. These brief fluctuations, known as contact bounce, can cause false triggering if not properly handled. The SE4001S3T1B2 includes built-in digital filtering and debounce logic that ignores short-duration disturbances. Only when the input signal remains stable for a defined period does the module confirm the state change. This significantly improves signal integrity, reduces false alarms, and ensures stable control system behavior.

Q4: What is the purpose of channel-level electrical isolation?

A: Channel-level isolation ensures that each input channel is electrically separated from the internal electronics and other channels within the module. Industrial environments often contain high-energy equipment such as motors, solenoids, and contactors that generate voltage spikes, grounding differences, and electromagnetic interference. Without isolation, these disturbances could propagate through the system and damage sensitive electronics or affect multiple channels. Isolation protects the system, improves safety, and ensures that a fault in one field circuit does not affect others.

Q5: What types of field devices are compatible with this module?

A: The SE4001S3T1B2 supports a wide range of discrete field devices, including mechanical limit switches, pushbuttons, selector switches, proximity sensors, pressure switches, flow switches, relay contacts, and equipment status feedback signals. It is commonly used in applications such as machine start/stop monitoring, valve position feedback, safety interlocking systems, alarm status collection, and production line state detection. Its flexibility allows it to be integrated into nearly any industrial system requiring reliable digital input acquisition.

Q6: In which industries is this module commonly used?

A: This module is widely used in industries such as oil and gas, petrochemical processing, chemical manufacturing, power generation, pharmaceuticals, water and wastewater treatment, pulp and paper production, mining, and general industrial manufacturing. These industries require highly reliable discrete signal monitoring for safe and efficient operation of complex processes. The SE4001S3T1B2 provides stable and accurate input acquisition, making it suitable for both standard control applications and safety-critical environments.

Q7: How does the module communicate with the DeltaV system?

A: The SE4001S3T1B2 communicates with the DeltaV system through the internal backplane architecture of the control rack. All input data is transmitted directly to the controller without any external communication wiring. This backplane communication ensures high-speed data transfer, low latency, and strong immunity to electromagnetic interference. It also simplifies system installation by reducing wiring complexity and improving overall system reliability, as fewer external connection points are required.

Q8: What factors affect the long-term reliability of this module?

A: Long-term reliability depends on installation quality, electrical environment, and maintenance practices. Poor wiring such as loose terminals, improper grounding, or insufficient shielding can lead to unstable signal behavior. Harsh conditions like high temperature, humidity, dust accumulation, or vibration can accelerate component aging. Strong electromagnetic interference from nearby industrial equipment may also affect signal integrity if proper shielding is not applied. Regular inspection of wiring, maintaining proper cabinet ventilation, ensuring clean installation conditions, and following Emerson installation guidelines are essential to ensure stable and reliable long-term operation.
