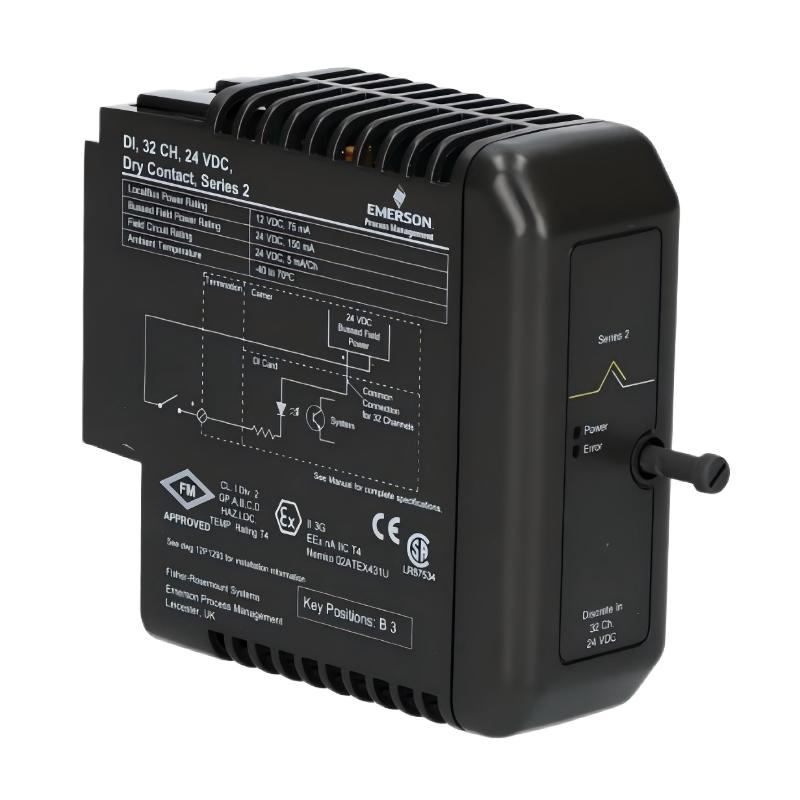

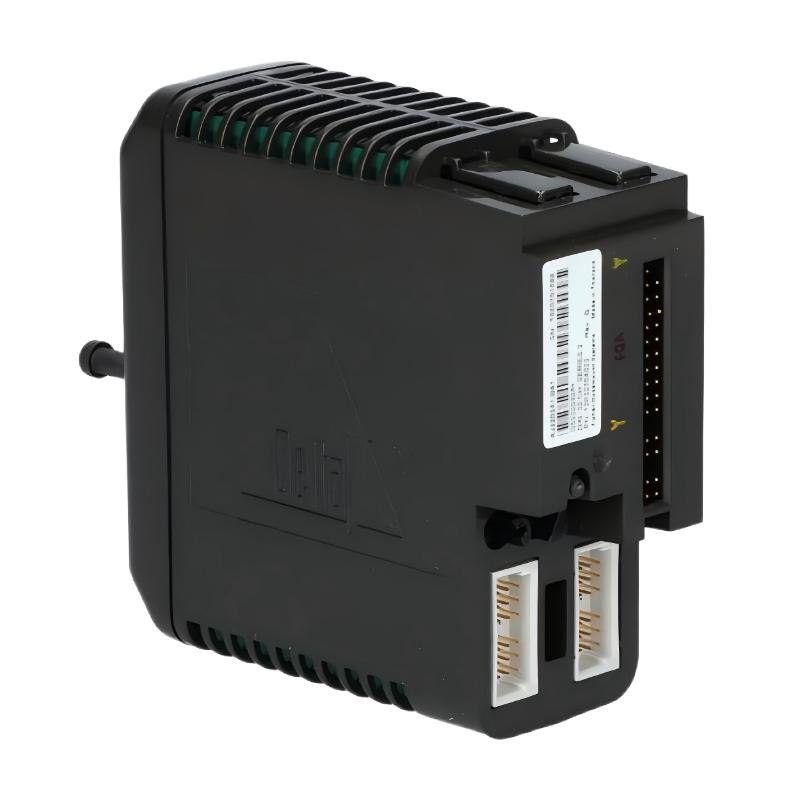

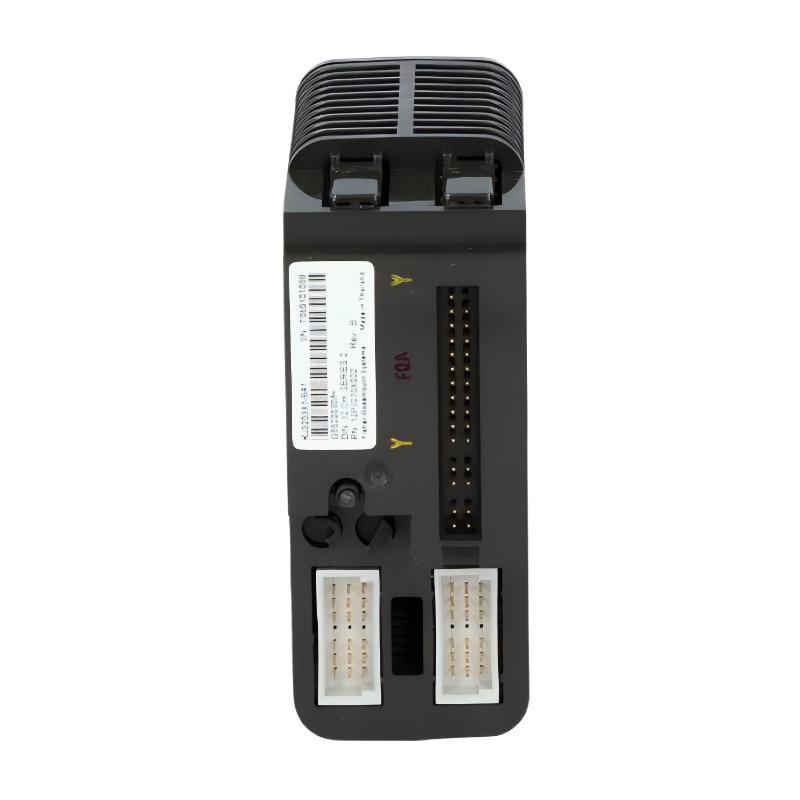

1. What is the main function of Emerson VE4001S2T1 Discrete Input Card?

Emerson VE4001S2T1 Discrete Input Card is a digital input module designed for Emerson DeltaV control systems. Its main function is to collect ON/OFF status signals from field devices and transfer this information to the control system for monitoring, alarm processing, and automation logic execution.

In industrial automation applications, many devices do not provide continuous measurement values but instead output simple status signals. Examples include motor running feedback, valve open or close indication, equipment fault signals, emergency stop signals, and limit switch feedback.

The VE4001S2T1 receives these discrete signals and converts them into information that can be recognized by the DeltaV system. Operators can monitor equipment conditions from the control room and configure automatic responses based on real-time device status.

The module plays an important role in connecting field equipment with the control system. Reliable digital signal acquisition helps improve process visibility, enhance equipment monitoring, and support safer industrial operations.

It is widely used in industries such as chemical processing, oil and gas, power generation, water treatment, and manufacturing automation where accurate equipment status monitoring is required.

2. What applications are suitable for Emerson VE4001S2T1 Discrete Input Card?

Emerson VE4001S2T1 is suitable for industrial applications that require reliable collection of digital status signals from field devices.

Typical applications include process plants, production facilities, energy systems, and automated manufacturing environments.

In these applications, many types of equipment need to provide status information to the DCS system. For example, pumps may send running or stopped feedback signals, valves may provide position feedback, and safety devices may generate alarm or protection signals.

The VE4001S2T1 allows these devices to communicate their operating status to the Emerson DeltaV system. Operators can view equipment conditions, monitor abnormal situations, and create automatic control strategies.

The module is also useful for system expansion projects because existing field devices with digital outputs can be integrated into the DeltaV platform without major changes to the plant infrastructure.

By providing stable field signal collection, the module improves operational efficiency and helps reduce manual inspection requirements.

3. How does Emerson VE4001S2T1 collect field digital signals?

Emerson VE4001S2T1 collects field digital signals by monitoring the electrical status changes from connected devices.

Industrial equipment often uses discrete signals to indicate different operating conditions. For example, a switch may indicate whether a machine is running, or a valve feedback signal may indicate whether the valve has reached the required position.

When the field device changes state, the VE4001S2T1 detects the input change and sends the updated status information to the DeltaV control system.

The control system can then use this information for different purposes, including alarm generation, sequence control, equipment monitoring, and safety logic operations.

Accurate digital signal detection is important because many industrial processes depend on correct equipment status information.

The VE4001S2T1 provides a reliable interface between field devices and the control system, helping maintain stable automation performance.

4. How can VE4001S2T1 input signal faults be diagnosed?

When Emerson VE4001S2T1 has input signal problems, troubleshooting should be performed systematically.

The first step is checking the DeltaV system diagnostics to review module status, channel information, and possible alarm messages.

Next, engineers should inspect the field wiring connections, including terminal points, signal cables, and connection conditions. Loose wiring or damaged cables can cause incorrect input status.

The connected field device should also be checked to confirm that it is generating the correct signal. A faulty switch, relay contact, or sensor may create problems even when the input module is operating normally.

Configuration settings should be reviewed as well. Incorrect channel assignments or system configuration parameters may prevent the DeltaV system from displaying the correct status.

A complete diagnosis should include the module, wiring, field equipment, and software configuration to accurately identify the fault source.

5. What are the common causes of VE4001S2T1 signal problems?

Common signal problems with Emerson VE4001S2T1 are usually caused by field device issues, wiring problems, configuration errors, or environmental interference.

Typical causes include:

• Damaged signal cables;
• Loose terminal connections;
• Faulty switches or relay contacts;
• Incorrect input configuration;
• Unstable field signal supply;
• Electrical interference from nearby equipment.

For example, if a device status is not displayed correctly in the DeltaV system, the problem may come from the field equipment rather than the input card itself.

Industrial environments may include electrical noise from motors, drives, and high-power equipment, which can affect signal stability.

Before replacing the module, maintenance engineers should perform detailed checks to confirm the actual cause.

Proper installation, regular inspection, and correct configuration are important for maintaining reliable operation.

6. How should Emerson VE4001S2T1 be installed and configured?

Emerson VE4001S2T1 should be installed according to DeltaV system requirements to ensure stable operation.

Before installation, engineers should confirm hardware compatibility and prepare the correct field wiring and termination components.

After installing the module into the DeltaV I/O system, field signal connections should be completed according to the approved wiring configuration.

The next step is configuring the module in the DeltaV engineering environment. Engineers need to define input channels, assign device information, configure alarms, and establish required control logic.

After configuration, functional testing should be performed to confirm that field signals are correctly detected and displayed.

Each connected device should be tested to ensure that status changes are properly transferred to the control system.

Correct installation and configuration help prevent signal errors and improve long-term system reliability.

7. How does Emerson VE4001S2T1 improve industrial automation reliability?

Emerson VE4001S2T1 improves automation system reliability by providing accurate and stable digital signal monitoring.

In industrial processes, equipment status information is essential for safe and efficient operation. Incorrect status signals may result in delayed responses, incorrect control actions, or missed alarms.

The VE4001S2T1 provides a dependable connection between field devices and the DeltaV control platform, allowing operators to receive accurate equipment information.

Reliable digital input monitoring helps maintenance teams identify abnormal conditions earlier and improve troubleshooting efficiency.

The module also supports centralized equipment management by allowing operators to monitor multiple field devices through the control system.

By improving signal collection and system integration, VE4001S2T1 helps increase plant efficiency, reduce operational risks, and maintain stable automation performance.

8. What should be checked before replacing Emerson VE4001S2T1 Discrete Input Card?

Before replacing Emerson VE4001S2T1, maintenance personnel should first confirm that the module is the actual source of the problem.

Engineers should review DeltaV diagnostic information and check whether the issue comes from the input card, field wiring, or connected equipment.

Before removing the existing module, important configuration information should be recorded, including input assignments, device settings, and related control parameters.

During replacement, proper maintenance procedures should be followed to avoid affecting other system components.

After installing the new VE4001S2T1, the DeltaV system should be checked to confirm that the module is recognized correctly.

Input channels should be tested individually to ensure that field signals are being received accurately.

Finally, system diagnostics, alarms, and equipment status information should be reviewed to confirm normal operation.

A complete replacement process ensures reliable digital signal monitoring and maintains stable performance of the Emerson DeltaV control system.
