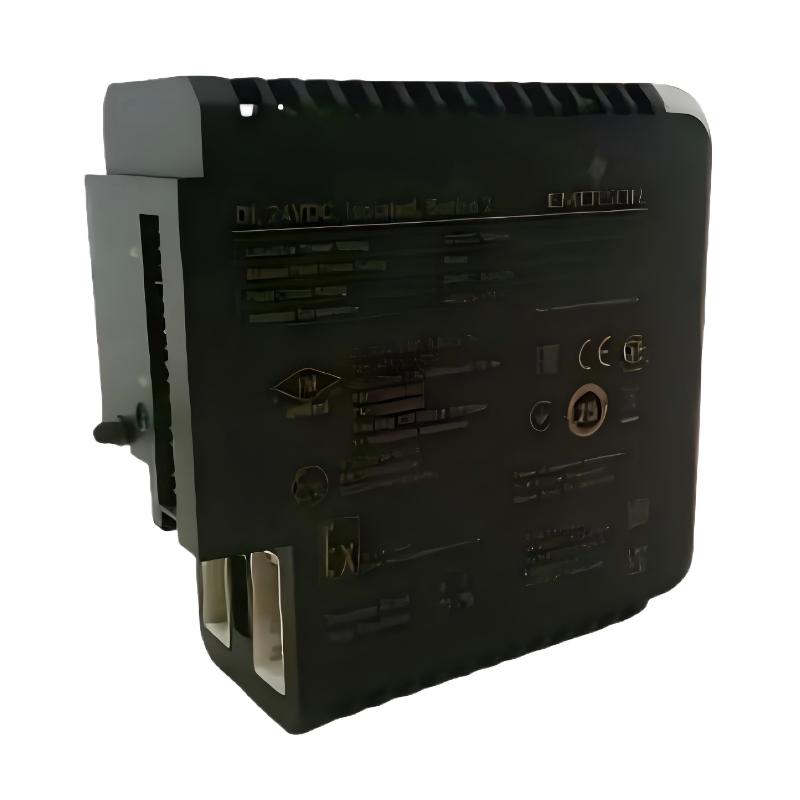

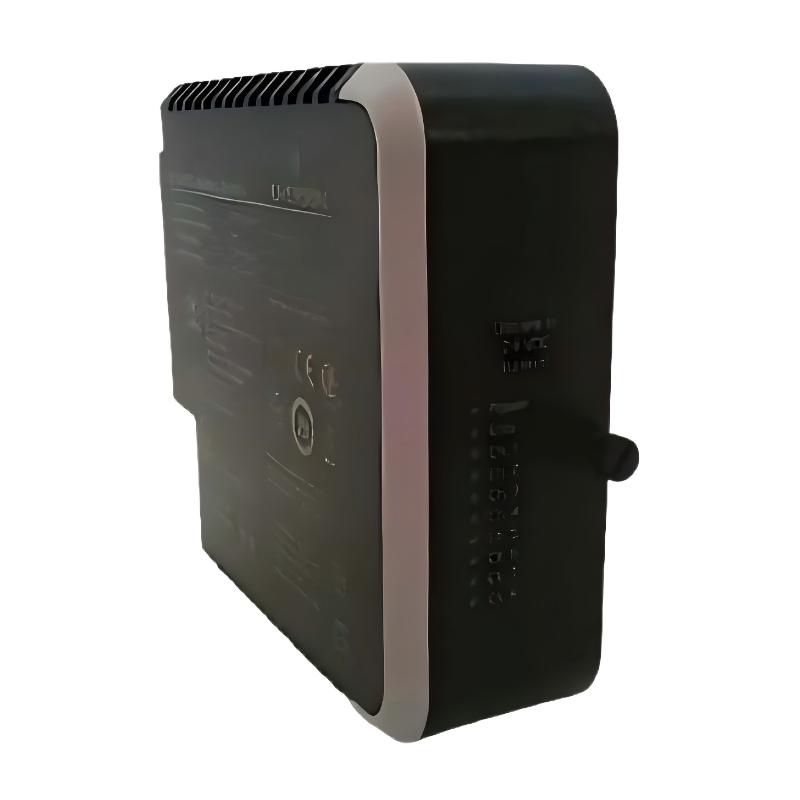

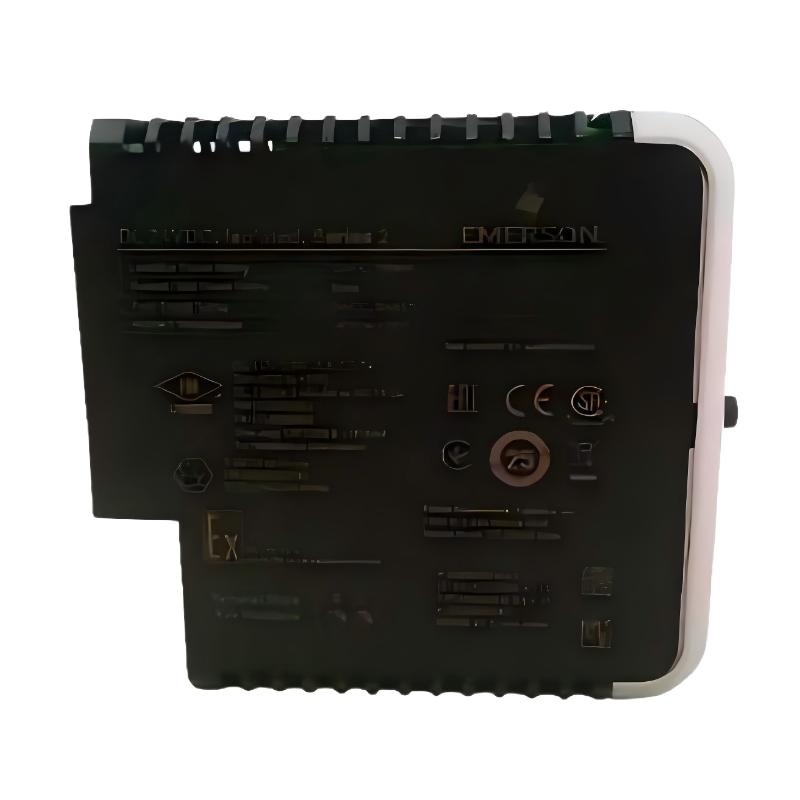

1. What is the main function of Emerson VE4001S2T1B1 Discrete Input Card?

Emerson VE4001S2T1B1 Discrete Input Card is a digital input module designed for Emerson DeltaV control systems. Its primary function is to collect discrete signals from field devices and transmit equipment status information to the control system for monitoring and automation processing.

In industrial environments, many devices provide binary signals that represent different operating states, such as running or stopped conditions, open or closed valve positions, alarm activation, and safety interlock status. The VE4001S2T1B1 receives these signals and allows the DeltaV system to recognize and process the information.

The module plays an important role in connecting field equipment with the DCS platform. By providing reliable digital signal acquisition, it enables operators to monitor equipment conditions, configure alarms, and execute automatic control strategies.

The VE4001S2T1B1 is commonly used in process industries where accurate equipment status feedback is required for safe and efficient operation. It helps improve system visibility and ensures that important field information is available for control decisions.

2. What types of devices can be connected to Emerson VE4001S2T1B1?

Emerson VE4001S2T1B1 can be connected to various industrial field devices that provide discrete ON/OFF signals.

Typical connected devices include limit switches, relay contacts, motor running feedback signals, valve position switches, alarm contacts, safety devices, and other digital status equipment.

In process automation systems, these devices provide important information about equipment operation. For example, a pump may send a running status signal, while a valve may provide feedback indicating whether it has reached the required position.

The VE4001S2T1B1 collects these signals and transfers them to the Emerson DeltaV system, where operators can monitor equipment conditions and configure corresponding control actions.

This makes the module suitable for applications requiring reliable equipment status monitoring and fast response to field changes.

By supporting integration with different types of digital field devices, the module improves the flexibility and scalability of industrial automation systems.

3. How does Emerson VE4001S2T1B1 improve DeltaV system monitoring capability?

Emerson VE4001S2T1B1 improves DeltaV system monitoring capability by providing accurate and continuous collection of field equipment status signals.

Industrial control systems depend on reliable information from field devices. Without accurate digital feedback, operators may not be able to determine whether equipment is operating correctly.

The module collects real-time status information from connected devices and sends the data to the DeltaV control system. This allows operators to view equipment conditions, monitor alarms, and analyze process events.

For example, when a motor changes from stopped to running status, the input module detects the signal change and updates the control system immediately.

This improves operational awareness and allows faster response to abnormal situations.

Through reliable signal collection and integration, VE4001S2T1B1 helps enhance process monitoring efficiency and supports stable industrial operation.

4. How can Emerson VE4001S2T1B1 input faults be diagnosed?

When Emerson VE4001S2T1B1 experiences input signal problems, troubleshooting should begin with checking the DeltaV system diagnostics.

Engineers should first review module status information, input channel conditions, and alarm messages to determine whether the issue is related to the module or external equipment.

The next step is checking field wiring connections, including signal cables, terminal connections, and grounding conditions. Loose connections or damaged wiring are common causes of incorrect input signals.

The connected field device should also be tested to confirm that it is generating the correct status signal.

If the field device and wiring are operating normally, engineers should verify the DeltaV configuration, including input channel assignments and control logic settings.

A complete troubleshooting process should include checking the module, field devices, wiring, and system configuration.

This approach helps maintenance teams identify problems accurately and reduce unnecessary module replacement.

5. What are the common causes of VE4001S2T1B1 signal detection problems?

Signal detection problems on Emerson VE4001S2T1B1 may occur due to several factors, including hardware connection issues, field device failures, or configuration errors.

Common causes include:

• Loose or incorrect wiring connections;
• Damaged field signal cables;
• Faulty switches or relay contacts;
• Incorrect DeltaV configuration;
• Unstable field device operation;
• Electrical interference from industrial equipment.

For example, if a valve position signal is not displayed correctly in the control system, the problem may be caused by the valve feedback device, wiring, or input configuration rather than the input card itself.

Industrial environments often contain electrical noise sources such as motors and variable frequency drives, which may affect signal stability.

Before replacing the module, engineers should carefully verify all possible causes to avoid unnecessary maintenance work.

Proper installation and regular inspection can significantly improve long-term signal reliability.

6. How should Emerson VE4001S2T1B1 be installed and configured?

Emerson VE4001S2T1B1 should be installed according to Emerson DeltaV system installation requirements.

Before installation, engineers should confirm system compatibility and prepare the correct terminal components and field wiring connections.

After installing the module into the DeltaV I/O system, field signal cables should be connected according to the approved wiring design.

The module then needs to be configured through the DeltaV engineering environment. Configuration usually includes defining input channels, assigning device tags, setting alarm conditions, and linking signals with control strategies.

After configuration is completed, functional testing should be performed.

Each connected field device should be activated to verify that the input signal is correctly detected and displayed in the DeltaV system.

Proper installation and configuration ensure reliable operation and reduce potential communication or signal-related issues.

7. How does Emerson VE4001S2T1B1 contribute to industrial automation reliability?

Emerson VE4001S2T1B1 contributes to industrial automation reliability by providing dependable digital signal acquisition from field equipment.

In process control environments, accurate equipment status information is essential for maintaining safe and efficient production.

The module enables the DeltaV system to receive real-time feedback from field devices, allowing operators to monitor operating conditions and respond quickly to abnormal events.

Reliable digital inputs are especially important for applications involving alarms, safety interlocks, equipment protection, and automated sequences.

By improving the connection between field equipment and the control system, VE4001S2T1B1 helps reduce manual monitoring requirements and improves maintenance efficiency.

The module supports better process management by ensuring that important field information is available when needed.

Its stable performance makes it suitable for continuous industrial operations where system availability and reliability are critical.

8. What should be checked before replacing Emerson VE4001S2T1B1 Discrete Input Card?

Before replacing Emerson VE4001S2T1B1, maintenance personnel should confirm that the module is the actual cause of the problem.

The first step is reviewing DeltaV diagnostic information and checking whether the fault comes from the input card, field wiring, or connected equipment.

Before removing the existing module, engineers should record the current configuration information, including input assignments, device settings, and related control parameters.

During replacement, proper maintenance procedures should be followed to avoid affecting other system components.

After installing the new VE4001S2T1B1, the DeltaV system should be checked to ensure the module is recognized correctly.

Each input channel should be tested with the connected field devices to confirm accurate signal detection.

Finally, system alarms, diagnostics, and equipment status information should be reviewed to verify normal operation.

A complete replacement procedure helps restore reliable signal monitoring and ensures continued stable operation of the Emerson DeltaV control system.
