1. What is the primary function of the Emerson VE4002S1T2B5 KJ4001X1-CJ1 Output Module With Terminal Blocks?

The Emerson VE4002S1T2B5 KJ4001X1-CJ1 Output Module is designed to provide reliable digital output control within Emerson DeltaV Distributed Control Systems (DCS). The module receives control commands from the DeltaV controller and converts them into stable digital output signals to operate field devices.

It is commonly used for controlling solenoid valves, relays, contactors, alarm devices, and other digital actuators that require accurate on/off control signals. The combination of the VE4002S1T2B5 output module and KJ4001X1-CJ1 terminal block provides a complete interface solution between the control system and field equipment.

With reliable signal transmission and fast response characteristics, the module helps maintain stable operation of industrial automation processes where continuous control performance is required.

2. How does the VE4002S1T2B5 communicate with the Emerson DeltaV control system?

The VE4002S1T2B5 communicates with the DeltaV controller through the system backplane. The controller executes programmed control strategies and sends digital output commands to the module, which processes these commands and generates corresponding signals for connected field devices.

During operation, the module continuously exchanges status information with the DeltaV system, including communication status, module health information, and output channel conditions. Maintenance personnel can access this information through DeltaV diagnostic tools to quickly identify abnormal conditions.

This integrated communication method improves system response speed, enhances operational visibility, and simplifies troubleshooting during plant operation.

3. What is the purpose of the KJ4001X1-CJ1 terminal block in the VE4002S1T2B5 system?

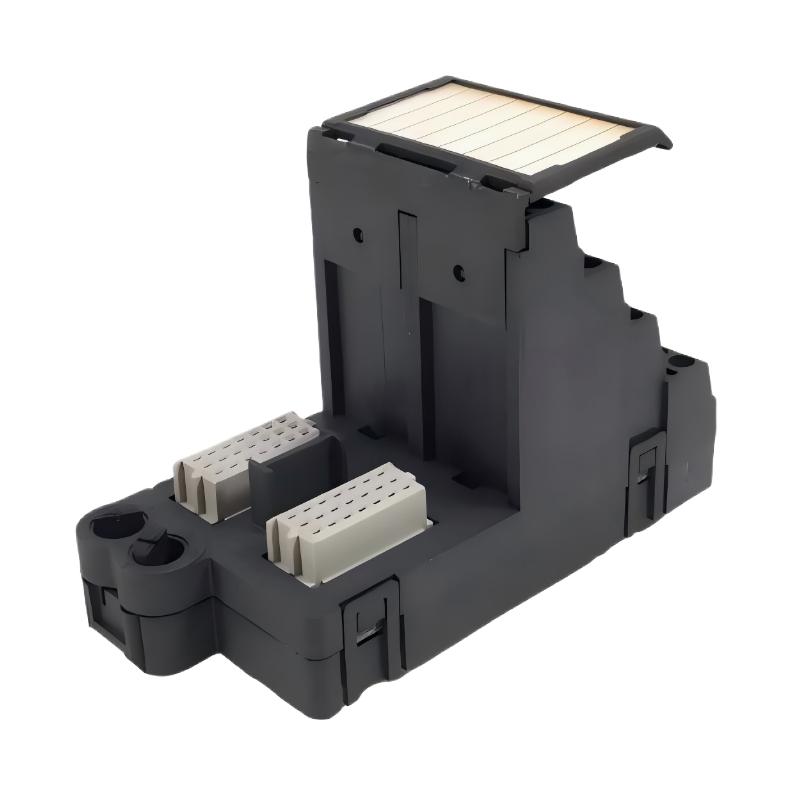

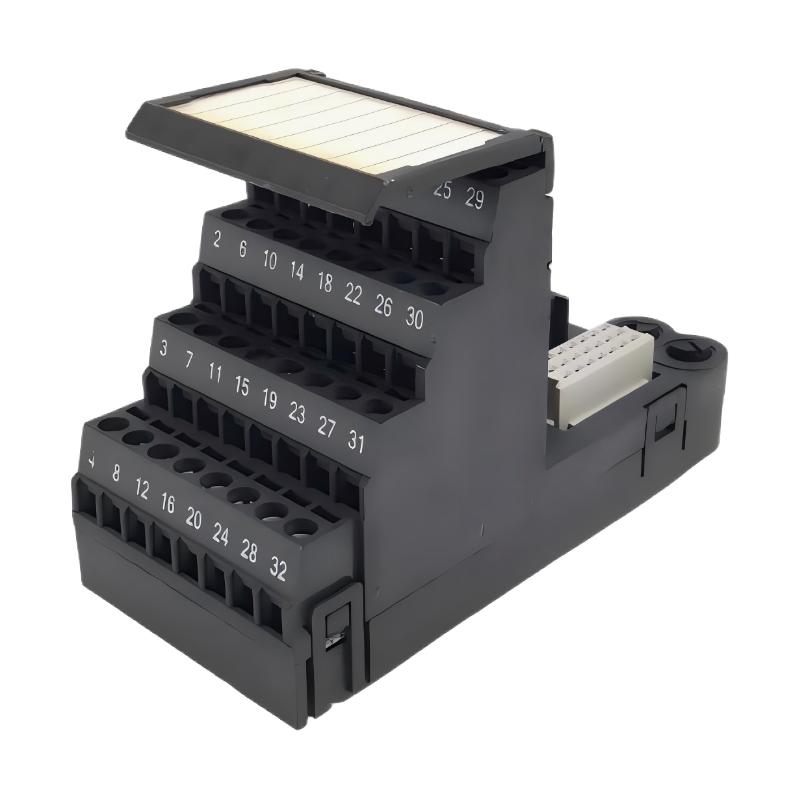

The KJ4001X1-CJ1 terminal block provides a dedicated interface between the output module and field wiring. It allows field devices to be connected securely while simplifying installation and maintenance procedures.

Using a dedicated terminal block improves wiring organization inside control cabinets and reduces the possibility of connection errors. During maintenance activities, technicians can easily inspect field connections, verify signal paths, and perform troubleshooting without affecting other system components.

The combination of the output module and terminal block creates a reliable digital output interface for Emerson DeltaV automation systems.

4. What industrial applications are suitable for the Emerson VE4002S1T2B5?

The VE4002S1T2B5 is widely used in industrial automation applications requiring reliable digital output control. Typical industries include oil and gas, petrochemical plants, power generation facilities, chemical processing, water treatment, pharmaceutical production, and manufacturing systems.

The module is commonly applied for controlling process valves, solenoid valves, motor control circuits, alarms, shutdown systems, and other digital field equipment.

Because DeltaV systems are widely used in continuous process industries, the VE4002S1T2B5 provides a dependable solution for applications where accurate control signals and high system availability are essential.

5. What are the common causes of output problems in the VE4002S1T2B5?

Output problems may occur due to incorrect field wiring, communication failures, improper configuration, unstable power conditions, damaged field devices, or abnormal loads connected to output channels.

When troubleshooting, engineers should first review DeltaV diagnostic information to determine whether the problem is related to the module, communication network, or external equipment. The KJ4001X1-CJ1 terminal connections should then be inspected to confirm proper wiring and secure connections.

Additional checks should include verifying control logic, confirming that output commands are generated correctly by the controller, and testing the connected field devices to identify the exact source of the fault.

6. What should be considered when installing the Emerson VE4002S1T2B5 module?

Before installation, technicians should confirm that the VE4002S1T2B5 is compatible with the existing DeltaV system configuration. The module should be installed according to Emerson recommended procedures to ensure reliable communication and signal transmission.

The KJ4001X1-CJ1 terminal block should be connected according to approved wiring diagrams. Proper grounding, cable management, and signal separation practices should be followed to minimize electrical interference in industrial environments.

After installation, engineers should perform system recognition checks, communication verification, output testing, and diagnostic confirmation before placing the module into normal operation.

7. What maintenance procedures are recommended for the VE4002S1T2B5 Output Module?

Routine maintenance includes monitoring module status, reviewing DeltaV diagnostic messages, checking communication conditions, and verifying that output channels operate correctly.

Maintenance personnel should regularly inspect field wiring connections and confirm that connected devices respond correctly to control commands. System alarms and diagnostic records should also be reviewed periodically to identify potential issues before they affect production.

For critical process applications, scheduled output testing and field device verification are recommended to ensure the complete control loop remains reliable.

8. How can the long-term reliability of the Emerson VE4002S1T2B5 KJ4001X1-CJ1 Output Module be improved?

The long-term reliability of the VE4002S1T2B5 can be improved through proper installation, correct system configuration, preventive maintenance, and continuous monitoring.

Maintaining stable power conditions, proper grounding, secure field connections, and clean control cabinet environments helps reduce the possibility of unexpected failures. Regular inspection of diagnostic information, communication status, and output performance allows maintenance teams to identify potential problems early.

For important industrial control systems, establishing preventive maintenance schedules, performing periodic functional tests, and maintaining accurate system documentation can significantly improve operational stability and extend the service life of the output module.
