1. What is the primary function of the Emerson VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1 Input Module With Terminal Blocks?

The Emerson VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1 Input Module With Terminal Blocks is designed to acquire analog signals from field instruments and transmit accurate process data to the Emerson DeltaV control system. The integrated KJ4001X1-CA1 terminal block provides a secure and organized interface for connecting field wiring, improving installation efficiency and maintenance convenience.

The module supports continuous acquisition of process variables from pressure, temperature, flow, and level transmitters, enabling precise monitoring, control, alarm management, and process optimization in industrial automation systems.

Its robust design makes it suitable for critical applications in oil and gas, power generation, chemical processing, pharmaceuticals, water treatment, and other process industries.

2. What is the purpose of the KJ4001X1-CA1 terminal block?

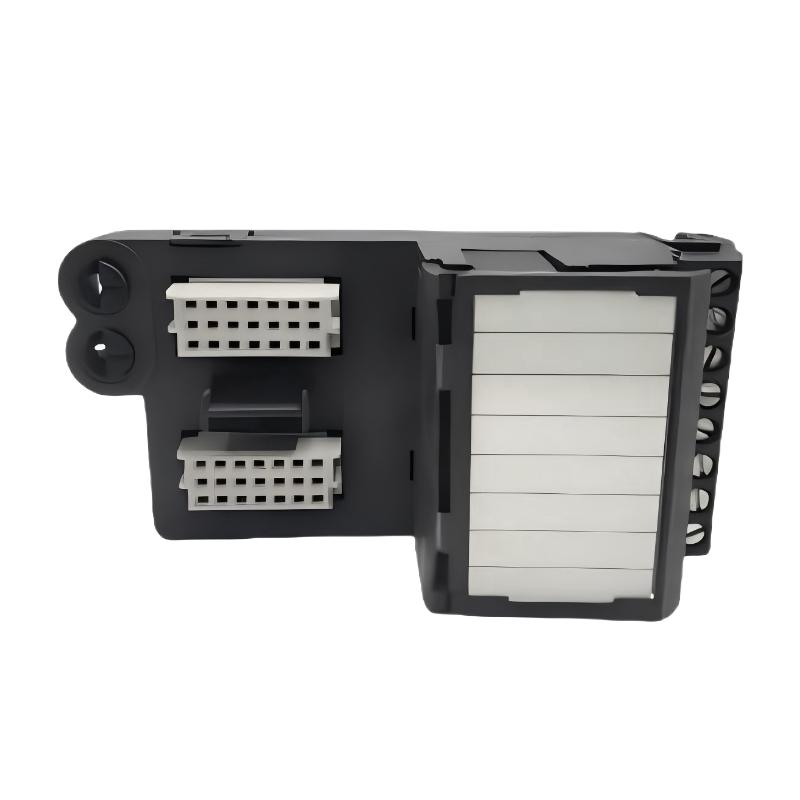

The KJ4001X1-CA1 terminal block serves as the field wiring interface between external instruments and the analog input module.

It allows field signals to be connected safely and efficiently while simplifying module replacement and maintenance. During servicing, the terminal block can remain connected to the field wiring, reducing downtime and minimizing the risk of wiring errors.

This design also improves cable organization, enhances connection reliability, and supports faster commissioning and troubleshooting.

3. How can abnormal input signals be diagnosed?

If abnormal input signals are detected, engineers should first verify that the connected transmitters or sensors are operating correctly and producing valid analog output signals.

Next, inspect the KJ4001X1-CA1 terminal block and all field wiring for loose terminals, damaged cables, short circuits, open circuits, grounding problems, or poor electrical connections.

DeltaV diagnostic tools should then be used to check for channel alarms, module faults, communication errors, or configuration mismatches.

If no hardware issues are identified, the engineering configuration, input signal type, and channel parameters should be reviewed to ensure they match the connected field devices.

A structured troubleshooting procedure covering field devices, wiring, diagnostics, and software configuration typically allows faults to be identified quickly.

4. What installation precautions should be followed for this module?

The module should be installed in the designated DeltaV I/O slot with the module fully seated and securely connected to the system backplane.

The KJ4001X1-CA1 terminal block should be properly inserted, and all field wiring should be terminated according to the project wiring diagrams.

Shielded cables are recommended for analog signal wiring, and signal cables should be routed separately from high-voltage power cables to reduce electromagnetic interference.

After installation, configure the module within the DeltaV engineering software and verify all input channels before placing the system into operation.

Proper installation ensures stable signal acquisition and long-term system reliability.

5. What types of field devices can be connected to this input module?

The module is compatible with a wide range of industrial field instruments that provide standard analog output signals.

Typical connected devices include pressure transmitters, temperature transmitters, flow meters, level transmitters, analytical instruments, and other process measurement equipment.

The module continuously acquires process variables and transfers them to the DeltaV control system for automatic regulation, process monitoring, alarm management, equipment protection, and production optimization.

Its high-performance analog acquisition capability makes it ideal for demanding continuous-process applications.

6. How does this module improve automation system reliability?

The VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1 improves system reliability by combining high-accuracy analog signal acquisition with a removable terminal block design.

The built-in diagnostic functions continuously monitor module status, communication health, and input channel conditions, allowing maintenance personnel to detect potential issues before they impact production.

The removable terminal block also simplifies maintenance and module replacement without disconnecting field wiring, significantly reducing downtime and improving maintenance efficiency.

These features contribute to higher system availability and long-term operational reliability.

7. How can communication problems be diagnosed?

If communication problems occur, engineers should first verify that both the input module and the KJ4001X1-CA1 terminal block are correctly installed and securely connected.

The DeltaV diagnostic system should then be checked for communication alarms, module status errors, offline conditions, or configuration mismatches.

If the software configuration is correct, inspect the I/O interface, system backplane, controller, and power supply to ensure normal hardware operation.

The engineering database should also be reviewed to confirm that the configured module parameters correspond to the installed hardware.

Following a systematic hardware and software diagnostic process can efficiently restore normal communication.

8. What routine maintenance is recommended for the Emerson VE4003S2B1 KJ3222X1-BA1+KJ4001X1-CA1 Input Module With Terminal Blocks?

Routine maintenance should include monitoring module health, reviewing DeltaV diagnostic information, and periodically inspecting the KJ4001X1-CA1 terminal block and field wiring.

Maintenance personnel should verify that terminal connections remain secure and free from corrosion or oxidation while checking cable shielding and grounding integrity.

Critical process loops should be tested regularly to ensure that connected transmitters provide accurate measurements and that the module correctly acquires and reports process data.

A preventive maintenance program combining routine inspections, transmitter calibration, functional testing, and diagnostic monitoring can significantly extend the service life of the module while improving the reliability, availability, and long-term performance of Emerson DeltaV automation systems.
