1. What is the primary function of the Emerson VE4036P2 KJ3241X1-BA1 Serial Interface Card?

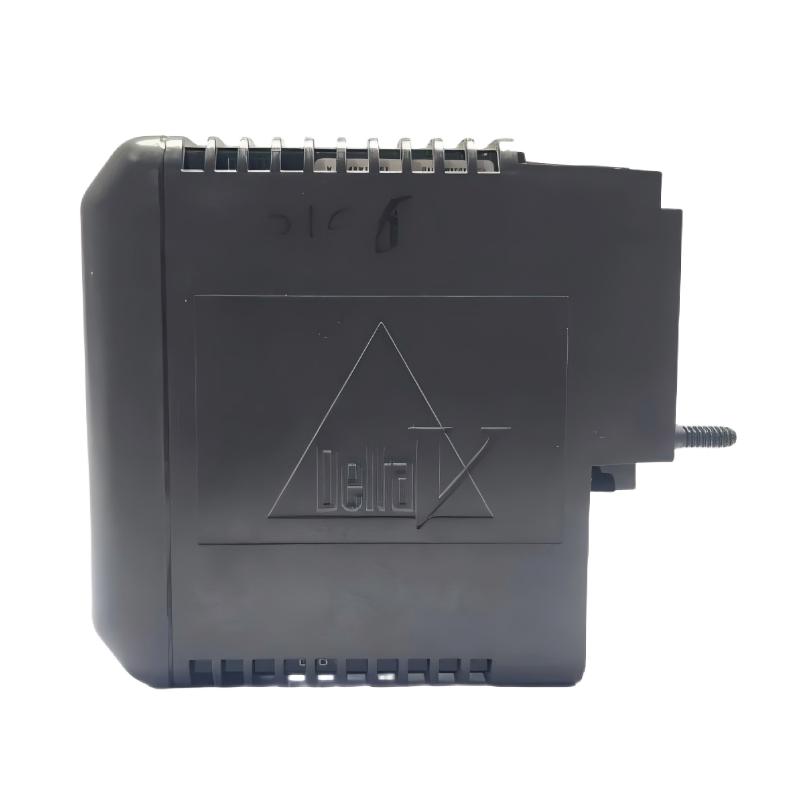

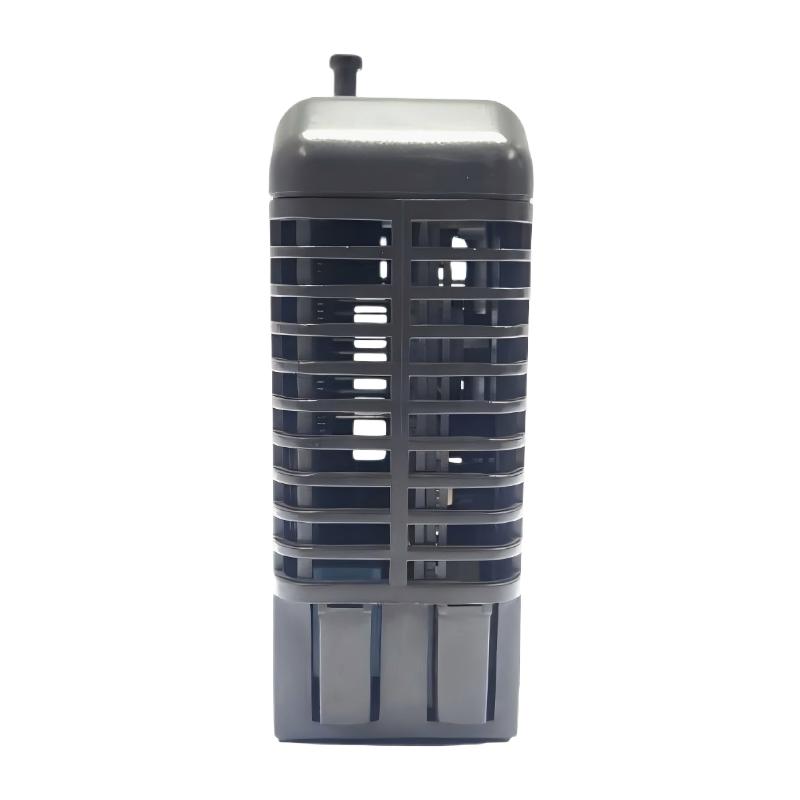

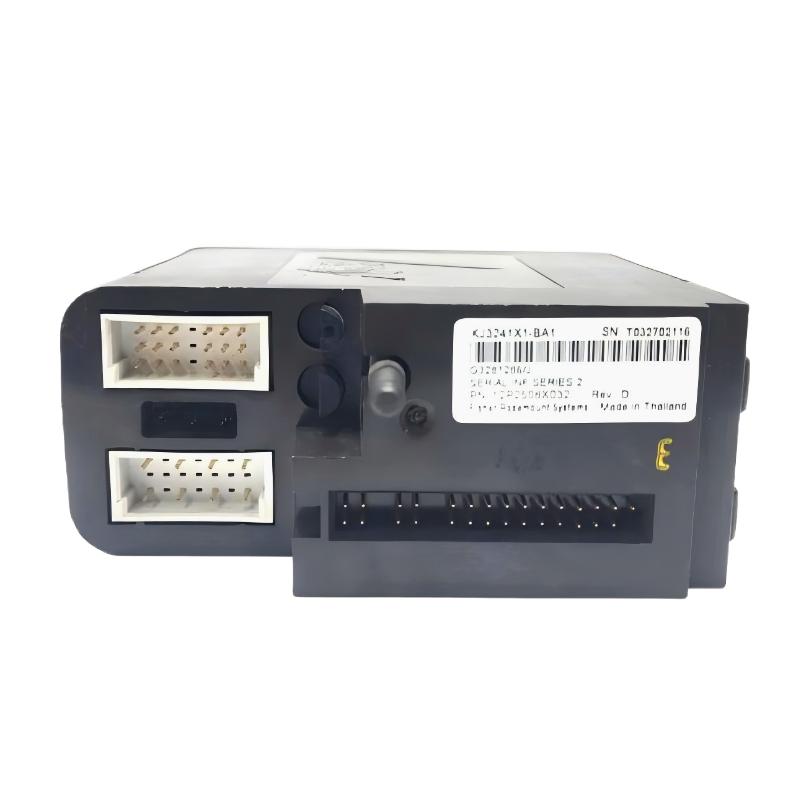

The Emerson VE4036P2 KJ3241X1-BA1 Serial Interface Card is designed to provide serial communication capability for Emerson DeltaV distributed control systems.

Its main function is to connect DeltaV systems with external serial devices, allowing industrial equipment such as PLCs, analyzers, controllers, meters, and other intelligent devices to exchange data with the control system.

The module supports common serial communication interfaces, enabling reliable data transmission between different automation devices.

With redundant communication capability, the VE4036P2 improves system availability and reduces the impact of communication failures in critical industrial applications.

It is widely used in process automation environments where stable and continuous communication between multiple control devices is required.

2. Which systems are compatible with the VE4036P2 KJ3241X1-BA1?

The VE4036P2 KJ3241X1-BA1 is designed for Emerson DeltaV M-Series distributed control systems.

It is typically installed together with DeltaV controllers, I/O carriers, communication modules, and other system components to provide serial communication functions.

The module is suitable for industrial applications that require integration between DeltaV systems and third-party devices using serial communication protocols.

Typical applications include connecting PLCs, package equipment controllers, power monitoring devices, and industrial instruments.

Before installation, users should confirm the DeltaV system version, hardware configuration, and communication requirements to ensure proper integration.

3. What communication interfaces does the VE4036P2 support?

The VE4036P2 KJ3241X1-BA1 supports multiple serial communication interfaces, including RS-232, RS-422, and RS-485 communication modes.

RS-232 is commonly used for short-distance point-to-point communication, while RS-422 and RS-485 are widely applied in industrial environments because of their stronger noise resistance and longer communication distance capability.

The module supports flexible communication configurations to meet different field device requirements.

Through proper parameter configuration, users can establish reliable communication between DeltaV and external automation equipment.

This flexibility makes the VE4036P2 suitable for various industrial integration projects.

4. What are the common failure symptoms of the VE4036P2 KJ3241X1-BA1?

Common failure symptoms include communication interruption, unstable data transmission, incorrect device readings, communication timeout alarms, and abnormal serial port status.

Possible causes include incorrect communication parameters, damaged communication cables, wiring errors, device address conflicts, grounding problems, or module hardware faults.

Because serial communication depends on correct configuration between connected devices, mismatched baud rate, parity, stop bits, or protocol settings may also cause communication failures.

During troubleshooting, technicians should first verify communication settings and cable connections, then check DeltaV diagnostic information.

If external devices and communication parameters are correct but the problem remains, the serial interface card should be inspected for possible hardware failure.

5. What should be considered when installing the VE4036P2 Serial Interface Card?

During installation, the DeltaV system should be placed into a safe maintenance condition before inserting or removing the module.

Technicians should verify that the communication wiring, terminal connections, and module configuration match the requirements of the connected external devices.

Serial communication cables should be installed properly and protected from strong electromagnetic interference sources.

For RS-485 networks, correct wiring polarity, termination, and grounding practices are important for maintaining stable communication.

After installation, communication parameters should be configured correctly in the DeltaV system, and data exchange with external devices should be tested before putting the system into normal operation.

6. How can communication problems with the VE4036P2 be diagnosed?

Troubleshooting communication problems should begin with checking the entire communication path between the DeltaV system and connected external devices.

First, verify that the external device is powered correctly and operating normally.

Next, check communication parameters including baud rate, parity, data bits, stop bits, and protocol settings to ensure they match between both devices.

The communication cable and terminal connections should also be inspected for damage, loose connections, or incorrect wiring.

DeltaV diagnostic tools can be used to review module status, communication alarms, and operating conditions.

A step-by-step troubleshooting process helps identify whether the issue is caused by configuration, wiring, external equipment, or the interface card itself.

7. Why is the VE4036P2 important in industrial automation systems?

The VE4036P2 plays an important role in industrial automation by enabling communication between DeltaV control systems and external serial devices.

Many industrial facilities contain equipment from different manufacturers, and serial communication provides a practical method for integrating these devices into centralized control systems.

Reliable communication is essential for collecting equipment data, monitoring operating conditions, and coordinating automated processes.

The redundant serial interface design improves system availability and reduces the risk of communication interruptions affecting production operations.

For industries such as oil and gas, chemical processing, power generation, and manufacturing, stable communication infrastructure is a key part of maintaining efficient and safe operations.

8. How can the service life of the VE4036P2 KJ3241X1-BA1 be extended?

The service life of the VE4036P2 can be extended through proper installation, regular inspection, and preventive maintenance.

Maintenance personnel should periodically check communication cables, terminal connections, module status, and system diagnostic information.

The control cabinet environment should be maintained with proper ventilation and protection from excessive dust, moisture, and temperature fluctuations.

During maintenance activities, proper electrostatic discharge protection should be used to prevent damage to electronic components.

Keeping communication wiring organized, maintaining stable power conditions, and avoiding unnecessary module removal can improve long-term reliability.

With correct operation and regular maintenance, the VE4036P2 KJ3241X1-BA1 can provide stable serial communication performance in Emerson DeltaV industrial automation systems.
