1. What is the primary function of the Emerson VE4036P2 KJ3241X1-BA1+KJ3241X1-EA1 Serial Interface Card?

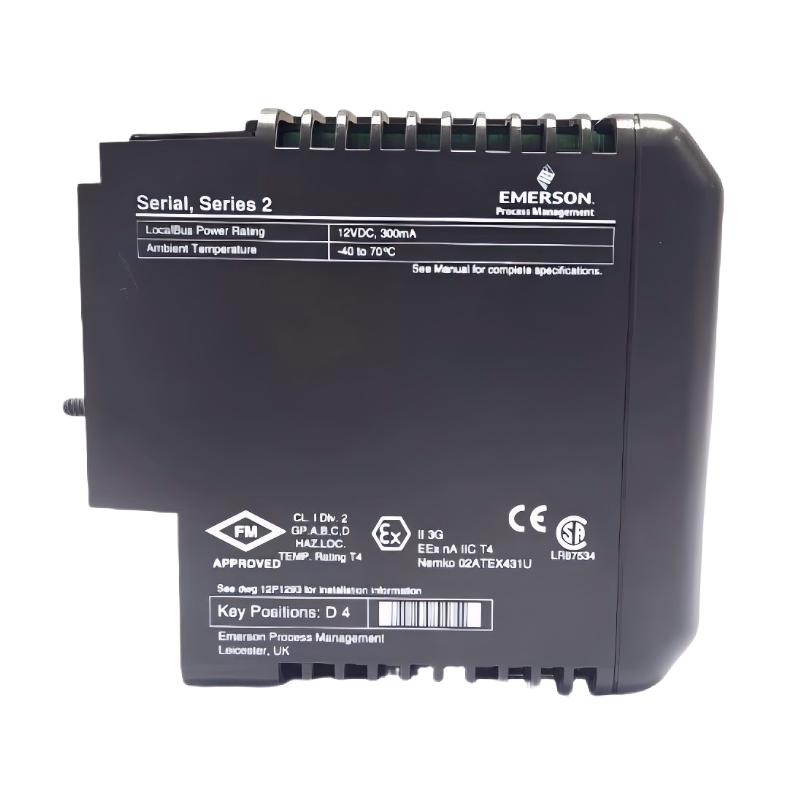

The Emerson VE4036P2 KJ3241X1-BA1+KJ3241X1-EA1 Serial Interface Card is a communication module designed for Emerson DeltaV M-Series distributed control systems.

Its main function is to provide a reliable communication connection between DeltaV systems and external serial devices, allowing data exchange with PLCs, intelligent instruments, analyzers, controllers, and other industrial equipment.

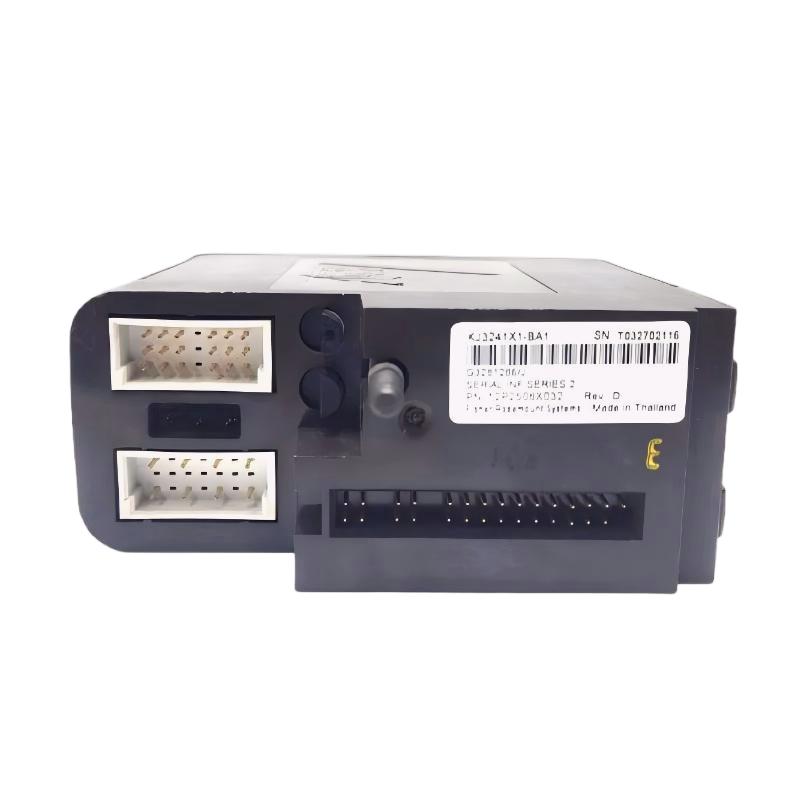

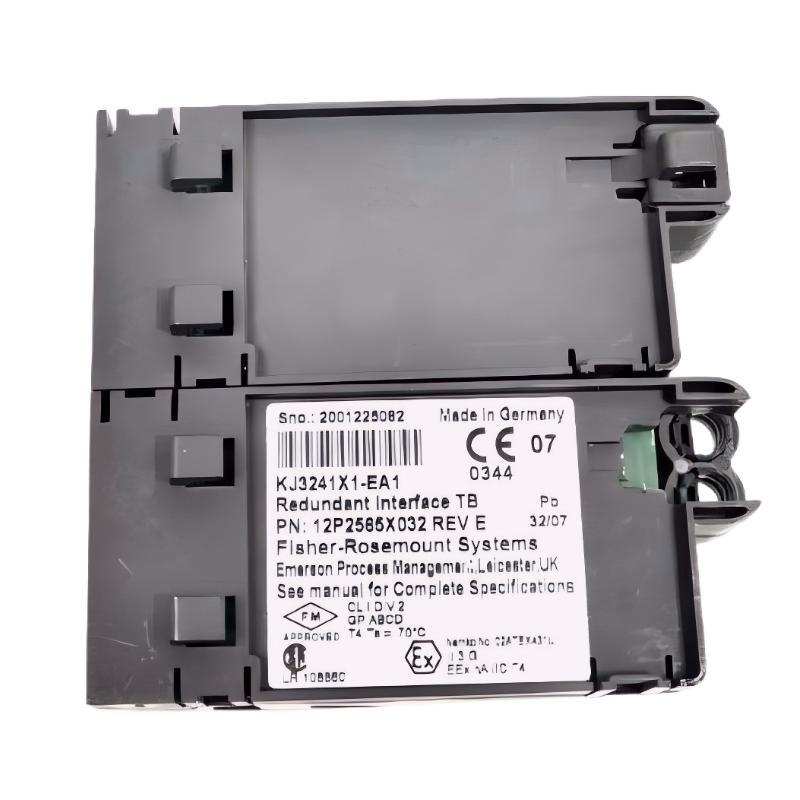

The module combines the KJ3241X1-BA1 serial interface card with the KJ3241X1-EA1 redundant terminal block to create a reliable serial communication solution.

By supporting common industrial serial interfaces, the module enables different automation devices to communicate with the DeltaV control platform.

It is widely used in process industries where stable communication, accurate data transfer, and continuous operation are required.

2. What systems are compatible with the VE4036P2 KJ3241X1-BA1+KJ3241X1-EA1?

The VE4036P2 KJ3241X1-BA1+KJ3241X1-EA1 is designed for Emerson DeltaV M-Series distributed control systems.

It can be installed together with DeltaV controllers, I/O carriers, communication modules, and external field devices to create an integrated industrial automation communication system.

The module is suitable for applications that require communication between DeltaV and third-party devices, including PLC systems, remote controllers, process analyzers, and monitoring equipment.

Before installation or replacement, users should confirm the existing DeltaV hardware configuration and communication requirements.

Correct system matching helps avoid communication errors, configuration problems, and unnecessary maintenance issues.

3. What communication interfaces and protocols does the VE4036P2 support?

The VE4036P2 supports commonly used industrial serial communication interfaces, including RS-232, RS-422, and RS-485.

RS-232 is mainly used for point-to-point communication, while RS-422 and RS-485 are more suitable for industrial applications requiring stronger noise resistance and longer communication distances.

The module supports configurable serial communication protocols, including Modbus communication applications.

Users can configure parameters such as baud rate, parity, data bits, stop bits, and communication mode according to the connected equipment requirements.

This flexibility allows the module to connect with different industrial devices and improves the overall integration capability of the DeltaV system.

4. What are the advantages of the redundant configuration of VE4036P2?

The redundant configuration of VE4036P2 improves communication reliability and system availability compared with a standard serial communication solution.

The combination of KJ3241X1-BA1 serial interface card and KJ3241X1-EA1 redundant terminal block helps reduce the impact of individual hardware failures.

In industrial process control systems, communication interruptions may affect equipment monitoring, process control, and production continuity.

The redundant structure provides additional protection and improves fault tolerance during system operation.

This makes the VE4036P2 suitable for critical applications where continuous communication and high system reliability are required.

5. What are the common failure symptoms of the VE4036P2 KJ3241X1-BA1+KJ3241X1-EA1?

Common failure symptoms include communication interruption, unstable data transmission, incorrect device values, communication timeout alarms, and abnormal serial port status.

Possible causes include incorrect communication settings, damaged cables, loose terminal connections, incorrect wiring, device address conflicts, grounding problems, electrical interference, or module hardware faults.

Since serial communication requires matching parameters between connected devices, incorrect baud rate, parity, protocol settings, or addressing can cause communication failures.

During troubleshooting, technicians should first verify communication parameters and wiring conditions.

If external devices and configurations are normal, the serial interface card and redundant terminal block should be checked for possible hardware problems.

6. How should the VE4036P2 be installed and configured?

Before installation, the DeltaV system should be placed into a safe maintenance condition according to proper operating procedures.

The technician should confirm that communication cables, terminal connections, and module configuration match the requirements of the connected devices.

After installation, communication parameters such as protocol type, baud rate, and device address must be correctly configured in the DeltaV system.

For RS-485 communication networks, correct wiring polarity, shielding, grounding, and termination methods are important for stable operation.

After configuration, communication testing should be performed to verify reliable data exchange between DeltaV and external devices.

Proper installation and configuration help reduce communication faults and improve long-term system reliability.

7. Why is the VE4036P2 important in industrial automation systems?

The VE4036P2 provides an important communication bridge between Emerson DeltaV systems and external serial devices.

Modern industrial plants often include equipment from different manufacturers, and serial communication is still widely used for integrating these devices into centralized control systems.

Reliable communication allows operators to collect equipment data, monitor operating conditions, and improve process control efficiency.

The redundant communication design increases system availability and reduces the possibility of production interruptions caused by communication failures.

For industries such as oil and gas, chemical processing, power generation, and manufacturing, stable communication is essential for safe and efficient operation.

8. How can the service life of the VE4036P2 KJ3241X1-BA1+KJ3241X1-EA1 be extended?

The service life of the VE4036P2 can be extended through correct installation, regular inspection, and preventive maintenance.

Maintenance personnel should periodically check communication cables, terminal connections, module status indicators, and system diagnostic information.

The control cabinet environment should be maintained in a clean and dry condition with proper ventilation to reduce the effects of dust, moisture, and excessive temperature changes.

During maintenance work, proper anti-static protection should be used to prevent damage to sensitive electronic components.

Maintaining stable power conditions, correct grounding, and reducing electrical interference can improve communication stability.

With proper operation and routine maintenance, the VE4036P2 KJ3241X1-BA1+KJ3241X1-EA1 can provide reliable long-term communication performance in Emerson DeltaV industrial automation systems.
