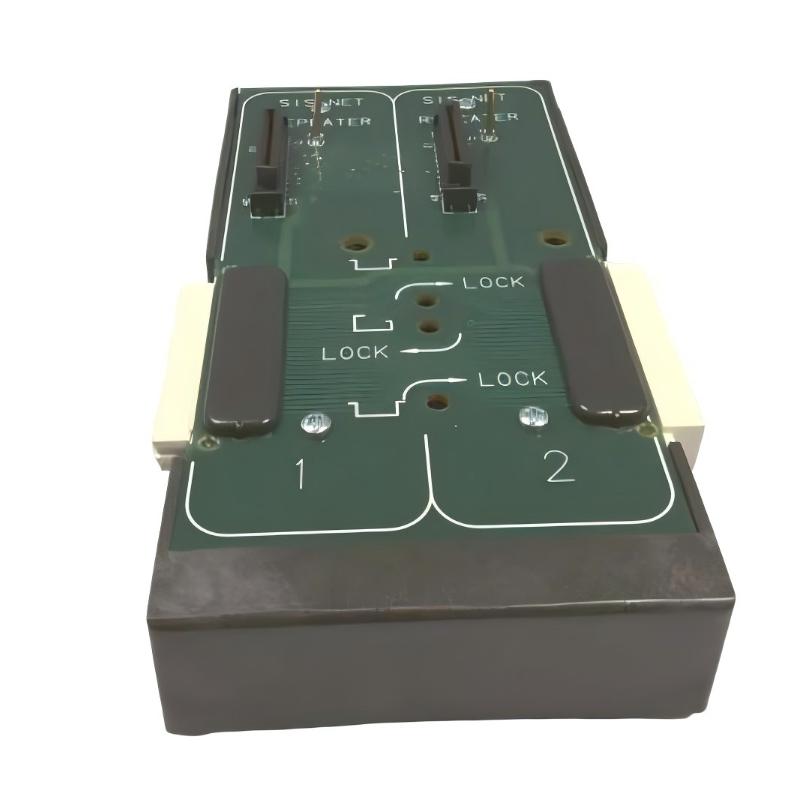

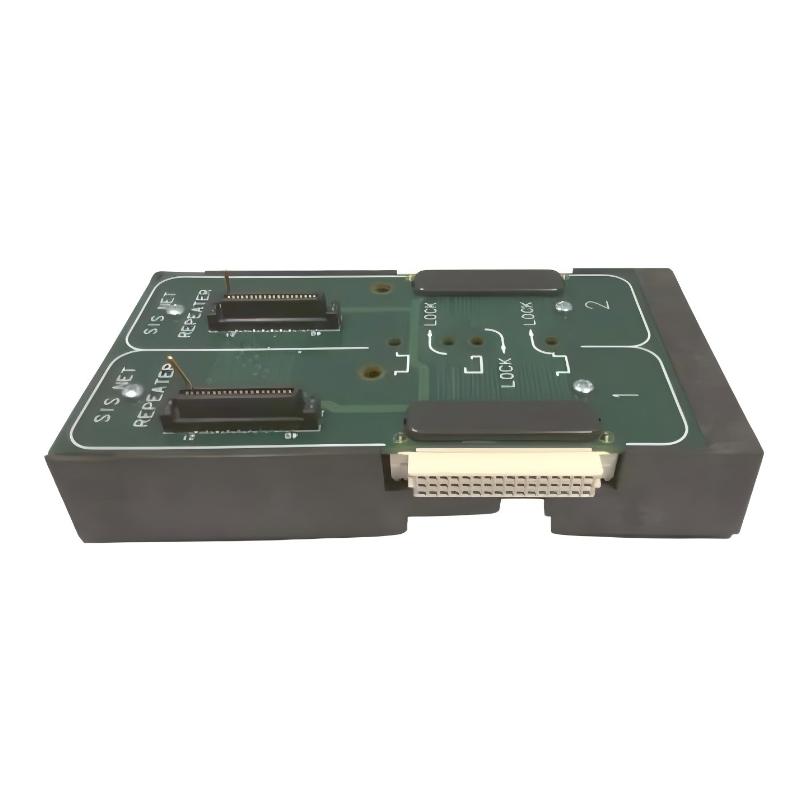

1. What is the main function of the Emerson VS6002 KJ2221X1-EA1?
The VS6002 KJ2221X1-EA1 is a SISNet Repeater Carrier used in Emerson safety instrumented system applications. It provides the carrier interface required for the SISNet repeater and supports reliable communication within the safety system architecture. The carrier is designed to integrate with the corresponding VS6002 repeater hardware and associated system connections, helping maintain communication between SIS components over the network. It is particularly important in applications where stable and dependable safety-related communication is required.

2. What system is the VS6002 KJ2221X1-EA1 designed for?
The KJ2221X1-EA1 is designed for Emerson SISNet applications and is associated with the VS6002 SISNet repeater family. It is used as a carrier for the repeater hardware within the safety system architecture. The exact installation arrangement depends on the DeltaV/SIS configuration and the associated system components. Before installation, technicians should verify the applicable system configuration, carrier position, communication connections, and power requirements to ensure compatibility with the existing safety system.

3. What is the relationship between the KJ2221X1-EA1 and the VS6002 repeater?
The KJ2221X1-EA1 serves as the carrier associated with the VS6002 SISNet repeater. The carrier provides the required physical and electrical interface for integrating the repeater into the SISNet system. The repeater itself performs the communication-related signal repeating function, while the carrier supports its connection to the system infrastructure. When troubleshooting communication problems, both the repeater and carrier connections should therefore be considered, along with the network cabling and power supply.

4. What power supply does the KJ2221X1-EA1 use?
The associated VS6002 SISNet repeater system uses a 12.6 VDC LocalBus power supply, with the carrier and repeater arrangement depending on the specific system configuration. During maintenance, the power supply should be verified before investigating the communication network. An unstable or missing supply can produce symptoms that resemble communication failures, including loss of network nodes or intermittent repeater operation. Technicians should verify the power connection, wiring, and associated power components according to the applicable Emerson maintenance procedure.

5. What are common causes of communication problems with the VS6002 system?
Communication problems can result from incorrect or unstable power, loose carrier connections, damaged communication cables, incorrect network connections, poor connector contact, repeater faults, or problems elsewhere in the SISNet network. Environmental contamination and mechanical stress can also affect connectors and wiring over time. When troubleshooting, it is useful to determine whether the problem affects one network segment or multiple nodes. Checking power first, followed by carrier connections, repeater status, and network cabling, can help isolate the actual source of the communication problem.

6. How should the KJ2221X1-EA1 be installed or replaced?
Before replacing the carrier, the SIS system should be placed in the appropriate safe maintenance condition according to the site’s procedures. Power should be de-energized before disconnecting the carrier or associated LocalBus connections. The existing wiring and connection positions should be documented before removal so that the replacement can be installed using the same configuration. After securing the new carrier, reconnect the required connections carefully and verify that all interfaces are correctly seated. The system should then be checked for proper power and communication operation before being returned to service.

7. Does the KJ2221X1-EA1 require calibration?
The KJ2221X1-EA1 carrier does not normally require calibration as it is primarily a carrier and interface component rather than a measurement instrument. Maintenance should instead focus on the physical condition of the carrier, connectors, power connections, and associated repeater hardware. If communication abnormalities occur, technicians should inspect the complete signal path and verify the relevant electrical and network conditions. Any maintenance or replacement work should follow the approved procedures for the specific SIS configuration to avoid affecting safety-related functions.

8. What should be checked after replacing the VS6002 KJ2221X1-EA1?
After replacement, verify that the carrier is correctly installed and that all associated connections are properly seated and secured. Confirm that the required DC power is present and stable, then check the VS6002 repeater and SISNet communication status. The relevant network nodes should be monitored to determine whether communication has been restored without intermittent errors or new diagnostic alarms. If the system contains redundant communication paths, both paths should be checked according to the site’s maintenance procedure. Before returning the safety system to normal operation, complete the required functional verification and confirm that no new communication or hardware faults are present.
