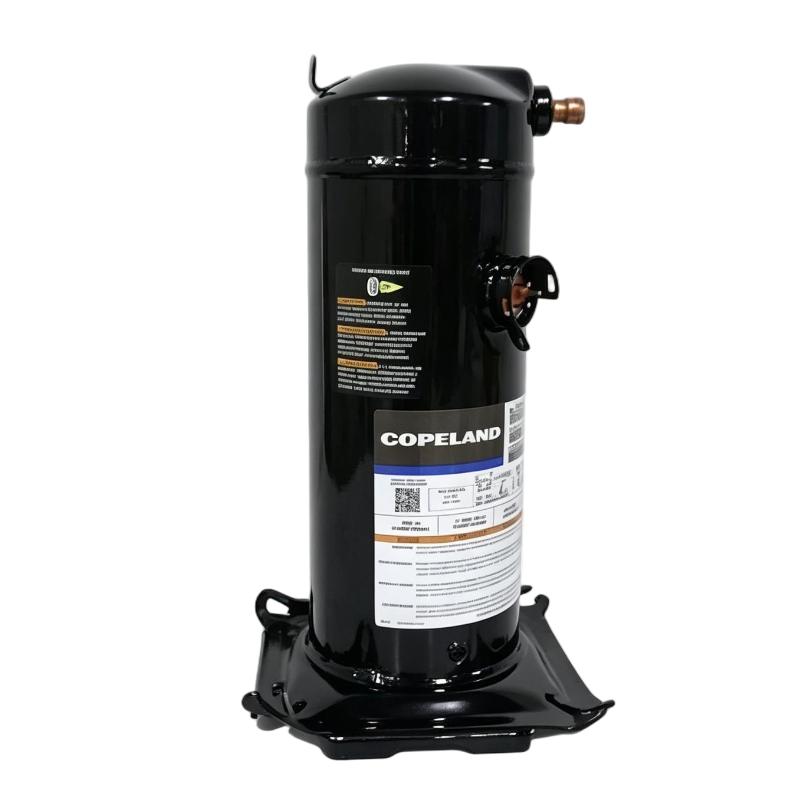

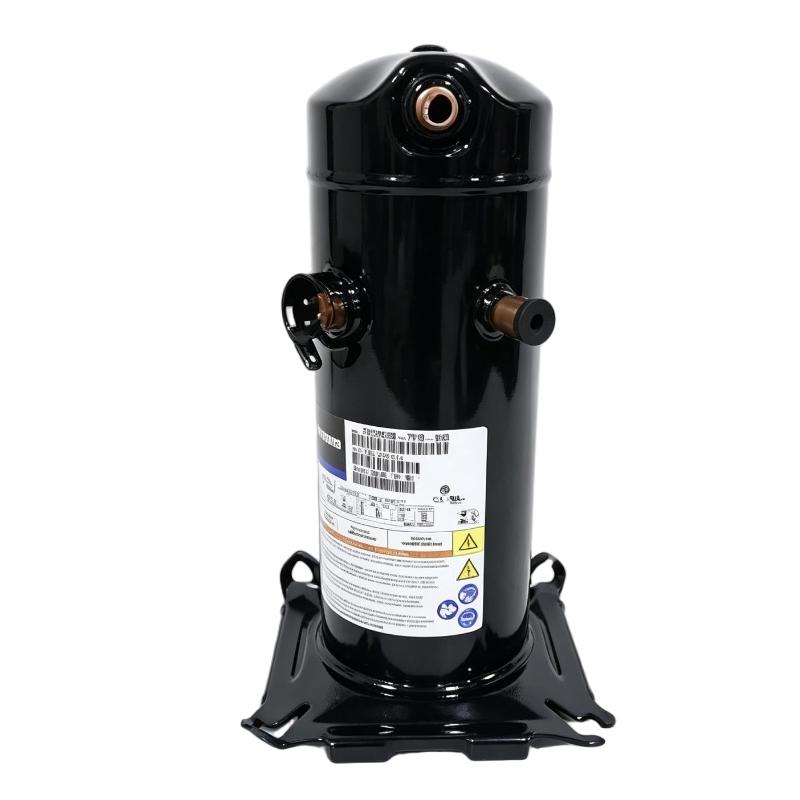

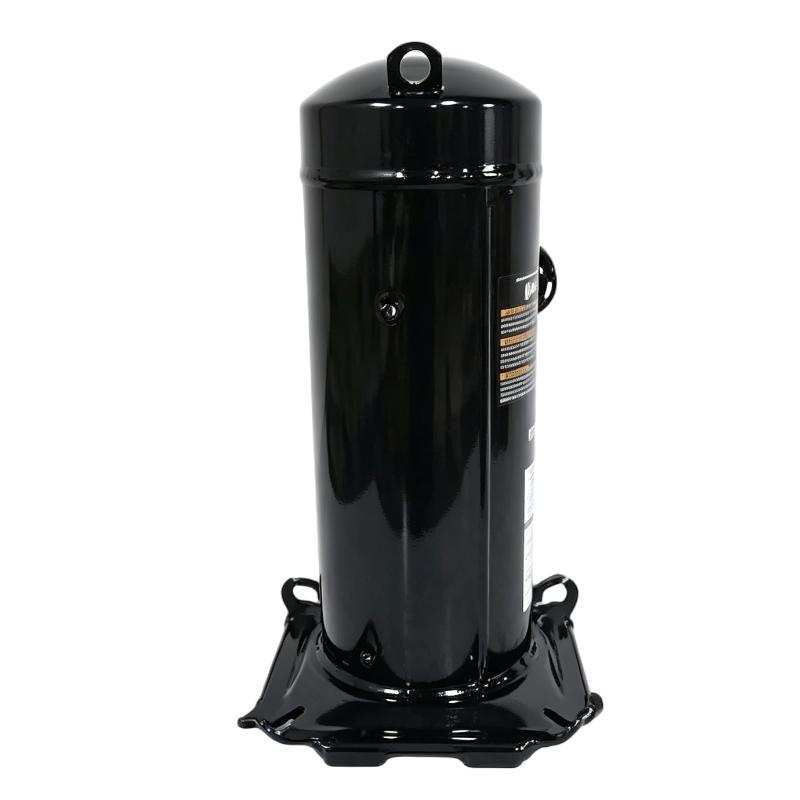

1. What is the main function of the Emerson ZR32K5E-TFD-800 Scroll Compressor?
The ZR32K5E-TFD-800 is a fixed-speed scroll compressor designed for air-conditioning applications. It compresses refrigerant vapor and circulates refrigerant through the refrigeration system, providing the pressure difference required for heat transfer between the evaporator and condenser. The scroll compression mechanism uses two interleaved scroll elements to compress refrigerant with relatively few moving parts. This design supports stable operation, reduced mechanical complexity, and reliable performance in suitable HVAC applications.

2. What refrigerants can be used with the ZR32K5E-TFD-800?
The ZR32K5E-TFD-800 is associated with R-22 and R-407C refrigerant applications. The actual refrigerant used should always match the design and specifications of the complete air-conditioning system. Refrigerants should not be mixed, and a replacement compressor should be selected according to the original system refrigerant, operating conditions, electrical configuration, and application requirements. When converting an existing system from one refrigerant to another, the compatibility of the compressor oil, expansion device, seals, controls, and other refrigeration components must also be considered.

3. What electrical supply does the ZR32K5E-TFD-800 require?
The ZR32K5E-TFD-800 is a three-phase compressor designed for a 460 VAC electrical supply at 60 Hz. Before installation, the available power supply should be checked to ensure that the voltage, frequency, and phase configuration correspond to the compressor requirements. Incorrect electrical conditions can result in excessive current, motor overheating, poor starting performance, or compressor damage. Electrical connections should be completed by qualified personnel, with appropriate motor protection and system controls installed according to the equipment design.

4. What are common causes of ZR32K5E-TFD-800 compressor failure?
Common causes include inadequate lubrication, liquid refrigerant returning to the compressor, excessive discharge temperature, incorrect refrigerant charge, blocked or restricted refrigeration lines, electrical phase problems, voltage abnormalities, overheating, and operation outside the intended application range. Contaminated refrigerant or moisture in the refrigeration circuit can also damage internal components and reduce compressor reliability. Before replacing a failed compressor, the root cause should be investigated. Otherwise, the replacement compressor may experience the same operating conditions and fail again.

5. How can abnormal operation of the ZR32K5E-TFD-800 be diagnosed?
Diagnosis should begin with a review of the system’s operating conditions rather than immediately assuming that the compressor is defective. Check supply voltage, phase balance, operating current, suction pressure, discharge pressure, refrigerant charge, and compressor temperature. Unusual noise or vibration should also be investigated because these symptoms may indicate mechanical or refrigerant-related problems. The suction and discharge lines should be checked for restrictions, while the electrical terminals and protection devices should be inspected for overheating or loose connections. Comparing measured operating conditions with the requirements of the complete HVAC system helps identify the actual cause.

6. What should be checked before replacing a ZR32K5E-TFD-800 compressor?
Before replacement, technicians should determine why the original compressor failed. The refrigeration circuit should be checked for contamination, moisture, abnormal pressure conditions, restrictions, incorrect refrigerant charge, and evidence of oil loss or degradation. The electrical supply should also be tested for correct voltage, phase sequence, and phase balance. Associated components such as contactors, overload protection, expansion devices, condenser and evaporator fans, and system controls should be inspected as appropriate. Correctly identifying the original failure mechanism is important because installing a new compressor without correcting the underlying system problem can result in another premature failure.

7. What precautions are important when installing the ZR32K5E-TFD-800?
The refrigeration system should be properly isolated and depressurized according to applicable service procedures before compressor replacement. Refrigerant recovery must be handled using suitable equipment and procedures. During installation, the suction and discharge connections should be protected from contamination and moisture, and the compressor should be mounted securely using the appropriate mounting hardware. The electrical wiring must match the three-phase supply requirements, and the compressor oil should be handled according to the applicable refrigeration service procedure. After installation, the system should be evacuated appropriately, charged with the correct refrigerant, and checked for leaks before startup.

8. What should be checked after installing a replacement ZR32K5E-TFD-800?
After installation, verify that the refrigeration circuit is correctly assembled, evacuated, leak-free, and charged with the appropriate refrigerant. Confirm that the electrical supply is correct and that all three phases are properly connected. During startup, monitor compressor current, suction and discharge pressures, refrigerant temperatures, and abnormal noise or vibration. The compressor should be allowed to operate under suitable system conditions while technicians verify that the refrigeration cycle is stable. Any abnormal pressure, temperature, current, or noise should be investigated before the equipment is placed into continuous operation.
