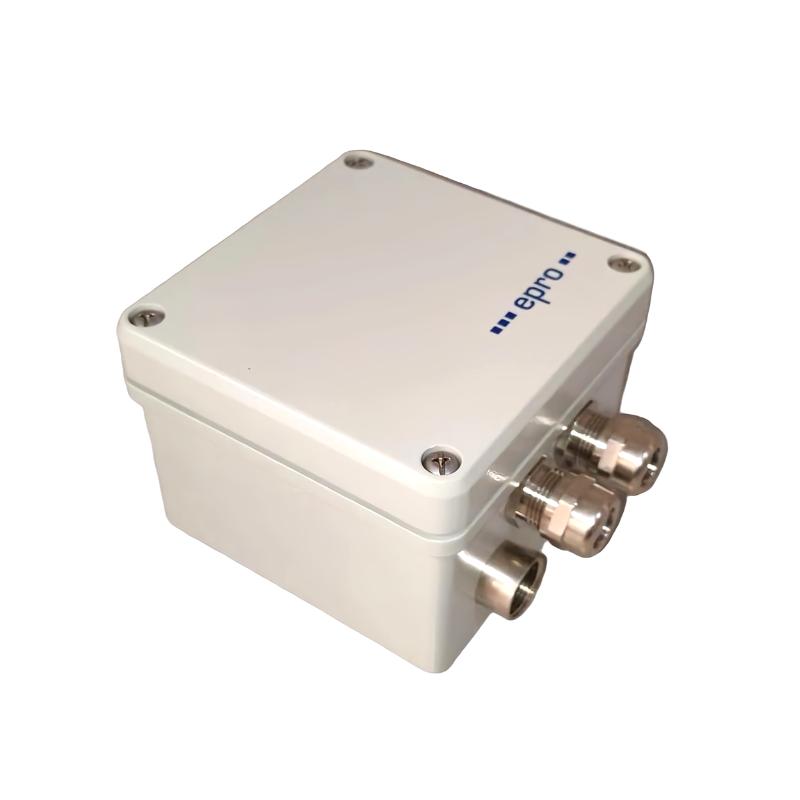

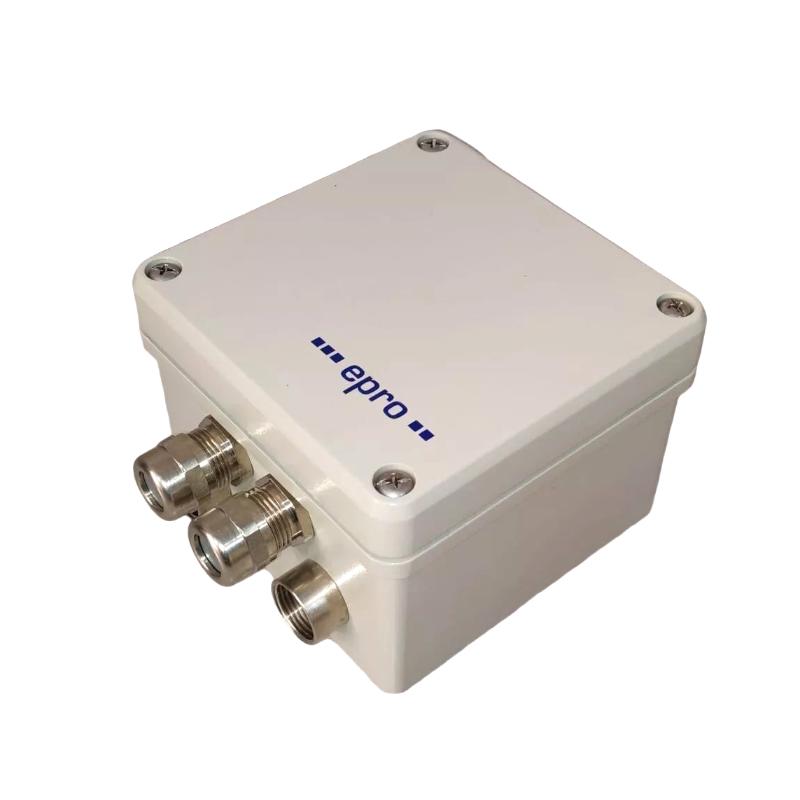

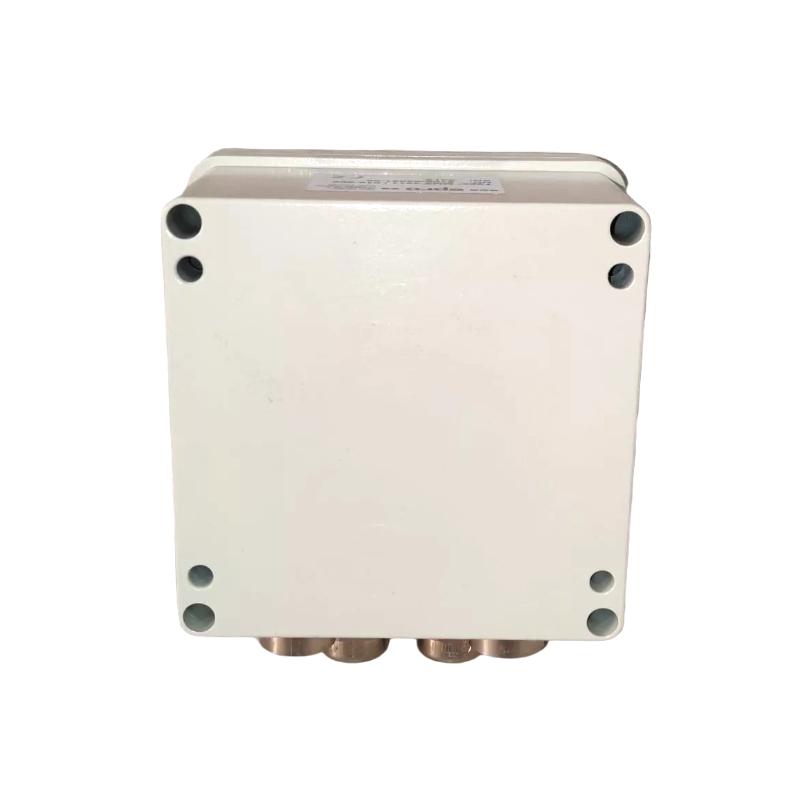

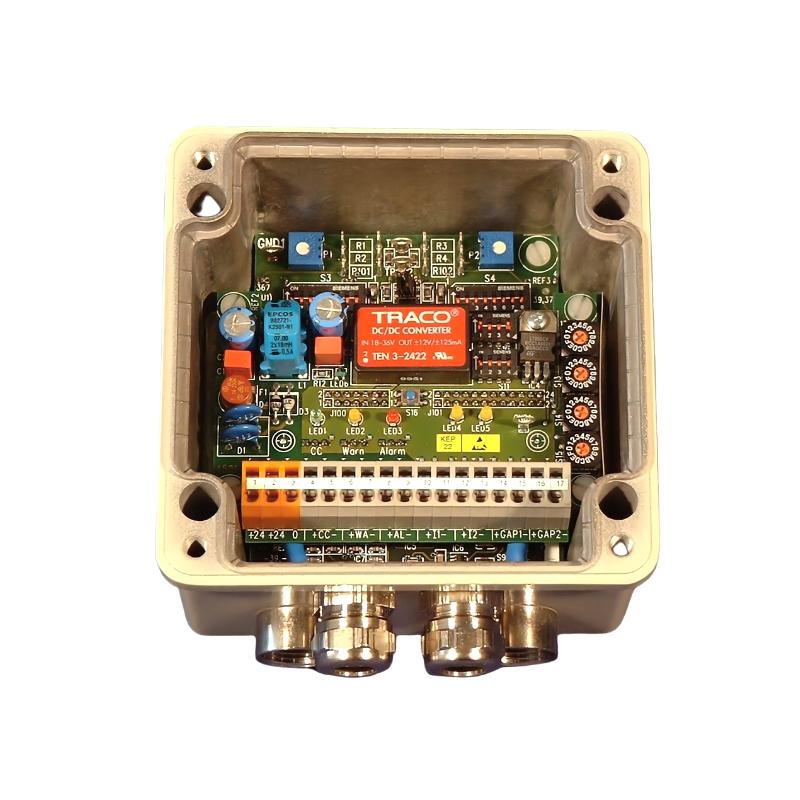

Epro MMS3210 Dual Channel Shaft Displacement Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MMS3210 |
| Product Type | Dual Channel Shaft Displacement Transmitter |
| Manufacturer | EPRO / Emerson |
| Series | MMS3000 Machine Monitoring System |
| Function | Shaft displacement, axial position, thermal expansion, and relative expansion monitoring |
| Measurement Principle | Non-contact eddy current displacement measurement |
| Input Channels | 2 independent eddy current sensor inputs |
| Compatible Sensors | PR6422 / PR6423 / PR6424 / PR6425 / PR6426 series eddy current probes |
| Measurement Type | Axial displacement, shaft position, thrust bearing position, differential expansion measurement |
| Measurement Range | Selectable according to sensor type |
| Frequency Response | DC to approx. 20 kHz |
| Linearity Error | <0.25% |
| Output Signal | 2 × 0/4–20 mA independent current outputs |
| Additional Output | Buffered voltage outputs for testing and diagnostics |
| Alarm Function | Adjustable warning/danger limits and sensor fault monitoring |
| Power Supply | 18–36 VDC (24 VDC nominal) |
| Power Consumption | Approx. 2.5 W |
| Communication Interface | RS232 configuration interface |
| Sensor Monitoring | Continuous monitoring of sensor signal, cable condition, and module status |
| Mounting Type | MMS3000 rack / cabinet installation |
| Protection Rating | IP65 (system dependent) |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -30°C to +90°C |
| Relative Humidity | 0–95% RH (non-condensing) |
| Dimensions | Approx. 127.5 × 125.75 × 80 mm |
| Weight | Approx. 1.3 kg |
| Installation Method | Installed in MMS3000 monitoring rack or control cabinet |
| Application Areas | Steam turbines, gas turbines, compressors, generators, pumps, and other critical rotating machinery |
| Reliability Features | Dual-channel measurement, sensor diagnostics, high accuracy, continuous monitoring, and integration with machine protection systems |
Product Type (Brief)
MMS3210: Dual Channel Shaft Displacement Transmitter
The MMS3210 is a dual-channel shaft displacement transmitter from the EPRO MMS3000 series. It processes eddy current sensor signals for monitoring axial displacement, shaft position, thermal expansion, and thrust bearing movement in critical rotating equipment.
FAQ
Q1: What is the MMS3210 used for?
- The MMS3210 is mainly used for monitoring shaft axial displacement, thrust position, relative expansion, and displacement changes in turbines and large rotating machinery.
Q2: Which sensors are compatible with the MMS3210?
- It supports EPRO PR6422, PR6423, PR6424, PR6425, and PR6426 series eddy current displacement sensors.
Q3: Is the MMS3210 single-channel or dual-channel?
- The MMS3210 is a dual-channel transmitter with two independent eddy current sensor inputs.
Q4: What output signals does the MMS3210 provide?
- It provides two independent 0/4–20 mA current outputs proportional to the measured displacement values.
Q5: What is the size of the MMS3210?
- Approximate dimensions: 127.5 × 125.75 × 80 mm (W × H × D).
Q6: What are the advantages of the MMS3210?
- It provides non-contact measurement, high accuracy, sensor fault monitoring, adjustable alarms, and reliable operation for critical rotating machinery.
Q7: What should be checked before installation?
- Verify sensor model, measurement range, probe gap adjustment, wiring configuration, power supply, and output settings before operation.
Q8: What should be checked before replacement?
- Confirm sensor compatibility, channel configuration, output type, mounting dimensions, and system parameters before replacement.
Epro MMS3210 Dual Channel Shaft Displacement Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
