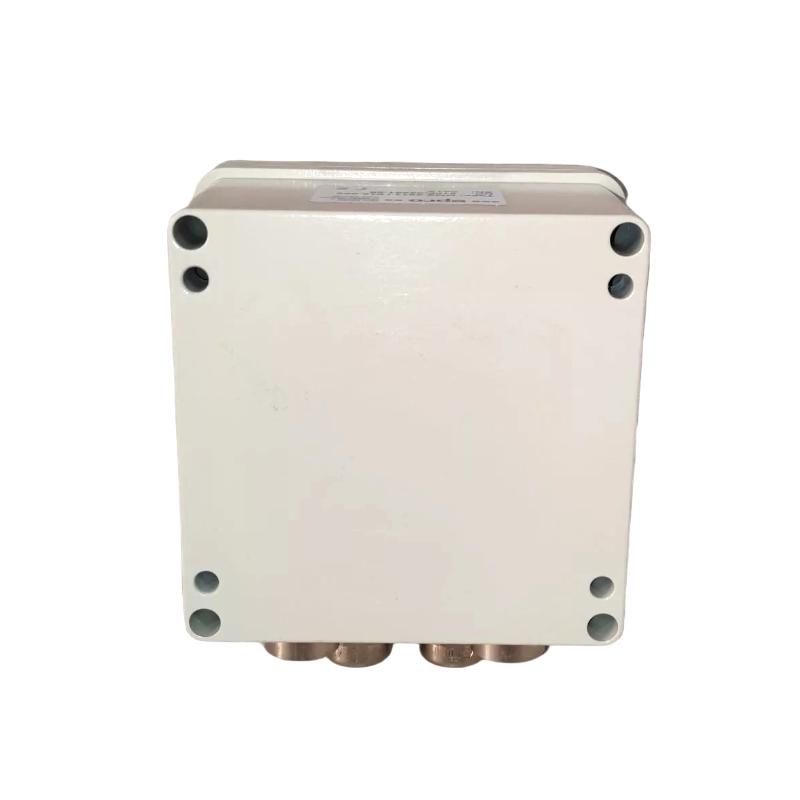

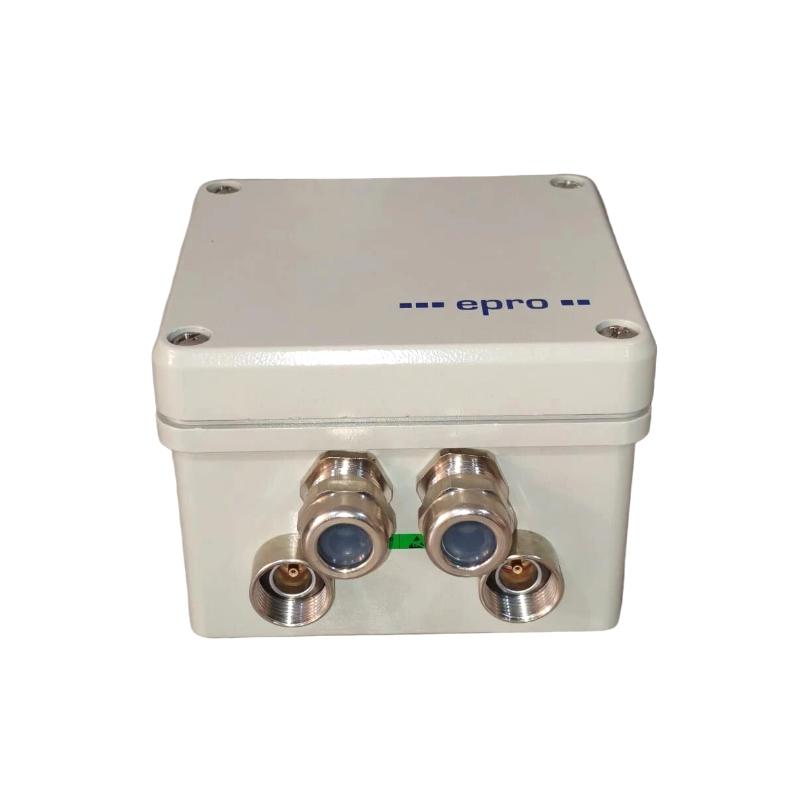

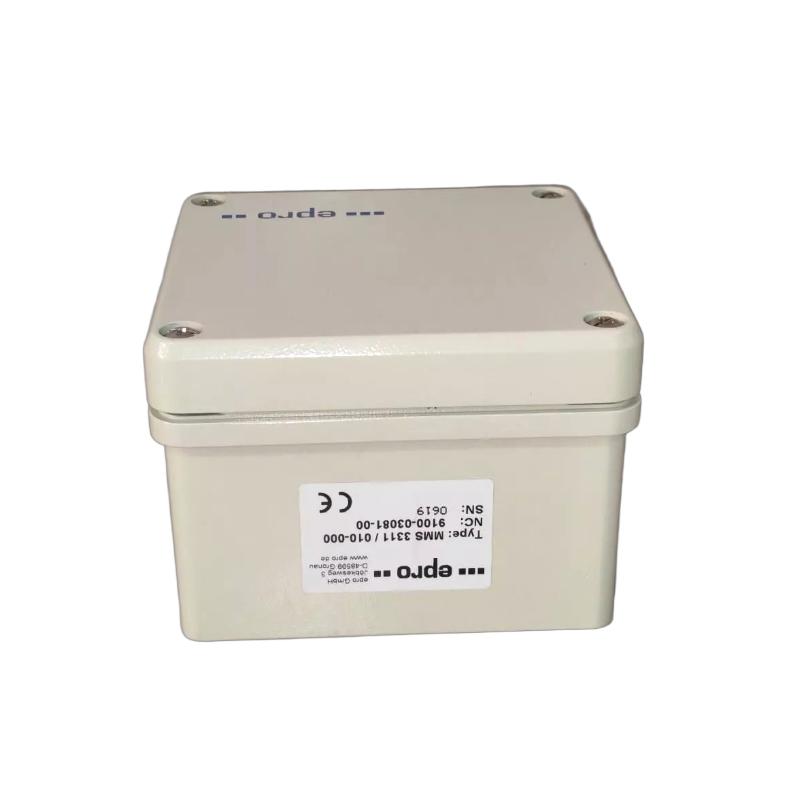

Epro MMS3311 Speed & Key Pulse Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MMS3311 |
| Product Type | Speed & Key Pulse Transmitter |
| Manufacturer | EPRO / Emerson |
| Series | MMS3000 Machine Monitoring System |
| Function | Rotational speed measurement and key phase pulse generation |
| Measurement Principle | Eddy current sensor pulse detection |
| Input Channels | 2 independent sensor input channels |
| Compatible Sensors | PR6422 / PR6423 / PR6424 / PR6425 / PR6426 series eddy current sensors |
| Measurement Range | 0 to 65535 rpm (configurable) |
| Frequency Range | 0 to 20 kHz |
| Measurement Accuracy | Approx. ±0.25% |
| Linear Error | ≤0.25% |
| Speed Output | 0/4–20 mA proportional current output |
| Key Pulse Output | Pulse output for phase reference measurement |
| Additional Outputs | Buffered voltage outputs for testing and diagnostics |
| Alarm Function | Speed limit monitoring, sensor fault monitoring, OK status output |
| Sensor Monitoring | Continuous monitoring of sensor circuit and transmitter status |
| Power Supply | 18–31.2 VDC (24 VDC nominal) |
| Power Consumption | Approx. 2.5 W |
| Communication Interface | RS232 configuration interface |
| Output Load | Max. 500 Ω |
| Mounting Type | MMS3000 rack / cabinet mounting |
| Protection Rating | IP65 (system dependent) |
| Operating Temperature | -20°C to +65°C |
| Relative Humidity | 0–95% RH (non-condensing) |
| Shock Resistance | 20 g / 2 ms |
| Vibration Resistance | 5 g at 60 Hz |
| Dimensions | Approx. 127.5 × 125.75 × 80 mm |
| Weight | Approx. 1.3 kg |
| Installation Method | Cabinet or machine monitoring system installation |
| Application Areas | Steam turbines, gas turbines, compressors, generators, gearboxes, pumps, and other rotating machinery |
| Reliability Features | Dual-channel speed monitoring, key phase detection, sensor fault diagnosis, continuous machine monitoring, and integration with protection systems |
Product Type (Brief)
MMS3311: Speed & Key Pulse Transmitter
The MMS3311 is a speed and key pulse transmitter from the EPRO MMS3000 series. It is used for measuring rotating shaft speed and generating key phase reference pulses through eddy current sensors, providing speed and phase signals for rotating machinery monitoring.
FAQ
Q1: What is the MMS3311 used for?
- The MMS3311 is used for measuring shaft rotational speed and generating key phase reference pulses in turbines, compressors, generators, and other rotating equipment.
Q2: Which sensors are compatible with the MMS3311?
- It supports EPRO PR6422, PR6423, PR6424, PR6425, and PR6426 series eddy current sensors.
Q3: Is the MMS3311 single-channel or dual-channel?
- The MMS3311 provides two independent sensor input channels for speed and key phase measurement.
Q4: What is the speed measurement range?
- The measurement range can be configured up to 65535 rpm, depending on the application settings.
Q5: What output signals does the MMS3311 provide?
- It provides a proportional 0/4–20 mA speed output and a key pulse output for phase reference measurement.
Q6: What are the advantages of the MMS3311?
- It provides accurate speed measurement, key phase detection, sensor fault monitoring, configurable outputs, and reliable operation in industrial rotating machinery applications.
Epro MMS3311 Speed & Key Pulse Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
