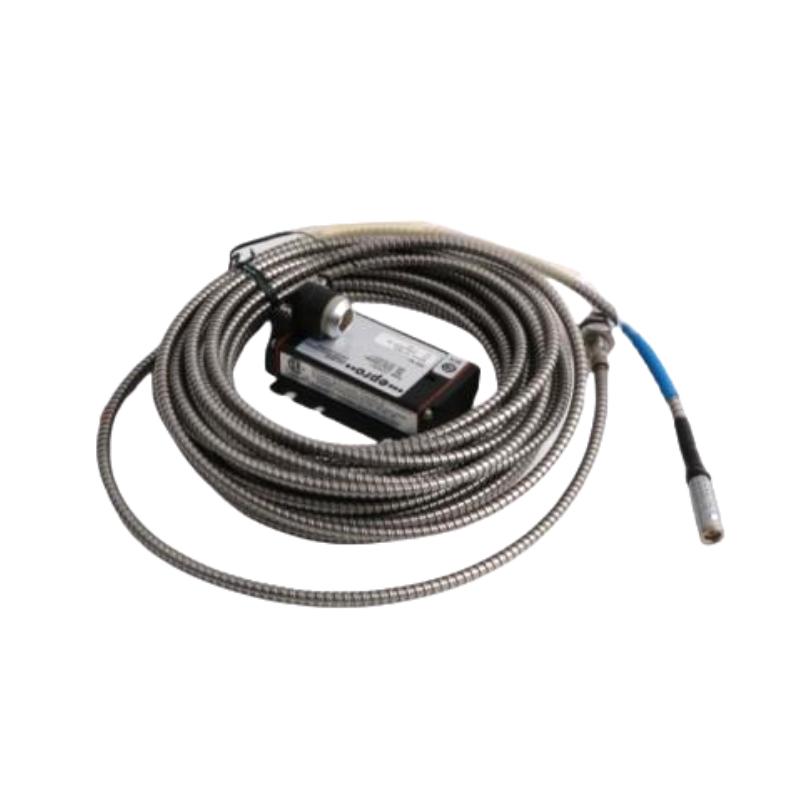

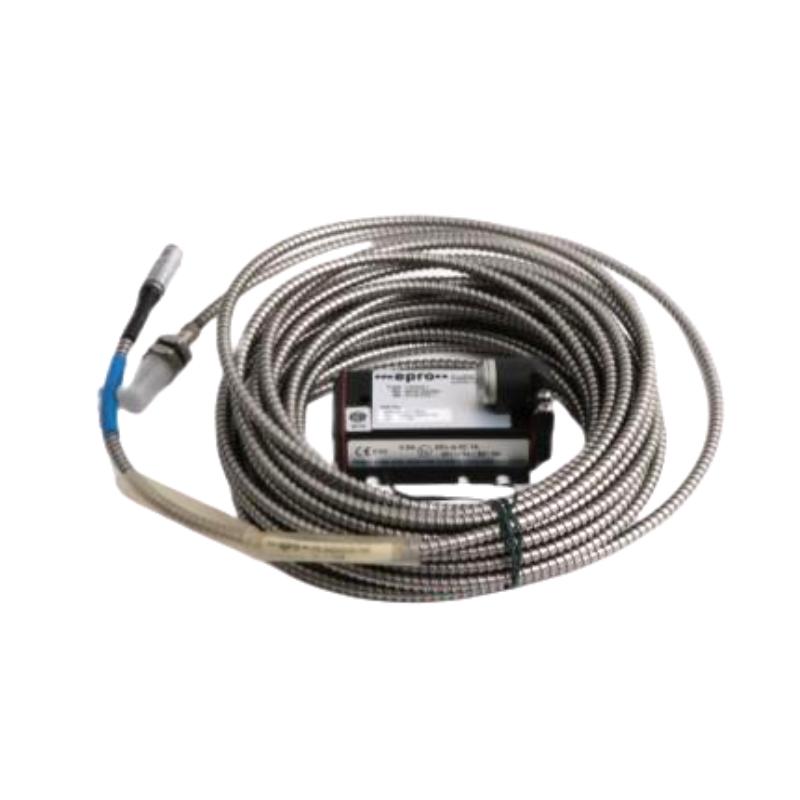

Epro PR6423/001-000+CON021 Displacement monitoring system
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | PR6423/001-000 + CON021 |
| Product Type | Displacement monitoring system |
| Manufacturer | EPRO / Emerson |
| System Composition | PR6423 8 mm eddy current sensor + CON021 signal converter |
| Measurement Principle | Non-contact eddy current technology |
| Main Function | Shaft displacement, vibration, position, eccentricity, and speed monitoring |
| Application | Rotating machinery condition monitoring and protection |
| Sensor Diameter | 8 mm |
| Static Measuring Range | ±0.5 mm |
| Dynamic Measuring Range | 0 to 250 μm |
| Initial Air Gap | Approx. 1.5 mm |
| Sensitivity | 8 V/mm |
| Linearity Error | ≤ ±1% |
| Target Material | Ferromagnetic steel materials |
| Minimum Shaft Diameter | ≥25 mm |
| Sensor Operating Temperature | -35°C to +180°C |
| Cable Operating Temperature | Up to +200°C |
| Protection Class | IP66 (sensor) |
| Sensor Tip Material | Epoxy resin |
| Sensor Housing Material | Stainless steel |
| Cable Material | PTFE insulated cable |
| Thread Specification | M10 × 1 |
| Cable Length | According to configuration |
| Signal Converter Model | CON021 |
| Converter Function | Signal conditioning and conversion for machinery monitoring systems |
| Converter Frequency Range | 0 to 20 kHz |
| Converter Response Time | <15 μs |
| Converter Operating Temperature | -30°C to +100°C |
| Converter Protection Class | IP20 |
| Converter Mounting Method | Screw mounting |
| Installation Method | Threaded sensor installation with separate converter connection |
| Dimensions | Sensor diameter approx. 8 mm; converter dimensions depend on installation configuration |
| Weight | Sensor approx. 100 g; converter approx. 120 g |
FAQ
Q1: What is the PR6423/001-000 + CON021 mainly used for?
A: The PR6423/001-000 + CON021 is designed for non-contact displacement monitoring of rotating machinery, supporting shaft position, vibration, and condition analysis.
Q2: What components are included in this system?
A: The system includes the PR6423/001-000 eddy current sensor and the CON021 signal converter, which work together for measurement and signal processing.
Q3: What measurement technology does this product use?
A: The system uses eddy current technology, enabling accurate displacement detection without physical contact with the measured shaft.
Q4: What equipment can use the PR6423/001-000 + CON021?
A: It is suitable for turbines, compressors, generators, pumps, fans, gearboxes, and other industrial rotating equipment requiring continuous monitoring.
Q5: What is the function of the CON021 signal converter?
A: The CON021 processes the sensor signal and converts it into standardized outputs suitable for machinery monitoring and protection systems.
Q6: What are the advantages of the PR6423/001-000 + CON021 system?
A: The system provides high measurement accuracy, fast response, stable signal conversion, and reliable operation in industrial environments.
Q7: What should be considered during installation?
A: Proper sensor gap adjustment, correct mounting position, compatible shaft material, and accurate electrical connections should be ensured before operation.
Q8: How can the performance of the PR6423/001-000 + CON021 be maintained?
A: Regular inspection, calibration checks, stable operating conditions, and preventive maintenance help maintain measurement accuracy and extend product service life.
Epro PR6423/001-000+CON021 Displacement monitoring system is in stock. Please contact us for a quick quote and competitive pricing.
