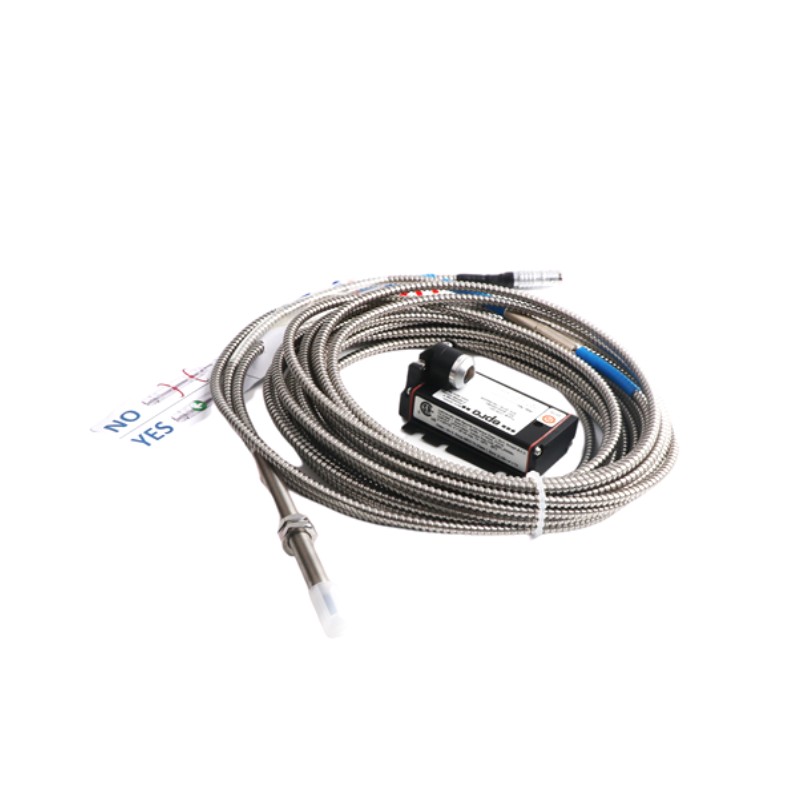

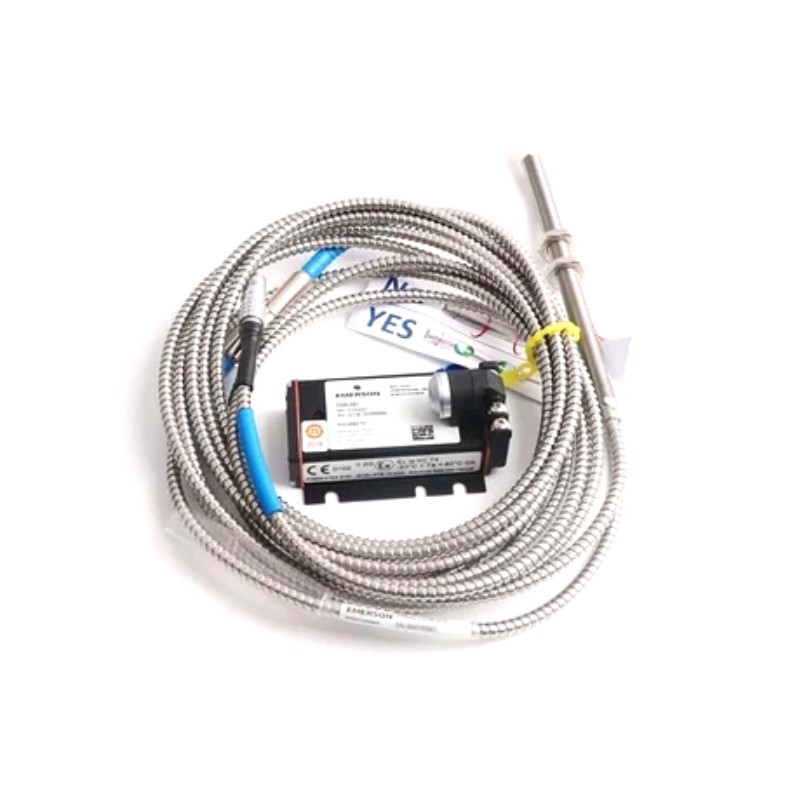

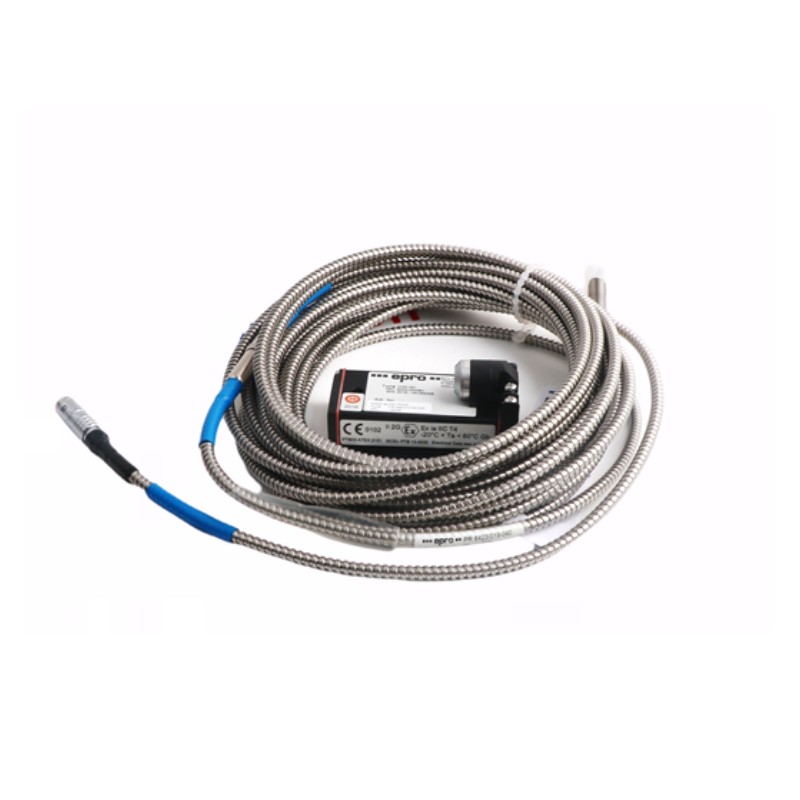

Epro PR6423/001-010 Eddy current displacement sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | PR6423/001-010 |
| Product Type | Eddy current displacement sensor |
| Manufacturer | EPRO / Emerson |
| Measurement Principle | Non-contact eddy current technology |
| Main Function | Shaft displacement, vibration, eccentricity, position, and speed monitoring |
| Application | Rotating machinery condition monitoring and protection |
| Sensor Diameter | 8 mm |
| Measuring Range | 0–2 mm |
| Initial Air Gap | Approx. 1.0 mm |
| Sensitivity | 8 V/mm |
| Frequency Response | 0–10 kHz |
| Static Accuracy | ≤ ±1.5% |
| Target Material | Ferromagnetic steel materials |
| Minimum Shaft Diameter | ≥20 mm |
| Operating Temperature | -35°C to +180°C |
| Short-Term Temperature Resistance | Up to 200°C |
| Cable Operating Temperature | Up to 200°C |
| Protection Class | IP66 |
| Sensor Housing Material | Stainless steel |
| Cable Material | PTFE insulated cable |
| Thread Specification | M10 × 1 |
| Cable Length | According to configuration |
| Installation Method | Threaded mounting |
| Signal Type | Eddy current displacement signal |
| Compatible Converter | CON011 / CON021 / CON031 / CON041 |
| Typical Applications | Steam turbines, gas turbines, compressors, pumps, gearboxes, fans, and other rotating equipment |
| Dimensions | Sensor diameter approx. 8 mm; overall dimensions depend on cable configuration |
| Weight | Approx. 300 g |
FAQ
Q1: What is the PR6423/001-010 mainly used for?
A: The PR6423/001-010 is mainly used for non-contact measurement of shaft displacement, vibration, eccentricity, and position changes in rotating machinery.
Q2: What technology does the PR6423/001-010 use?
A: The sensor uses eddy current measurement technology, which provides accurate displacement detection without physical contact with the rotating shaft.
Q3: What equipment is suitable for the PR6423/001-010?
A: It is suitable for turbines, compressors, pumps, generators, gearboxes, fans, and other industrial rotating equipment requiring continuous condition monitoring.
Q4: What is the measuring range of the PR6423/001-010?
A: The sensor provides a 0–2 mm measuring range with an approximate 1.0 mm initial air gap, supporting precise shaft displacement monitoring.
Q5: What are the advantages of the PR6423/001-010?
A: The sensor offers non-contact operation, stable measurement performance, high sensitivity, and reliable operation in demanding industrial environments.
Q6: Can the PR6423/001-010 work in high-temperature applications?
A: Yes. The sensor is designed for industrial machinery monitoring and supports high-temperature operating conditions with durable construction.
Q7: Which converters are compatible with the PR6423/001-010?
A: The sensor can be integrated with compatible EPRO signal converters such as CON011, CON021, CON031, and CON041 for system monitoring applications.
Q8: How can the performance of the PR6423/001-010 be maintained?
A: Regular inspection, correct installation, proper calibration, and preventive maintenance help maintain measurement accuracy and extend service life.
Epro PR6423/001-010 Eddy current displacement sensor is in stock. Please contact us for a quick quote and competitive pricing.
