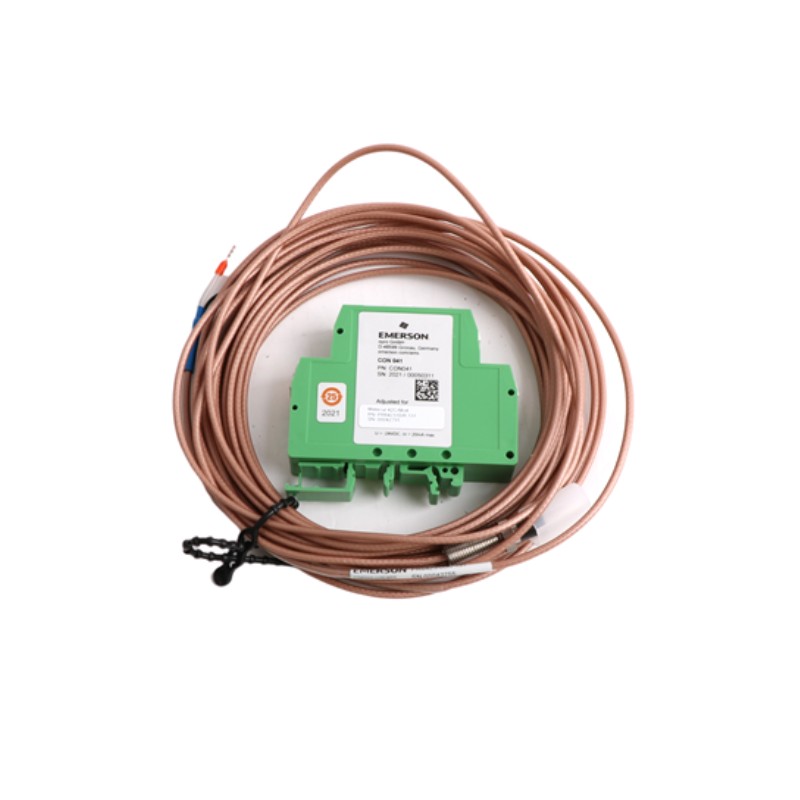

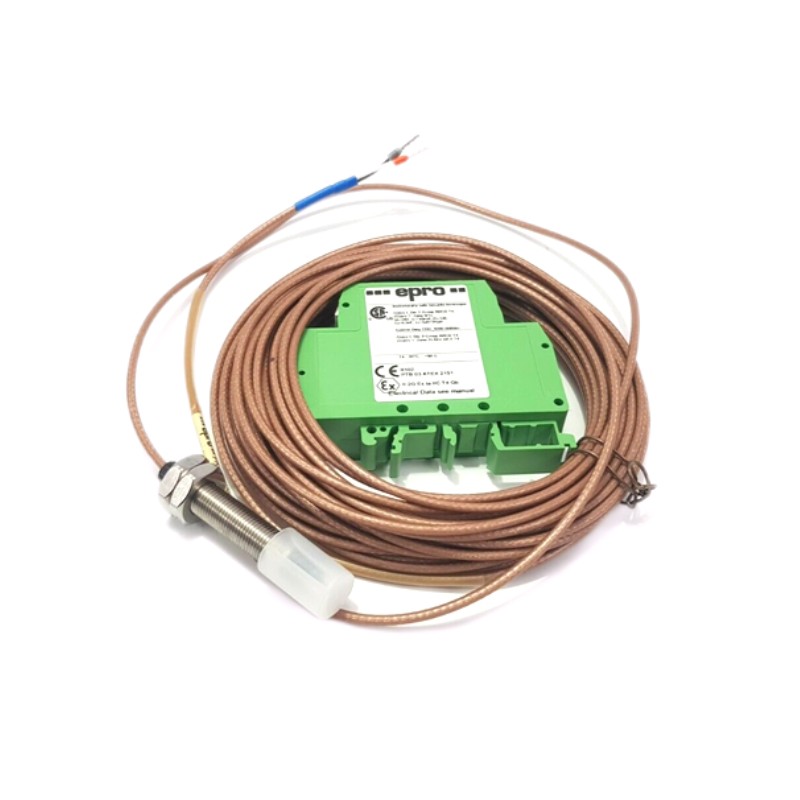

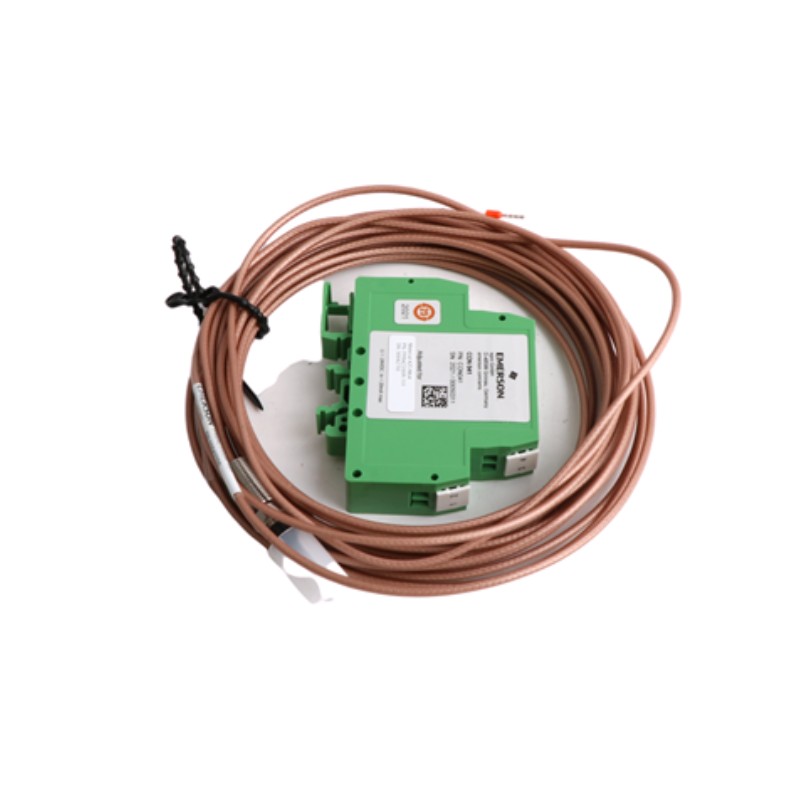

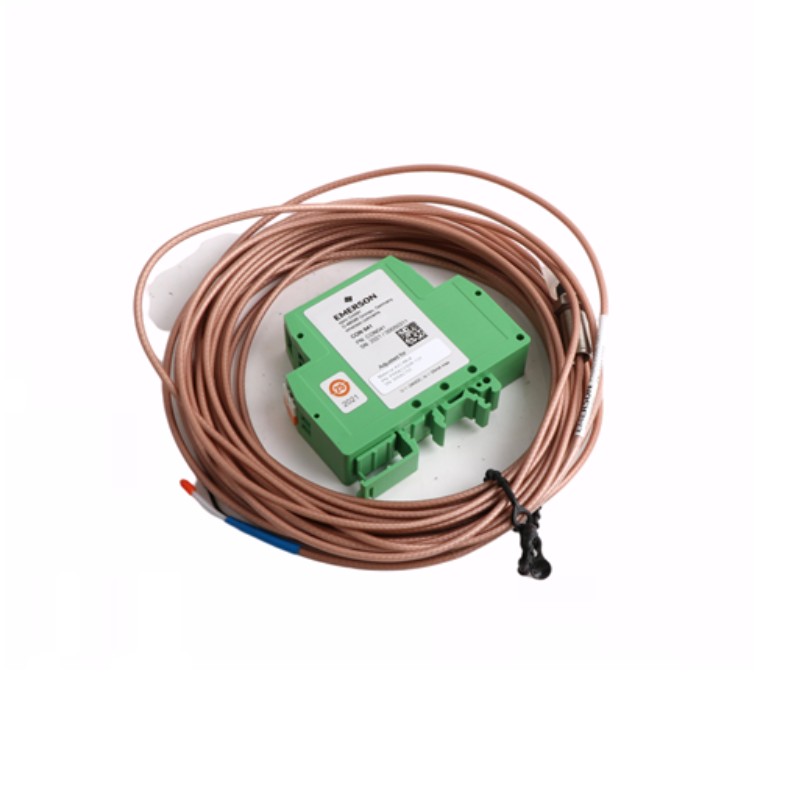

Epro PR6423/002-131+CON031 Eddy Current Displacement Sensor System with Signal Converter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/002-131 + CON031 |
| Product Type | Eddy Current Displacement Sensor System with Signal Converter |
| Manufacturer | EPRO / Emerson |
| System Function | Non-contact measurement system for shaft displacement, position, eccentricity, and vibration monitoring |
| Sensor Type | 8 mm Eddy Current Proximity Sensor |
| Converter Type | CON031 Eddy Current Signal Converter |
| Sensor Measurement Principle | Eddy current technology for non-contact distance measurement |
| Application Compatibility | Designed for critical rotating machinery monitoring applications |
| Measurement Range | 0 to 4 mm |
| Linear Measurement Range | ±1 mm static measurement; 0 to 500 μm dynamic measurement |
| Sensitivity | 8 V/mm |
| Frequency Response | 10 Hz to 10 kHz |
| Output Signal Range | -4 to -20 VDC or -2 to -18 VDC depending on configuration |
| Converter Frequency Range | 0 to 20 kHz (-3 dB) |
| Converter Rise Time | Less than 15 μs |
| Supply Voltage | -23 to -32 VDC typical |
| Alternative Supply Range | -21 to -32 VDC |
| Sensor Diameter | 8 mm probe diameter |
| Cable Length | Approx. 8 m non-armored cable |
| Sensor Material | Stainless steel housing with PTFE cable |
| Operating Temperature | Sensor: -35°C to +180°C; Converter: -30°C to +100°C |
| Shock and Vibration Resistance | 5 g at 60 Hz at 25°C |
| Protection Class | IP20 for converter unit |
| Sensor Dimensions | Approx. 8 mm probe size; overall dimensions depend on installation configuration |
| Converter Dimensions | Approx. 50 mm × 50 mm × 10 mm |
| Sensor Weight | Approx. 100 g |
| Converter Weight | Approx. 120 g |
| Total System Weight | Approx. 220 g |
| Installation Method | Sensor mounted near rotating shaft target; converter installed in control cabinet |
| Application Areas | Steam turbines, gas turbines, compressors, pumps, fans, and rotating machinery condition monitoring |
| Reliability Features | Provides high-precision non-contact displacement measurement with fast response and stable long-term operation |
FAQ
Q1: What is the PR6423/002-131 + CON031 system used for?
- The PR6423/002-131 + CON031 is an eddy current measurement system used for monitoring shaft displacement, radial and axial position, eccentricity, and vibration parameters in critical rotating equipment.
Q2: How does the PR6423/002-131 sensor work?
- The sensor uses eddy current technology to measure the distance between the probe and a conductive target without physical contact, providing accurate position and displacement measurements.
Q3: What measurement range does the PR6423/002-131 support?
- The sensor supports a measurement range up to 4 mm, with typical dynamic measurement applications covering smaller shaft movement ranges.
Q4: What is the function of the CON031 converter?
- The CON031 converts the raw eddy current sensor signal into a standardized output signal suitable for connection to monitoring systems, protection systems, or industrial control equipment.
Q5: What equipment commonly uses the PR6423/002-131 + CON031?
- The system is commonly applied in turbines, compressors, pumps, generators, and other rotating machinery where precise shaft monitoring is required.
Q6: What type of output signal does the PR6423/002-131 + CON031 provide?
- The converter provides a proportional voltage output signal, typically configured within the -4 to -20 VDC or -2 to -18 VDC range for integration with monitoring systems.
Q7: What should be considered when installing the PR6423/002-131 sensor?
- Users should verify probe gap distance, target material compatibility, cable routing, converter installation conditions, power supply requirements, and system calibration before operation.
Q8: What are the advantages of using an eddy current sensor system like PR6423/002-131 + CON031?
- The system provides non-contact measurement, fast response, high accuracy, resistance to harsh environments, and reliable monitoring performance for critical industrial machinery.
Epro PR6423/002-131+CON031 Eddy Current Displacement Sensor System with Signal Converter is in stock. Please contact us for a quick quote and competitive pricing.
