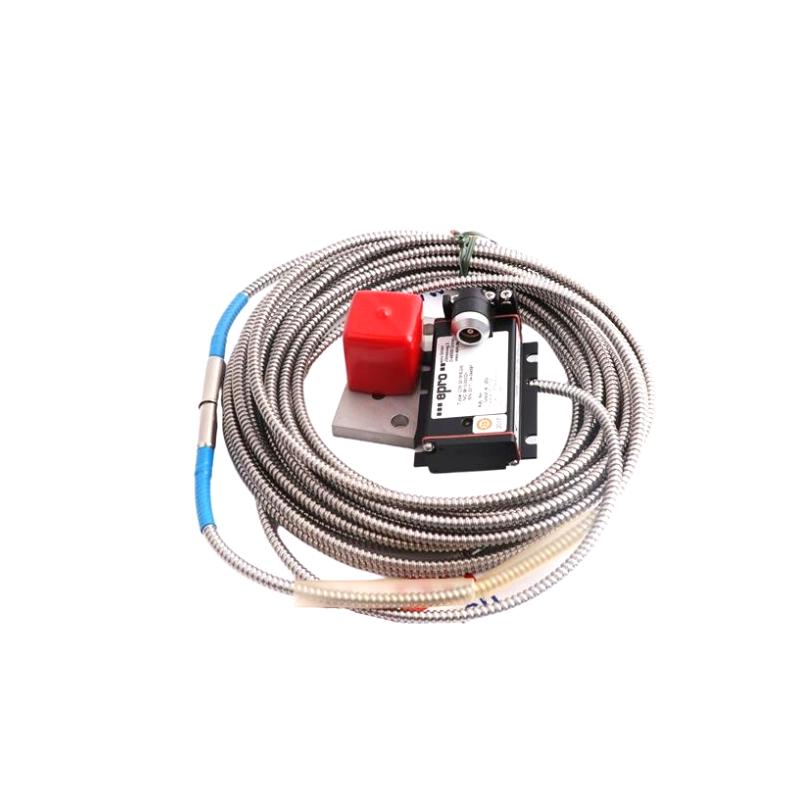

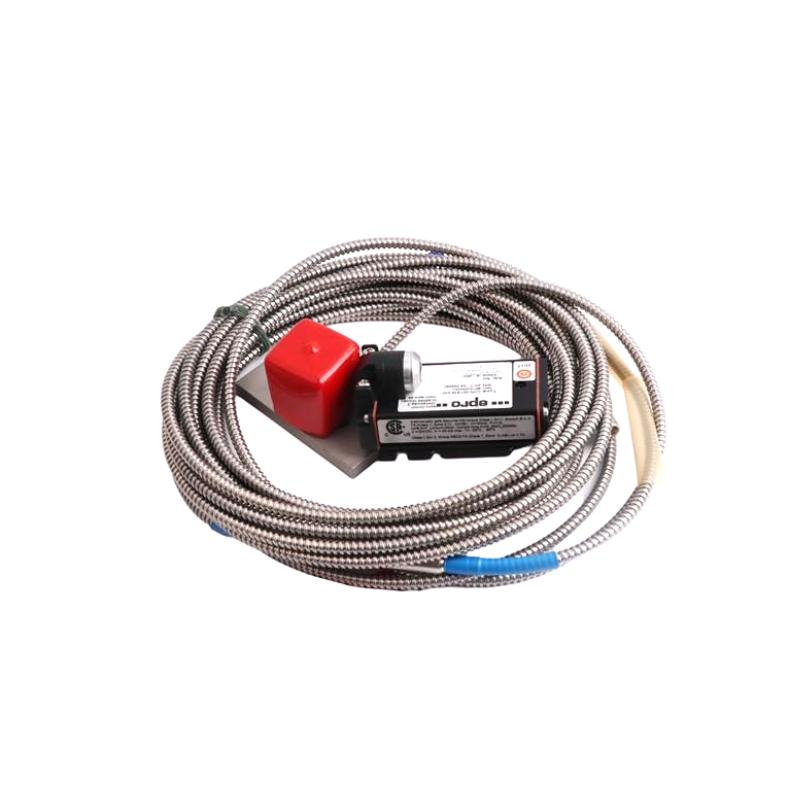

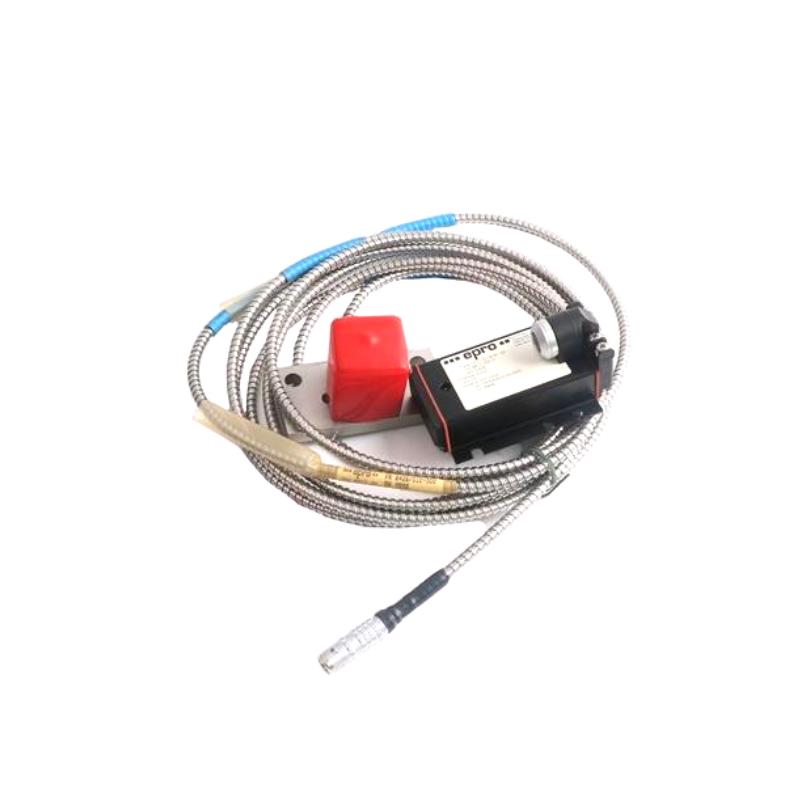

Epro PR6423/003-010+CON021 Eddy Current Displacement Sensor System
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/003-010 + CON021 |
| Product Type | Eddy Current Displacement Sensor System |
| Manufacturer | EPRO / Emerson |
| System Function | Non-contact measurement system for shaft displacement, position, eccentricity, and speed monitoring |
| Sensor Type | 8 mm Eddy Current Proximity Sensor |
| Converter Type | CON021 Eddy Current Signal Converter |
| Measurement Principle | Eddy current technology for non-contact distance measurement |
| Application Compatibility | Critical rotating machinery monitoring and protection systems |
| Measurement Range | 2 mm |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm |
| Linearity | ≤ ±1% |
| Measurement Target Material | Ferromagnetic steel (42CrMo4 / AISI 4140 standard) |
| Minimum Shaft Diameter | ≥25 mm |
| Maximum Surface Speed | 2500 m/s |
| Output Signal | -4 to -20 VDC or -2 to -18 VDC depending on configuration |
| Sensor Frequency Response | Suitable for dynamic shaft displacement and vibration measurement applications |
| Converter Frequency Range | 0 to 20 kHz (-3 dB) |
| Converter Rise Time | Less than 15 μs |
| Supply Voltage | -23 to -32 VDC for -4 to -20 VDC output range |
| Alternative Supply Voltage | -21 to -32 VDC for -2 to -18 VDC output range |
| Sensor Operating Temperature | -35°C to +200°C including 1 m cable |
| Converter Operating Temperature | -30°C to +100°C |
| Shock and Vibration Resistance | 5 g at 60 Hz and 25°C |
| Sensor Protection Rating | IP66 |
| Converter Protection Rating | IP20 |
| Sensor Material | Stainless steel housing, PEEK sensor tip, PTFE cable |
| Converter Housing Material | LMgSi 0.5 F22 aluminum alloy |
| Sensor Dimensions | Approx. 8 mm probe diameter |
| Converter Dimensions | Approx. 56 mm × 50.8 mm × 18 mm |
| Sensor Weight | Approx. 100 g (with 1 m cable, without armor) |
| Converter Weight | Approx. 120 g |
| Installation Method | Sensor installed near rotating shaft target; converter installed inside control cabinet |
| Application Areas | Steam turbines, gas turbines, hydro turbines, compressors, pumps, fans, and rotating machinery monitoring |
| Reliability Features | Provides high-precision non-contact measurement, fast signal conversion, and stable operation under harsh industrial conditions |
FAQ
Q1: What is the PR6423/003-010 + CON021 used for?
- The PR6423/003-010 + CON021 is an eddy current displacement measurement system designed for monitoring shaft position, radial displacement, axial movement, eccentricity, and speed in rotating machinery.
Q2: How does the PR6423/003-010 sensor measure displacement?
- The sensor uses eddy current technology to detect changes in the distance between the probe and a conductive metal target without physical contact, enabling accurate shaft movement measurement.
Q3: What is the measuring range of the PR6423/003-010 sensor?
- The sensor provides a 2 mm linear measurement range with a 0.5 mm initial air gap for precise displacement monitoring applications.
Q4: What is the function of the CON021 converter?
- The CON021 converts the sensor signal into a standardized voltage output that can be connected to machinery protection systems, monitoring equipment, and industrial control platforms.
Q5: What equipment commonly uses the PR6423/003-010 + CON021 system?
- The system is commonly used in turbines, compressors, pumps, fans, gearboxes, and other critical rotating equipment requiring continuous condition monitoring.
Q6: What are the main advantages of the PR6423/003-010 + CON021?
- The system provides non-contact measurement, high accuracy, rapid response, strong environmental resistance, and reliable long-term monitoring performance.
Q7: What should be considered when installing the PR6423/003-010 sensor?
- Users should check probe mounting position, shaft material compatibility, air gap adjustment, cable routing, power supply requirements, and converter configuration before operation.
Q8: What should be checked before replacing a PR6423/003-010 + CON021 system?
- Users should confirm sensor model compatibility, converter type, measurement range, wiring connections, output signal requirements, installation dimensions, and monitoring system settings before replacement.
Epro PR6423/003-010+CON021 Eddy Current Displacement Sensor System is in stock. Please contact us for a quick quote and competitive pricing.
