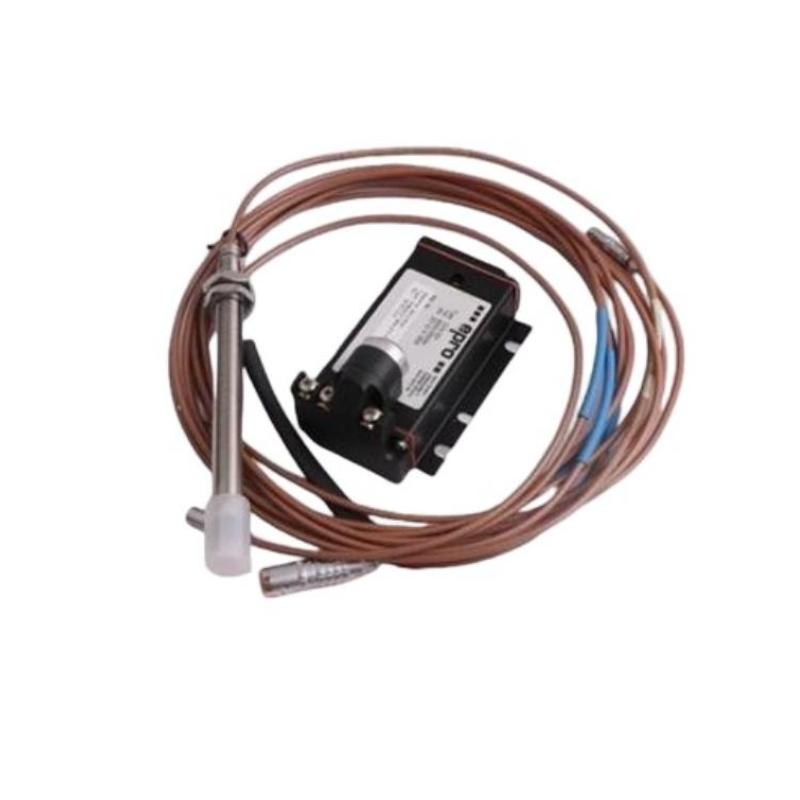

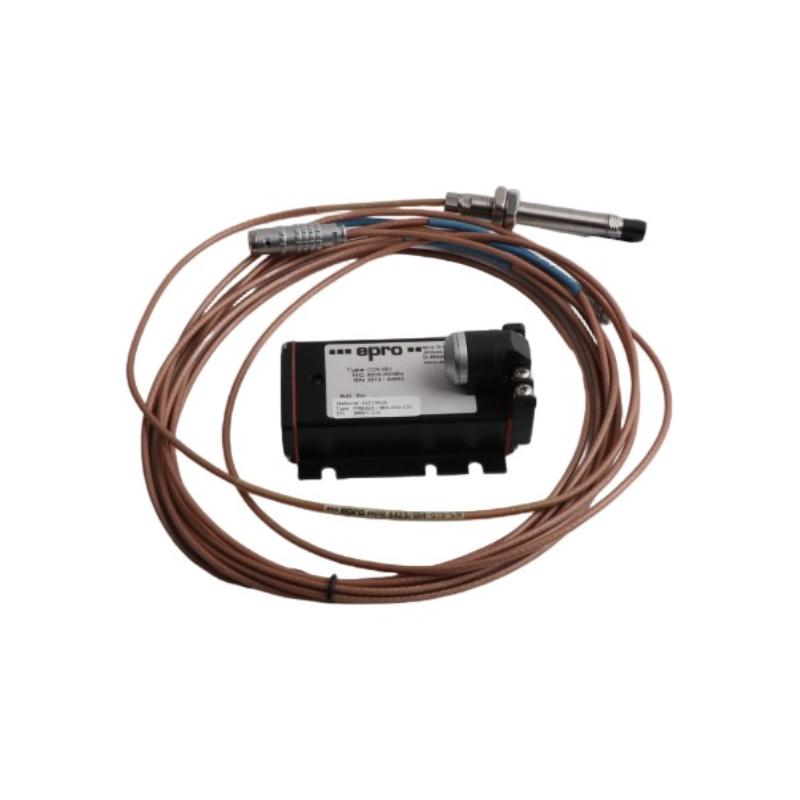

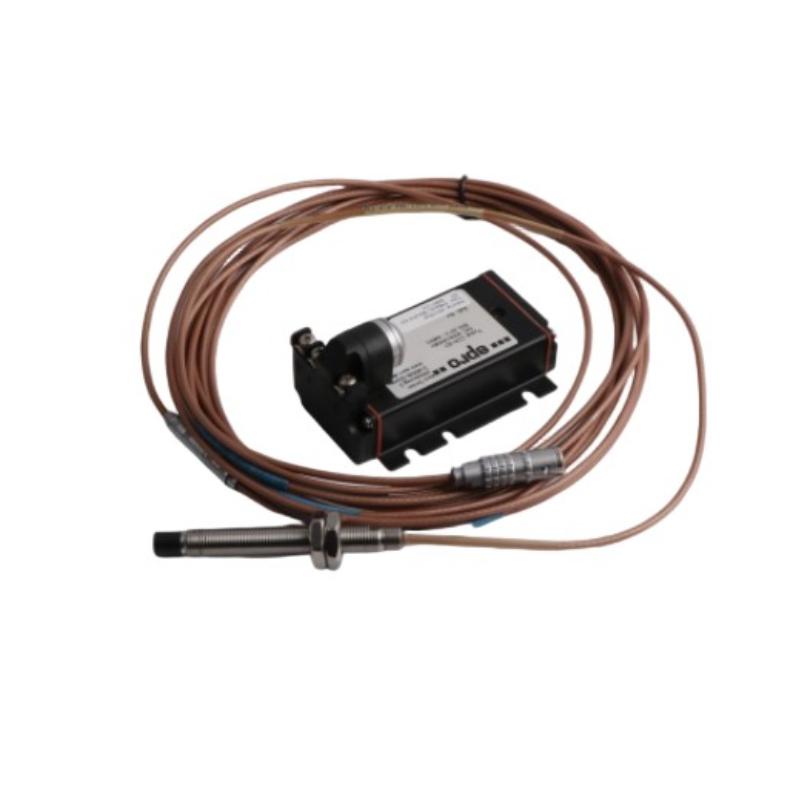

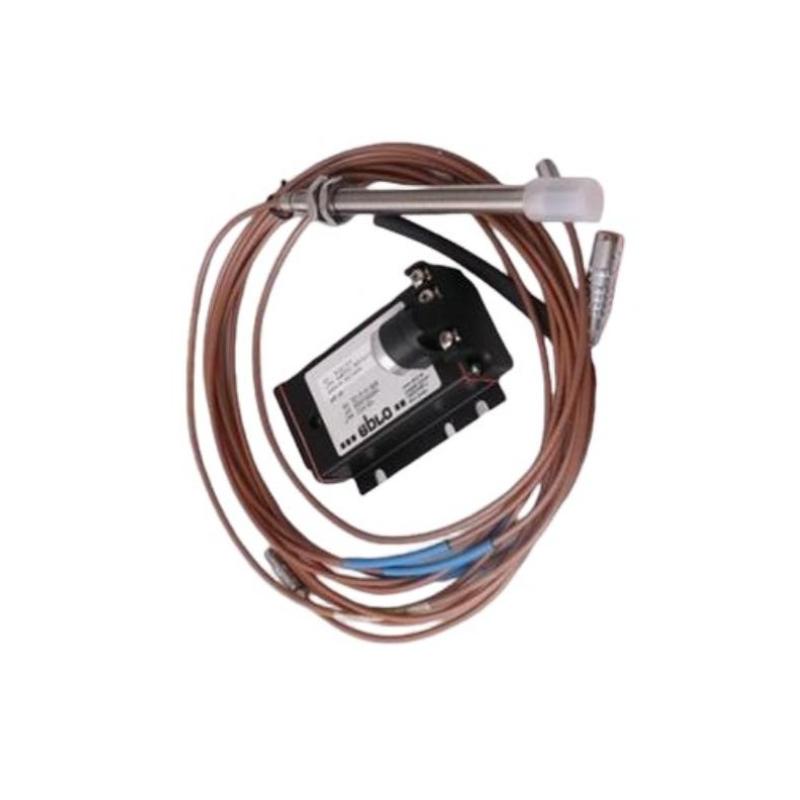

Epro PR6423/010-020-CN+CON021 Eddy Current Displacement Measurement System
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/010-020-CN + CON021 |
| Product Type | Eddy Current Displacement Measurement System |
| Product Series | EPRO PR6423 Sensor + CON021 Signal Converter |
| Main Function | Non-contact measurement system for monitoring shaft displacement, vibration, axial position, radial movement, eccentricity, and speed of rotating machinery |
| Manufacturer | EPRO / Emerson |
| System Configuration | PR6423/010-020-CN eddy current sensor with CON021 signal converter |
| Measurement Principle | Eddy current proximity measurement technology |
| Sensor Type | 8 mm Eddy Current Proximity Sensor |
| Probe Diameter | 8 mm |
| Measurement Range | 2 mm linear measuring range |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm (203.2 mV/mil) |
| Linearity Deviation | ≤ ±0.025 mm |
| Frequency Response | DC to 20 kHz |
| Target Material | Ferromagnetic steel (42CrMo4 standard) |
| Minimum Shaft Diameter | 25 mm |
| Sensor Operating Temperature | -35°C to +200°C |
| Converter Operating Temperature | -30°C to +100°C |
| Sensor Protection Class | IP66 |
| Converter Protection Class | IP20 |
| Sensor Tip Material | PEEK (Polyether Ether Ketone) |
| Sensor Housing Material | Stainless steel |
| Cable Material | PTFE insulated cable |
| Converter Housing Material | Aluminum alloy |
| Converter Supply Voltage | -23 VDC to -32 VDC |
| Converter Output Signal | Standard proportional displacement output signal |
| Converter Dynamic Response | 0 to 20 kHz frequency response |
| Mounting Method | Threaded sensor installation and panel mounting for converter |
| Sensor Dimensions | Approximately 45 mm probe length × 8 mm diameter |
| Converter Dimensions | Approximately 56 × 50.8 × 18 mm |
| Weight | Sensor: approximately 100 g; Converter: approximately 120 g |
| Application Areas | Steam turbines, gas turbines, compressors, generators, pumps, fans, gearboxes, and critical rotating machinery |
FAQ
Q1: What is the main function of the PR6423/010-020-CN + CON021 system?
A1: The system is designed for precise non-contact measurement of shaft displacement, vibration, axial position, eccentricity, and other mechanical conditions in rotating equipment.
Q2: What components are included in the PR6423/010-020-CN + CON021 system?
A2: The system consists of the PR6423/010-020-CN eddy current sensor and the CON021 signal converter, providing a complete displacement monitoring solution.
Q3: What measurement technology does this system use?
A3: The system uses eddy current measurement technology to detect distance changes between the probe and the conductive target surface.
Q4: What is the measuring range of the PR6423/010-020-CN sensor?
A4: The sensor provides a 2 mm linear measurement range with a 0.5 mm initial air gap for accurate displacement monitoring.
Q5: What is the purpose of the CON021 converter?
A5: The CON021 processes the sensor signal, performs signal conditioning, and converts the measurement output into a usable signal for monitoring and protection systems.
Q6: What equipment commonly uses this system?
A6: The system is commonly used in steam turbines, gas turbines, compressors, generators, pumps, fans, and other critical rotating machinery.
Q7: Can the PR6423/010-020-CN + CON021 operate in harsh environments?
A7: Yes. The sensor is designed for industrial environments with high-temperature resistance, stainless steel construction, and strong mechanical durability.
Q8: What should be checked if the output signal is unstable?
A8: Check the sensor installation gap, target shaft surface condition, cable connection, converter power supply, grounding, and calibration settings.
Epro PR6423/010-020-CN+CON021 Eddy Current Displacement Measurement System is in stock. Please contact us for a quick quote and competitive pricing.
