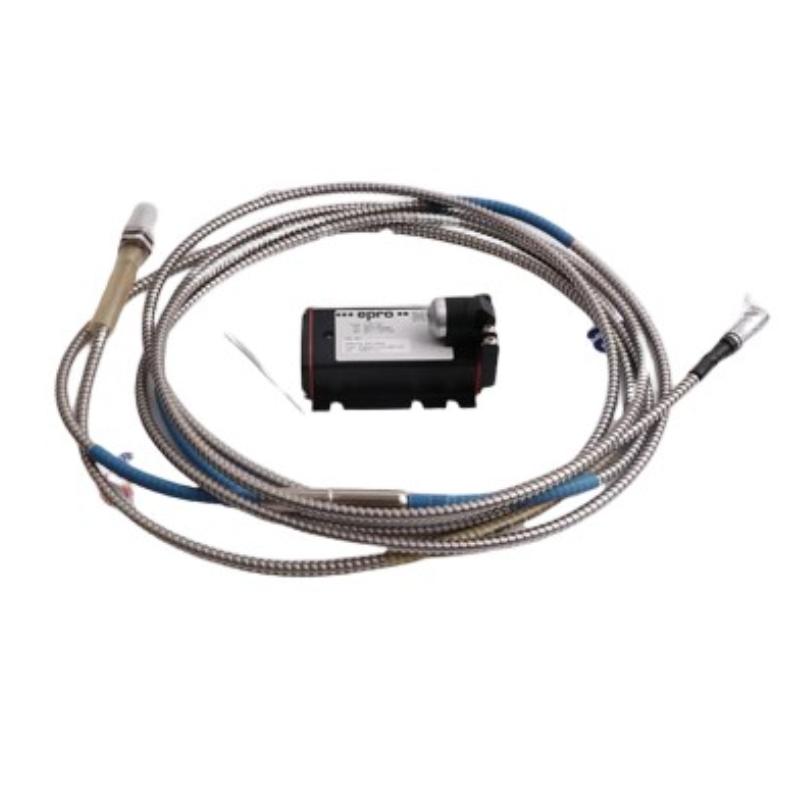

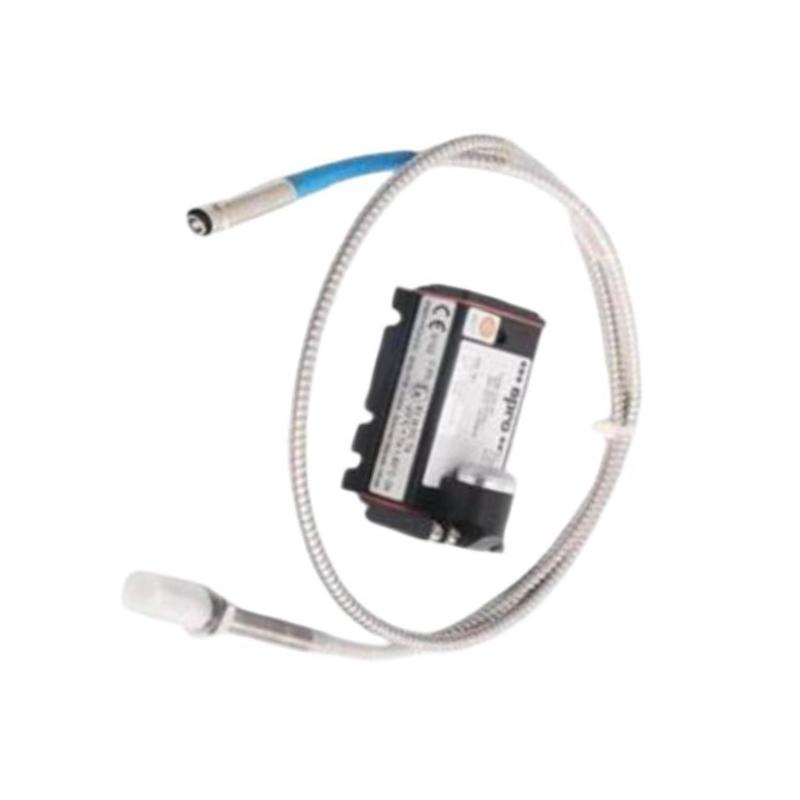

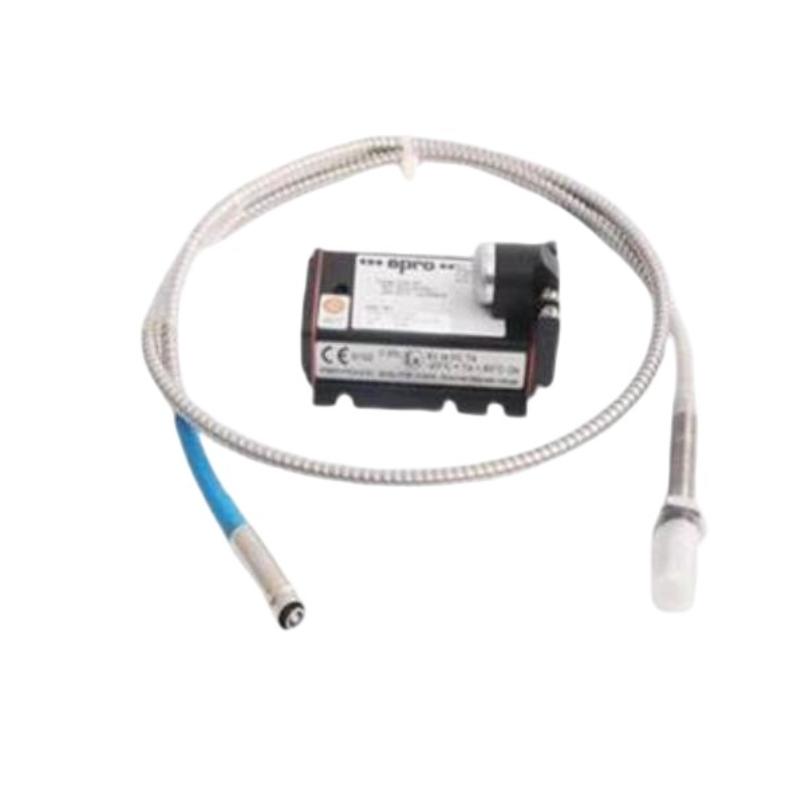

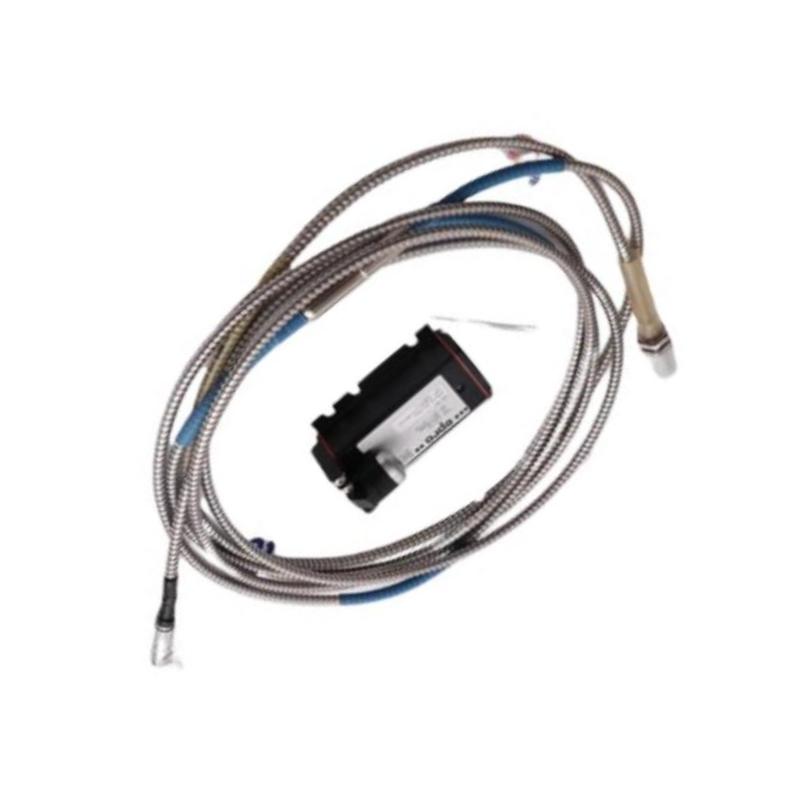

Epro PR6423/010-020-CN Eddy Current Displacement Sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/010-020-CN |
| Product Type | Eddy Current Displacement Sensor |
| Product Series | EPRO PR6423 Series |
| Main Function | Non-contact measurement of shaft displacement, vibration, axial position, radial movement, eccentricity, and speed in rotating machinery |
| Manufacturer | EPRO / Emerson |
| Sensor Technology | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Measurement Range | 2 mm linear measuring range |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm (203.2 mV/mil) |
| Linearity Deviation | ≤ ±0.025 mm |
| Frequency Response | DC to 20 kHz |
| Target Material | Ferromagnetic steel (42CrMo4 standard) |
| Minimum Shaft Diameter | 25 mm |
| Operating Temperature | -35°C to +200°C |
| Protection Class | IP66 |
| Sensor Tip Material | PEEK (Polyether Ether Ketone) |
| Housing Material | Stainless steel |
| Cable Material | PTFE insulated cable |
| Cable Length | Standard 1 m cable |
| Output Signal | Eddy current proportional displacement signal, requires signal converter |
| Compatible Converter | CON021 series signal converter |
| Mounting Method | Threaded probe installation |
| Sensor Dimensions | Approximately 45 mm probe length × 8 mm diameter |
| Weight | Approximately 100 g (sensor with cable) |
| Application Areas | Steam turbines, gas turbines, compressors, generators, pumps, fans, gearboxes, and critical rotating machinery |
FAQ
Q1: What is the main function of the PR6423/010-020-CN?
A1: The PR6423/010-020-CN is an eddy current displacement sensor used for non-contact monitoring of shaft position, vibration, displacement, and eccentricity in rotating equipment.
Q2: What measurement technology does the PR6423/010-020-CN use?
A2: The sensor uses eddy current technology to detect changes in the electromagnetic field between the probe tip and the measured metal target.
Q3: What is the measurement range of the PR6423/010-020-CN?
A3: The sensor provides a 2 mm linear measurement range with a 0.5 mm nominal initial air gap.
Q4: What type of equipment is suitable for the PR6423/010-020-CN?
A4: It is commonly applied in turbines, compressors, generators, pumps, gearboxes, and other rotating machinery requiring accurate condition monitoring.
Q5: Can the PR6423/010-020-CN work in high-temperature environments?
A5: Yes. The sensor is designed for industrial applications and supports operating temperatures up to +200°C.
Q6: Does the PR6423/010-020-CN require a signal converter?
A6: Yes. The sensor requires a compatible converter such as the CON021 to convert the probe signal into a standard monitoring output.
Q7: What factors affect the accuracy of the PR6423/010-020-CN?
A7: Measurement accuracy can be affected by probe installation gap, target material, shaft surface condition, cable integrity, and system calibration.
Q8: How can users troubleshoot unstable output from the PR6423/010-020-CN?
A8: Check the sensor gap, wiring connections, converter power supply, grounding condition, target surface quality, and correct installation alignment.
Epro PR6423/010-020-CN Eddy Current Displacement Sensor is in stock. Please contact us for a quick quote and competitive pricing.
