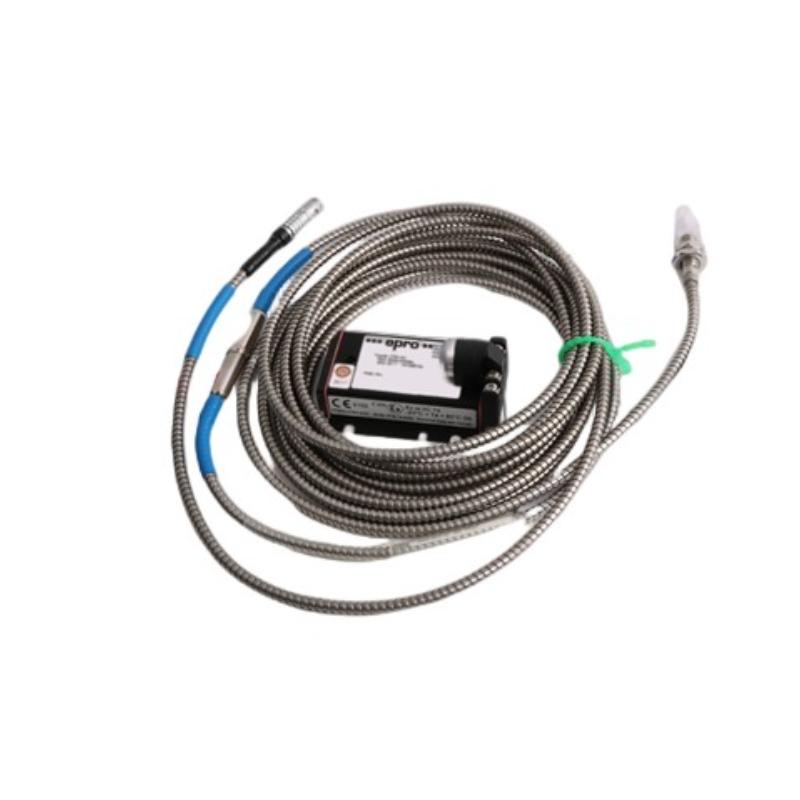

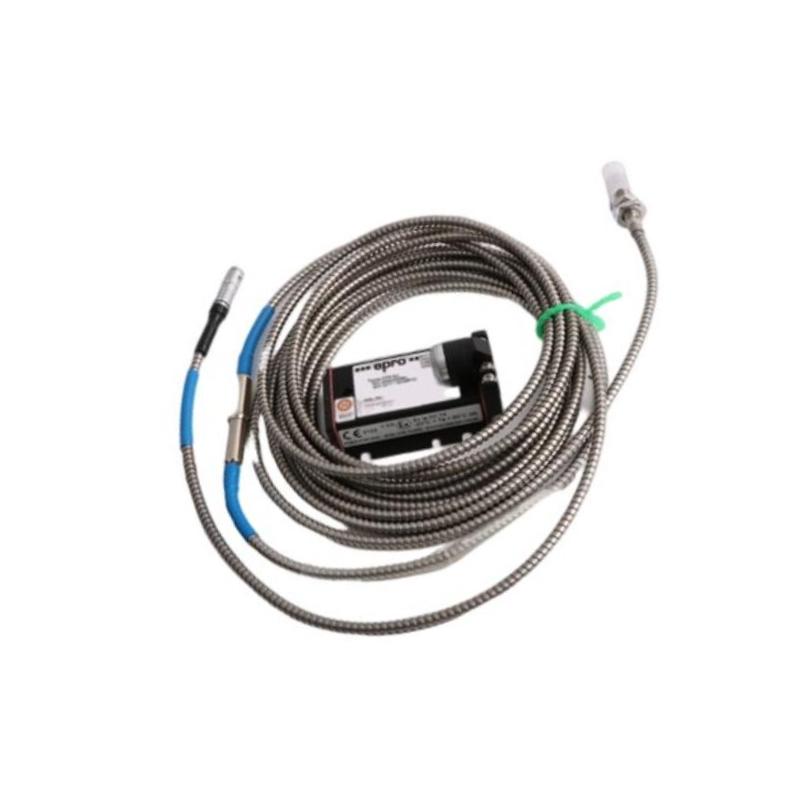

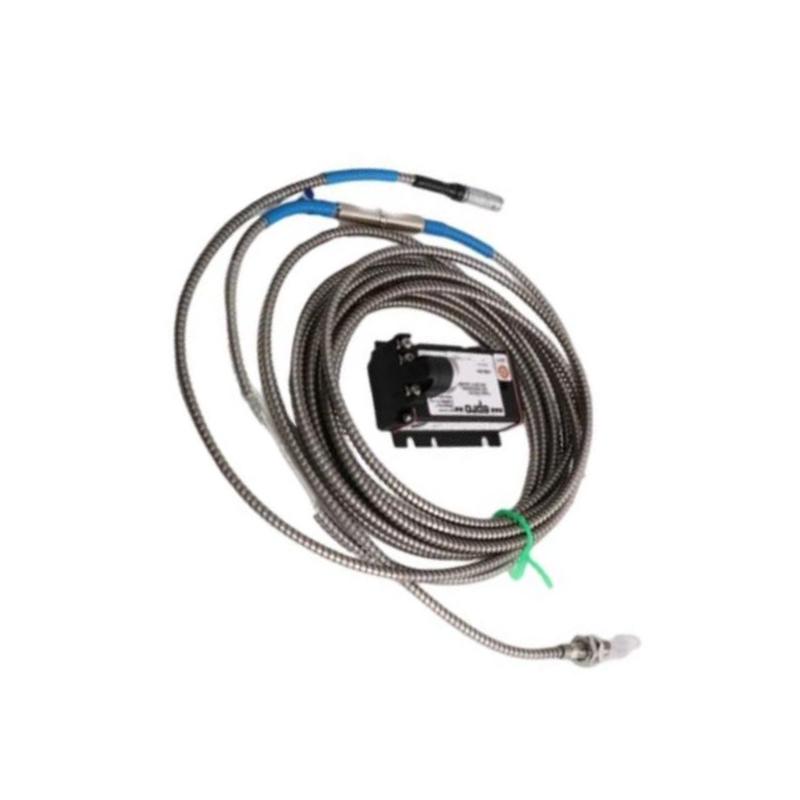

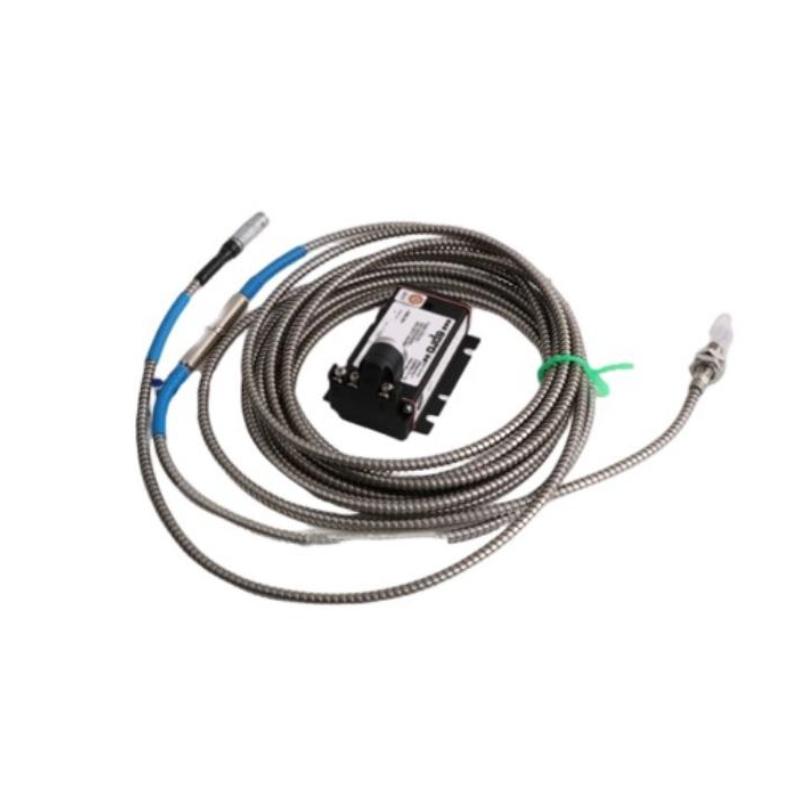

Epro PR6423/010-020+CON021 Eddy Current Displacement Measurement System
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/010-020 + CON021 |
| Product Type | Eddy Current Displacement Measurement System |
| Product Series | EPRO PR6423 Sensor + CON021 Signal Converter |
| Main Function | Non-contact measurement system for monitoring shaft displacement, position, eccentricity, and vibration in rotating machinery |
| Manufacturer | EPRO / Emerson |
| Sensor Type | Eddy Current Proximity Sensor |
| Sensor Model | PR6423/010-020 |
| Converter Model | CON021 |
| Measurement Principle | Eddy current displacement measurement technology |
| Probe Diameter | 8 mm |
| Measuring Range | ±1 mm |
| Initial Air Gap | Approximately 1.5 mm nominal |
| Sensitivity | 8 V/mm (203.2 mV/mil) |
| Linearity | ≤ ±1% |
| Target Material | Ferromagnetic steel |
| Frequency Response | 0 to 20 kHz |
| Output Signal | Voltage output signal from CON021 converter |
| Supply Voltage | -23 VDC to -32 VDC |
| Operating Temperature (Sensor) | -35°C to +200°C |
| Operating Temperature (Converter) | -30°C to +100°C |
| Protection Class (Sensor) | IP66 |
| Protection Class (Converter) | IP20 |
| Sensor Material | Stainless steel housing with industrial-grade sensor tip |
| Converter Material | Aluminum alloy housing |
| Mounting Method | Threaded probe mounting and panel mounting for converter |
| Cable Length | Standard sensor cable configuration, extension options available |
| Sensor Dimensions | Approximately 45 mm probe length × 8 mm diameter |
| Converter Dimensions | Approximately 56 × 50.8 × 18 mm |
| Weight | Sensor: approximately 100 g; Converter: approximately 120 g |
| Application Areas | Steam turbines, gas turbines, compressors, pumps, fans, and critical rotating machinery |
FAQ
Q1: What is the main function of the PR6423/010-020 + CON021 system?
A1: The system is used for non-contact measurement of shaft displacement, axial position, radial movement, eccentricity, and vibration in rotating equipment.
Q2: What measurement technology does the PR6423/010-020 use?
A2: The PR6423/010-020 uses eddy current technology to detect changes in the electromagnetic field caused by the movement of a conductive target.
Q3: What is the measuring range of the PR6423/010-020 sensor?
A3: The sensor provides a ±1 mm measurement range, suitable for precise monitoring of shaft position and displacement.
Q4: What is the purpose of the CON021 converter?
A4: The CON021 converts the probe signal into a standardized output signal for connection with monitoring systems, protection systems, or industrial controllers.
Q5: What type of equipment uses the PR6423/010-020 + CON021 system?
A5: The system is commonly used in turbines, compressors, pumps, generators, and other rotating machinery requiring continuous condition monitoring.
Q6: What factors affect measurement accuracy of this system?
A6: Accuracy can be affected by probe installation gap, target material quality, cable condition, power supply stability, and correct system calibration.
Q7: What should be checked if the output signal is unstable?
A7: Check sensor clearance, wiring connections, converter power supply, grounding conditions, and whether the probe is correctly aligned with the measurement target.
Q8: How does the PR6423/010-020 + CON021 improve equipment maintenance?
A8: The system provides continuous shaft displacement monitoring, helping detect abnormal mechanical conditions early and supporting predictive maintenance programs.
Epro PR6423/010-020+CON021 Eddy Current Displacement Measurement System is in stock. Please contact us for a quick quote and competitive pricing.
