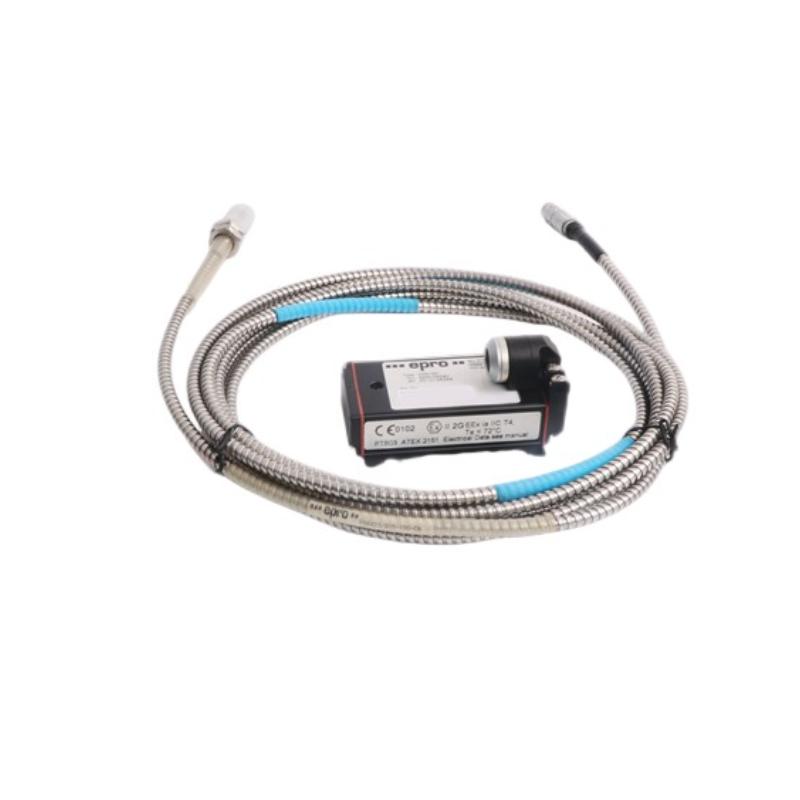

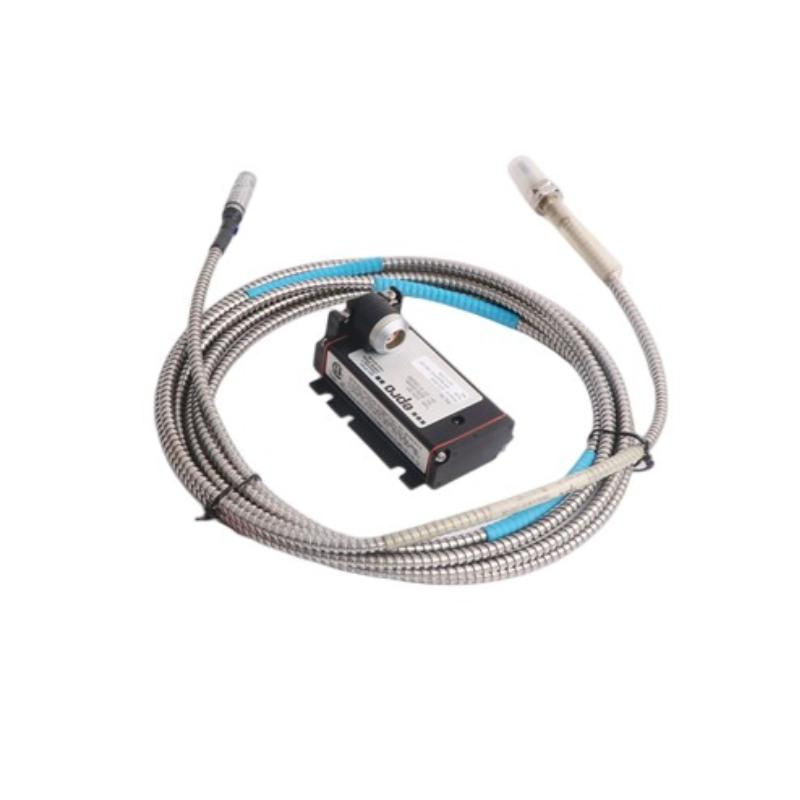

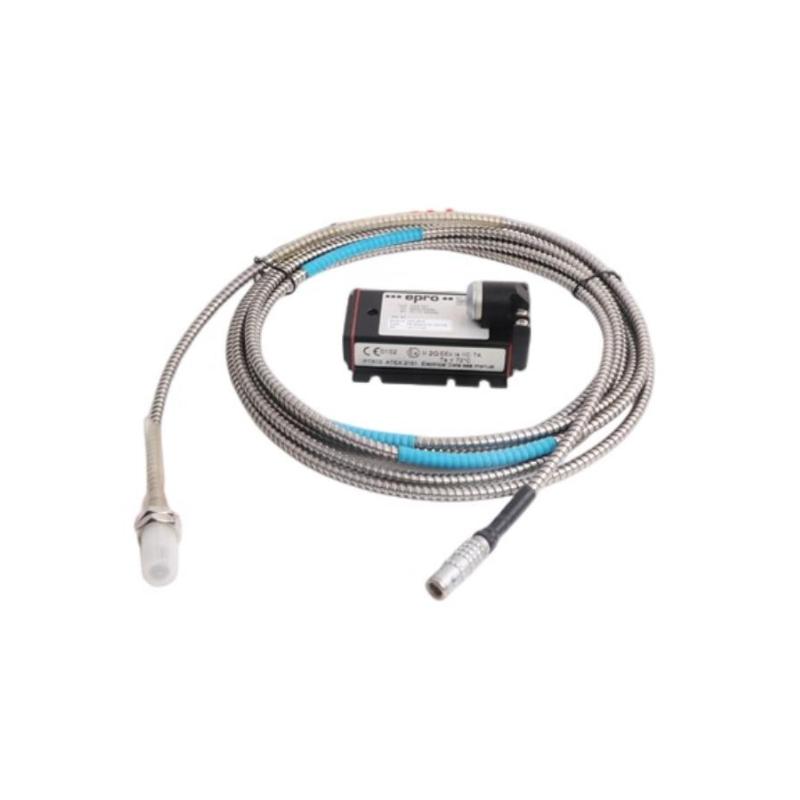

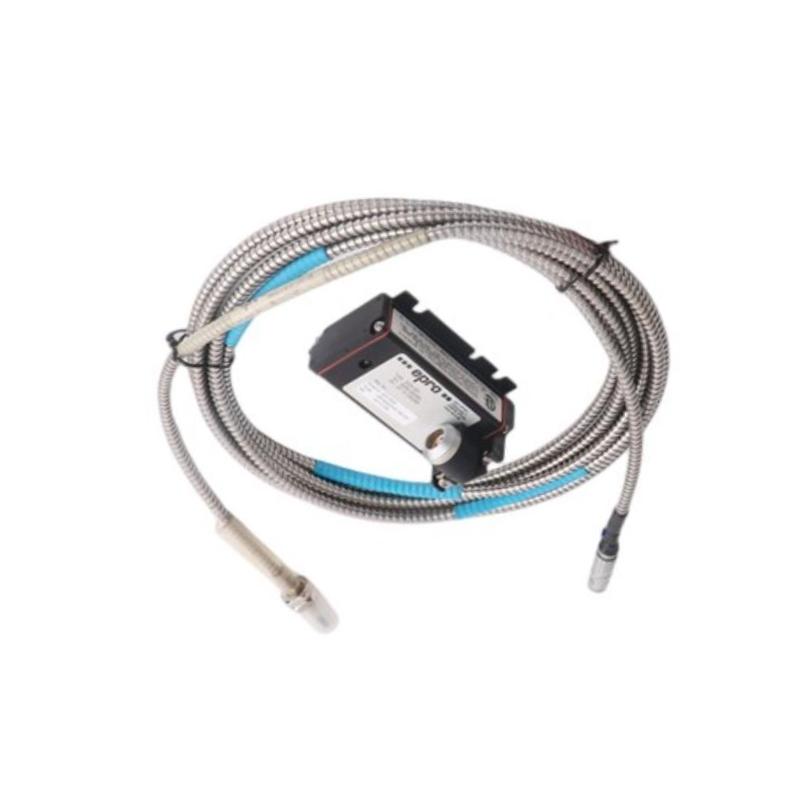

Epro PR6423/010-100-CN Eddy Current Displacement Sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/010-100-CN |
| Product Type | Eddy Current Displacement Sensor |
| Product Series | EPRO PR6423 Series |
| Main Function | Non-contact measurement of shaft displacement, vibration, axial position, radial movement, eccentricity, and speed for critical rotating machinery |
| Manufacturer | EPRO / Emerson |
| Sensor Technology | Eddy Current Proximity Measurement |
| Probe Type | 8 mm Eddy Current Sensor |
| Probe Diameter | 8 mm |
| Measurement Range | 2 mm linear measuring range |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm (203.2 mV/mil) |
| Linearity Deviation | ≤ ±0.025 mm |
| Frequency Response | DC to 20 kHz |
| Target Material | Ferromagnetic steel (42CrMo4 / AISI 4140 standard) |
| Minimum Shaft Diameter | ≥25 mm |
| Cable Length | 10 m integrated cable |
| Cable Type | PTFE insulated cable |
| Operating Temperature | -35°C to +180°C |
| Short-Term Temperature Capability | Up to +200°C (less than 4 hours) |
| Protection Class | IP66 |
| Sensor Tip Material | PEEK (Polyether Ether Ketone) |
| Housing Material | Stainless steel |
| Connector Type | LEMO connector |
| Mounting Method | Threaded probe installation |
| Thread Specification | M10 × 1 |
| Output Signal | Eddy current proportional displacement signal, requires signal converter |
| Compatible Converter | CON021 signal converter |
| Sensor Dimensions | Approximately 45 mm probe length × 8 mm diameter |
| Weight | Approximately 100 g (sensor with cable) |
| Application Areas | Steam turbines, gas turbines, hydraulic turbines, compressors, pumps, fans, gearboxes, and other critical rotating machinery |
FAQ
Q1: What is the main function of the PR6423/010-100-CN?
A1: The PR6423/010-100-CN is an eddy current displacement sensor used for precise, non-contact monitoring of shaft vibration, displacement, position, and eccentricity in rotating machinery.
Q2: What measurement technology does the PR6423/010-100-CN use?
A2: The sensor uses eddy current technology to measure the distance between the probe tip and the conductive target surface without physical contact.
Q3: What is the measurement range of the PR6423/010-100-CN?
A3: The sensor provides a 2 mm linear measurement range with a 0.5 mm initial air gap for accurate displacement detection.
Q4: What is the cable length of the PR6423/010-100-CN?
A4: The PR6423/010-100-CN configuration includes a 10 m integrated cable, suitable for large equipment installations requiring longer signal routing distances.
Q5: Does the PR6423/010-100-CN work independently?
A5: No. The sensor requires a compatible signal converter, such as the CON021, to process the probe signal and provide a standard monitoring output.
Q6: What equipment is suitable for the PR6423/010-100-CN?
A6: It is commonly used in steam turbines, gas turbines, compressors, generators, pumps, fans, and other high-value rotating equipment requiring continuous condition monitoring.
Q7: Can the PR6423/010-100-CN operate in harsh environments?
A7: Yes. The sensor is designed for industrial environments with stainless steel construction, PTFE cable insulation, IP66 protection, and high-temperature resistance.
Q8: What should be checked if the PR6423/010-100-CN signal is unstable?
A8: Check the probe installation gap, target shaft condition, cable connections, converter operation, power supply stability, grounding, and calibration settings.
Epro PR6423/010-100-CN Eddy Current Displacement Sensor is in stock. Please contact us for a quick quote and competitive pricing.
