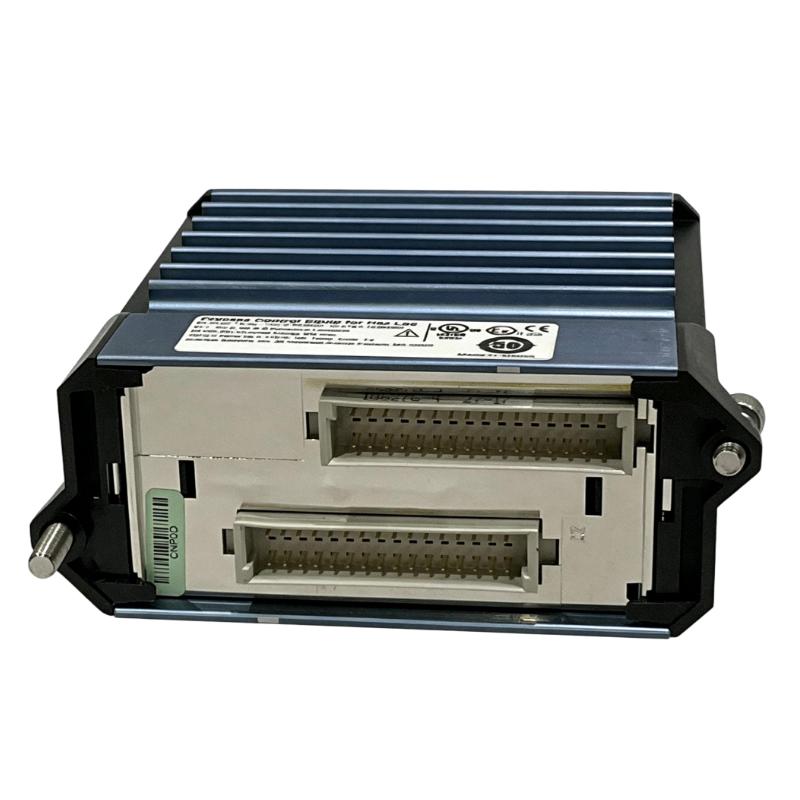

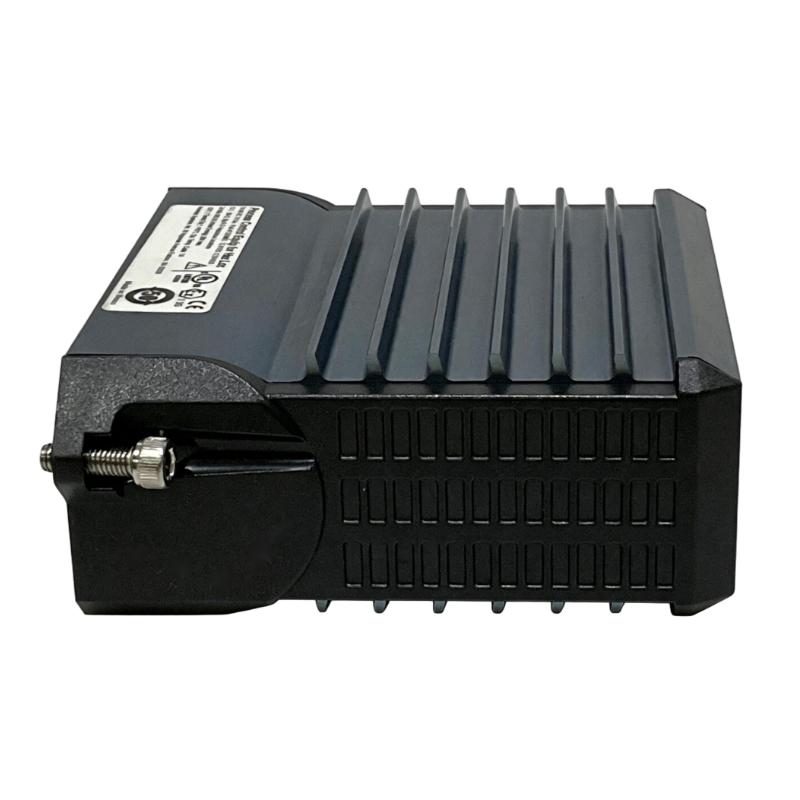

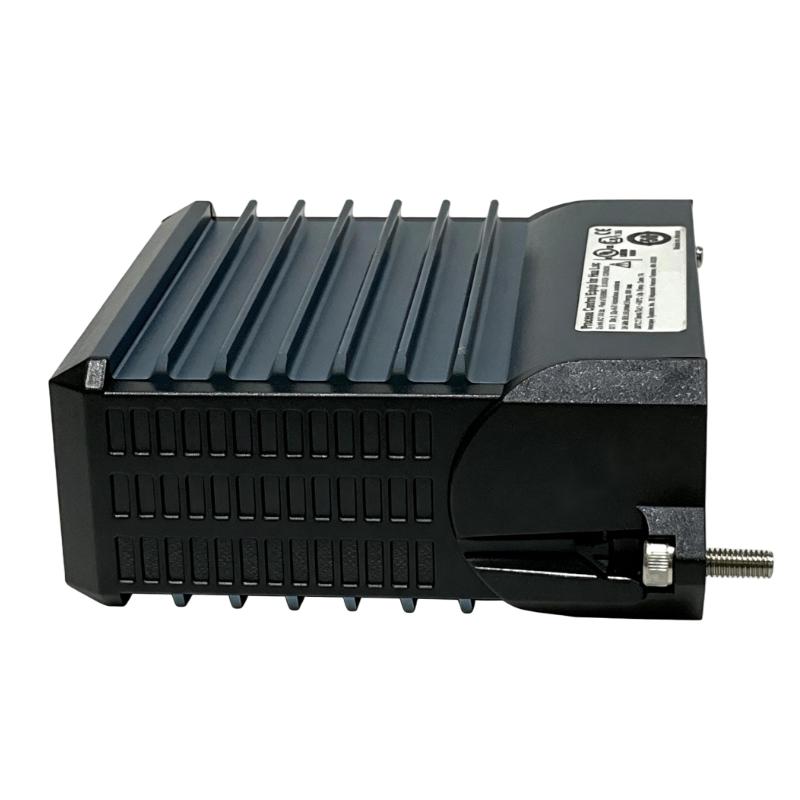

Foxboro FBM201 RH914SQ Analog Input Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Foxboro |
| Model | FBM201 |
| Ordering Number | RH914SQ |
| Product Type | Analog Input Interface Module |
| Product Series | I/A Series / Standard 200 Series |
| Input Channels | 8 isolated and independent channels |
| Input Signal | 0 to 20 mA DC |
| Input Type | 2-wire DC analog input |
| Input Channel Impedance | 61.5 Ω nominal |
| Analog Accuracy | ±0.03% of span |
| Accuracy Temperature Coefficient | ±50 ppm/°C |
| A/D Conversion | Independent Sigma-Delta converter per channel |
| Integration Period | Software configurable |
| Common Mode Rejection | >100 dB at 50/60 Hz |
| Normal Mode Rejection | >95 dB at 50/60 Hz |
| Channel Isolation | Galvanically isolated channel-to-channel and channel-to-ground |
| Isolation Rating | 600 V AC for 1 minute between channels or to ground |
| Communication | Redundant 2 Mbps Module Fieldbus |
| Compatible Controller | FCM / FCP |
| Power Supply | 24 V DC redundant, +5% / -10% |
| Power Consumption | 7 W maximum |
| Heat Dissipation | Approximately 3–4 W |
| Loop Power Protection | Current limited and voltage regulated per channel |
| Field Device Compliance Voltage | 22.8 V DC |
| Calibration | Module and termination assembly calibration not required |
| Operating Temperature | -40 to +70°C |
| Relative Humidity | 5–95%, non-condensing |
| Environmental Classification | Class G3, harsh environment |
| Mounting | Standard 200 Series FBM baseplate |
| Termination Cable Length | Up to 30 m |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
FAQ
1. What is the main function of the Foxboro FBM201 RH914SQ?
The FBM201 RH914SQ is an analog input interface module used in Foxboro I/A Series and Standard 200 Series control systems. It receives 0–20 mA DC analog signals from field transmitters and converts them into digital process data for the control system. The module provides eight independent input channels and is designed for reliable signal acquisition in industrial process-control applications.
2. How many analog input channels does the FBM201 provide?
The FBM201 provides eight isolated and independent analog input channels. Each channel can accept a 0–20 mA DC signal from a compatible field device. The individual channel isolation helps reduce the influence of ground loops and electrical interference between field instruments, making the module suitable for distributed process measurement applications.
3. What input signal does the RH914SQ support?
The RH914SQ ordering version corresponds to the FBM201 module, which is designed for 0–20 mA DC analog inputs. It can be used with compatible two-wire analog transmitters and other current-output field instruments. The nominal input impedance of each FBM201 channel is 61.5 Ω, which should be considered when checking the available loop compliance voltage.
4. How does the FBM201 achieve accurate analog signal conversion?
Each input channel uses an independent Sigma-Delta A/D converter for signal conversion. The specified analog accuracy is ±0.03% of span, with an accuracy temperature coefficient of ±50 ppm/°C. The module also provides more than 100 dB common-mode rejection and more than 95 dB normal-mode rejection at 50/60 Hz, helping maintain stable measurements in electrically noisy industrial environments.
5. Are the input channels of the Foxboro FBM201 electrically isolated?
Yes. The eight input channels are galvanically isolated from one another and from ground. The specified isolation rating is 600 V AC for one minute between channels or between a channel and ground. This design helps limit the effect of electrical potential differences and ground-loop conditions on individual analog measurement channels.
6. How does the FBM201 communicate with the Foxboro control system?
The FBM201 communicates with its associated Fieldbus Communication Module or Field Control Processor through a redundant 2 Mbps Module Fieldbus. The module is installed on the appropriate FBM baseplate and works together with the field termination assembly and termination cable to transfer analog process data between field instruments and the control system.
7. What power supply is required for the FBM201 RH914SQ?
The module uses a redundant 24 V DC power supply with a specified tolerance of +5% and -10%. Maximum power consumption is approximately 7 W. During system installation, the power supply and baseplate wiring should be checked to ensure that the module receives a stable voltage under normal operating and fault conditions.
8. What type of applications is the FBM201 RH914SQ suitable for?
The FBM201 RH914SQ is suitable for process automation applications that require multiple isolated 0–20 mA analog inputs. Typical applications include monitoring pressure, flow, temperature transmitters with current outputs, level measurement, and other continuous process variables. It can be integrated into Foxboro DCS architectures where reliable analog signal acquisition and electrical isolation are required.
Foxboro FBM201 RH914SQ Analog Input Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
