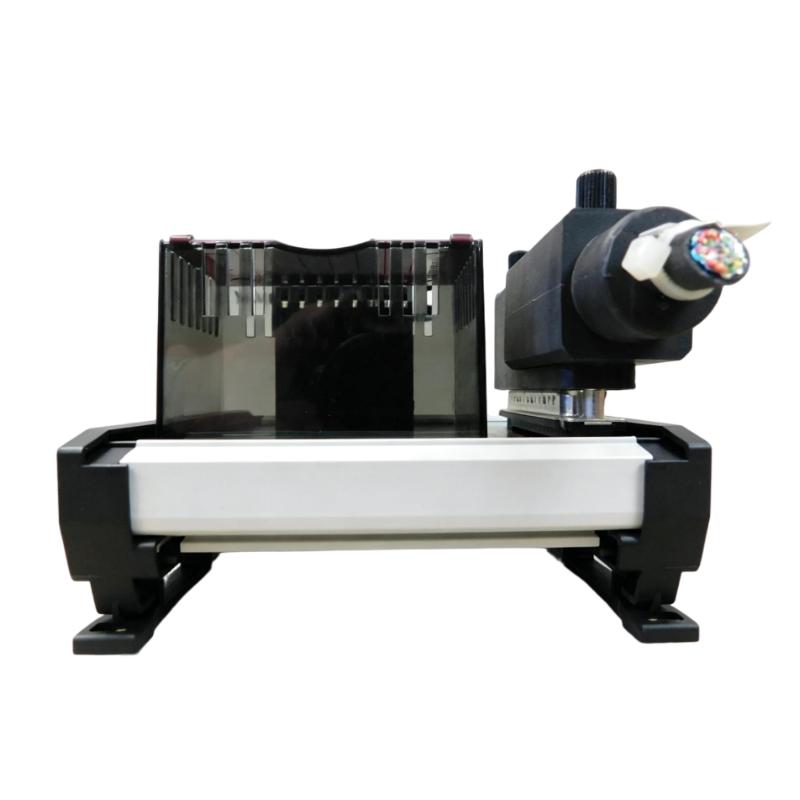

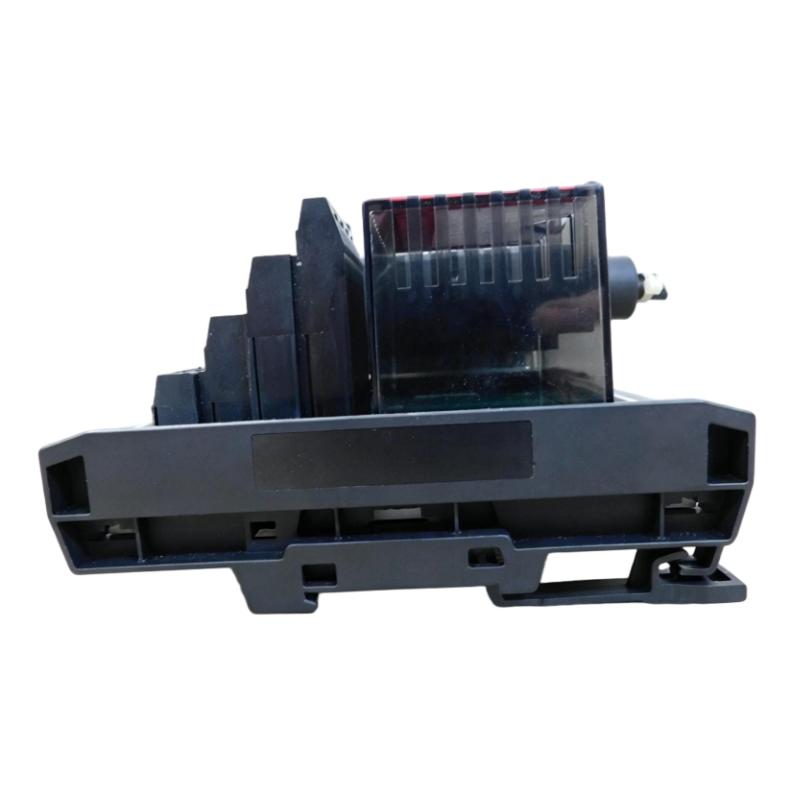

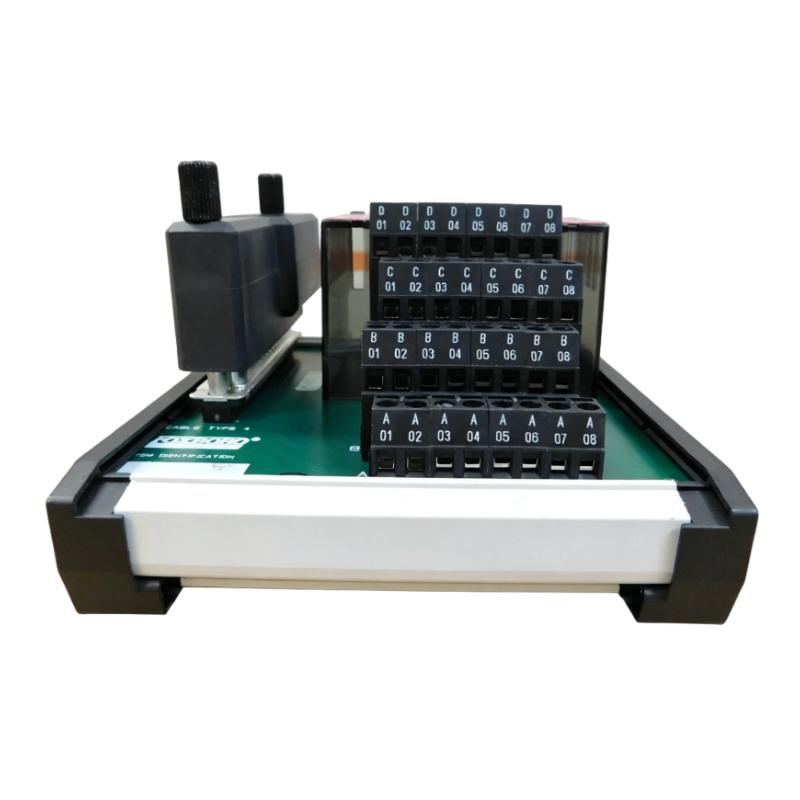

Foxboro FBM203d P0924EX Terminal Components
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Foxboro |
| Model | FBM203d |
| Ordering Number | P0924EX |
| Product Type | RTD Input Terminal Assembly |
| Product Name | Terminal Components / Termination Assembly |
| Compatible Module | FBM203d |
| Input Type | RTD Resistance Temperature Detector Input |
| Number of Input Channels | 8 |
| Input Resistance Range | 0–320 Ω |
| Supported RTD Types | Platinum and Nickel RTDs |
| RTD Wiring | 2-wire and 4-wire |
| Terminal Type | Compression Screw Terminals |
| Terminal Material | Polyamide (PA) |
| Operating Temperature | -20 to +70°C |
| Supported Wire Size | 0.2–4 mm² solid; 0.2–2.5 mm² stranded; 24–12 AWG |
| Ferruled Stranded Wire | 0.2–2.5 mm², with or without plastic ferrule |
| Termination Cable Type | Type 4 |
| Maximum Termination Cable Length | 30 m |
| FBM-Side Connection | 37-pin D-Sub connector |
| Terminal Assembly Connection | 37-pin D-Sub connector |
| Channel Isolation | Supported through the FBM203d |
| Signal Processing | Passive direct connection |
| Mounting | DIN Rail |
| Certification Type | Type 1, Type 2 |
| Dimensions | 128 × 79 × 112 mm |
| Weight | 0.245 kg |
FAQ
1. What is the main function of the Foxboro FBM203d P0924EX?
The FBM203d P0924EX is an RTD terminal assembly designed for use with the Foxboro FBM203d input module. Its primary function is to provide the field wiring interface between RTD temperature sensors and the FBM203d. The assembly uses a passive connection structure, allowing temperature sensor signals to be transferred reliably to the input module for process monitoring and control.
2. How many RTD input channels does the FBM203d P0924EX support?
The P0924EX terminal assembly is designed for eight RTD input channels when used with the FBM203d. Each channel can be connected to a compatible RTD sensor, allowing multiple temperature measurement points to be collected through a single I/O arrangement. This makes the assembly suitable for process plants where several temperature variables must be monitored by the DCS.
3. What types of RTD sensors can be connected to the P0924EX?
The FBM203d P0924EX supports compatible platinum and nickel RTD sensors within the specified input resistance range of 0–320 Ω. Both 2-wire and 4-wire RTD connections can be accommodated according to the sensor and system configuration. The actual RTD type and wiring method should be selected according to the FBM203d channel configuration and field instrument requirements.
4. What type of wiring terminals are used on the P0924EX?
The P0924EX uses compression screw terminals for field wiring. It supports 0.2–4 mm² solid conductors, 0.2–2.5 mm² stranded conductors, and 24–12 AWG wire. Ferruled stranded conductors from 0.2–2.5 mm² can also be used. Correct wire preparation and terminal tightening are important for maintaining stable RTD signal connections in industrial environments.
5. How is the P0924EX connected to the FBM203d module?
The terminal assembly connects to the FBM203d through a dedicated Type 4 termination cable. Both the FBM side and terminal assembly side use 37-pin D-Sub connectors. The maximum specified termination cable length is 30 m. During installation, the cable should be routed securely and separately from high-power cables where practical to reduce the possibility of electrical interference.
6. Does the P0924EX itself provide electrical isolation?
The P0924EX is primarily a passive terminal and signal-connection assembly rather than an independent signal-isolation module. The channel isolation function is provided through the associated FBM203d input module. Therefore, the P0924EX and FBM203d should be considered together when evaluating the complete RTD input interface and its electrical isolation characteristics.
7. How should the FBM203d P0924EX be installed?
The P0924EX is designed for DIN-rail mounting and can be installed as part of the FBM203d field termination arrangement. During installation, the terminal wiring, D-Sub connections, and termination cable should be securely fixed. The specified operating temperature range is -20 to +70°C, so the installation location should also provide suitable environmental conditions for reliable long-term operation.
8. Where is the Foxboro FBM203d P0924EX typically used?
The P0924EX is typically used in Foxboro DCS and industrial process-control systems for connecting multiple RTD temperature sensors to an FBM203d module. Typical applications include oil and gas, chemical processing, power generation, pharmaceuticals, water treatment, and other continuous-process industries. It provides a practical field termination interface for centralized temperature measurement and monitoring.
Foxboro FBM203d P0924EX Terminal Components is in stock. Please contact us for a quick quote and competitive pricing.
