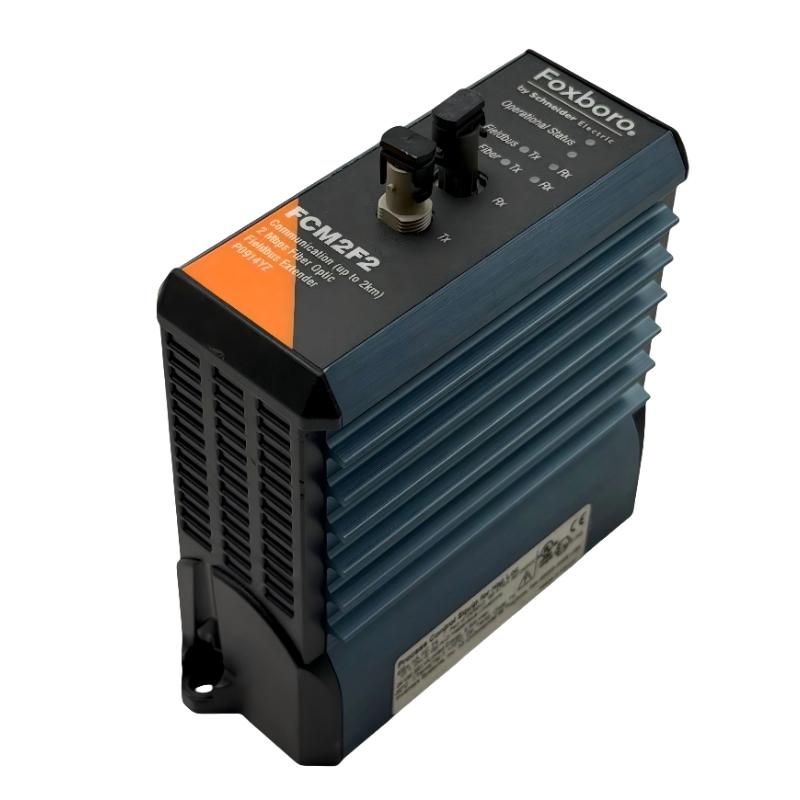

1. What is the main function of the Foxboro FCM2F2 P0914YZ?

The FCM2F2 P0914YZ is a fiber-optic fieldbus extender designed for Foxboro I/A Series 200 systems. Its primary purpose is to extend fieldbus communication through a fiber-optic link, allowing remote fieldbus devices to be installed farther away from the main control cabinet. By using fiber optics, the module helps provide reliable communication over longer distances while offering strong resistance to electromagnetic interference. This makes the FCM2F2 suitable for industrial applications where remote I/O devices, fieldbus equipment, and DCS control equipment need to communicate across distributed plant areas.

2. What is the maximum fiber-optic transmission distance of the FCM2F2?

The FCM2F2 supports a fiber-optic communication distance of up to approximately 2 km. This capability allows remote fieldbus equipment to be separated from the primary control system while maintaining the required communication connection. The actual achievable distance depends on factors such as fiber type, fiber quality, connector condition, splice losses, and the overall optical link budget. During system design, the total fiber length and optical losses should be considered rather than relying only on the nominal maximum distance. Proper fiber installation and clean connectors are also important for maintaining stable communication over the full transmission distance.

3. What type of fiber does the FCM2F2 use?

The FCM2F2 is designed for multimode fiber-optic communication. Multimode fiber is commonly used for industrial control applications where moderate transmission distances and reliable electromagnetic isolation are required. During installation, the fiber specification and optical interfaces at both ends of the communication link should be verified for compatibility. Fiber connectors should be kept clean and protected from dust, oil, moisture, and physical damage. Contaminated or damaged connector surfaces can significantly reduce optical signal strength and may cause intermittent communication or complete loss of the fieldbus connection.

4. Can the FCM2F2 be used in a redundant communication configuration?

The FCM2F2 can be incorporated into communication architectures designed for improved system availability, including applications involving redundant communication paths. In critical industrial control installations, redundant communication arrangements can reduce the impact of a single communication-path failure. However, redundancy depends on the overall Foxboro I/A Series system architecture, controller configuration, fieldbus topology, and associated hardware. Installing an additional FCM2F2 module by itself does not automatically create a complete redundant network. The complete communication structure should be designed and verified according to the requirements of the specific DCS installation.

5. How should a communication failure on the FCM2F2 be troubleshot?

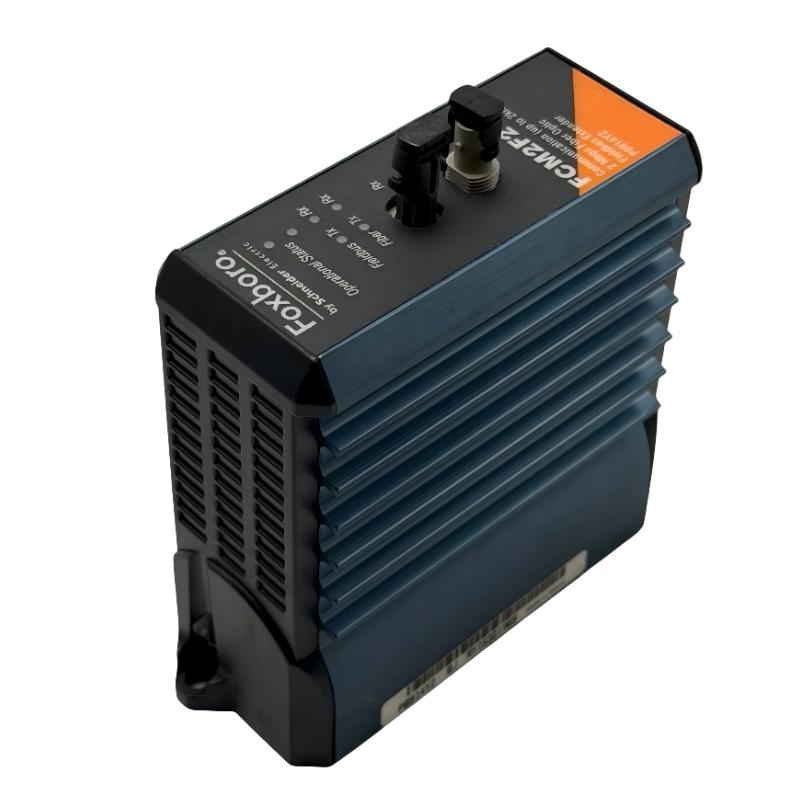

Troubleshooting should begin by checking the module’s LED indicators to determine whether the unit has normal power and communication activity. Next, verify that the 24 V DC supply is stable and that the fieldbus connections are correctly installed. If the optical communication indicators show an abnormal condition, inspect both fiber connectors and the complete fiber path for contamination, excessive bending, physical damage, or loose connections. The opposite FCM module should also be checked for normal operation. If both communication modules appear healthy, inspect the fieldbus devices, mounting connections, and DCS diagnostic information. Checking the communication path systematically from the controller through the FCM2F2 and fiber link to the remote fieldbus equipment can help isolate the actual failure point.

6. What is the significance of the 2 Mbps communication rate on the FCM2F2?

The FCM2F2 uses a 2 Mbps fieldbus communication rate to support data communication within compatible Foxboro I/A Series 200 fieldbus architectures. The fiber-optic extension allows fieldbus devices to be located farther from the primary control equipment while maintaining the required communication link. Using fiber also reduces the influence of electromagnetic interference that can affect long copper communication cables in industrial environments. Actual network performance depends on the number of connected devices, fieldbus loading, network topology, communication configuration, and optical link quality. Therefore, the nominal communication rate should be considered together with the complete network design.

7. Why is the FCM2F2 suitable for long-distance industrial communication?

The FCM2F2 uses fiber optics as the communication medium, providing strong immunity to electromagnetic interference compared with conventional copper communication cables. This is particularly useful in industrial plants containing large motors, variable-frequency drives, high-voltage equipment, and other potential sources of electrical noise. Fiber-optic communication also provides electrical isolation between connected equipment and does not create the same type of conductive ground path associated with copper cabling. These characteristics make the FCM2F2 suitable for distributed DCS installations where reliable communication is required between control cabinets and remote fieldbus equipment.

8. What precautions should be taken when replacing an FCM2F2 P0914YZ?

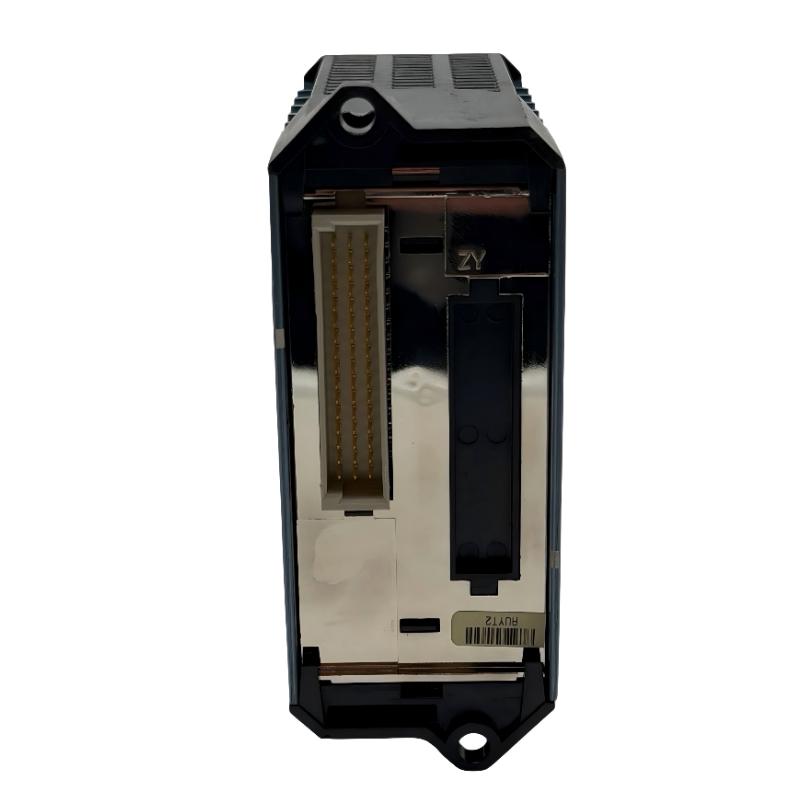

Before replacing an FCM2F2, confirm that the existing module is model FCM2F2 and verify the ordering number P0914YZ to ensure compatibility with the installed Foxboro I/A Series system. Before removal, document the existing fieldbus and fiber connections and follow the site’s required maintenance and electrical isolation procedures. During installation, make sure the module is securely connected to its mounting interface and verify that the 24 V DC supply has the correct voltage and polarity. Fiber connectors should be kept clean, and the optical connector surfaces should not be touched directly. After installation, check the module’s status LEDs and verify both fieldbus and fiber communication. The remote fieldbus devices should then be checked to confirm that communication has been restored. In redundant systems, each communication path should be tested separately to ensure that the replacement has not introduced a hidden communication problem.
