1. What is the primary function of the Foxboro P0926DF-0B?

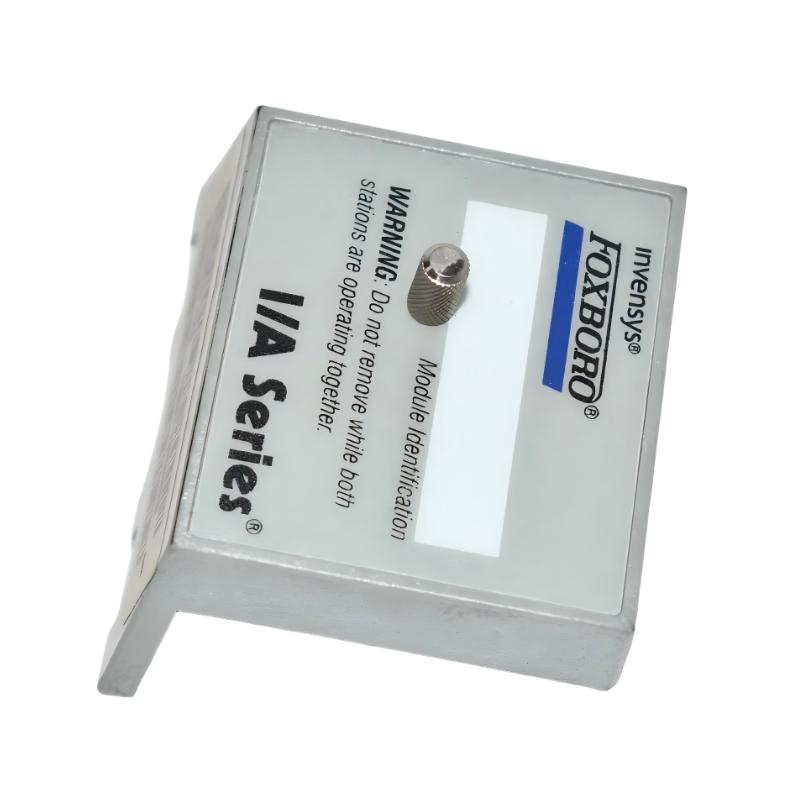

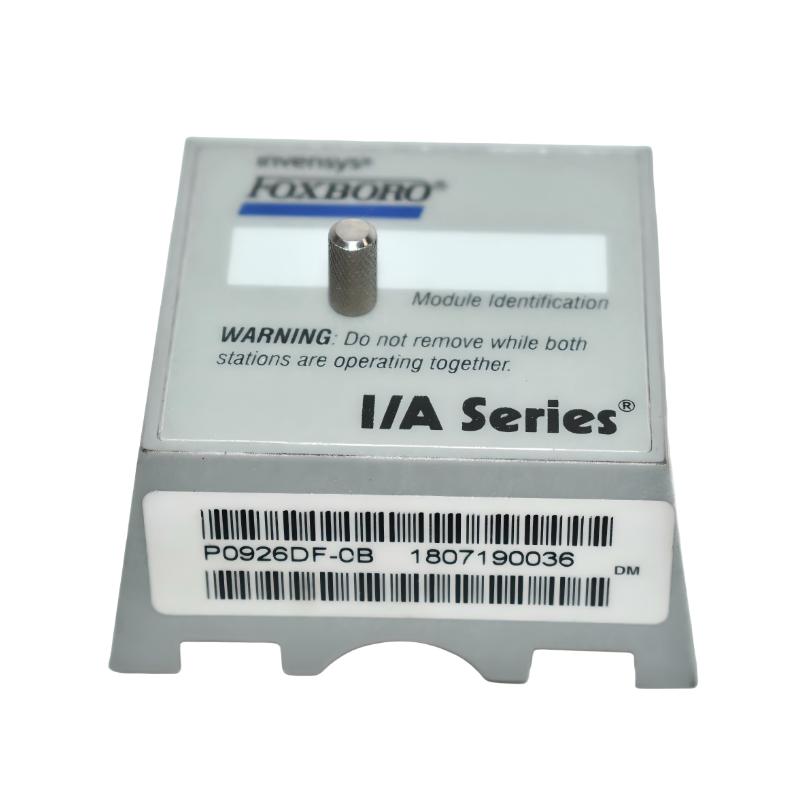

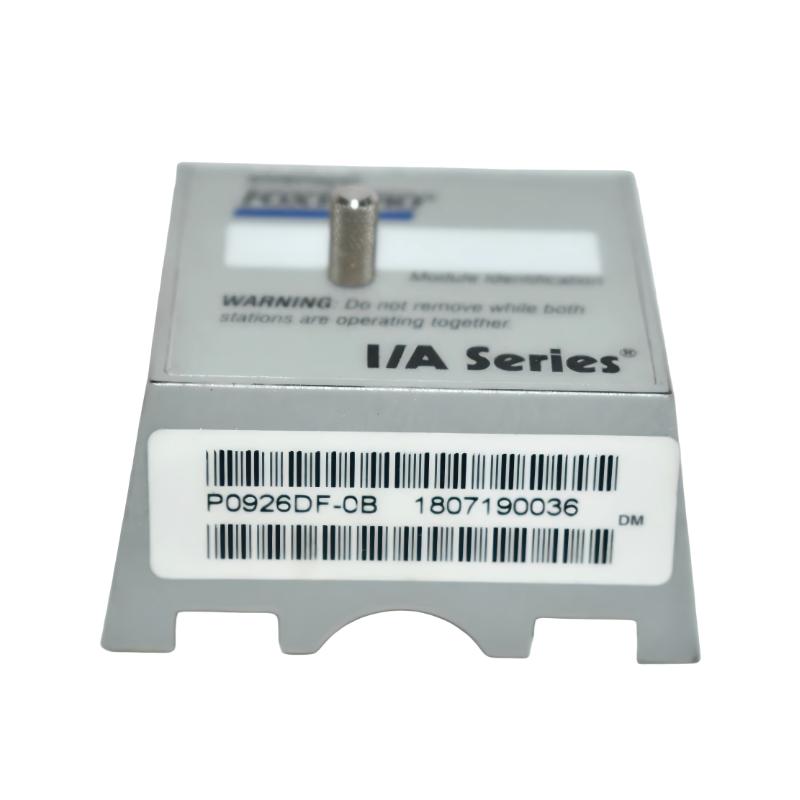

The P0926DF-0B is a fault-tolerant connector designed for Foxboro I/A Series control systems. Its primary purpose is to provide a reliable physical connection between control-system components and associated signal circuits. The multi-pin configuration allows multiple signals to be connected through a single compact interface, helping simplify cabinet wiring and maintenance. Its fault-tolerant connection design is suitable for industrial DCS and process-control applications where stable signal connectivity is important for continuous system operation.

2. How many pins does the P0926DF-0B connector have?
The P0926DF-0B uses a 64-pin connection structure, allowing multiple signal circuits to be handled through one connector interface. This high-density arrangement helps reduce the number of individual connectors and simplifies the organization of wiring inside a control cabinet. During installation, each pin assignment should be checked against the applicable Foxboro system wiring documentation. Incorrect pin connections can result in signal errors, loss of communication or abnormal control-system operation.

3. What are the rated voltage and current specifications of the P0926DF-0B?
The P0926DF-0B has a rated voltage of 50 VDC and a rated current of approximately 1.0 A per pin. These ratings describe the electrical capability of the connector and should not be interpreted as the operating specification for the entire connected circuit. Before installation, the actual voltage, current and load requirements of the connected equipment should be checked. For critical DCS circuits, the complete electrical design should be verified to ensure that the connector and associated wiring are being operated within their permitted limits.

4. What is the contact resistance of the P0926DF-0B, and why is it important?
The maximum contact resistance of the P0926DF-0B is specified as 20 mΩ. Low contact resistance helps minimize voltage loss and localized heating at the connection point while supporting stable signal transmission. In industrial control environments, contact quality can deteriorate over time due to vibration, contamination, oxidation or mechanical stress. Regular inspection of the connector and its contacts can therefore help identify potential connection problems before they develop into intermittent control or communication faults.

5. How should an intermittent signal problem involving the P0926DF-0B be diagnosed?
Begin by confirming that the connector is fully inserted and that its locking mechanism is properly secured. Inspect the pins for bending, contamination, oxidation or mechanical damage, and check the associated cables for loose connections or possible internal conductor damage. If the physical connection appears normal, review the control-system diagnostic information and check the associated equipment for power or communication problems. If the fault occurs mainly when equipment is vibrating or moving, particular attention should be paid to connector retention, contact condition and mechanical stress on the connected cables.

6. What types of industrial applications are suitable for the P0926DF-0B?
The P0926DF-0B is intended for use with applicable Foxboro I/A Series control-system architectures and can be used in DCS, industrial process-control and automation environments. Its fault-tolerant connection design makes it suitable for applications where reliable signal connectivity is important. Typical applications may include industrial process plants, energy facilities and continuously operating automation systems. The exact installation location and signal assignment should be determined according to the specific control-system architecture.

7. What precautions should be taken when replacing the P0926DF-0B?
Before replacement, the relevant DCS equipment should be placed in the appropriate maintenance or safe state according to the site procedure. The existing connector orientation, wiring and pin assignments should be documented before disconnection. Before installing the replacement unit, inspect the pins and connector interface for bending, contamination or other damage and confirm that the replacement model matches the system requirements. After installation, make sure the connector is fully seated and secured. The affected signals should then be tested through the control system to confirm that normal operation has been restored.

8. How can the P0926DF-0B be maintained for long-term reliable operation?
Routine maintenance should focus on the connector’s mechanical retention, mating condition, contact pins and associated cables. In applications exposed to vibration, the connector should be periodically inspected to ensure that it has not become loose and that connected cables are not subject to excessive mechanical stress. If contamination, oxidation or visible pin damage is found, corrective action should be taken according to the site’s maintenance procedures. For systems experiencing intermittent communication or signal faults, the connector and related wiring should be checked together with the control-system diagnostic records. Proper inspection and careful mating and unmating practices can significantly reduce the risk of contact-related failures.
