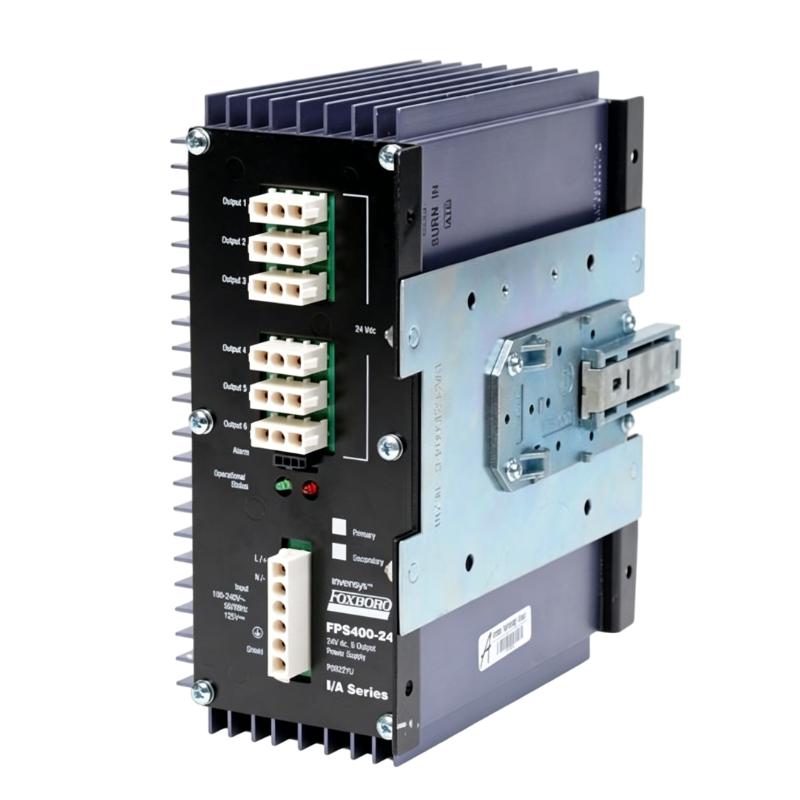

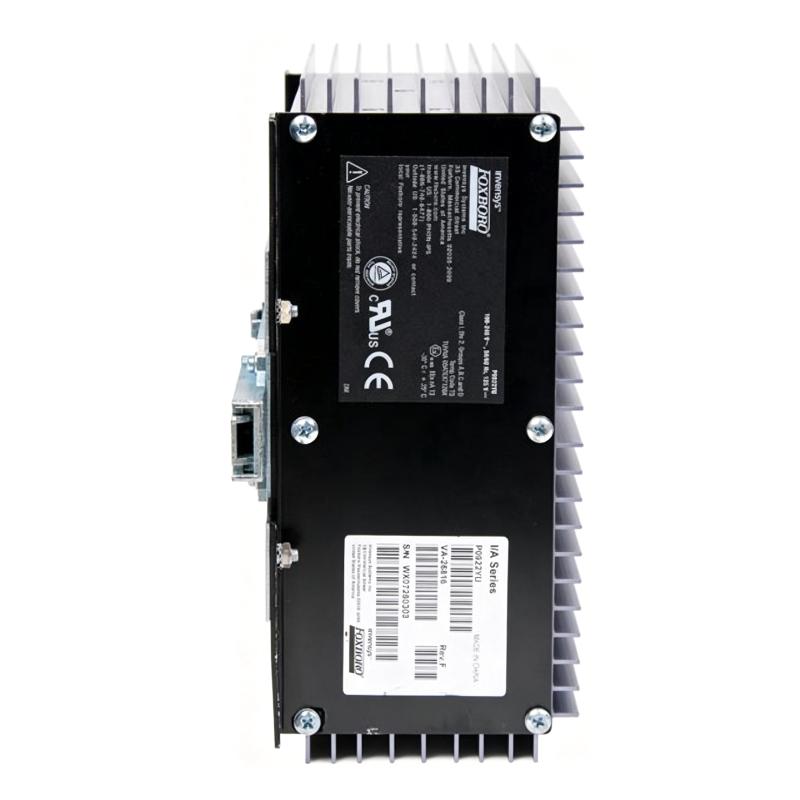

Foxboro FPS400-24 P0922YU DIN-Rail Mount Power Supply
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FPS400-24 |
| Ordering Number | P0922YU |
| Product Type | DIN-Rail Mounted Power Supply |
| Product Series | Foxboro I/A Series / Standard 200 Series |
| Power Rating | 400 W |
| Output Voltage | 24.0 V DC ±0.2 V DC, factory set |
| Maximum Output Current | 16.7 A |
| Input Type | 120/240 V AC or 125 V DC |
| AC Input Voltage Range | 85–265 V AC |
| DC Input Voltage Range | 108–145 V DC, 125 V DC nominal |
| Input Frequency | 47–63 Hz |
| Input Current | 5.6 A maximum at 85 V AC; 2.5 A maximum at 230 V AC |
| Efficiency | 77% minimum at 85 V AC; typically 92% at 230 V AC |
| Power Factor | Near-unity power factor with AC input |
| Inrush Current | 20 A peak at 110 V AC; 40 A peak at 220 V AC |
| Voltage Line Regulation | 2.0% of output voltage |
| Voltage Load Regulation | 2.0% of output voltage |
| Ripple and Noise | 100 mV peak-to-peak; 10 mV RMS maximum |
| Startup Time | 3 s typical; 5 s maximum |
| Load Transient Response | Recovers within regulation limits within 50 ms |
| Overcurrent Protection | Current limiting at approximately 110% of rated maximum |
| Overvoltage Protection | Automatic shutdown protection |
| Cooling Method | Natural convection, fanless |
| Status Indicators | Green LED for normal output; red LED for output undervoltage |
| Mounting | Horizontal or vertical DIN rail mounting |
| Output Application | DIN-rail baseplates and compatible industrial field devices |
| Isolation | Transformer-isolated 24 V DC output |
| Hazardous Area Certification | Suitable for Division 2 and Zone 2 applications |
| Operating Temperature | -30 to 71 °C |
| Relative Humidity | 5–95%, non-condensing |
| Operating Altitude | -300 to 3,000 m |
| Dimensions | 215 × 107 × 178 mm |
| Weight | 2.67 kg |
FAQ
1. What is the main function of the Foxboro FPS400-24 P0922YU?
The FPS400-24 P0922YU is a 400 W DIN-rail mounted power supply designed to provide a regulated 24 V DC supply for Foxboro I/A Series and compatible industrial control equipment. It is commonly used to power DIN-rail baseplates and selected field devices.
2. What input voltage does the P0922YU version support?
The P0922YU accepts a wide AC/DC input range. The AC input range is 85–265 V AC, while the DC input range is 108–145 V DC with 125 V DC nominal input. The AC input frequency range is 47–63 Hz.
3. What are the output voltage and current ratings of the FPS400-24?
The power supply provides a factory-set 24.0 V DC output with a nominal tolerance of ±0.2 V DC. Its rated power is 400 W, corresponding to a maximum output current of approximately 16.7 A at 24 V DC.
4. What protection functions are provided by the P0922YU?
The power supply incorporates current limiting and overvoltage shutdown protection. When the load attempts to exceed the specified current limit, the output voltage is reduced to limit the delivered current. Overvoltage protection can shut down the output to protect connected equipment.
5. How should the FPS400-24 be mounted?
The unit is designed for horizontal or vertical DIN-rail installation. Because it uses natural convection cooling without a fan, adequate clearance around the power supply should be maintained to allow heat to dissipate effectively.
6. What do the LEDs on the FPS400-24 indicate?
The green LED indicates that the output voltage is within the specified operating range. The red LED indicates an output undervoltage condition. If the red indicator appears during operation, the input supply, load current, wiring, and output condition should be checked.
7. What should be checked if the 24 V DC output is low or unstable?
First check the AC/DC input voltage and confirm that it is within the specified range. Then inspect the connected load for excessive current demand or short circuits. Check terminal connections, output wiring, ambient temperature, and the power supply’s status indicators. If the load exceeds the rated capacity, the current-limiting function may reduce the output voltage.
8. Can the FPS400-24 P0922YU be used in hazardous industrial environments?
Yes. The FPS400-24 is designed and certified for applicable Division 2 and Zone 2 installations. The complete installation must still comply with the required hazardous-area classification, wiring practices, enclosure requirements, and site safety procedures.
Foxboro FPS400-24 P0922YU DIN-Rail Mount Power Supply is in stock. Please contact us for a quick quote and competitive pricing.
