Foxboro P0916RB DIN-Rail Mount Power Supply
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | P0916RB |
| Product Series | Foxboro I/A Series |
| Product Type | Fieldbus Baseplate Terminator |
| Order Number | P0916RB |
| Function | Fieldbus termination for the baseplate / mounting structure |
| Application | Foxboro I/A Series and Foxboro Evo fieldbus systems |
| Installation | Baseplate / mounting structure |
| Connector Type | 9-Pin |
| Termination Position | First or last baseplate in a daisy-chain configuration, depending on system topology |
| Fieldbus Function | Terminates the fieldbus and helps maintain proper signal transmission |
| Communication | HDLC fieldbus |
| Housing Color | Black |
| Weight | 0.1 kg |
FAQ
1. What is the main function of the Foxboro P0916RB?
The P0916RB is a Fieldbus Baseplate Terminator used in Foxboro fieldbus systems. Its primary purpose is to terminate the fieldbus at the appropriate end of a baseplate or daisy-chain arrangement. Proper termination helps maintain signal integrity and supports stable communication between the connected fieldbus devices.
2. Where is the P0916RB normally installed?
The P0916RB is normally installed at the appropriate end of the fieldbus baseplate or mounting structure. Its exact position depends on the fieldbus topology and the configuration of the connected baseplates. Correct placement is important for maintaining the intended electrical characteristics of the fieldbus segment.

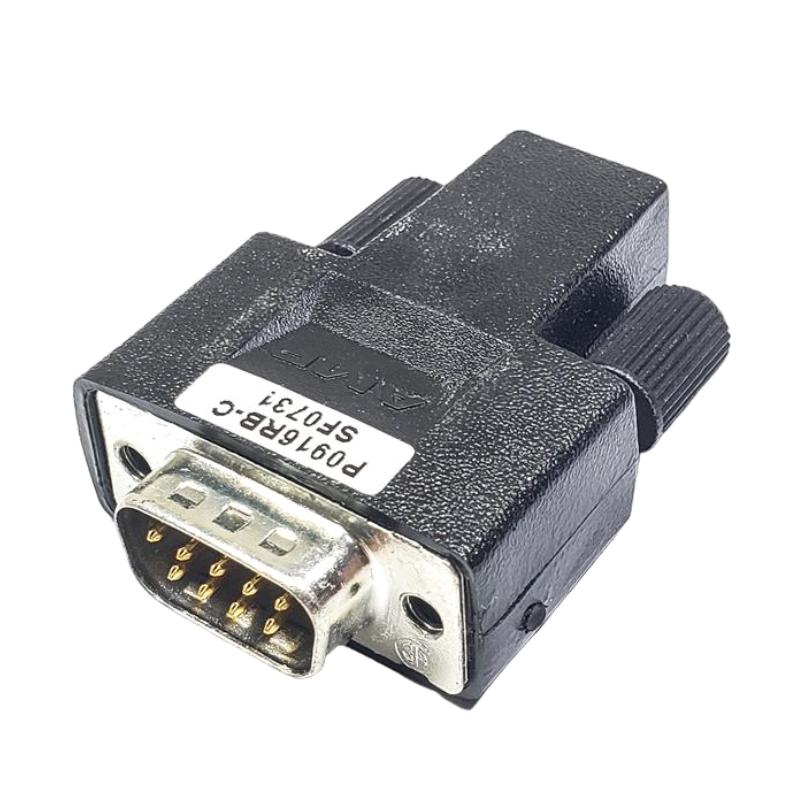

3. What type of connector does the P0916RB use?
The P0916RB uses a 9-Pin Male connector. The connector provides the physical interface between the terminator and the corresponding fieldbus baseplate or mounting structure. During installation, the connector should be correctly aligned and fully seated to prevent intermittent communication problems.
4. Can the P0916RB be used with Foxboro I/A Series systems?
Yes. The P0916RB is associated with Foxboro I/A Series fieldbus infrastructure and is used as a baseplate fieldbus terminator. It can be applied in compatible Foxboro fieldbus configurations where termination is required. The specific baseplate and fieldbus arrangement should be checked before installation.
5. What happens if the P0916RB is missing or incorrectly installed?
Incorrect or missing fieldbus termination can affect the quality and stability of communication on the fieldbus segment. Depending on the system configuration, symptoms may include communication errors, intermittent fieldbus faults, or unreliable communication with connected modules. The terminator should therefore be checked whenever communication problems appear after maintenance or system modifications.
6. How should the P0916RB be checked when a fieldbus communication fault occurs?
First confirm that the P0916RB is installed at the correct end of the fieldbus structure and that the 9-pin connector is fully seated. Inspect the connector for physical damage, contamination, or loose connections. The fieldbus cable, baseplate connections, and associated modules should also be inspected. If the physical connections are correct, the complete fieldbus topology and system diagnostic information should be reviewed.
7. What should be considered when replacing a P0916RB?
Before replacement, verify that P0916RB is the correct ordering number for the installed fieldbus configuration. Follow the applicable maintenance and electrical safety procedures before disconnecting the terminator. Check the replacement unit and connector for damage, install it in the correct termination position, and verify fieldbus communication after the system is returned to service.
8. Why is correct fieldbus termination important in a Foxboro control system?
Correct fieldbus termination helps the communication network operate according to its intended electrical characteristics. The P0916RB provides the required termination at the designated point of the baseplate arrangement. If the termination is missing, incorrectly positioned, or poorly connected, communication instability or fieldbus errors may occur, so the terminator should be verified whenever the fieldbus is installed, expanded, or repaired.
Foxboro P0916RB DIN-Rail Mount Power Supply is in stock. Please contact us for a quick quote and competitive pricing.
