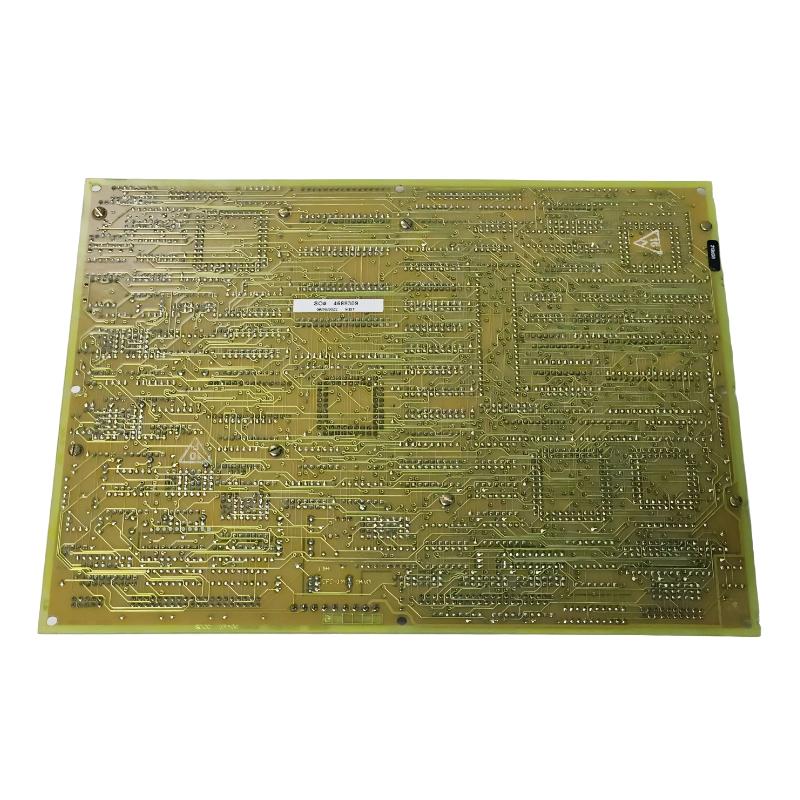

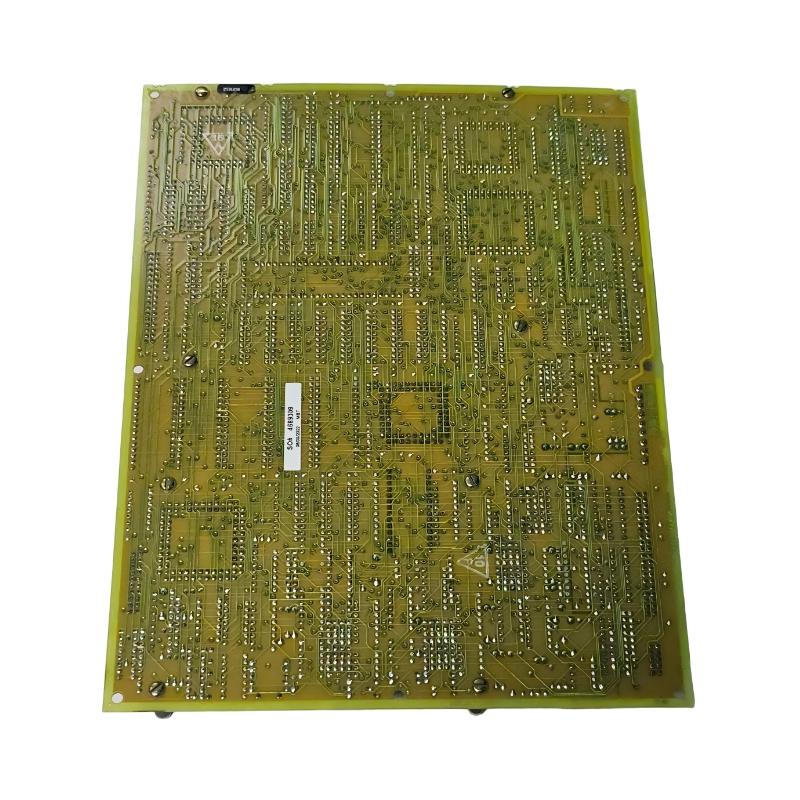

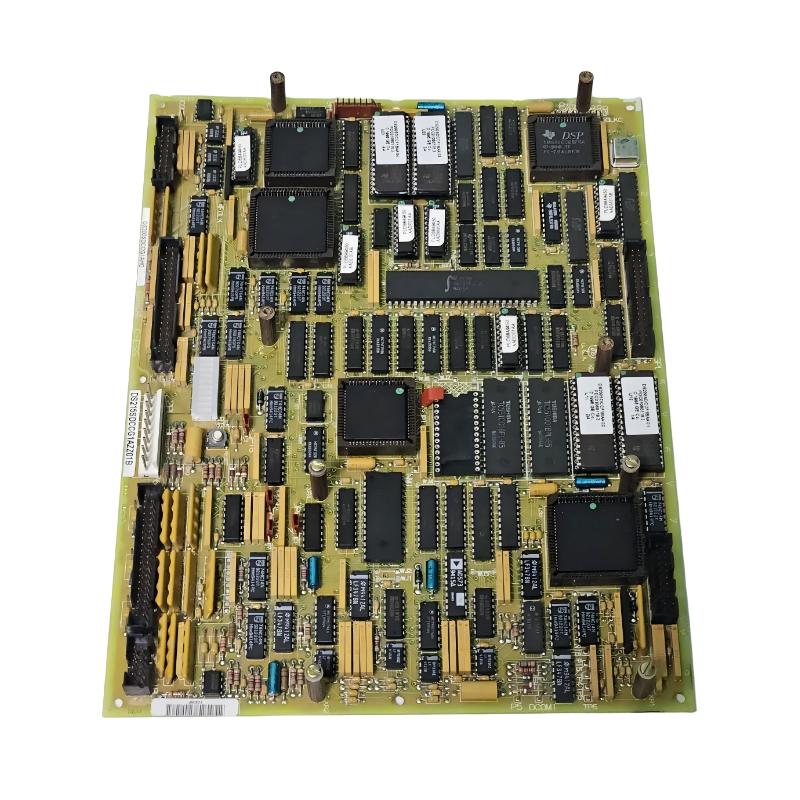

GE DS200SDCCG1AHD Mark V Drive Control Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Product Series | Mark V Speedtronic |
| Product Type | Drive Control Board |
| Model / Part Number | DS200SDCCG1AHD |
| Functional Acronym | SDCC |
| Functional Description | Drive Control Card / Drive Control Board |
| Instruction Manual | GEI-100029 |
| Primary Function | Drive control, motor control, signal processing and interface management |
| Typical Applications | AC2000, DC2000 and EX2000 drive applications |
| Turbine Applications | Gas turbine, steam turbine and wind turbine control systems |
| Processor Architecture | Three independent 16-bit microprocessors |
| Drive Control Processor | Dedicated processing for drive control functions |
| Motor Control Processors | Two processors for motor-control-related calculations |
| Shared Memory | Dual-port RAM for multi-processor data exchange |
| I/O Interface | Drive, motor and customer I/O interface circuitry |
| Expansion Capability | Supports optional communication and signal-processing daughter cards |
| Compatible Auxiliary Cards | DS215SLCC / 531X306LCC LAN Communication Card, 531X309SPC Signal Processor Card, DS200SPCB Multibridge Signal Processor Card |
| Power Inputs | +5 VDC, ±15 VDC and +24 VDC supplied through the power supply/interface connection |
| Main Configuration | Hardware and software configuration through the Mark V drive system |
| Serial Configuration | Supports serial connection for applicable configuration procedures |
| PCB Coating | Normal Coating |
| Functional Revision | A |
| Hardware / Functional Revision | H |
| Artwork Revision | D |
| Mounting | Mark V control cabinet / drive control assembly |
| Control Technology | Digital microprocessor-based drive control |
| Signal Processing | Digital drive and motor signal processing |
| Protection Functions | Voltage regulation and suppression through dedicated electronic protection circuitry |
| Typical Components | Microprocessors, RAM, EPROMs, integrated circuits, resistors, capacitors, transistors and diodes |
| Dimensions | 330 × 220 × 25 mm |
| Weight | 0.45 kg |
FAQ
1. What is the main function of the GE DS200SDCCG1AHD?
The DS200SDCCG1AHD is a Drive Control Board used in the GE Mark V control platform. It provides the processing and interface functions required to control drives and motors, while also handling drive-related signals and customer I/O.
2. Which drive systems can use the DS200SDCCG1AHD?
The DS200SDCCG1AHD is associated with AC2000, DC2000 and EX2000 drive applications. The exact application depends on the overall drive configuration, firmware, connected boards and system-specific hardware.
3. How many processors are installed on the DS200SDCCG1AHD?
The board uses three 16-bit microprocessors. One processor is dedicated primarily to drive-control tasks, while the other two handle motor-control processing, including computationally intensive operations. Shared dual-port RAM allows the processors to exchange data.
4. What type of memory is used on the DS200SDCCG1AHD?
The board incorporates RAM for processor data exchange and EPROM devices that can contain configuration-related information. When replacing the board, the configuration and memory devices should be checked carefully so that the replacement matches the original system configuration.
5. Can additional boards be installed on the DS200SDCCG1AHD?
Yes. Depending on the system configuration, additional communication or signal-processing cards can be mounted on the SDCC board. Associated card types include LAN communication and signal-processing boards. Compatibility should be verified against the specific Mark V drive configuration before installation.
6. What power supplies are associated with the DS200SDCCG1AHD?
The board receives multiple DC supply rails through the power supply/interface connection, including +5 VDC, ±15 VDC and +24 VDC. If the board does not operate correctly, the incoming supply voltages should be checked before replacing the board.
7. What should be checked if the DS200SDCCG1AHD reports a drive control fault?
Start by checking the drive power supply, board connectors, associated I/O wiring and communication connections. The status indicators and Mark V diagnostic information should then be reviewed to identify whether the fault is related to processor operation, memory, I/O, communication or an external drive condition.
8. What precautions should be taken when replacing the DS200SDCCG1AHD?
Before replacement, place the drive in a safe maintenance condition and remove power according to the applicable site procedure. Record the position of connectors, jumpers and any installed auxiliary cards. Configuration or memory devices from the original board may need to be transferred to the replacement board, and the system should be fully tested after installation.
GE DS200SDCCG1AHD Mark V Drive Control Board is in stock. Please contact us for a quick quote and competitive pricing.
