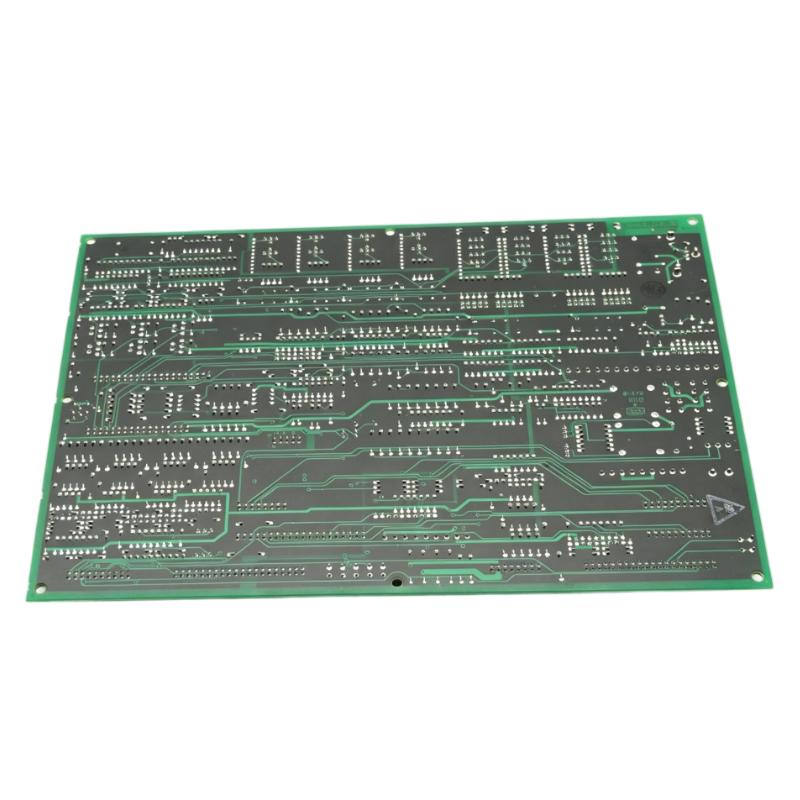

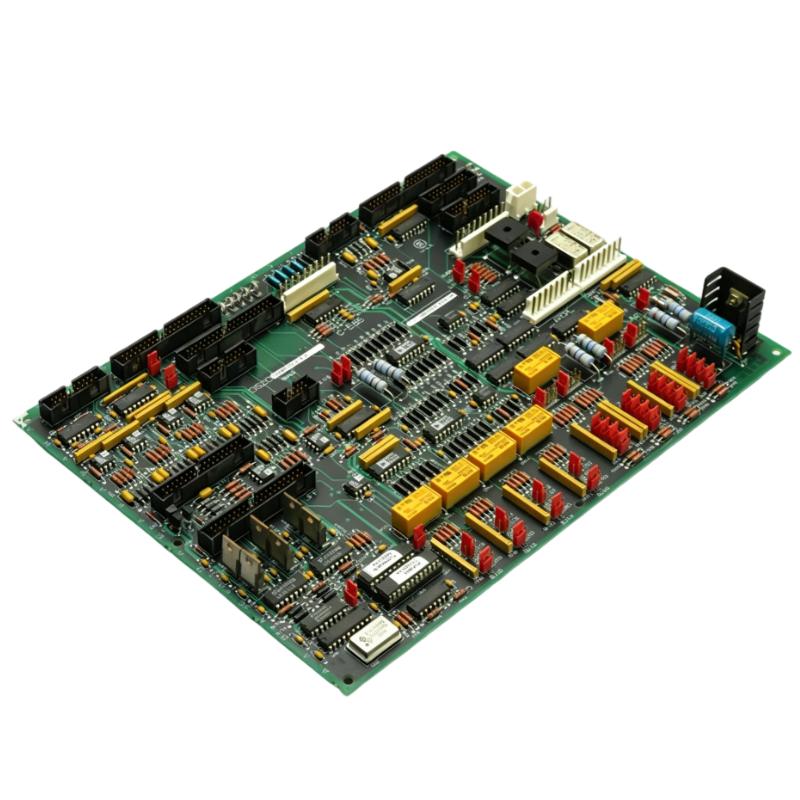

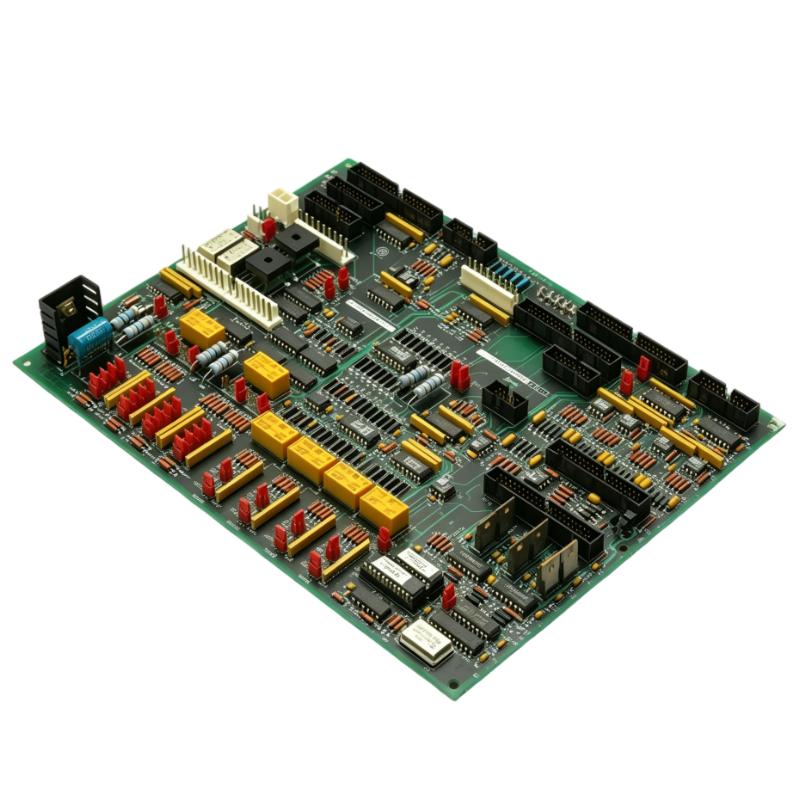

GE DS200TCQCG1BJG Mark V RST Overflow Plate
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Product Series | Speedtronic Mark V |
| Product Type | RST Overflow Board |
| Model / Part Number | DS200TCQCG1BJG |
| Functional Acronym | TCQC |
| Main Function | RST analog I/O expansion and signal conversion |
| Application | GE Mark V turbine control system |
| Typical Installation | R, S, and T control cores |
| Primary Function | Converts digital control outputs into analog current signals for servo control |
| Signal Processing | Analog I/O expansion, signal conditioning, and servo control |
| Analog Signal Input | 4–20 mA current-loop signals |
| Pulse Inputs | Pulse-rate signals such as shaft-speed and flow-related signals |
| Position Sensor Interface | LVDT/LVDR excitation and related feedback signals |
| Servo Control | Supports analog current output for servo valve control |
| Maximum Servo Output | Up to approximately ±240 mA, depending on configuration |
| Digital-to-Analog Interface | Interfaces with DAC and amplifier circuits for servo control |
| Connectors | 3 × 40-pin, 3 × 34-pin, and 1 × 16-pin connectors |
| Hardware Jumpers | 37 configurable jumpers |
| Configuration Method | Hardware jumper configuration |
| Functional Revision | B |
| Artwork Revision | J |
| PCB Coating | Normal coating |
| System Architecture | Mark V RST redundant control architecture |
| Board Communication | Interfaces with associated Mark V control and I/O boards |
| Mounting | Mark V control panel / card rack |
| Typical Application | Gas turbines, steam turbines, and industrial turbine control |
| Dimensions | 330 × 280 × 25 mm |
| Weight | 0.45 kg |
FAQ
1. What is the main function of the GE DS200TCQCG1BJG?
The DS200TCQCG1BJG is an RST Overflow Board used in the GE Speedtronic Mark V turbine control system. Its main function is to expand analog I/O capability and convert digital control outputs into analog current signals used by servo control circuits.
2. Which Mark V system architecture uses the DS200TCQCG1BJG?
The board is designed for the RST architecture of the Mark V control system. It can be installed in the R, S, and T control cores, where redundant signal processing is used for turbine control and protection functions.
3. What types of signals can the DS200TCQCG1BJG handle?
The board can process 4–20 mA current-loop signals, pulse-rate inputs, and position-related signals such as LVDT/LVDR feedback. It also provides signal paths for servo valve control and associated analog processing.
4. How does the DS200TCQCG1BJG control a servo valve?
Digital control information from the Mark V system is processed through the board’s signal conversion and amplification circuitry. The resulting analog current signal is then used by the associated servo control circuit to regulate the connected servo valve.
5. What is the purpose of the 37 hardware jumpers on the DS200TCQCG1BJG?
The jumpers provide hardware-level configuration for different signal paths and operating requirements. Depending on the Mark V application, they can affect signal routing, scaling, gain, feedback configuration, or servo-related functions. The original jumper arrangement should be documented before replacing the board.
6. What should be checked if the DS200TCQCG1BJG produces an incorrect analog output?
Check the associated control signal, field wiring, connectors, terminal boards, and servo circuit first. The hardware jumper configuration should also be verified against the application-specific configuration. If the external circuitry is normal, the board’s signal-conditioning and output circuitry should be investigated.
7. What should be checked if a pulse-rate signal is lost?
Inspect the pulse source, field wiring, terminal connections, board connectors, and the corresponding input circuit. The signal source should be checked for the correct amplitude and frequency. If only one channel is affected, the relevant connector, jumper configuration, and input circuitry should receive particular attention.
8. What precautions are required when replacing the DS200TCQCG1BJG?
The applicable Mark V control section should be placed in a safe maintenance state and isolated according to the site’s procedures before board replacement. Record all connector positions and the 37 jumper settings before removing the original board. After installation, verify the wiring and jumper configuration before returning the control system to service.
GE DS200TCQCG1BJG Mark V RST Overflow Plate is in stock. Please contact us for a quick quote and competitive pricing.
