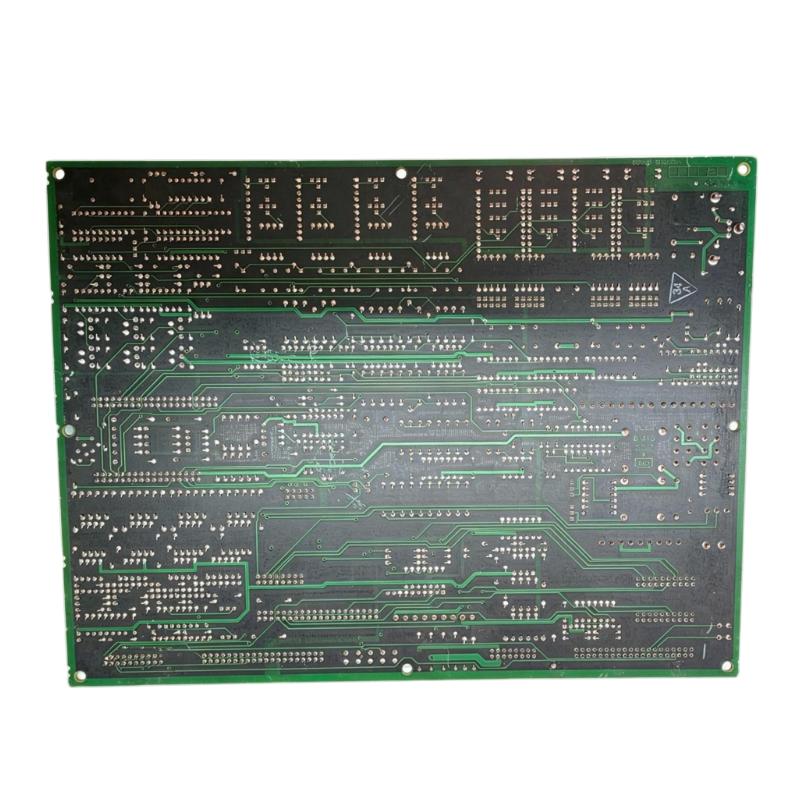

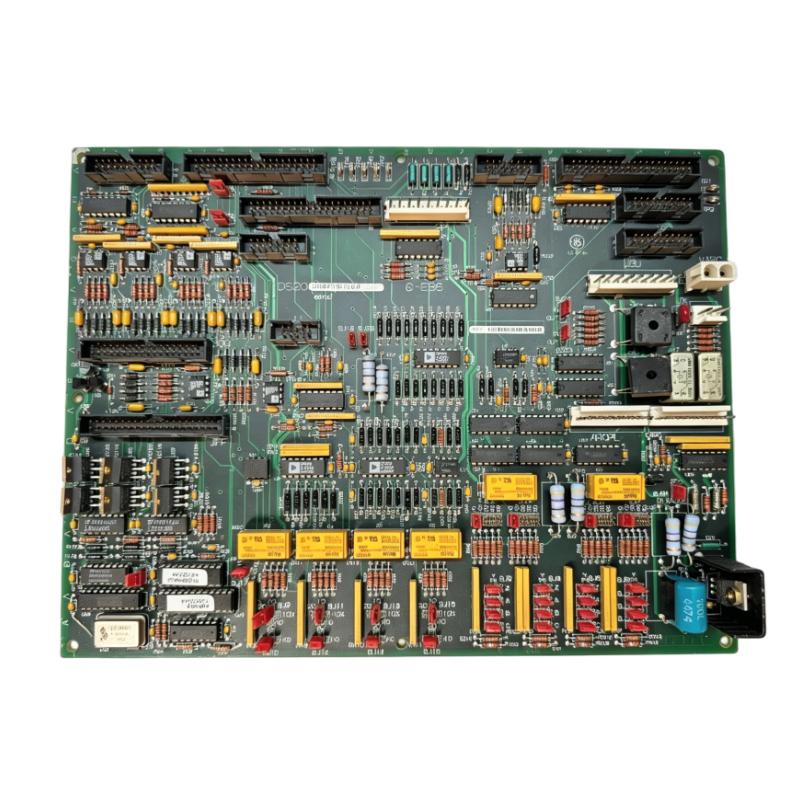

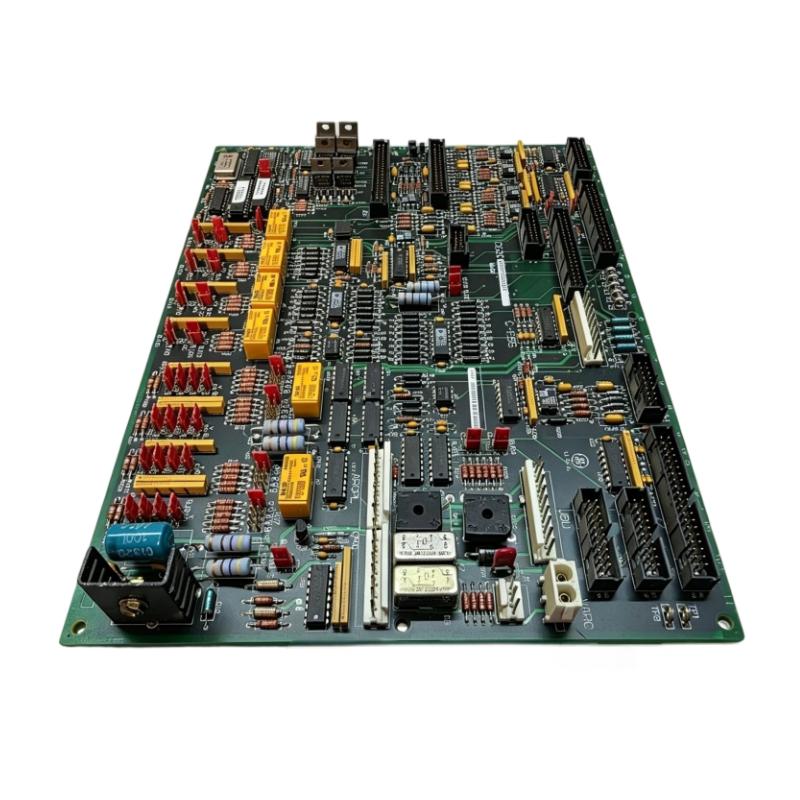

GE DS200TCQCG1BHF Mark V Analog I/O Expansion Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Product Series | Mark V Speedtronic |
| Product Type | Analog I/O Expansion Board |
| Model / Part Number | DS200TCQCG1BHF |
| Functional Acronym | TCQC |
| Board Function | Analog I/O Expander / RST Overflow Board |
| Application System | GE Mark V LM Turbine Control System |
| Typical Application | Gas turbine and industrial turbine control |
| Primary Functions | Analog I/O expansion, signal conditioning, servo output processing, pulse-rate signal processing, and sensor excitation |
| Servo Valve Outputs | 4 independent bipolar servo output channels |
| Servo Output Range | Configurable up to ±240 mA through hardware jumpers |
| Analog Inputs | 4–20 mA signal inputs |
| Pulse Rate Inputs | Magnetic pickup and TTL pulse signals |
| LVDT/LVDR Excitation | 3.2 kHz, 7 Vrms |
| 4–20 mA Channels | Used for functions such as compressor stall detection and megawatt transducer input |
| IONET Interface | Supports IONET termination in the applicable Mark V core configuration |
| Communication Interfaces | Interfaces with STCA and TCQA boards through dedicated connectors |
| Power Supply | Supplied from the TCPS board through the 2PL connector |
| DC Supply Rails | +5 VDC, ±15 VDC, and +24 VDC |
| Configuration | Hardware jumper configuration |
| Software Configuration | No direct software configuration on the board |
| Hardware Jumpers | Multiple jumpers for servo output scaling, feedback configuration, signal gain, and related functions |
| Main Connectors | 2PL, 8PL, 19PL, JC, JE, JFF, JGG, JH, JJ, and JX |
| PCB Coating | Normal coating |
| Mounting | Mark V LM card cage |
| Operating Temperature | Typically 0 to 50 °C in the Mark V LM cabinet environment |
| Storage Temperature | Approximately -40 to +85 °C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions | 330 × 280 × 25 mm |
| Weight | 0.45 kg |
FAQ
1. What is the main function of the GE DS200TCQCG1BHF?
The DS200TCQCG1BHF is an Analog I/O Expander Board used in the GE Mark V turbine control system. It expands analog signal handling and provides signal conditioning, servo valve output processing, pulse-rate signal processing, and LVDT/LVDR excitation functions.
2. Which GE control system is the DS200TCQCG1BHF designed for?
The board is associated with the GE Mark V Speedtronic turbine control platform, particularly Mark V LM configurations. It works with other control and I/O boards to process field signals and support turbine control functions.
3. What types of signals can the DS200TCQCG1BHF handle?
The board can process 4–20 mA analog signals, pulse-rate signals from magnetic pickups or TTL sources, servo valve control signals, and position feedback-related signals. It also provides excitation for LVDT and LVDR position sensors.
4. How are the servo output channels configured?
The DS200TCQCG1BHF uses hardware jumpers to configure servo output current ranges and feedback-related scaling. The applicable configuration depends on the servo valve and the specific Mark V system application. The original jumper arrangement should be documented before replacing the board.
5. Does the DS200TCQCG1BHF require software configuration?
The board itself is primarily configured through hardware jumpers rather than a dedicated software setup procedure. The associated Mark V control system determines how the I/O channels are used, while the physical jumper configuration establishes applicable signal scaling and hardware functions.
6. What should be checked if an analog signal is incorrect or unstable?
Check the field transmitter, wiring, terminal board, ribbon cables, and board connectors first. Verify that the signal source is producing the expected 4–20 mA range. If the external circuit is normal, inspect the relevant jumper configuration and the corresponding TCQC input circuitry.
7. What should be checked when a servo valve output is abnormal?
First verify the control command from the associated TCQA board and inspect the wiring between the TCQC board and the applicable terminal board. Check the servo valve circuit, feedback signal, relay condition, and hardware jumper settings. A mismatch in output-current or feedback scaling can cause incorrect valve positioning.
8. What precautions should be taken when replacing a DS200TCQCG1BHF?
Before removal, power down the applicable control section according to the site’s maintenance procedure and carefully document every connector and jumper position. After installing the replacement board, reproduce the original hardware configuration and verify all cable connections. The associated Mark V diagnostics should then be checked to confirm normal I/O, servo, and communication operation.
GE DS200TCQCG1BHF Mark V Analog I/O Expansion Board is in stock. Please contact us for a quick quote and competitive pricing.
