1. What is the main function of the GE DS200SDCIG2AFB DC Power Supply Board?

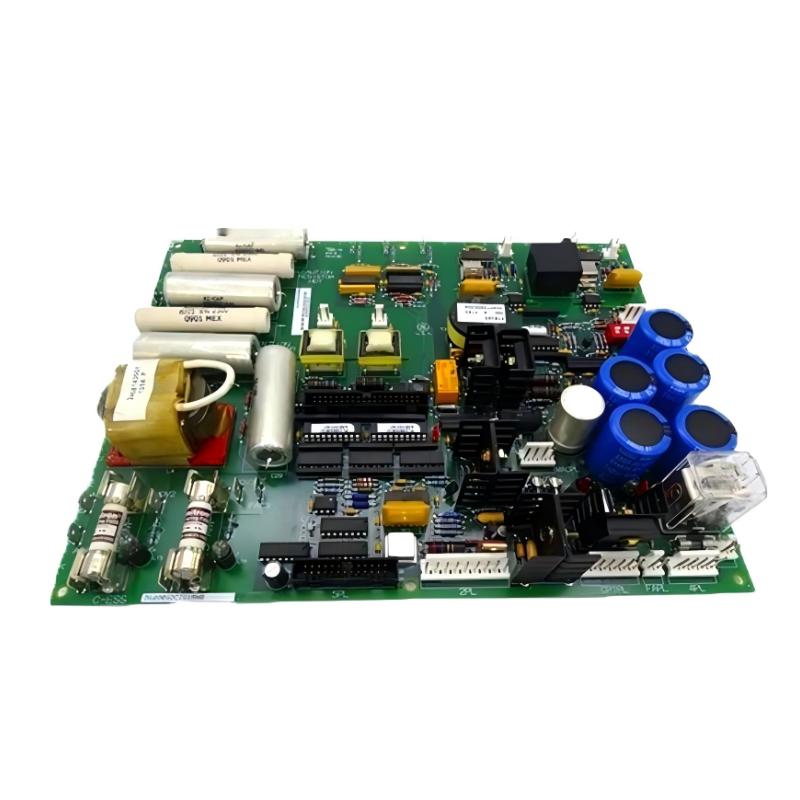

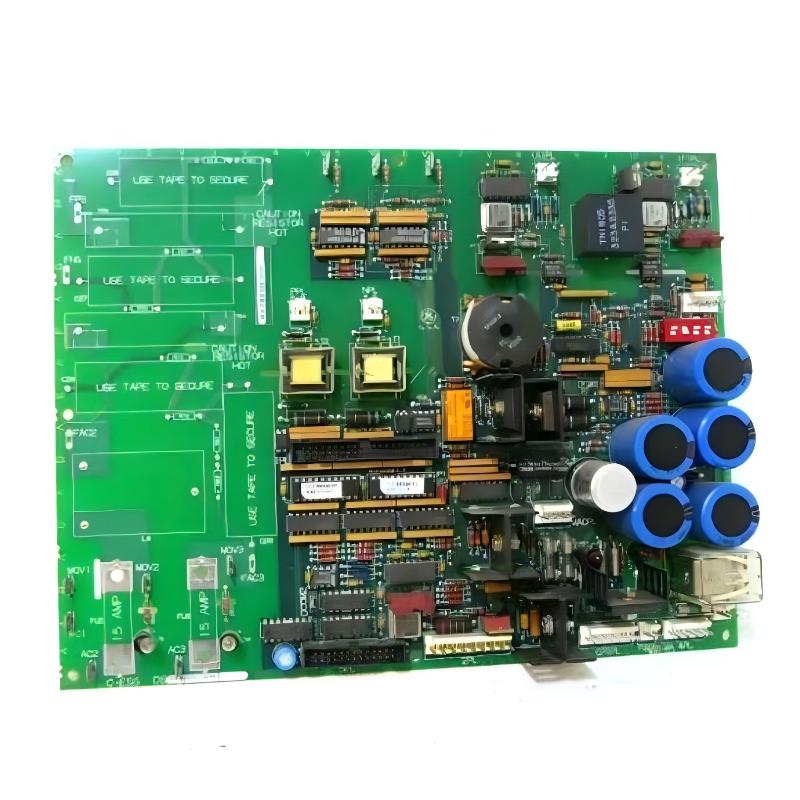

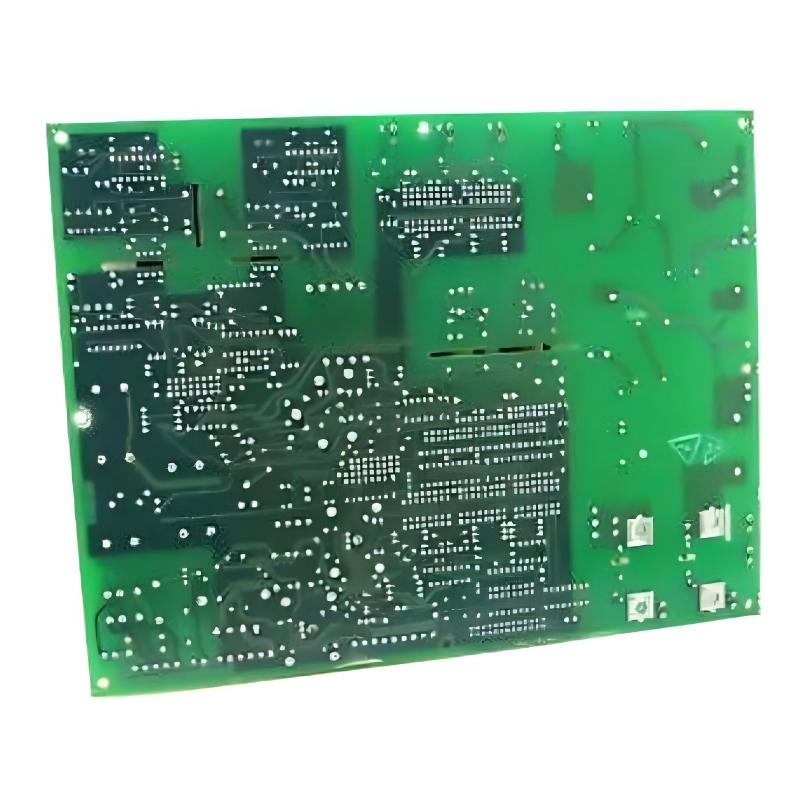

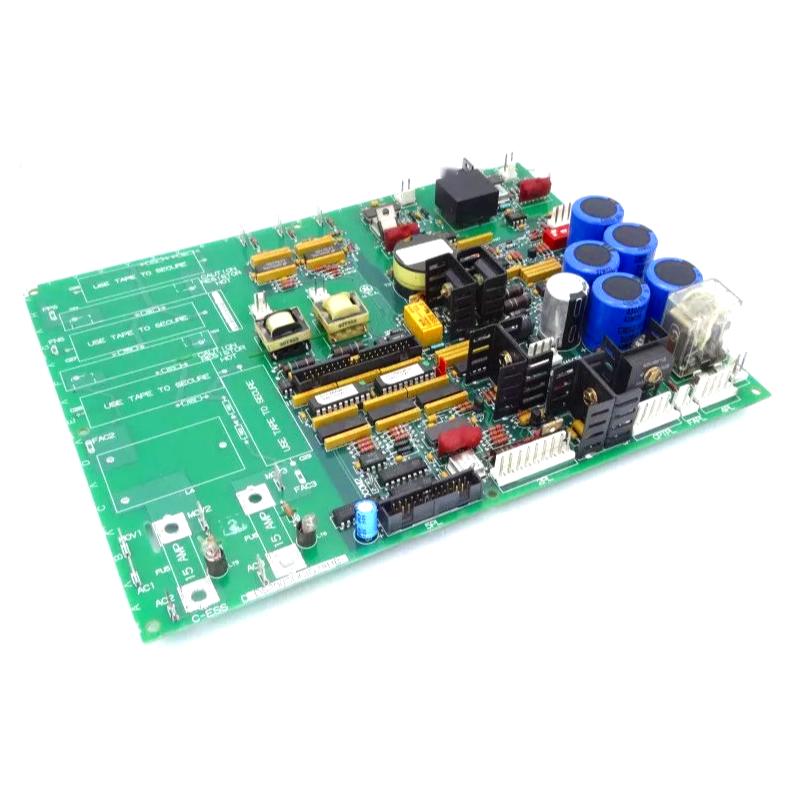

The GE DS200SDCIG2AFB is a DC Power Supply Board designed for GE Mark V control system applications. Its primary role is to provide the required DC power to associated control and electrical circuits within the system. The board works as part of the overall Mark V power architecture, supplying power to designated components so that control, monitoring, and related functions can operate correctly. Because the board is integrated into a larger control system, its performance depends on the condition of the incoming power, connected circuits, and associated Mark V hardware.

2. What symptoms may indicate a problem with the DS200SDCIG2AFB?
A problem with the DS200SDCIG2AFB may result in unstable DC power, loss of power to associated control circuits, unexpected system resets, control alarms, or failure of connected modules to initialize correctly. In some cases, the fault may appear intermittently, particularly when a connector or terminal has poor contact. A power supply fault can also cause several apparently unrelated control functions to fail at the same time because multiple circuits may depend on the same DC supply. When troubleshooting, technicians should first determine whether the problem is actually originating from the power supply board or from the incoming supply, wiring, or downstream load.

3. How should the DS200SDCIG2AFB be checked when the DC output is abnormal?
Start by verifying that the incoming power supplied to the board is present and stable. Then check the relevant output circuits and compare the measured DC voltage with the required system values. Inspect terminals, connectors, and wiring for loose connections, damaged conductors, oxidation, or signs of overheating. If the input is normal but an output remains abnormal, check the connected downstream circuit for excessive loading or a short circuit. A complete diagnosis should consider both the board and the connected equipment because an abnormal load can cause symptoms that appear to be a power supply board failure.

4. What can cause the DS200SDCIG2AFB to operate intermittently?
Intermittent operation can be caused by unstable input power, loose terminals, poor connector contact, damaged wiring, electrical interference, or an abnormal downstream load. Mechanical vibration inside an industrial control cabinet can also affect electrical connections over time. If the problem occurs only under certain operating conditions, changes in system load or temperature may also be relevant. Technicians should record when the fault occurs and compare it with changes in system operation. Checking voltage stability while the system is operating can help identify whether the problem is related to the board, the incoming supply, or the connected load.

5. Can an abnormal downstream circuit damage the DS200SDCIG2AFB?
Yes, an abnormal downstream circuit can place excessive demand on a DC power supply and potentially affect its operation. A short circuit, excessive load, damaged wiring, or faulty connected module may cause the power supply output to drop or become unstable. For this reason, a failed or unstable power supply board should not automatically be replaced without checking the circuits it supplies. After identifying an abnormal output, technicians should inspect the connected loads and isolate the affected circuit where appropriate. This approach can prevent a replacement board from experiencing the same problem after installation.

6. What should be checked before replacing the DS200SDCIG2AFB?
Before replacement, technicians should verify the complete part number and board configuration and confirm that it matches the requirements of the Mark V system. The incoming power supply should be checked, as replacing the board will not correct an upstream power problem. The output circuits and connected loads should also be inspected for short circuits, excessive loading, or damaged wiring. All relevant electrical isolation procedures must be followed before removing the board. It is also recommended to document the existing connector and terminal arrangement so that the replacement can be installed with the same electrical configuration.

7. How can technicians distinguish a power supply board fault from an external wiring problem?
The most effective approach is to test the circuit systematically from the incoming supply through the board and then to the connected loads. If the input power is incorrect, the problem is likely upstream of the DS200SDCIG2AFB. If the input is stable but the board does not provide the expected output under normal load conditions, the board becomes a stronger suspect. However, if the output changes significantly when a particular downstream circuit is connected, that circuit should be inspected for excessive loading or a short circuit. Comparing measurements with the normal system operating condition can help isolate the actual source of the fault.

8. What checks should be performed after installing a replacement DS200SDCIG2AFB?
After installation, verify that all connectors, terminals, and power wiring are correctly positioned and securely connected. Before energizing the system, confirm that there are no obvious wiring errors or short circuits. Once power is restored, check the board’s input and output conditions and verify that the expected DC supply is reaching the associated Mark V circuits. The connected control modules should be checked for normal initialization, communication, and operating status. Any power-related alarms should be investigated before returning the equipment to service. If the original board failed because of an external load or wiring problem, that underlying issue should also be corrected to protect the replacement board.
