1. What is the main function of the GE DS200SIOCG1AEA VME Rack I/O Board?

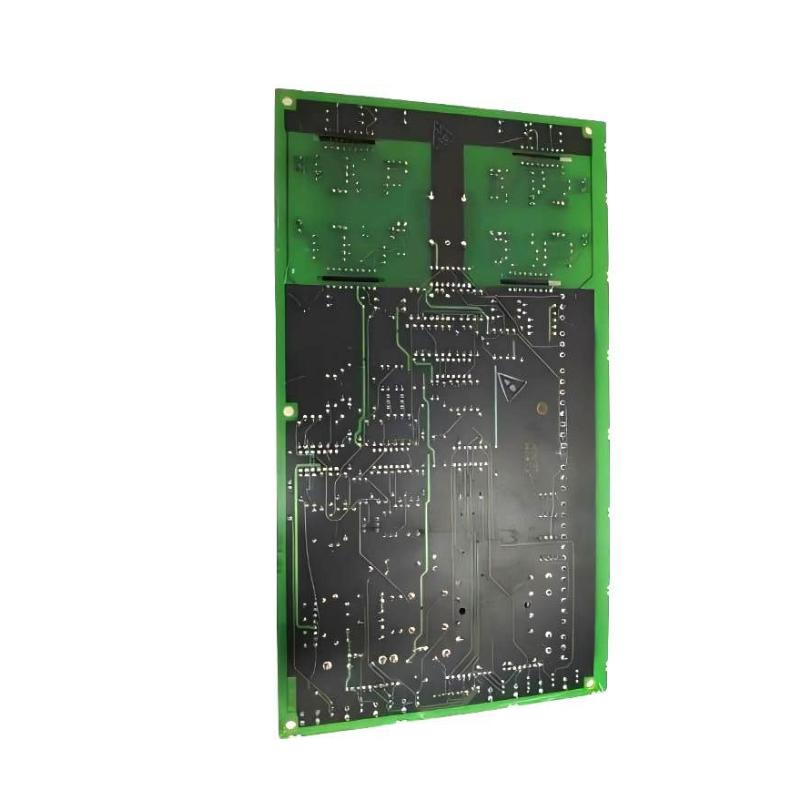

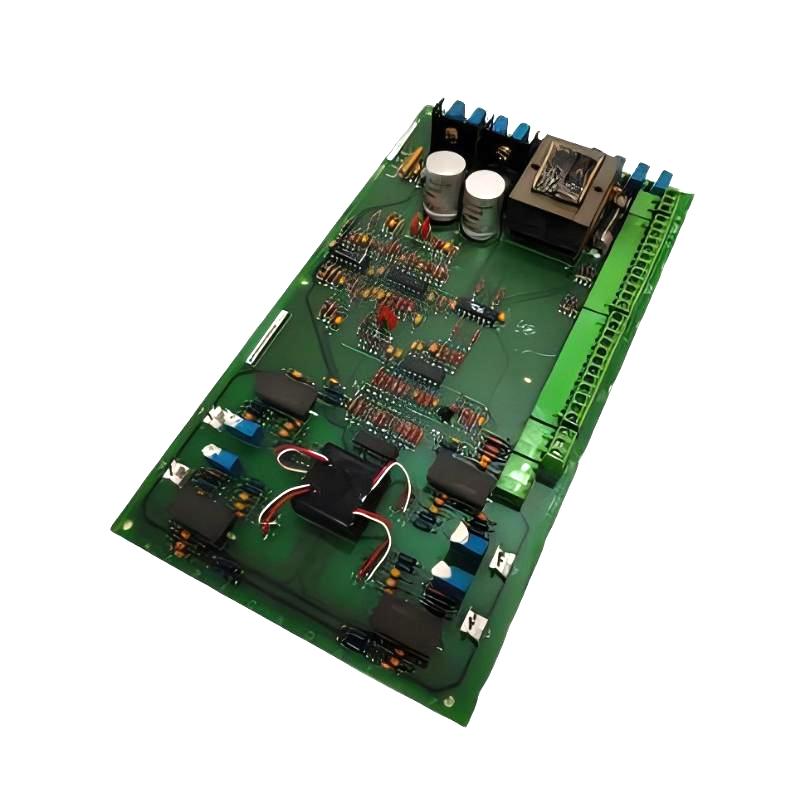

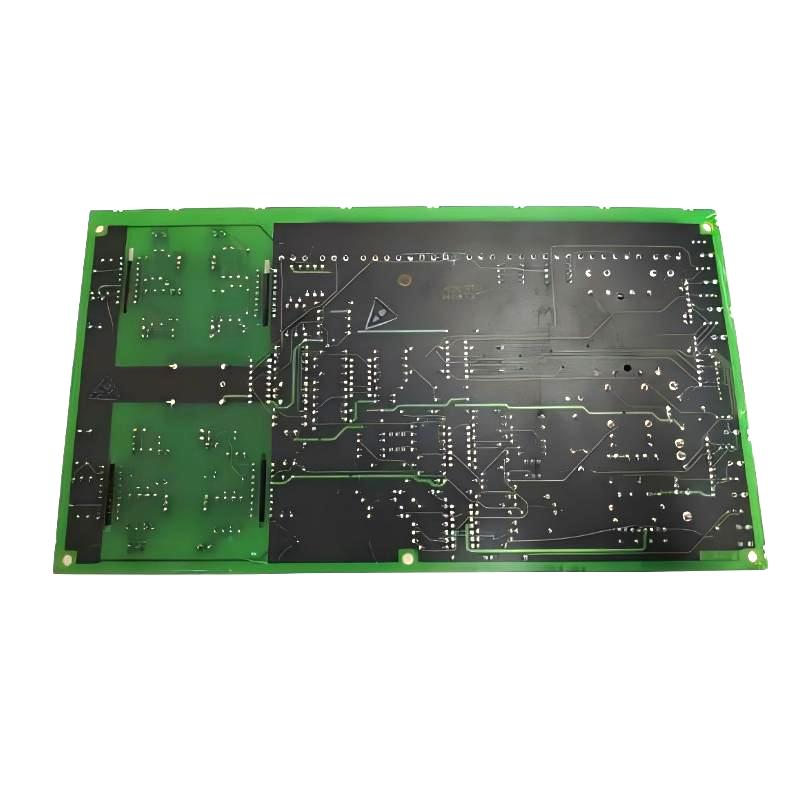

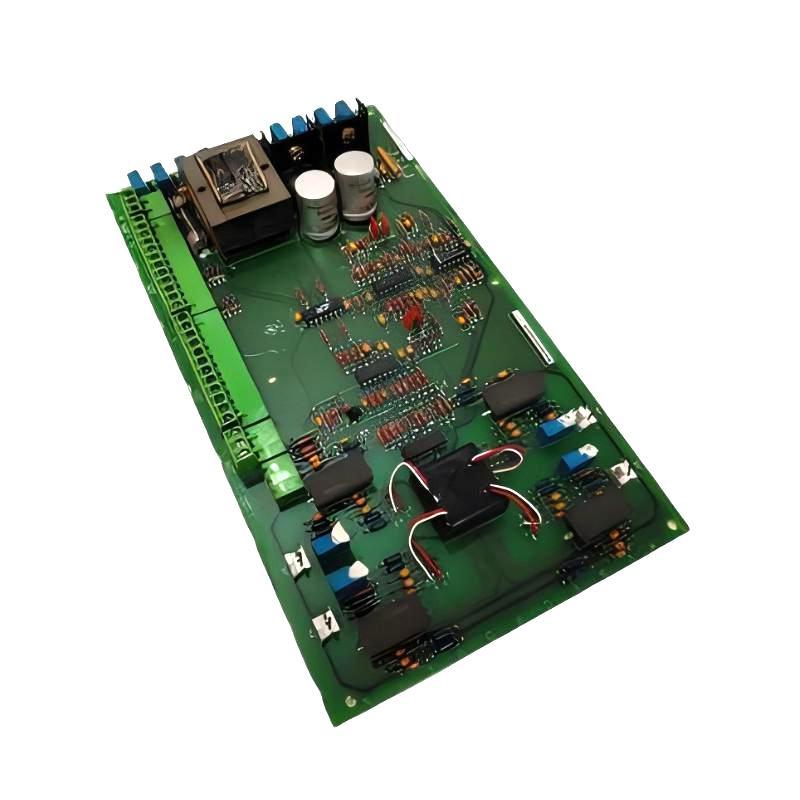

The GE DS200SIOCG1AEA is a VME Rack I/O Board designed for use in GE Mark V control systems. Its primary function is to provide an interface between the VME-based control architecture and associated input/output signals. The board operates as part of the larger control rack, allowing I/O information to be transferred between field-related circuitry and the control system. It is not normally used as an independent controller; instead, it works together with processors, communication modules, terminal boards, and other rack components. Proper installation and configuration are important because the board depends on the VME backplane and associated I/O circuitry to perform its intended function.

2. How does the DS200SIOCG1AEA communicate with the Mark V control system?
The DS200SIOCG1AEA communicates through the VME rack architecture and its associated backplane connections. The VME interface provides the electrical and data communication path between the I/O board and other modules installed in the control rack. During normal operation, the control processor can access I/O information through the VME system while the board interfaces with the associated external signal circuitry. If communication is lost, technicians should inspect the VME connection, rack backplane, power supply, board installation, and system configuration. A communication problem does not necessarily indicate that the I/O board itself has failed, because the VME communication path depends on several interconnected components.

3. What types of applications use the DS200SIOCG1AEA?
The DS200SIOCG1AEA is intended for industrial control applications associated with GE Mark V systems, including turbine and other automation control installations. In these systems, reliable I/O signal transmission is important for monitoring operating conditions and exchanging control information between the control processor and field-related equipment. The board forms part of the rack-based control architecture rather than functioning as a standalone I/O controller. Its suitability for a particular application depends on the overall system design, hardware configuration, terminal-board connections, and software configuration. Before installing a replacement, the board model and system application should therefore be verified against the existing control-system configuration.

4. What should be checked if the DS200SIOCG1AEA is not recognized by the control system?
If the control system does not recognize the DS200SIOCG1AEA, troubleshooting should begin with the physical installation. Check that the board is fully seated in the correct VME rack position and that the backplane connection is clean and secure. The rack power supply should also be verified because insufficient or unstable power can prevent a VME board from operating correctly. Next, inspect the board configuration and compare it with the original system settings. The VME backplane, processor module, and related communication circuitry should also be checked. If another compatible slot or diagnostic method is available within the maintenance procedure, it can help determine whether the problem follows the board or remains associated with the rack. This systematic approach can help distinguish a failed board from a backplane, power, configuration, or processor-related problem.

5. How should I/O signal faults on the DS200SIOCG1AEA be diagnosed?
I/O troubleshooting should begin by identifying whether the problem affects a single signal, multiple channels, or the complete board. For an individual signal problem, inspect the associated cable, terminal connection, field device, and terminal board before concluding that the DS200SIOCG1AEA is defective. If multiple signals fail simultaneously, the VME interface, board power, common wiring, or system configuration should receive greater attention. The control-system diagnostics can be used to determine whether the processor is receiving data from the board. Technicians should compare actual signal conditions with expected values and trace the signal path from the field device through the terminal circuitry and I/O board to the control processor. This approach reduces unnecessary board replacement and helps identify the actual source of the fault.

6. What are common causes of intermittent communication with the DS200SIOCG1AEA?
Intermittent communication can be caused by loose VME connections, poor contact at the backplane, unstable rack power, damaged wiring, connector contamination, environmental conditions, or problems with another module on the same VME system. A board that works normally for a period of time and then loses communication may also require inspection for thermal or electrical issues. During troubleshooting, technicians should inspect the VME connector and mounting condition, verify power stability, review system diagnostic information, and check related modules. If the fault occurs only under certain operating conditions, monitoring the system while the problem is present can provide additional information. Replacing the board without checking the surrounding VME infrastructure may not solve an intermittent fault if the actual problem is located in the rack or backplane.

7. What should be considered when replacing the DS200SIOCG1AEA?
Before replacement, confirm the complete DS200SIOCG1AEA model and revision and verify that the replacement is appropriate for the specific Mark V installation. Record the original board position, connector locations, and any hardware configuration settings before disconnecting the existing board. Follow the required power-isolation procedure and use appropriate ESD protection when handling the PCB. After installation, ensure that the board is correctly seated in the VME rack and that all external connections have been restored to their original locations. The control system should then be checked for board recognition, communication status, and I/O operation. Any configuration differences between the old and replacement board should be resolved before the equipment is returned to normal service.

8. What commissioning checks should be performed after installing the DS200SIOCG1AEA?
After installation, first verify the physical condition and connections of the board, including the VME backplane connection and associated I/O wiring. Confirm that the control system recognizes the board and that there are no active rack or communication alarms. Next, verify the relevant I/O points individually or according to the system commissioning procedure. Input signals should be compared with the actual field conditions, while output points should be tested under controlled conditions to confirm that the control system can command the connected equipment correctly. If the board participates in critical turbine or industrial control functions, the associated interlocks, alarms, permissive conditions, and feedback signals should also be checked. Any abnormal response should be investigated before returning the system to full operation. A complete commissioning check helps confirm that the replacement board, VME rack, external wiring, and control software are working together correctly.
