1. What is the main function of the GE DS200TCDAH1BGD Digital I/O Board?

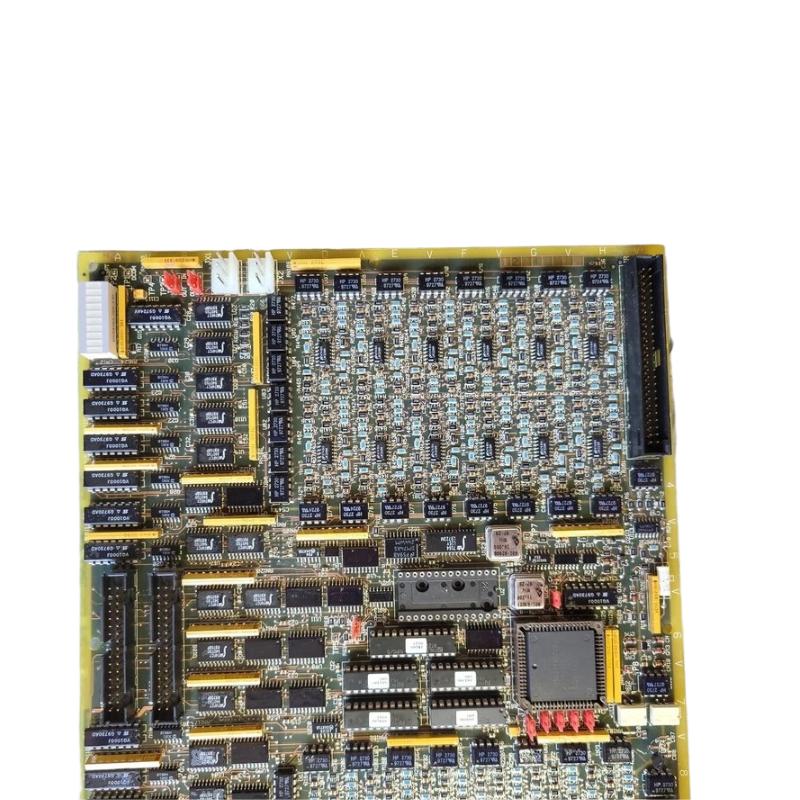

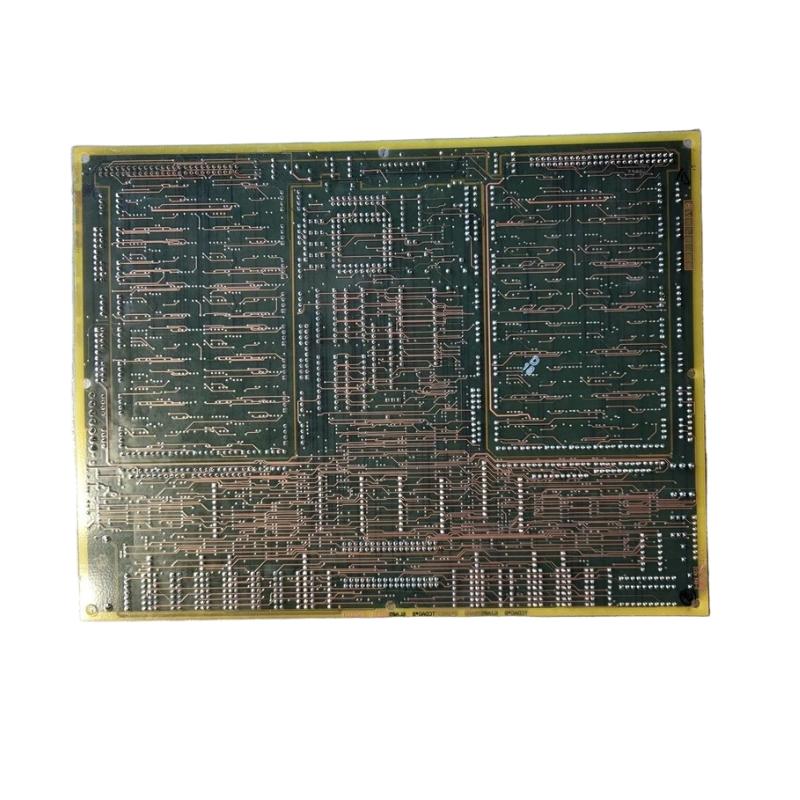

The GE DS200TCDAH1BGD is a digital I/O board used in the Mark V Speedtronic turbine control system. Its primary function is to process digital contact input signals and contact output signals within the control architecture. Digital inputs are received from associated terminal boards, while output signals are transferred to relay or solenoid interface circuitry. The board also processes the incoming contact signals before transmitting the information through the IONET network to the appropriate control electronics. Because it is part of a larger turbine control system, the DS200TCDAH1BGD works together with terminal boards, communication circuitry, processors, and other Mark V modules rather than operating as a standalone controller.

2. How does the DS200TCDAH1BGD handle digital contact input signals?
The DS200TCDAH1BGD receives digital contact input signals from the DTBA and DTBB terminal boards through the JQ and JR connections. The board conditions these incoming signals and processes changes in their state before transmitting the information through the IONET network. Contact input inversion is handled through software configuration, allowing the system to interpret the electrical state according to the requirements of the specific control application. During troubleshooting, technicians should check the complete signal path from the field contact and terminal board through the JQ or JR connection and into the TCDA board. If the physical input is correct but the control system displays an incorrect state, both hardware connections and software I/O configuration should be checked.

3. What is the purpose of the IONET connection on the DS200TCDAH1BGD?
The IONET interface provides the communication path between the DS200TCDAH1BGD and other parts of the Mark V control system. After digital contact signals are processed on the board, the resulting information is transmitted through the IONET connection to the appropriate control electronics. The board provides JX1 and JX2 connections for IONET communication, with either connection being used according to the system configuration. If IONET communication is interrupted, the control system may lose access to digital I/O information even when the field wiring itself is functioning normally. Troubleshooting should therefore include the IONET cables, connectors, termination configuration, board identification settings, and the receiving control module.

4. What are the eight hardware jumpers on the DS200TCDAH1BGD used for?
The DS200TCDAH1BGD contains eight hardware jumpers that are associated with board configuration and testing. J1 and J8 are used for factory test functions, while J2 and J3 are associated with IONET termination resistor configuration. J4, J5, and J6 are used to establish the IONET identification of the board, and J7 is associated with the stall timer enable function. These settings are important because an incorrect jumper configuration can affect communication or board operation. When replacing the board, technicians should record the original jumper positions before removal and reproduce the approved configuration on the replacement board. Jumpers should not be changed randomly during troubleshooting because an incorrect change can introduce an additional configuration problem.

5. What are the main connectors on the DS200TCDAH1BGD used for?
The DS200TCDAH1BGD uses several connectors for power, contact inputs, contact outputs, and IONET communication. JP is associated with power distribution from the TCPS board. JQ and JR receive contact input signals from the DTBA and DTBB terminal boards. JO1 and JO2 are used to transfer contact output signals to the appropriate TCRA boards. JX1 and JX2 provide the IONET communication connections. Each connector has a specific role within the Mark V signal architecture, so incorrect cable placement can result in missing inputs, incorrect outputs, or communication faults. During maintenance, every cable should be clearly identified before removal, and the replacement board should be wired exactly according to the approved system configuration.

6. What should be checked if the DS200TCDAH1BGD does not receive a digital input correctly?
The troubleshooting process should begin at the field signal and move toward the control system. First, verify that the field contact or switching device is actually changing state. Then inspect the associated terminal board, wiring, and the connection to the appropriate TCDA input connector. If the electrical signal reaches the board correctly, check whether the board is processing the signal and whether the corresponding data is being transmitted through IONET. Software configuration should also be reviewed because contact input inversion is configured through system parameters. If only one input is affected, the problem may be related to the field circuit or individual connection. If many inputs are affected simultaneously, the investigation should focus more heavily on board power, common connections, IONET communication, or system configuration.

7. What can cause an IONET communication fault on the DS200TCDAH1BGD?
IONET communication problems can be caused by incorrect jumper settings, damaged or improperly connected communication cables, incorrect IONET identification, termination problems, board power issues, or faults in another device connected to the network. The DS200TCDAH1BGD uses JX1 or JX2 for the IONET connection, and the corresponding hardware configuration must match the system design. When a communication fault occurs, technicians should first inspect the physical connections and cable condition. The IONET termination settings and board ID configuration should then be verified against the approved system configuration. If the local configuration is correct, the next step is to check the connected IONET devices and control modules to determine whether the problem is isolated to the TCDA board or affects the wider network.

8. What should be checked when replacing or commissioning the DS200TCDAH1BGD?
Before replacement, the complete model and revision should be verified, and all connector positions and jumper settings should be documented. The original JQ, JR, JO1, JO2, JP, JX1, and JX2 connections should be carefully identified before the old board is removed. The eight hardware jumper positions should also be recorded because they affect IONET configuration, board identification, testing, and stall timer functions. After installing the replacement board, all wiring should be restored according to the approved Mark V configuration. The commissioning process should then verify board power, digital input status, relay or solenoid output operation, IONET communication, and relevant system diagnostics. If the board is used in a turbine control application, associated alarms, interlocks, permissives, and feedback signals should also be checked under controlled conditions before the system is returned to normal operation.
