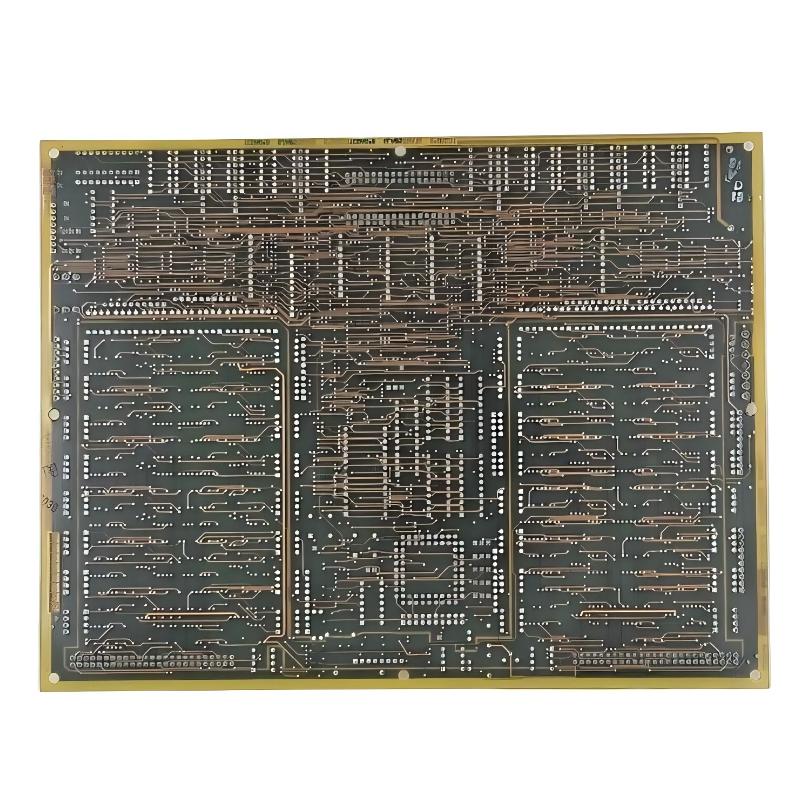

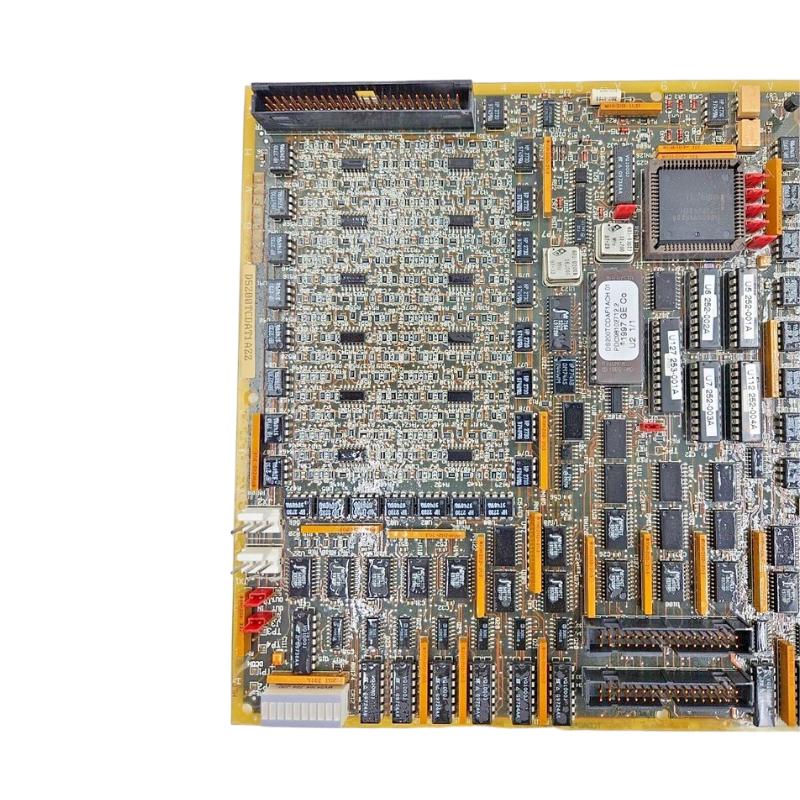

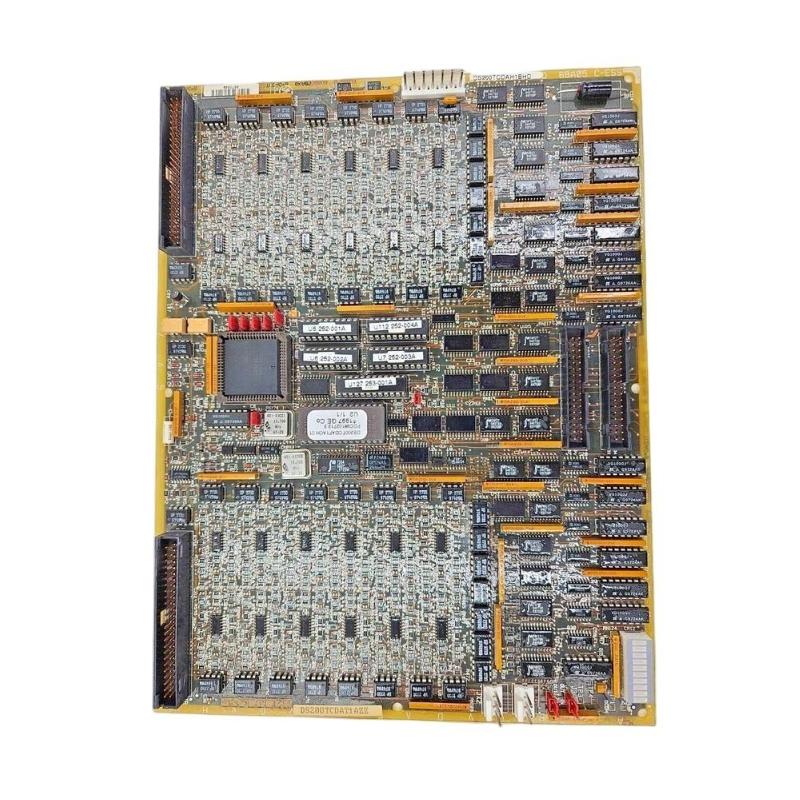

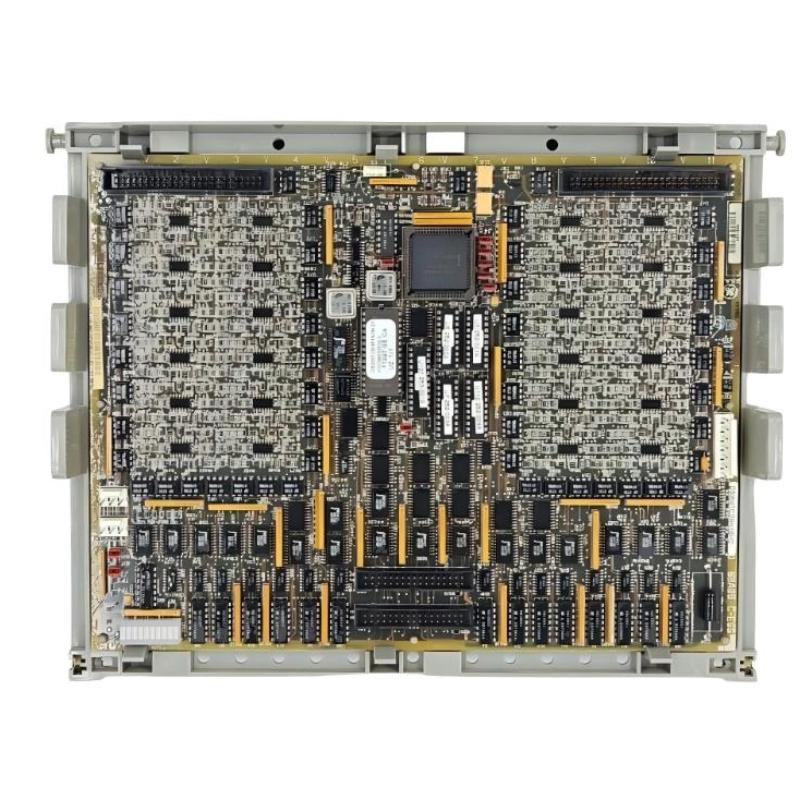

1. What is the main function of the GE DS200TCDAH1BHD Digital I/O Board?
The GE DS200TCDAH1BHD is a digital I/O board designed for use in GE Mark V Speedtronic control systems. Its primary role is to interface with and process digital contact input and output signals within the control architecture. The board can receive digital status information from field devices, relay contacts, and associated terminal boards and transfer that information to the Mark V control system. It can also transmit digital control commands from the control system to the appropriate field circuits. The DS200TCDAH1BHD does not normally operate as an independent controller. Instead, it functions as part of the complete Mark V architecture, working with processors, terminal boards, communication networks, and other control modules.

2. How does the DS200TCDAH1BHD communicate with the Mark V control system?
The DS200TCDAH1BHD communicates through the IONET architecture used by the Mark V control system. Digital input signals are processed by the board and then transferred through the communication network to the appropriate control modules. The control system can use this information for logic processing, alarms, interlocks, permissive conditions, and other control functions. Digital output commands are transmitted in the opposite direction to the associated field interface. Reliable IONET communication is therefore essential for proper digital I/O operation. If communication is interrupted, the field wiring may remain electrically correct while the control system is unable to receive or transmit the expected I/O information. Troubleshooting should therefore include the board connections, communication wiring, system configuration, and related control modules.

3. How should I troubleshoot a digital input that is not correctly detected by the DS200TCDAH1BHD?
Start by confirming that the field switch, relay, or other digital device is actually changing state. Then follow the signal path through the field wiring, terminal connections, associated terminal board, cable, and input interface of the DS200TCDAH1BHD. If the correct electrical signal reaches the board but the control system displays the wrong state, the board and software configuration should be investigated. Some digital contacts use different active-state definitions, so an incorrect input inversion or software configuration can cause a closed contact to be interpreted as an open condition or vice versa. IONET communication should also be checked. If several digital inputs fail simultaneously, technicians should pay particular attention to board power, common wiring, communication problems, or system configuration rather than assuming that several individual input channels have failed at the same time.

4. What should be checked when a digital output from the DS200TCDAH1BHD does not operate correctly?
First determine whether the Mark V control logic is actually generating the expected output command. If the control logic has not issued the command, the associated logic, permissives, and interlocks should be investigated before testing the I/O board. If the correct command is being generated, check IONET communication, the board output status, associated terminals, and field wiring. The connected load, such as a relay, solenoid, or other actuator, should also be inspected because a failed field device can appear to be an I/O output problem. If the board receives the correct command but the corresponding output does not change, further testing of the DS200TCDAH1BHD output circuit and surrounding wiring may be required. Tracing the signal from the control logic through the I/O board and finally to the field device provides a more reliable method of locating the actual fault.

5. What are common causes of IONET communication faults on the DS200TCDAH1BHD?
IONET communication faults can result from loose communication cables, poor connector contact, incorrect board configuration, improper network termination, unstable rack power, or a fault affecting another device on the network. Because IONET forms part of the wider Mark V control architecture, a communication problem at one point can sometimes affect multiple I/O functions. Troubleshooting should begin by checking the physical communication connection and confirming that the board is correctly installed. The associated IONET network devices and communication paths should then be inspected. If only the DS200TCDAH1BHD is affected, attention should focus on the board configuration, connection, and local hardware. If several boards experience communication problems at the same time, the investigation should expand to the shared IONET network, controller, and related power supply.

6. What should be considered when replacing the DS200TCDAH1BHD?
Before replacing the DS200TCDAH1BHD, verify the complete model and revision information and document the original board position, cable connections, and relevant hardware configuration. It is recommended to label the cables or record their positions before disconnecting the original board to prevent wiring errors during reinstallation. Follow the required site power-isolation procedure and use suitable ESD protection when handling the PCB. After installing the replacement board, verify that it is securely installed and that all connections have been restored correctly. Once the system is powered, check whether the Mark V system recognizes the board and verify IONET communication. Digital inputs, digital outputs, alarms, interlocks, and protection-related signals should then be tested according to the approved commissioning procedure before the equipment is returned to normal service.

7. Why should the I/O configuration be checked after replacing the DS200TCDAH1BHD?
Digital I/O operation in a Mark V system depends on more than the physical PCB. Signal definitions, terminal connections, software configuration, and communication settings all affect how the control system interprets and processes I/O information. If the replacement board is installed correctly but the associated configuration does not match the original system, problems such as reversed input states, incorrect output actions, missing signals, or unexpected alarms may occur. After replacement, the relevant I/O definitions and communication settings should therefore be compared with the approved system configuration. Actual field input states should be compared with the states displayed by the control system. Digital outputs should also be tested under controlled and safe conditions to confirm that the commanded state corresponds correctly to the actual field-device response.

8. What commissioning checks should be performed after installing the DS200TCDAH1BHD?
After installation, inspect the board, connectors, cables, and associated terminals to confirm that everything is securely connected and that there are no incorrect or missing connections. Verify that the control system recognizes the DS200TCDAH1BHD and that there are no IONET communication alarms. Digital input testing should cover the important field signals used by the application and confirm that changes at the field device are correctly reflected in the control system. Digital output testing should be performed under appropriate controlled conditions to verify that commands are correctly transmitted to the connected equipment. Related alarms, interlocks, permissives, and feedback signals should also be checked, particularly when the board is used for critical turbine control functions. If an abnormal signal is detected, troubleshooting should follow the complete path from the field device through the terminal interface, I/O board, IONET network, and control processor to determine the actual source of the problem.
