1. What is the main function of the GE DS200TCEAG1BTF Emergency Overspeed Board?
The GE DS200TCEAG1BTF is an Emergency Overspeed Board used in GE Mark V turbine control systems. Its primary role is to process signals associated with turbine speed, emergency trip functions, and related protection circuits. The board forms part of the Mark V protection architecture and is designed to monitor critical operating conditions and participate in protective actions when an abnormal overspeed condition is detected. Unlike a standard digital I/O board, the DS200TCEAG1BTF is closely associated with turbine protection functions and works together with speed detection circuits, trip logic, control processors, and associated field interfaces. Proper configuration and reliable signal transmission are therefore important for maintaining the intended protection response.

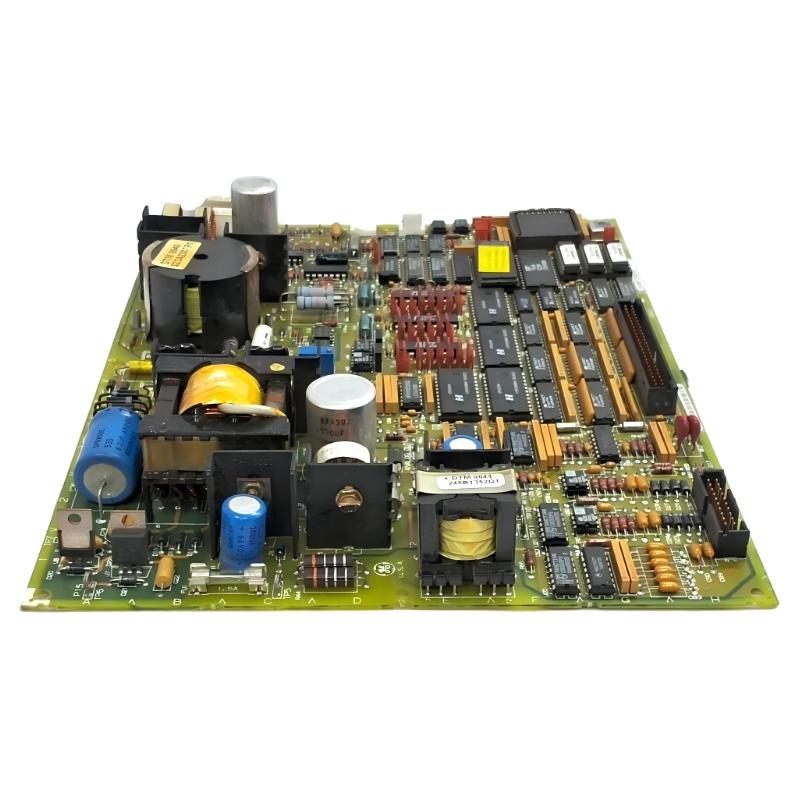

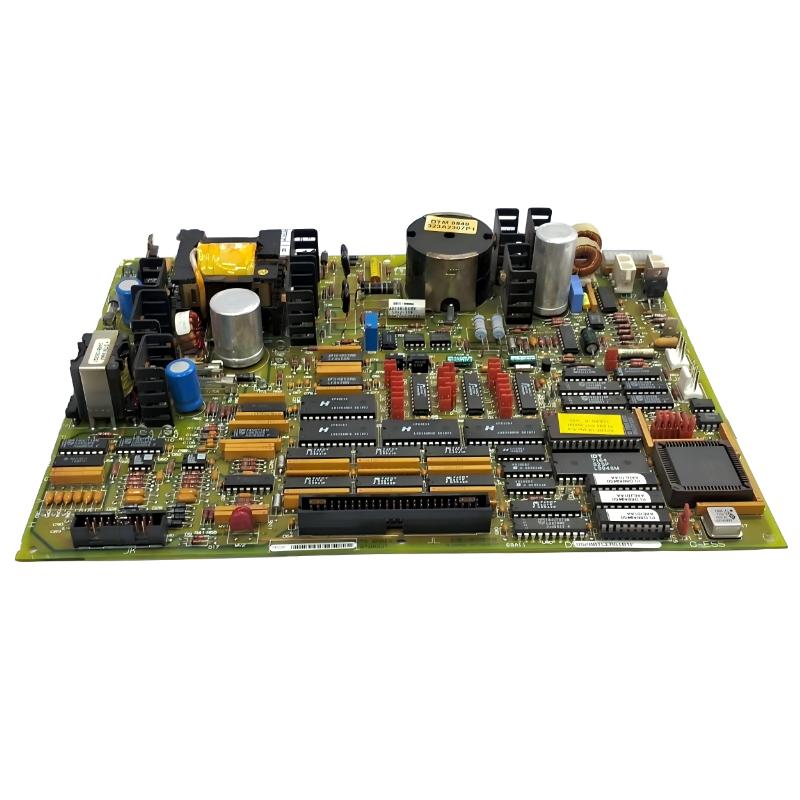

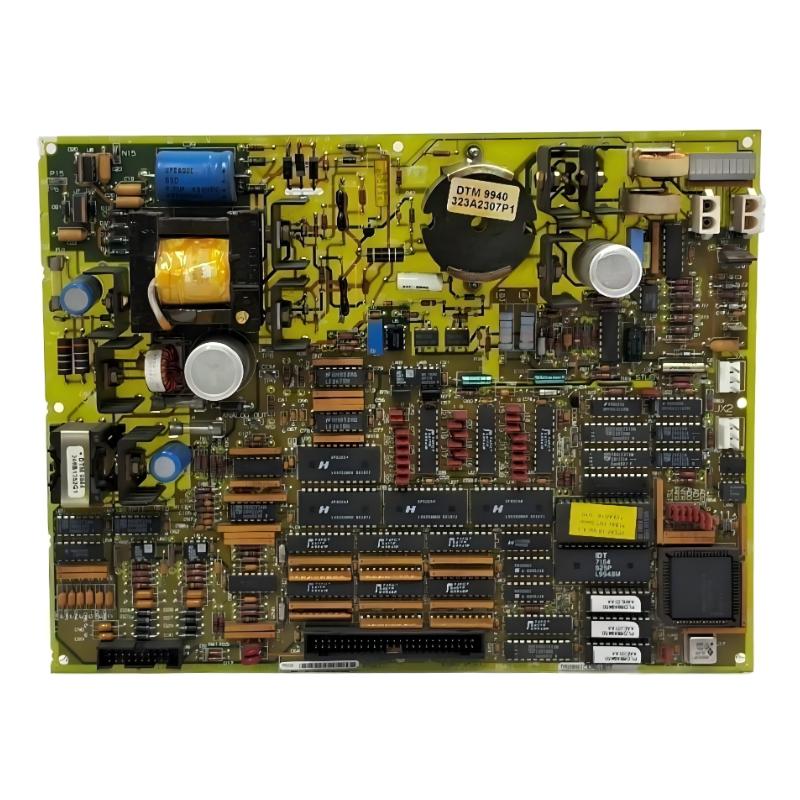

2. What are the main hardware features of the DS200TCEAG1BTF?
The DS200TCEAG1BTF includes a microprocessor, multiple EPROM sockets, three fuses, 30 hardware jumpers, and several signal connectors. The microprocessor supports the board’s control and signal-processing functions, while the EPROM devices are associated with the board’s programmed operating functions. The three fuses provide protection for relevant electrical circuits and should be checked when power-related problems occur. The 30 hardware jumpers are used for board configuration and must match the requirements of the specific Mark V system. The board also includes J7 for power-related connections, JK and JL for important signal interfaces, JW for flame detection-related signals, and JX1/JX2 for IONET communication. All of these elements should be considered during installation and troubleshooting.

3. How does the DS200TCEAG1BTF participate in turbine overspeed protection?
The DS200TCEAG1BTF processes signals associated with turbine speed and emergency overspeed protection within the Mark V control system. When the turbine speed reaches a condition that requires protective action, the board and associated protection circuits can participate in generating the appropriate trip or protective signal according to the configured system logic. The purpose of overspeed protection is to provide a rapid protective response when turbine speed exceeds the permitted operating range, helping prevent potentially severe mechanical damage. The complete protection function is normally achieved through multiple interconnected elements, including speed sensing, signal processing, trip logic, and the final trip mechanism. For this reason, an overspeed protection fault should be investigated across the complete protection signal path rather than assuming that the PCB is the only possible source of the problem.

4. What is the purpose of the IONET interfaces on the DS200TCEAG1BTF?
The JX1 and JX2 interfaces provide connections between the DS200TCEAG1BTF and the IONET communication architecture of the Mark V system. Through IONET, information processed by the board can be exchanged with other control and monitoring modules. Reliable communication allows the control system to monitor board status and receive relevant information needed for diagnostics and control functions. If IONET communication fails, the system may report communication alarms or fail to receive expected board information even when the field signals themselves are correct. Troubleshooting should include the JX1 and JX2 connections, communication cables, board installation, configuration settings, and associated IONET modules. If several boards experience communication problems simultaneously, the wider IONET network should also be investigated.

5. How should an overspeed protection fault on the DS200TCEAG1BTF be diagnosed?
Begin by confirming the actual turbine speed and determining whether the reported overspeed condition corresponds to a genuine operating condition. If the turbine speed is normal but an overspeed alarm or trip is generated, inspect the speed sensing signals, associated wiring, interfaces, and board input circuitry. The DS200TCEAG1BTF power supply, fuses, connectors, and hardware configuration should also be checked for abnormal conditions. Mark V diagnostic information can help determine whether the problem is related to the board, communication, or another protection module. If multiple redundant speed detection channels are available, their signals should be compared to determine whether the abnormal condition originates from a sensor, wiring, input circuit, or processing path. Because overspeed protection is a critical safety function, testing should always follow the approved maintenance procedure and should not involve arbitrary changes to protection settings.

6. What should be done if a fuse on the DS200TCEAG1BTF is blown?
A blown fuse should not simply be replaced without investigating the reason it failed. First determine which circuit is protected by the fuse and inspect for possible causes such as abnormal supply conditions, short circuits, damaged wiring, or failed electronic components. Replacing a fuse without correcting the underlying problem can cause the replacement fuse to fail again and may result in additional circuit damage. The replacement fuse must have the correct rating and specification for the system; a higher-rated fuse should never be substituted simply to prevent repeated failure. After replacement, the relevant power and external circuits should be inspected before controlled energization. The board should then be monitored for normal operation and any recurring electrical or diagnostic abnormality.

7. Why is it important to record the hardware jumper positions when replacing the DS200TCEAG1BTF?
The DS200TCEAG1BTF contains 30 hardware jumpers that are used for various board configuration and functional settings. Different Mark V installations can have different hardware configurations, so the jumper positions should not be assumed to be identical simply because the board model is the same. If the original jumper configuration is not recorded before removal, the replacement board may be installed with settings that do not match the existing control system. This can lead to communication problems, incorrect protection behavior, or other system faults. Before removing the original board, technicians should document the jumper positions and compare them with the approved system configuration. After installing the replacement board, all relevant jumpers should be checked again before the system is energized and tested.

8. What commissioning checks should be performed after installing the DS200TCEAG1BTF?
After installation, inspect the board, connectors, power connections, and associated signal wiring to ensure that everything is correctly installed and secure. The J7 power connection, JK main signal interface, JL trip signal interface, JW flame detection interface, and JX1/JX2 IONET connections should be verified against the original system configuration. The positions of all 30 hardware jumpers should also be checked, and the three fuses should be inspected for proper condition. After controlled energization, confirm that the board starts correctly and review the Mark V diagnostic information and IONET communication status. The approved commissioning procedure should then be used to verify overspeed detection, trip signals, flame detection, and associated protection logic. Because these functions can affect turbine safety, testing must be performed under controlled conditions to prevent unintended equipment trips or unsafe operating states. The system should only be returned to normal operation after the protection signal paths, communication status, interlocks, and related functions have been verified.
