1. What is the main function of the GE DS200TCEBG1ACD Protective Termination Expander Board?
The DS200TCEBG1ACD is a Protective Termination Expander Board used in the GE Mark V turbine control system. Its primary function is to interface, scale, and condition several important control and protection signals within the system. CT and PT signals are processed by the board before being passed to other control circuitry, where they can be used for generator voltage, bus voltage, and line current monitoring. The board also handles signal paths associated with flame detection and emergency overspeed functions, making it an important interface component within the turbine control architecture.

2. Where is the DS200TCEBG1ACD installed in the GE Mark V system?
The DS200TCEBG1ACD is installed in the P1 core of the GE Mark V control system. Its position allows it to interface with related boards and terminal assemblies responsible for turbine control and protection functions. During replacement, the original board position and all connected cable locations should be carefully documented before removing the existing unit. Correct installation is important because the board handles multiple signal paths, and incorrect connector placement can cause measurement errors or affect protection-related functions.

3. What types of signals are processed by the DS200TCEBG1ACD?
The board processes several types of signals associated with turbine control and protection. CT and PT signals are scaled for use by downstream control circuitry, while other signal paths are associated with flame detection, magnetic pickup, emergency overspeed, and related protection functions. Certain DC signals required by flame detector equipment are also conditioned through the board before being transferred to the appropriate terminal circuitry. Because these signals can be important to both measurement and protection functions, wiring and connector identification should be verified carefully during maintenance.

4. How many connectors are provided on the DS200TCEBG1ACD?

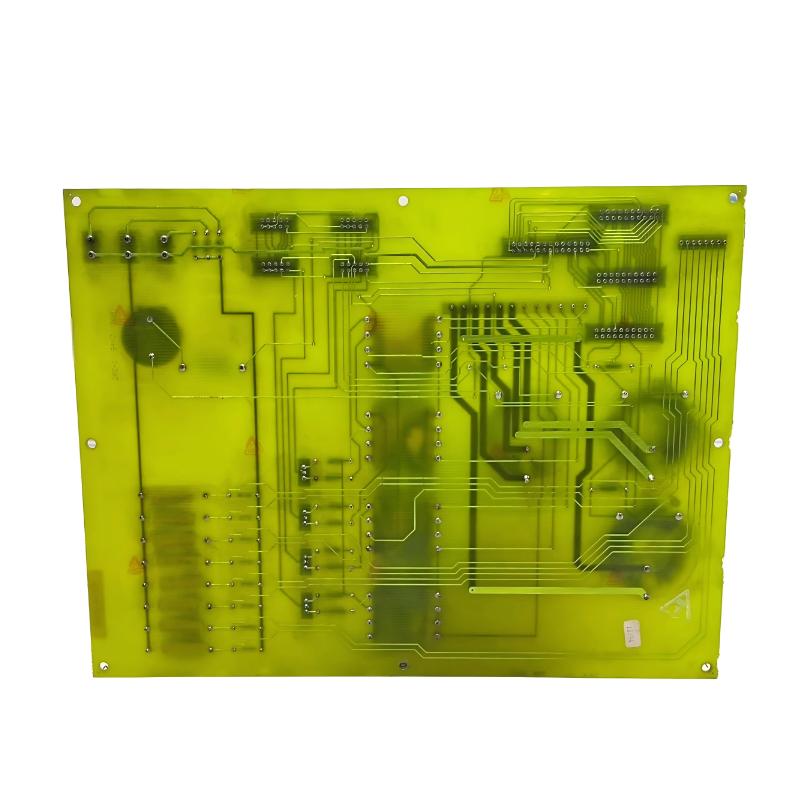

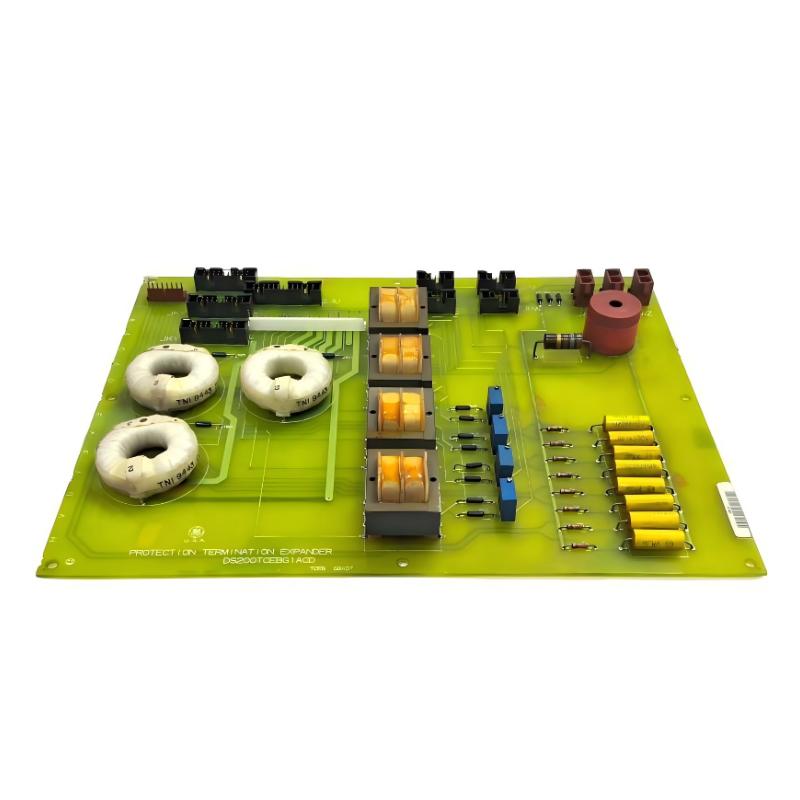

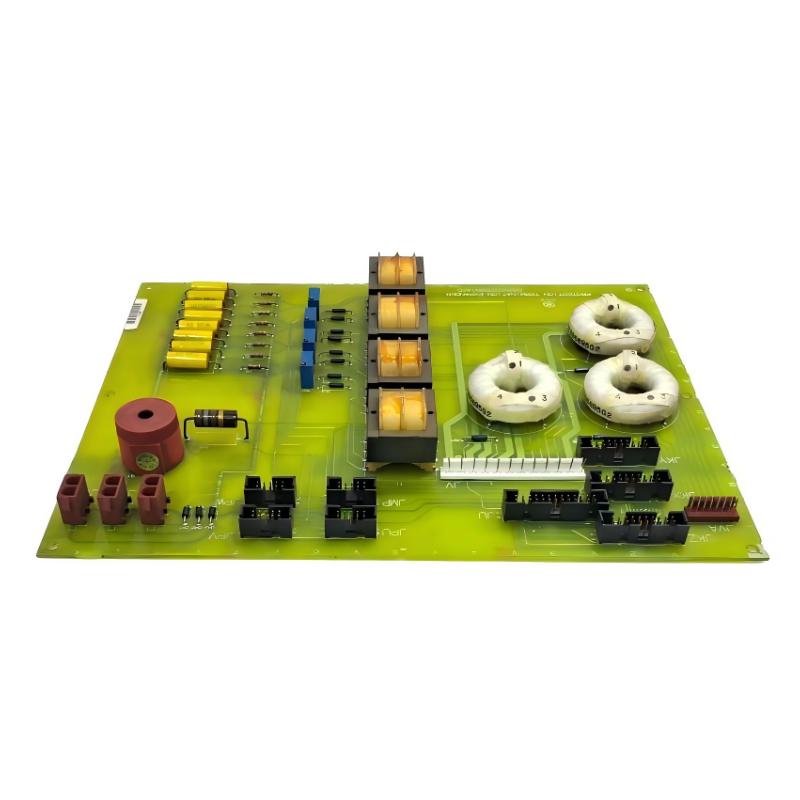

The DS200TCEBG1ACD uses a combination of connectors for interfacing with other Mark V boards and terminal assemblies. The board includes one 26-pin connector, four 10-pin connectors, and three 20-pin connectors. It also has bayonet-style connectors identified as JWX, JWY, and JWZ. Each connector is associated with particular signal paths within the Mark V system. Before replacing the board, technicians should record the location and identification of every connected cable so that the replacement board can be wired correctly.

5. Does the DS200TCEBG1ACD require jumper configuration?
The DS200TCEBG1ACD does not use jumper pins for normal board configuration. The board’s required functions are primarily determined by its hardware design and its connections within the Mark V system. Certain associated functions, such as the alarm horn configuration, may be controlled through a jumper located on the related PTBA terminal board rather than directly on the TCEB board. Therefore, if a configuration-related issue occurs, technicians should inspect the relevant associated terminal board and system wiring rather than assuming that a jumper on the DS200TCEBG1ACD must be adjusted.

6. What should be checked if the DS200TCEBG1ACD produces abnormal CT or PT signals?
Troubleshooting should begin by checking the associated CT and PT wiring, connector seating, and signal paths. Inspect the board for signs of damaged components, loose connections, contamination, or physical damage. The related terminal boards and downstream control boards should also be checked because an abnormal signal may originate outside the TCEB board itself. If the input signals are correct but the scaled output is abnormal, the signal transformers and associated circuitry should be examined. Connector identification and cable routing should also be verified carefully after any maintenance work.

7. What are common causes of DS200TCEBG1ACD board faults?
Common causes can include loose or incorrectly connected cables, damaged connectors, signal interference, component degradation, excessive electrical stress, contamination, and improper handling during installation or maintenance. Because the board handles multiple signal types, a fault in one connection can affect a specific measurement or protection function without necessarily causing the entire board to stop operating. Troubleshooting should therefore focus on identifying which signal path is affected. Checking connector condition, cable routing, input and output signals, and related Mark V boards can help isolate the source of the problem.

8. What should be verified after replacing the DS200TCEBG1ACD?
After installing a replacement DS200TCEBG1ACD, verify that the board is securely mounted and that every connector is installed in its correct position. Check the CT and PT signal paths and confirm that the expected measurements are available to the associated control circuitry. Flame detection, magnetic pickup, and emergency overspeed-related signal paths should also be checked where applicable. Inspect cable routing to ensure that signal wiring is separated appropriately from potential sources of electrical interference. Finally, perform the required system-level functional checks to confirm that the turbine control, monitoring, and protection functions operate correctly before returning the Mark V system to normal service.
