1. What is the GE DS200UPSAG1AGD used for?

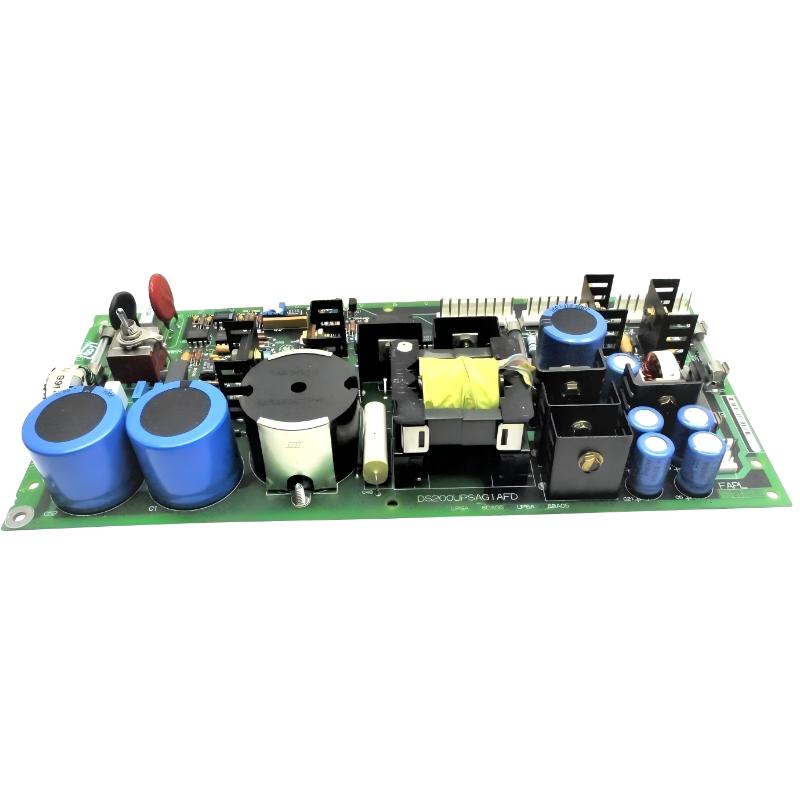

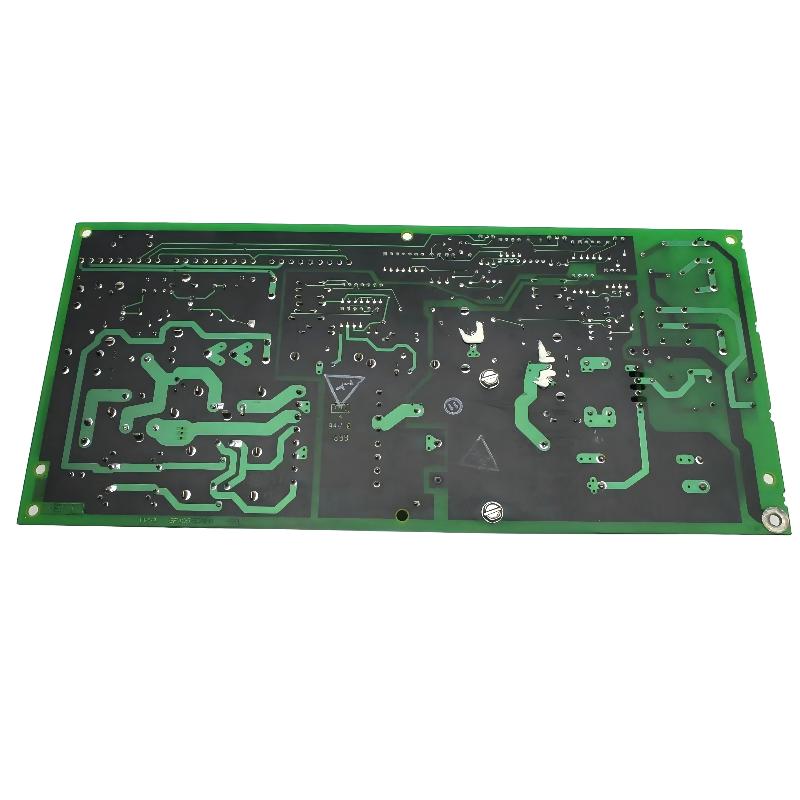

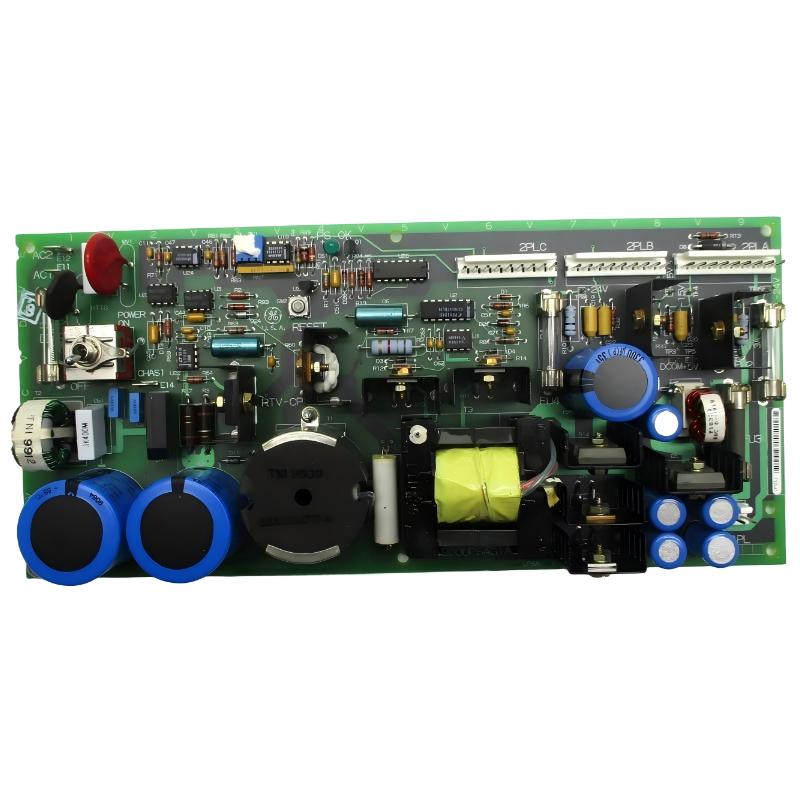

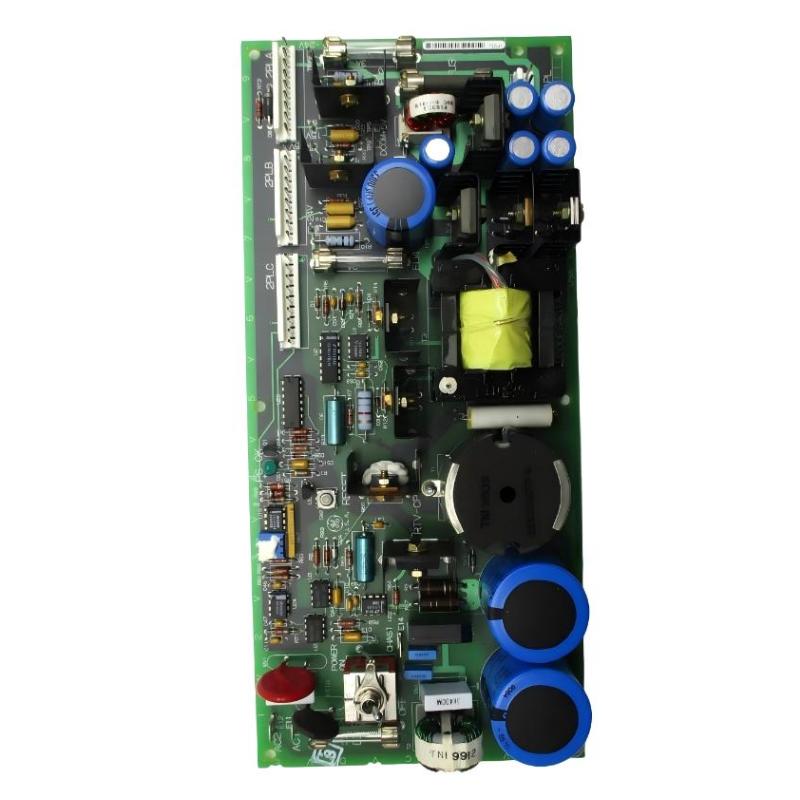

The GE DS200UPSAG1AGD is a power supply board used in GE Mark V and UC2000-related control systems. Its primary role is to provide and manage electrical power for associated control electronics and system components. The board incorporates power-conditioning circuitry, protective components, reset functionality, connectors, and test points to support reliable operation within the control cabinet. It is commonly associated with industrial turbine control and automation equipment where stable control-system power is essential. When diagnosing a system power problem, the DS200UPSAG1AGD should be evaluated together with the upstream power source and downstream loads rather than treated as an isolated component.

2. What protection features are provided on the DS200UPSAG1AGD?

The DS200UPSAG1AGD includes three onboard fuses designed to provide overcurrent protection for the board’s circuitry. It also incorporates a power-on reset function that supports controlled initialization of connected control electronics when the system is energized. These protection features help reduce the possibility of damage caused by abnormal electrical conditions. If one of the onboard fuses opens repeatedly, the fuse itself should not simply be replaced without investigating the cause. A short circuit, excessive downstream load, wiring problem, or failure in another connected component may be responsible for the repeated protection event.

3. What are common symptoms of a faulty DS200UPSAG1AGD?

A faulty DS200UPSAG1AGD may result in loss of power to associated control components, failure of system initialization, unexpected controller resets, intermittent operation, or multiple alarms occurring at the same time. If the board has an internal power conversion problem, downstream electronics may receive an incorrect or unstable supply. An open fuse can also interrupt a particular power path and cause several related devices to stop functioning. However, similar symptoms can originate from the incoming power source, external wiring, excessive loads, or another board in the system. A systematic power-path inspection is therefore recommended before replacing the board.

4. How should the DS200UPSAG1AGD be tested when a power fault occurs?

Begin by confirming that the upstream power source is present and within the required operating range. After following the appropriate electrical safety procedures, inspect the board for blown fuses, loose connectors, damaged components, overheating, or other visible abnormalities. The relevant power outputs should then be checked using suitable test equipment and the system’s approved maintenance procedure. If an output is missing, technicians should determine whether the problem originates inside the board or is caused by an overloaded downstream circuit. The onboard test points can be useful for systematic measurements when the correct test procedure and electrical documentation are available.

5. What should be done if a fuse on the DS200UPSAG1AGD is blown?

A blown fuse indicates that an overcurrent condition may have occurred and should be treated as a symptom rather than the complete fault. Before replacing the fuse, technicians should inspect the associated wiring, connectors, downstream loads, and power circuits for shorts or abnormal current demand. The correct fuse specification must be used, and a fuse should never be bypassed or replaced with an unsuitable rating. If the replacement fuse opens immediately after power is restored, the equipment should be de-energized and the underlying circuit investigated further. Repeated fuse failures may indicate a more serious problem in the board or an external connected component.

6. What is the function of the connectors and test points on the DS200UPSAG1AGD?

The DS200UPSAG1AGD includes three 9-pin connectors that provide electrical interfaces with associated control system components. The board also contains multiple test points that can be used during maintenance and troubleshooting to monitor relevant electrical conditions. Connector assignments depend on the specific system configuration, so technicians should identify and document cable positions before removing the board. Test points should only be measured using the approved procedure and suitable instruments. Incorrect probing or connecting test equipment to the wrong point can introduce additional faults or create an electrical safety hazard.

7. Why does the DS200UPSAG1AGD contain multiple capacitors?

The board contains multiple capacitors that support power filtering, energy storage, and stabilization of the board’s power circuits. Capacitors help smooth electrical variations and maintain suitable power conditions for connected control electronics. Over time, aging, heat, electrical stress, or prolonged operation can affect capacitor performance. Symptoms of capacitor-related problems may include unstable output power, intermittent resets, increased electrical noise, or abnormal startup behavior. During inspection, technicians should look for visible signs such as swelling, leakage, discoloration, or overheating, while recognizing that some capacitor failures may not be visually obvious and require electrical testing.

8. What precautions should be taken when replacing the DS200UPSAG1AGD?

Before replacing the DS200UPSAG1AGD, verify the complete part number and revision information against the installed Mark V system. The associated equipment should be placed in the approved maintenance condition, and all applicable isolation and lockout/tagout procedures must be followed. Because the board is part of a power supply system, technicians should confirm that hazardous voltage has been removed before handling it. All connectors and cables should be identified and documented before removal. The original fuse configuration and other relevant hardware settings should also be recorded. After installing the replacement board, check every connection carefully before restoring power. The system should then be monitored for proper startup, stable power delivery, absence of abnormal alarms, and normal operation of all connected control components.
