1. What is the GE DS200VPBLG1ADD used for?

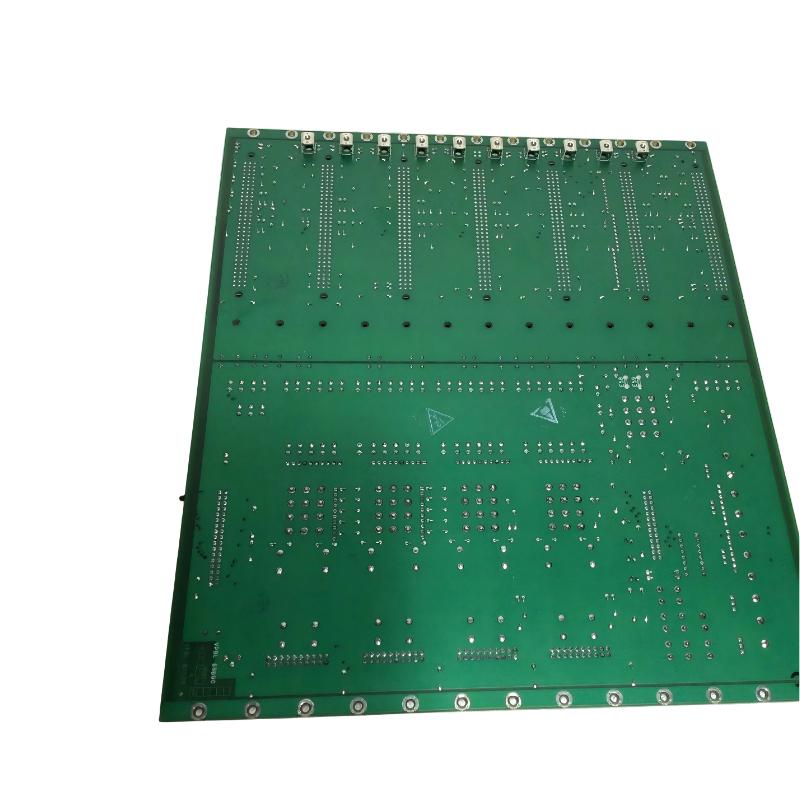

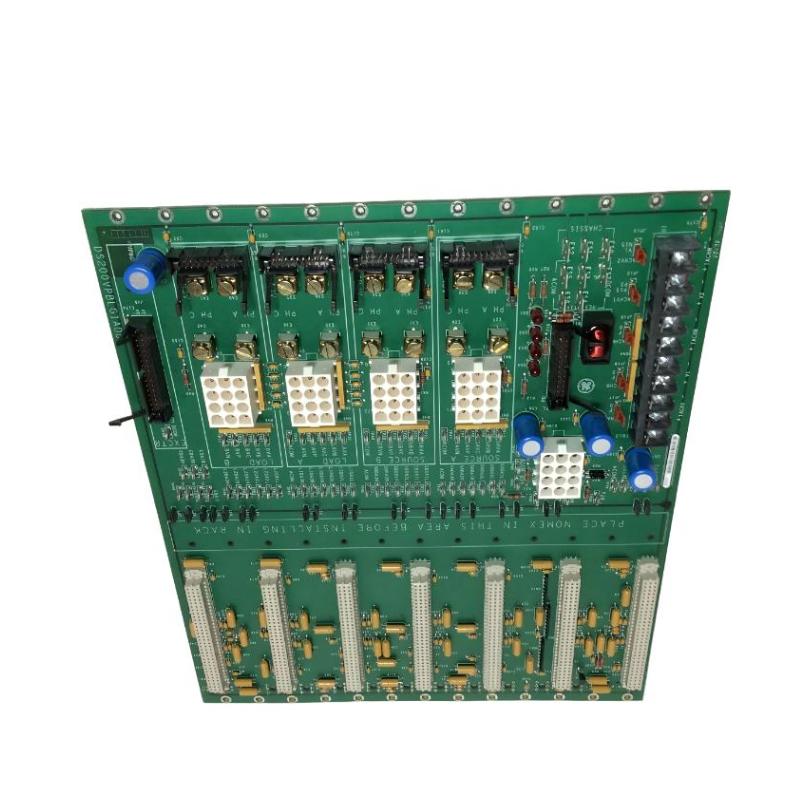

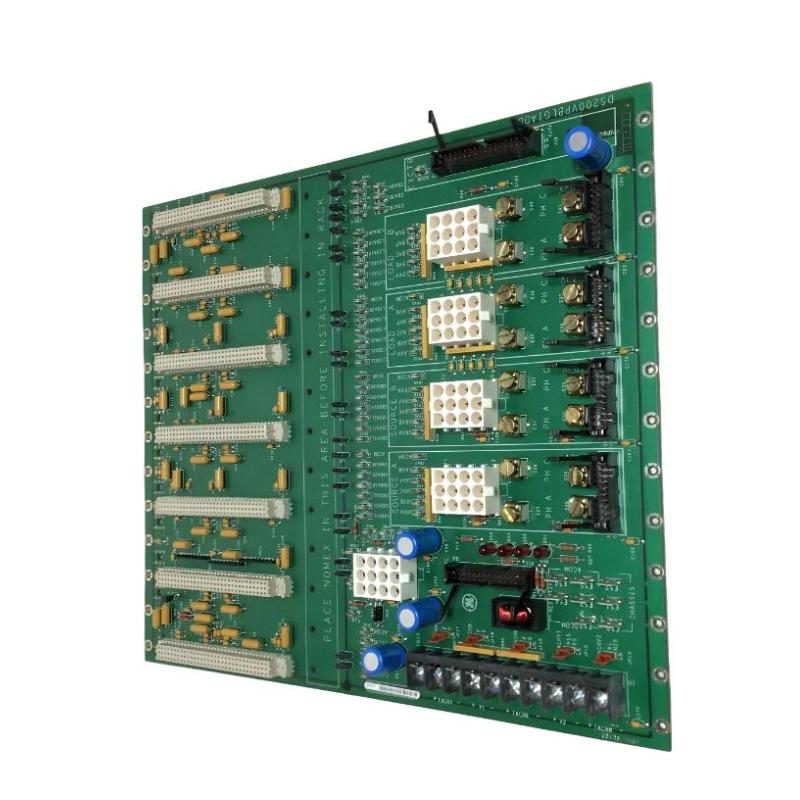

The GE DS200VPBLG1ADD is a VME Backplane Board used as an interconnection platform within GE Mark V control equipment. It provides the physical and electrical connections required between multiple control boards installed in the VME card cage. In addition to signal routing, the backplane supports power distribution to the installed modules. The board is particularly associated with LCI-related control applications, where several processing, I/O, gate control, and feedback boards need to communicate through a common backplane architecture.

2. What is the function of the VME backplane in the control system?

The VME backplane acts as a central connection point for the control boards installed in the system. Instead of connecting every board directly to another board with separate wiring, the backplane provides shared bus connections for signal transmission and power distribution. This arrangement simplifies the system architecture and makes individual board replacement easier. The DS200VPBLG1ADD also provides defined slot connections and system-level signal routing, allowing compatible modules to exchange control and status information through the backplane. Proper seating and electrical integrity of each installed board are therefore important for reliable system operation.

3. What is the purpose of separating the analog and digital power planes?

The DS200VPBLG1ADD uses a multilayer architecture that separates analog and digital power planes. This design helps reduce unwanted electrical interference between sensitive analog circuitry and digital switching circuits. In industrial control applications, maintaining clean signal conditions is important because feedback and measurement circuits can be affected by electrical noise. Separating the power planes helps improve signal integrity and provides a more stable electrical environment for the modules connected to the backplane. This is particularly useful in systems that combine high-speed digital processing with analog feedback and measurement functions.

4. What types of boards can be connected through the DS200VPBLG1ADD?

The DS200VPBLG1ADD is designed to accommodate compatible control boards within the associated GE LCI and Mark V architecture. Depending on the system configuration, the backplane can provide connections for processing, I/O extension, gate distribution and status, excitation, and other control-related boards. The J2 section provides structured module connections, while the J3 section supports additional external connections and feedback-related functions. The exact board population depends on the specific equipment configuration, so replacement or modification should always follow the original system arrangement and approved hardware configuration.

5. What are common symptoms of a faulty DS200VPBLG1ADD?

A defective or poorly connected backplane can cause several boards installed in the same card cage to experience communication or power-related problems. Typical symptoms may include failure of one or more control modules to initialize, intermittent communication, loss of feedback signals, unexpected system alarms, or multiple boards appearing faulty at the same time. If several modules develop problems simultaneously, the backplane should be considered as one possible common point of failure. Technicians should inspect board seating, connectors, power distribution, signal paths, and visible PCB damage before replacing individual control modules unnecessarily.

6. How should the DS200VPBLG1ADD be checked when communication between boards fails?

When board-to-board communication fails, first determine whether the problem affects one module or several modules connected through the same backplane. Multiple affected boards can indicate a common backplane, power, or bus problem. The technician should inspect all module connectors for contamination, mechanical damage, or poor contact and verify that each board is properly seated. Power distribution and relevant bus signals should then be checked using the approved maintenance procedure. The diagnostic connector and applicable test points can also be used when supported by the system documentation. It is important to avoid changing multiple boards simultaneously because doing so can make it difficult to identify the original fault.

7. What is the purpose of the tachometer settings on the DS200VPBLG1ADD?

The DS200VPBLG1ADD includes tachometer-related configuration through jumpers and a terminal block. These settings are associated with the handling of tachometer signals within the control system. Correct configuration allows the appropriate tachometer signal path to be established for the installed equipment. Because tachometer feedback can be important for speed monitoring and control, incorrect jumper or terminal settings may result in inaccurate feedback, missing speed information, or control alarms. When replacing the backplane, the original configuration should be carefully documented and reproduced on the replacement assembly where applicable.

8. What precautions should be taken when replacing the DS200VPBLG1ADD?

Before replacing the DS200VPBLG1ADD, verify the complete part number and confirm that it matches the installed GE control system configuration. The associated equipment should be placed in the approved maintenance state, with power isolated according to the site’s electrical safety and lockout procedures. All connected cables and board positions should be clearly identified before removal. The positions of tachometer jumpers and terminal connections should also be recorded so that the replacement backplane can be configured correctly. During installation, inspect connectors for damage and ensure that all boards are fully seated. After replacement, restore power under controlled conditions and verify board communication, power distribution, feedback signals, system diagnostics, and normal control operation.
