1. What is the main function of the GE DS215GASCG4AZZ01A Drive Control Board?

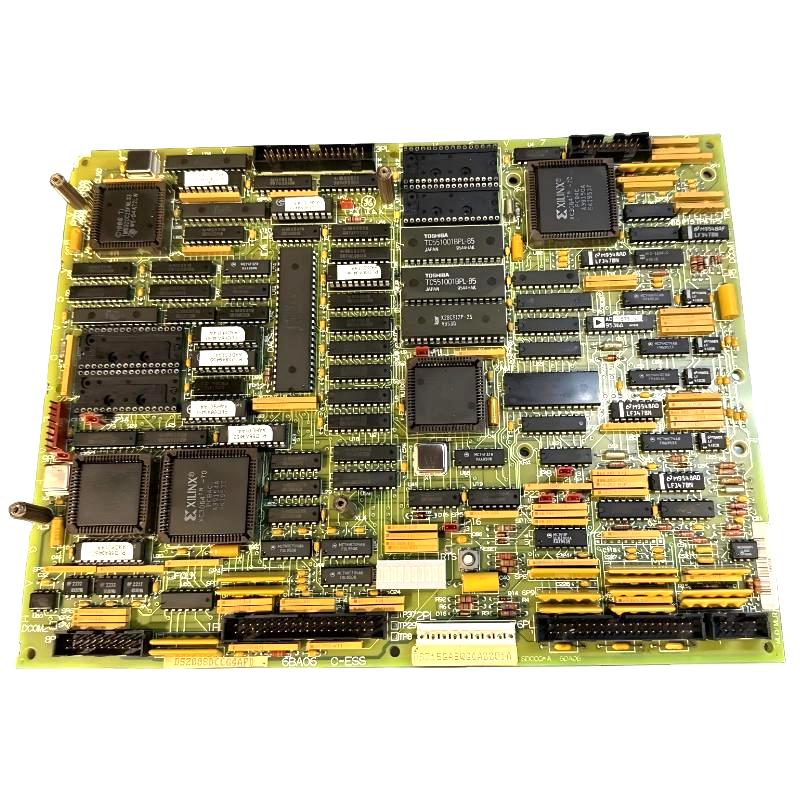

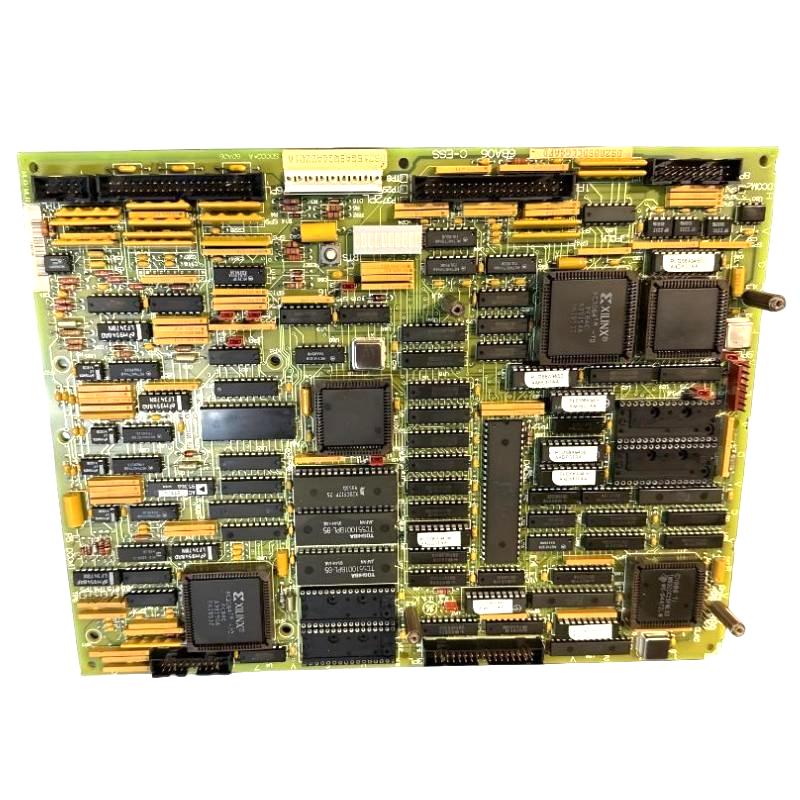

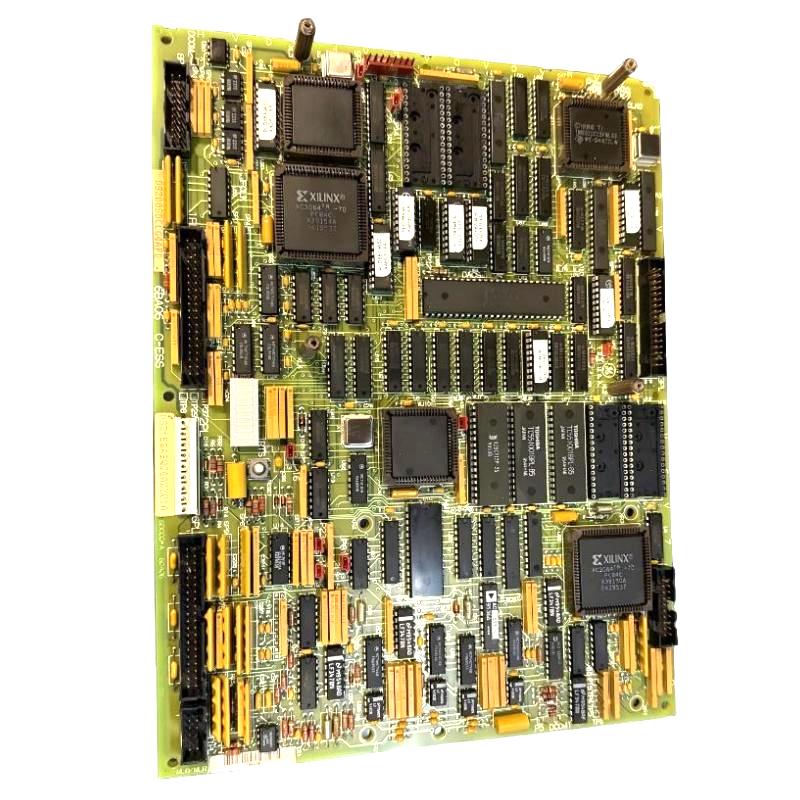

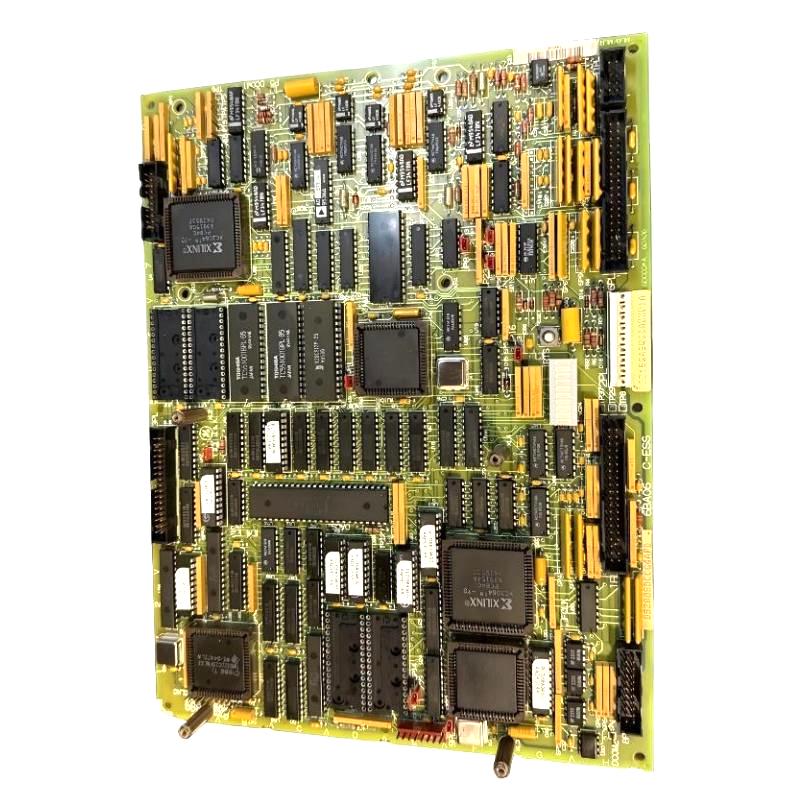

The GE DS215GASCG4AZZ01A is a Drive Control Board used within the GE Mark V control architecture. The specified configuration consists of the DS200SDCCG4AEC and DS200SLCCG3ACC boards working together as an integrated assembly. Its primary purpose is to provide drive-related control processing, signal handling and communication functions within the associated control system. The board can process control and feedback information and exchange data with other Mark V control equipment. In a turbine or industrial drive application, it works as part of a larger control architecture rather than operating as an isolated controller. Its actual function depends on the hardware configuration, firmware and system design of the specific installation.

2. What is the relationship between DS215GASCG4AZZ01A, DS200SDCCG4AEC and DS200SLCCG3ACC?

DS215GASCG4AZZ01A identifies the complete configured assembly, while DS200SDCCG4AEC and DS200SLCCG3ACC identify the two associated board components in this configuration. The combination is listed as a GE Mark V drive control assembly and is used as an integrated control solution. The DS200SDCCG4AEC provides the main control and processing functions, while the DS200SLCCG3ACC contributes associated communication and interface capabilities. The two boards therefore should be considered together when checking compatibility, wiring and system configuration.

3. What are common symptoms of a DS215GASCG4AZZ01A fault?

A fault involving the DS215GASCG4AZZ01A can produce different symptoms depending on which section of the assembly is affected. Possible indications include drive-control errors, abnormal feedback signals, communication failures, unexpected control commands, system alarms or failure to initialize correctly. If the communication or interface section is affected, connected equipment may report communication loss or invalid data. If the control-processing section is affected, the system may show more significant control-related abnormalities. External problems such as unstable power, damaged wiring, loose connectors or faults in another Mark V board can create similar symptoms. For this reason, technicians should verify the complete signal and communication path before concluding that the Drive Control Board itself has failed.

4. How should the DS215GASCG4AZZ01A be troubleshot when a drive stops responding?

Troubleshooting should begin with the system in an appropriate maintenance condition and with the required electrical safety procedures in place. Check the board’s power supply and inspect the connectors between the control assembly and associated equipment. Next, verify drive command signals, feedback signals and communication connections. System diagnostic messages and alarm records should be reviewed to determine whether the problem originated from the control board, the drive interface or an external device. If only one signal is abnormal, trace that signal from its source through the I/O and control path. If multiple functions fail simultaneously, check common power and communication paths first. Because the DS215GASCG4AZZ01A is an assembly containing two associated boards, troubleshooting should also determine whether the problem is related to the DS200SDCCG4AEC section, the DS200SLCCG3ACC section or an external component.

5. What should be checked before replacing the DS215GASCG4AZZ01A?

Before replacing the assembly, technicians should verify the complete model identification and confirm that the fault is actually associated with the Drive Control Board. Power supply conditions, connectors, drive wiring, feedback signals, communication cables and related Mark V boards should be checked first. The complete identification should be recorded as DS215GASCG4AZZ01A with the corresponding DS200SDCCG4AEC and DS200SLCCG3ACC configuration. Any applicable hardware revision, firmware information, jumper settings and connector positions should also be documented before removal. This is especially important for Mark V systems because different board revisions or combinations can have different configurations. Proper identification helps prevent an otherwise compatible-looking board from being installed with an incorrect configuration.

6. Can a communication fault be caused by the DS200SLCCG3ACC section?

Yes, a communication or interface-related problem can potentially be associated with the DS200SLCCG3ACC section of the assembly, depending on the specific system configuration. However, communication faults can also originate from external cables, connectors, power supplies, network interfaces or other Mark V control boards. When a communication error occurs, technicians should determine whether the problem affects one device or multiple devices. A fault affecting only one communication path should initially be investigated at that interface and its associated wiring. A wider communication failure may indicate a common power, network or processing problem. The DS200SLCCG3ACC should therefore be tested as part of the complete DS215GASCG4AZZ01A assembly rather than being automatically identified as the fault source.

7. How does the DS200SDCCG4AEC contribute to the Drive Control Board assembly?

The DS200SDCCG4AEC is the main control-board component specified within this DS215GASCG4AZZ01A configuration. It contributes control processing and signal-handling functions required by the associated GE Mark V architecture. Working together with the DS200SLCCG3ACC, it allows the complete assembly to perform drive-related control and communication tasks. During troubleshooting, abnormal control behavior should therefore be evaluated in relation to the SDCC section as well as the SLCC section. A fault in the processing section may produce different symptoms from a communication or interface fault. Reviewing system alarms, control feedback and communication status can help determine which part of the assembly requires further inspection.

8. What commissioning checks are required after replacing the DS215GASCG4AZZ01A?

After installing a replacement DS215GASCG4AZZ01A, the complete drive control system should be checked before returning the equipment to normal operation. First confirm that the replacement assembly has the correct DS215GASCG4AZZ01A identification and the required DS200SDCCG4AEC plus DS200SLCCG3ACC configuration. Verify all power connections, control wiring, feedback circuits and communication connections. After startup, check system diagnostics and confirm that the control system recognizes the associated drive equipment without generating new alarms. Drive command signals and feedback values should be compared with expected operating conditions. Communication between the Drive Control Board and other Mark V modules should also be verified. If the original problem involved intermittent faults, the system should be monitored during extended operation to confirm stable communication and control performance.
