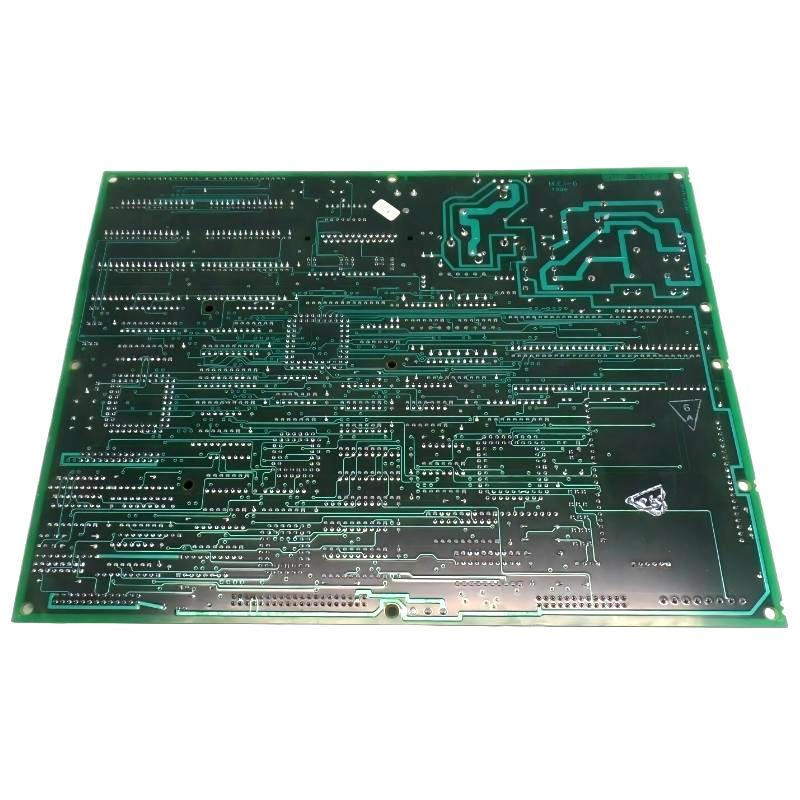

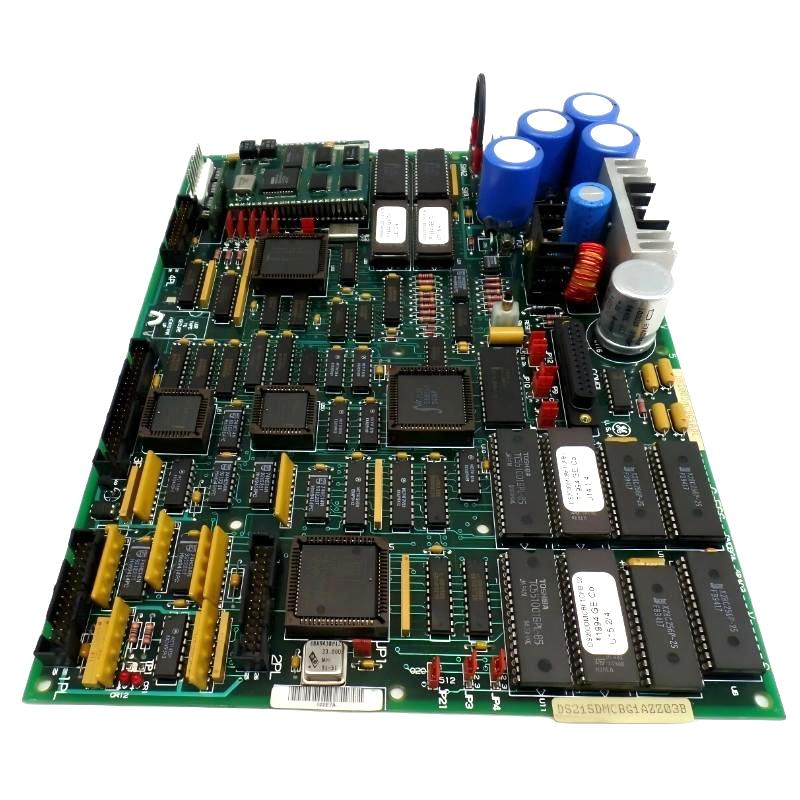

1. What is the main function of the GE DS215DMCBG1AZZ03B and DS200DMCBG1AJG?

The GE DS215DMCBG1AZZ03B and DS200DMCBG1AJG are DOS/DUP processor boards used in GE Mark V turbine control systems. The board provides core processing and communication functions within the control architecture and works with other Mark V modules to process control data and coordinate system operations. Its processing functions allow information received from connected control modules and system interfaces to be handled according to the installed configuration. The board can also participate in communication between different sections of the Mark V system. Because it is part of the main control-processing architecture, a failure may affect several related functions, including system communication, data processing, operator interaction or control-system initialization.

2. What does the DOS/DUP architecture mean on this processor board?

DOS/DUP refers to the processor architecture associated with the board, with DUP indicating a Dual Universal Processor configuration. The use of multiple processing functions allows different system tasks to be handled within the control architecture instead of relying on a single processing path. This arrangement is useful in industrial turbine control systems where control processing, communication and system coordination must operate continuously. The exact division of tasks depends on the Mark V system configuration and the firmware installed on the board. When troubleshooting a processor board, technicians should therefore consider the specific system function that has failed rather than assuming that every processing function on the board is affected.

3. What are common symptoms of a DS215DMCBG1AZZ03B processor board failure?

A processor board failure can produce several types of system symptoms. Possible indications include failure during system initialization, loss of communication with associated control modules, abnormal system status information, unexpected control alarms, operator-interface problems or loss of normal control processing. In some cases, a partial hardware or communication fault may affect only specific functions while other parts of the control system continue operating. External problems such as unstable power, poor connector contact, damaged communication wiring or a faulty connected module can create similar symptoms. Therefore, a complete diagnosis should include checks of the board power supply, connectors, communication paths and associated control hardware before concluding that the processor board itself has failed.

4. How should the DS200DMCBG1AJG be troubleshot when communication is lost?

When communication is lost, troubleshooting should begin with the basic electrical and connection conditions. Verify that the processor board is receiving stable power and inspect all connectors for looseness, contamination, oxidation or mechanical damage. Next, check the communication connections between the DMCB and the associated Mark V modules. System diagnostic information should be reviewed to determine whether the communication problem affects one module or multiple modules. If several devices lose communication at the same time, a shared communication path or processor-board problem should be investigated. If only one device is affected, its individual connection and interface should be checked first. For intermittent communication faults, technicians should also consider cabinet temperature, vibration, power fluctuations and connector contact quality.

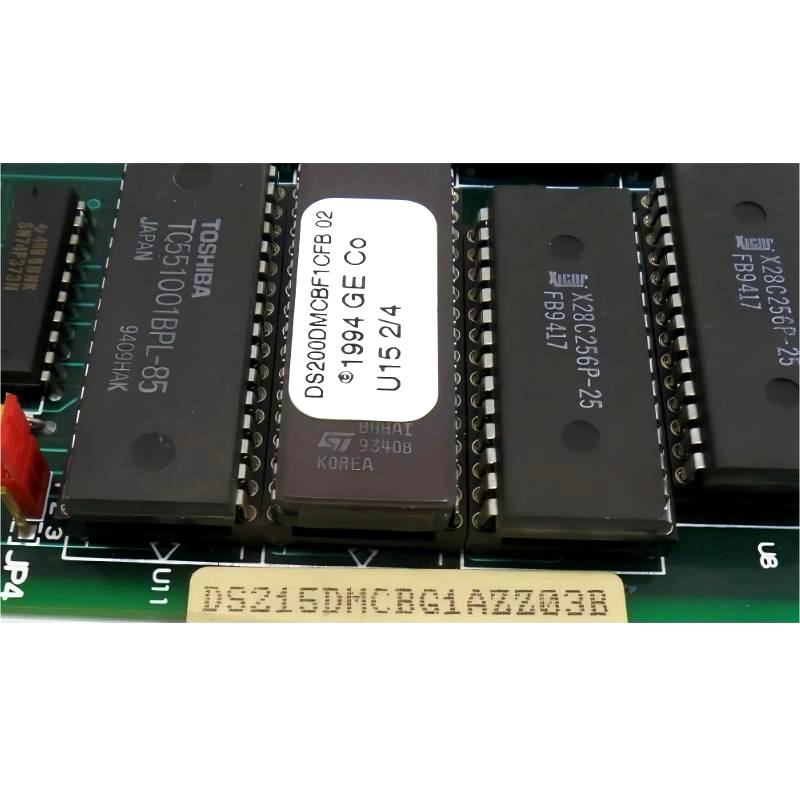

5. What role does firmware play in the DS215DMCBG1AZZ03B?

Firmware is an important part of the board’s operating configuration because it provides the software instructions required for the processor hardware to perform its assigned control and communication functions. The firmware works together with the board’s electronic circuitry and the wider Mark V control architecture. When replacing a DS215DMCBG1AZZ03B, technicians should verify that the replacement board and its firmware are appropriate for the target system. A board with an incompatible firmware configuration may not operate correctly even if its physical hardware appears similar. For older Mark V installations, it is particularly useful to record the complete identification and configuration of the existing board before replacement so that the replacement can be matched as closely as possible to the original installation.

6. What should be checked before replacing the DS215DMCBG1AZZ03B?

Before replacing the processor board, technicians should first confirm that the fault is actually associated with the DMCB. The board’s power supply, connectors, communication wiring and associated Mark V modules should be inspected. System diagnostics and alarm information should also be reviewed to identify the affected function and determine whether the problem is isolated or system-wide. The complete identification of the existing board should be recorded, including DS215DMCBG1AZZ03B and DS200DMCBG1AJG, along with any applicable hardware and firmware information. Connector positions and relevant configuration settings should also be documented before removal. This preparation helps prevent installation errors and reduces the possibility of introducing a second problem during replacement.

7. Can a faulty DMCB processor board affect the operation of the turbine control system?

Yes, a DMCB processor board fault can potentially affect turbine control functions because the board participates in control processing and system communication. The actual impact depends on the Mark V architecture and the specific function handled by the affected board. A communication-related problem may prevent certain modules from exchanging data correctly, while a processor-related failure may cause more extensive system initialization or control problems. The presence of a DMCB fault does not automatically mean that every turbine control function has failed, because Mark V systems contain multiple control modules with different responsibilities. However, abnormal processor-board behavior should be treated as a significant control-system issue and investigated according to the site’s turbine operating and maintenance procedures.

8. What commissioning checks are required after replacing the DS200DMCBG1AJG?

After installing a replacement DS200DMCBG1AJG, the processor and the associated Mark V control system should be checked systematically. First verify the replacement model, hardware configuration and applicable firmware. Inspect all connectors and communication connections before restoring power. After startup, confirm that the board initializes correctly and that the Mark V system recognizes the expected control modules. Check communication between the processor board and associated modules, and review system diagnostics for processor, communication or configuration alarms. Operator-interface functions should also be checked where applicable, followed by verification of relevant control and I/O data. If the original fault was intermittent, the system should be monitored during extended operation to confirm stable processing and communication. The system should only be returned to normal service after the required control, communication and diagnostic checks have been completed successfully.
