1. What is the main function of the GE DS215GASQG4AZZ01A Drive Control Card?

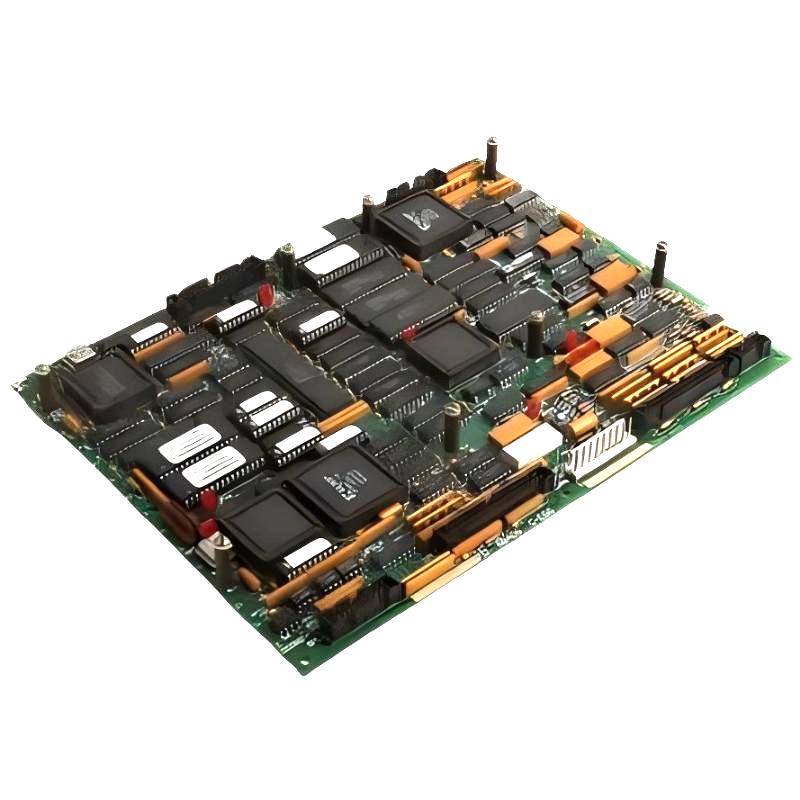

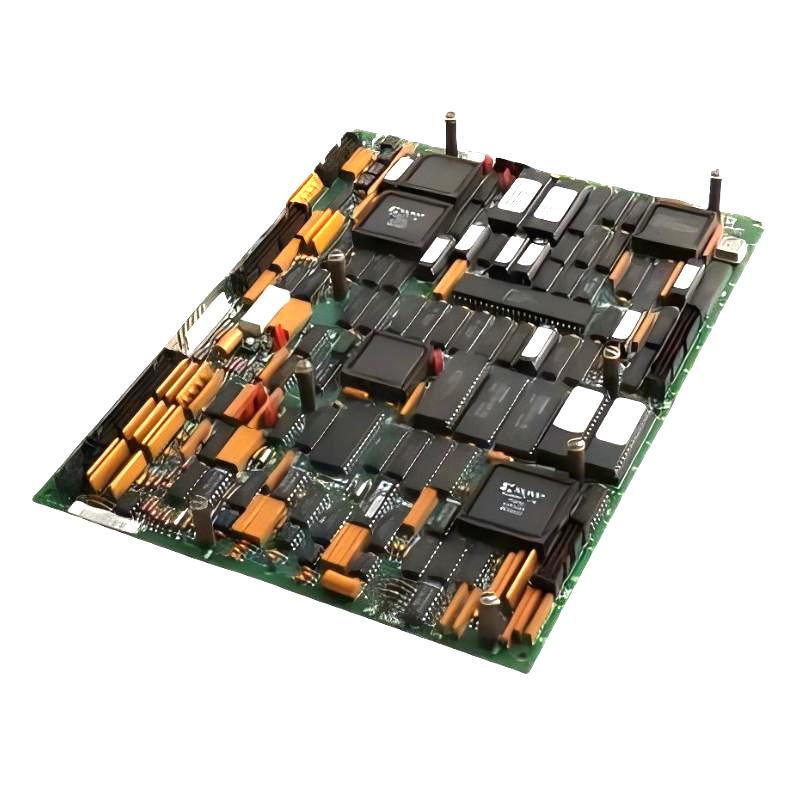

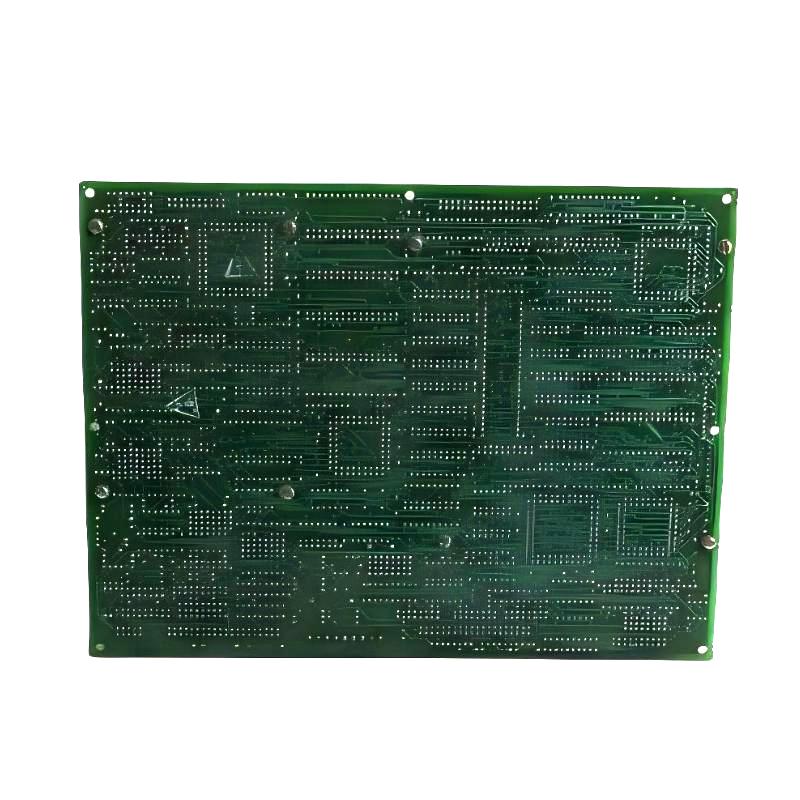

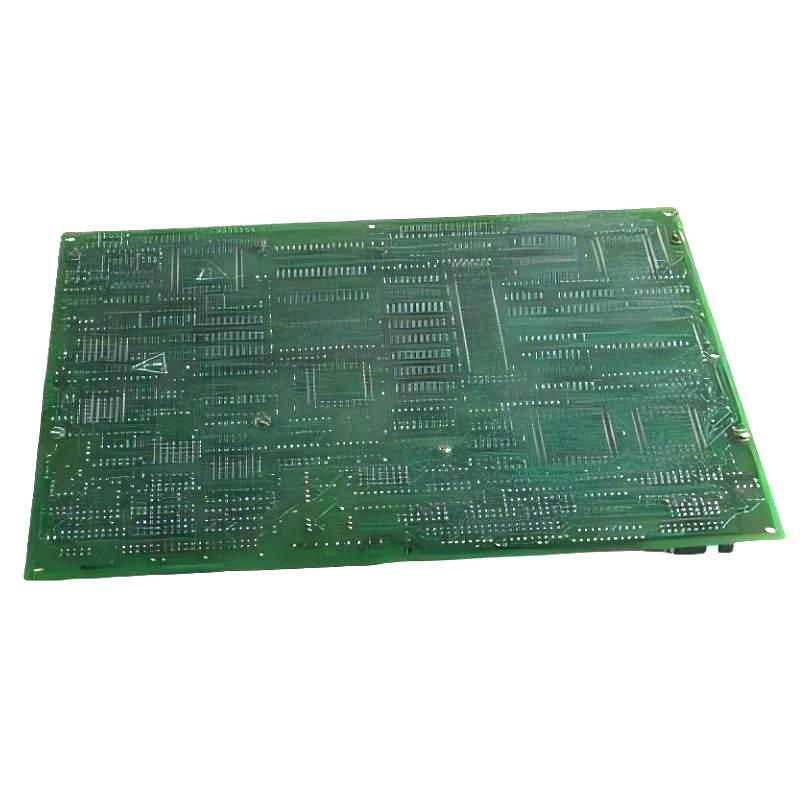

The GE DS215GASQG4AZZ01A is a Drive Control Card used within the GE Mark V control system. The specified configuration consists of the DS200SDCCG4AEC and DS200SLCCG3ACC boards. The assembly is primarily responsible for drive control, control-signal processing, data processing and system communication. The DS200SDCCG4AEC provides the main drive-control processing functions, while the DS200SLCCG3ACC provides associated communication and interface capabilities. Together, they perform control and data-exchange functions within the drive-control architecture. The card is designed to operate as part of the complete Mark V system rather than as an independent controller, so its actual functions depend on the hardware configuration and application of the installed system.

2. What are the functions of the DS200SDCCG4AEC and DS200SLCCG3ACC in this assembly?

The DS200SDCCG4AEC is the primary control-processing section of the assembly and is responsible for control processing, signal handling and related data operations. It contains multiple processing functions that can be used for drive control and system I/O tasks according to the system configuration. The DS200SLCCG3ACC provides associated communication and interface functions, allowing the control assembly to exchange information with other equipment within the Mark V architecture. When combined, the two boards provide the control-processing and communication capabilities required by the DS215GASQG4AZZ01A configuration. The exact allocation of functions depends on the specific Mark V installation and its associated hardware and software configuration.

3. What are common symptoms of a DS215GASQG4AZZ01A failure?

A failure of the Drive Control Card can produce different symptoms depending on the affected circuit or processing section. Common indications may include abnormal drive-control commands, incorrect feedback signals, communication failures, system alarms, initialization problems or loss of normal response from associated equipment. A problem in the control-processing section may cause drive commands or control calculations to behave abnormally, while a communication-related problem may result in data-exchange failures between the Mark V system and connected equipment. However, unstable power, poor connector contact, damaged field wiring and failures in other control modules can produce similar symptoms. For this reason, technicians should review system diagnostics and check the complete control and communication paths before determining that the DS215GASQG4AZZ01A itself is defective.

4. How should a DS215GASQG4AZZ01A drive-control fault be troubleshot?

Troubleshooting should begin by placing the equipment in the appropriate maintenance condition and following the required site safety procedures. Verify that the Drive Control Card is receiving stable power and inspect all board connectors for loose contacts, contamination, oxidation or physical damage. Next, check the drive-control wiring, feedback signals and communication connections associated with the assembly. System alarms and diagnostic information should be reviewed to determine whether the problem is related to control processing, signal feedback or communication. If only one control signal is abnormal, trace the signal from the field device through the interface and control circuitry. If several functions fail simultaneously, common power, processing and communication paths should be investigated first. For intermittent faults, connector contact quality and power fluctuations should also be considered.

5. Can a problem with the DS200SLCCG3ACC cause communication failures?

Yes. Depending on the system configuration, the DS200SLCCG3ACC section is associated with communication and interface functions, so a fault in this section can potentially cause communication interruptions, abnormal data exchange or unstable communication status. However, a communication fault does not automatically indicate that the SLCC board is defective. Communication cables, connectors, power supplies, network interfaces and other Mark V control boards can also cause similar problems. Troubleshooting should first determine the scope of the communication failure. If only one device is affected, its individual interface and wiring should be checked first. If multiple devices lose communication at the same time, common communication paths, power supplies and control-processing functions should be investigated before replacing the board.

6. What should be checked before replacing the DS215GASQG4AZZ01A?

Before replacing the Drive Control Card, technicians should confirm that the fault is actually associated with the DS215GASQG4AZZ01A rather than another control module or external device. The power supply, connectors, drive wiring, feedback signals, communication cables and related Mark V boards should be checked first. Once replacement is confirmed, the complete identification should be recorded as DS215GASQG4AZZ01A with the DS200SDCCG4AEC + DS200SLCCG3ACC configuration. Applicable hardware revision, firmware information, jumper configuration and connector positions should also be documented. Mark V systems may contain different board revisions and configurations, so compatibility should not be determined solely from physical appearance. Confirming the complete model and configuration helps prevent communication errors and control problems after installation.

7. What role does the processor section of the DS200SDCCG4AEC play in drive control?

The DS200SDCCG4AEC is the primary control-processing section of this Drive Control Card configuration. Its processing resources can handle drive-control tasks, system I/O processing, data calculations and related control logic according to the installed Mark V system configuration. Multiple processing functions allow different control and data-processing tasks to be handled within the control architecture, supporting the response requirements of industrial drive applications. If the processor section develops a fault, possible symptoms can include abnormal drive commands, initialization problems, incorrect data processing or loss of specific control functions. During troubleshooting, processor status should therefore be evaluated together with system alarms, control signals and communication status rather than being diagnosed from a single symptom.

8. What commissioning checks are required after replacing the DS215GASQG4AZZ01A?

After replacing the DS215GASQG4AZZ01A, the complete drive-control system should be commissioned systematically. First verify that the replacement card has the correct model identification and the required DS200SDCCG4AEC + DS200SLCCG3ACC configuration. Check all power connections, control wiring, feedback circuits and communication connections before starting the system. After startup, confirm that the control system recognizes the associated equipment and check for processor, communication or configuration alarms. Drive-control commands should then be verified against the expected operating conditions, while feedback signals should be checked for correct response. Communication with other Mark V modules should also be tested for stable data exchange. If the original fault was intermittent, extended operational monitoring is recommended to confirm stable drive-control and communication performance before the equipment is returned to normal service.
