1. What is the main function of the DS215GASQG4AZZ01A?

The DS215GASQG4AZZ01A is a GE Mark V Drive Control Board assembly that combines the DS200SDCCG4AFD Drive Control Card with the DS200SLCCG3ACC LAN Communication Card. The SDCC section provides the primary drive control and signal-processing functions, while the SLCC section provides LAN communication capabilities. The SDCC architecture uses multiple processors to handle different control tasks, including drive control, motor control, and computational processing. This combined configuration allows drive control, signal processing, and communication functions to operate as part of the same control assembly. It is intended for applications within GE Mark V drive and turbine control systems where coordinated motor control and system-level communication are required.

2. What are the functions of the DS200SDCCG4AFD section?

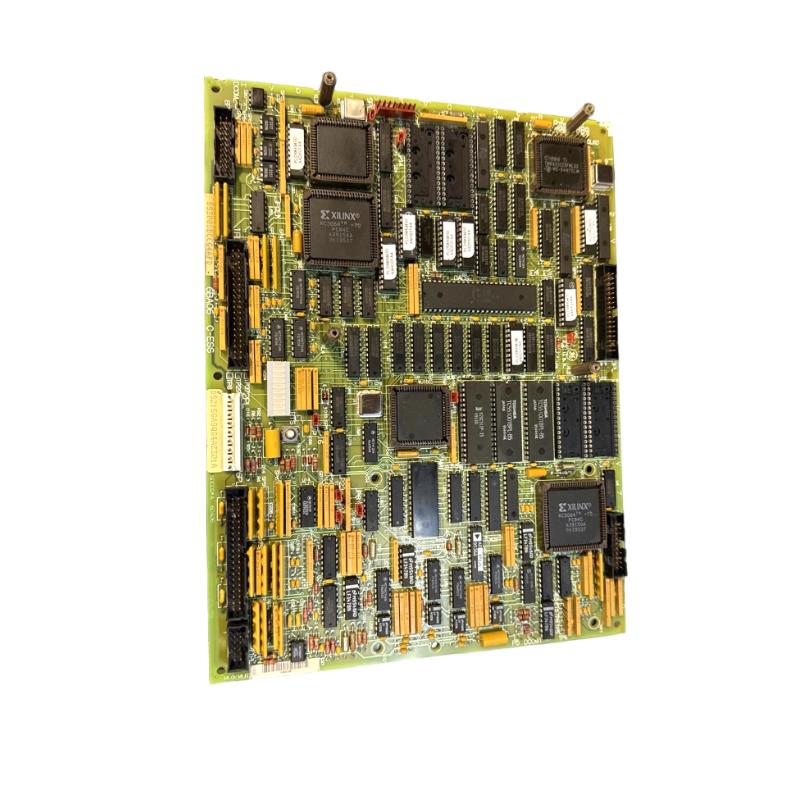

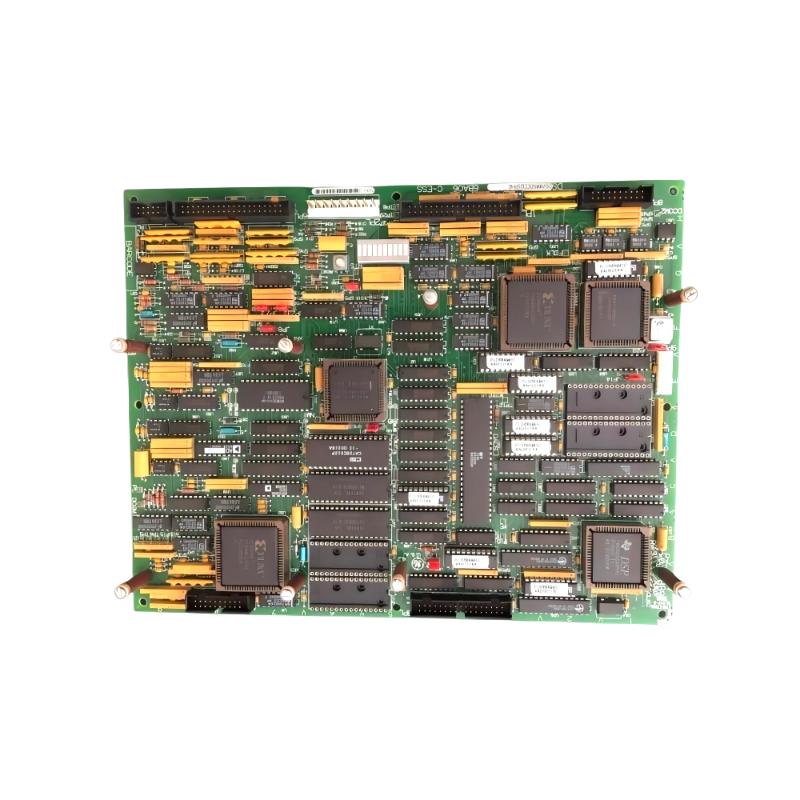

The DS200SDCCG4AFD is the primary Drive Control Card within the assembly. It contains the main control circuitry and software required for drive applications and uses multiple microprocessors working with shared or dual-ported memory. The Drive Control Processor handles system-level processing and I/O-related functions, while the Motor Control Processor is responsible for motor control tasks. The Co-Motor Processor handles additional computational requirements. The board also provides interfaces for communication with other Mark V boards and processes drive, motor, and customer I/O signals. Because it serves as a primary control element, problems with this section can affect drive regulation, feedback processing, control commands, and communication with other control boards.

3. What is the purpose of the DS200SLCCG3ACC section?

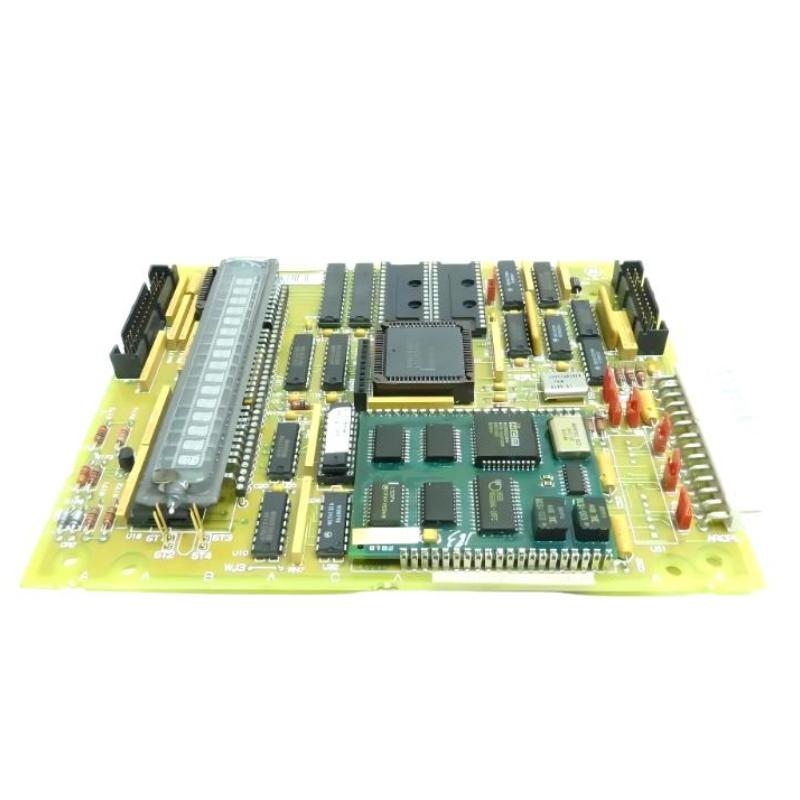

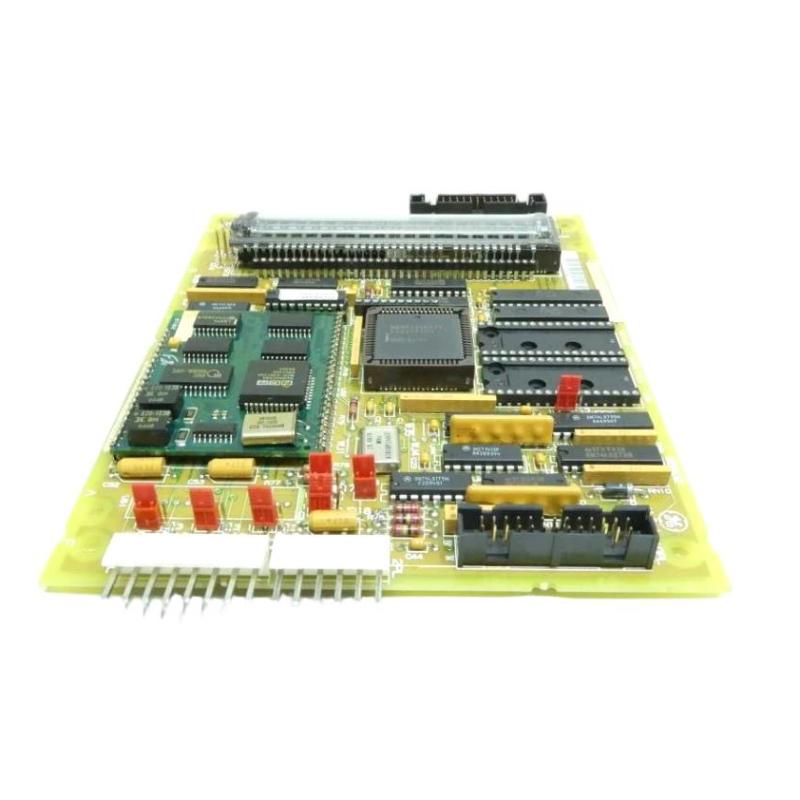

The DS200SLCCG3ACC provides LAN communication functionality for the combined drive control assembly. It contains communication interface circuitry and a LAN Control Processor that processes communication signals associated with the host drive. The communication section can use dual-ported RAM to exchange information with the drive control processor on the SDCC portion of the assembly. This arrangement allows drive-related information and control data to move between the drive control circuitry and the associated network communication functions. When troubleshooting communication problems, the LAN communication section should be evaluated separately from the main drive control circuitry because a communication failure does not necessarily indicate a failure of the motor control processors.

4. How can a fault on the DS215GASQG4AZZ01A be diagnosed?

Fault diagnosis should begin by identifying whether the problem affects drive control, motor regulation, I/O processing, or LAN communication. The board’s LED indicators can provide useful information about operating conditions and fault states. The external control system should also be checked for drive alarms, diagnostic codes, or abnormal status indications. If the drive operates correctly but network communication is unavailable, attention should be focused on the DS200SLCCG3ACC communication section, network connections, and associated configuration. If motor control or feedback is abnormal, the DS200SDCCG4AFD section, signal interfaces, feedback wiring, and related Mark V boards should be inspected. A systematic comparison of symptoms can help determine whether the fault is located on the board itself or elsewhere in the drive system.

5. What should be checked if the drive does not respond to control commands?

If the drive does not respond correctly to control commands, first verify that the Mark V control system is operating normally and that the required control signals are reaching the drive control circuitry. Check the board’s diagnostic indicators and review any available system fault information. The control command path, customer I/O connections, feedback signals, and communication interfaces should then be inspected. If commands are being generated by the control system but the drive does not react, the problem may involve signal processing, processor operation, configuration, or communication between the control board and other Mark V components. It is also important to verify that no active protection or fault condition is preventing the drive from accepting the command. Replacing the control board should normally be considered only after external wiring, configuration, and associated control hardware have been checked.

6. What can cause communication problems with the DS215GASQG4AZZ01A?

Communication problems can be caused by issues within the DS200SLCCG3ACC LAN communication section, network wiring, connectors, configuration, or communication interfaces elsewhere in the Mark V system. A failure of the LAN Control Processor or its associated memory can also affect communication. Begin troubleshooting by checking whether the main drive control functions remain operational. If the drive itself operates normally but network communication is unavailable, inspect the communication board, network connections, and related system configuration. Check for loose connectors, damaged wiring, incorrect configuration settings, or abnormal diagnostic indications. Communication problems should be separated from drive-control faults because the SDCC and SLCC portions perform different functions within the combined assembly.

7. What should be checked before replacing the DS215GASQG4AZZ01A?

Before replacing the complete assembly, identify the specific symptoms and determine whether they originate from the drive control section, LAN communication section, external I/O, or another Mark V board. Record existing configuration information, jumper settings, wiring connections, and diagnostic indications before removing the board. Verify the power supply and external connections first, since an incorrect supply or loose connector can produce symptoms that appear to be caused by the control board. If the board is confirmed to be defective, the replacement must have the correct model and revision characteristics for the application. After installation, verify the board’s seating and connections, then check drive control, feedback processing, I/O operation, communication, and diagnostic status before returning the equipment to normal operation.

8. Can the DS215GASQG4AZZ01A be used as a direct replacement for a different SDCC or SLCC board?

The DS215GASQG4AZZ01A should not be treated as a universal replacement for every SDCC or SLCC board. The complete part number, board revision, firmware configuration, application, and associated Mark V hardware should be verified before substitution. The DS215GASQG4AZZ01A is a specific combined assembly incorporating the DS200SDCCG4AFD and DS200SLCCG3ACC functions, so replacing an individual board with the complete assembly requires confirmation that the system architecture and interfaces are compatible. Differences in hardware revisions, firmware, communication configuration, connectors, or installed components can affect compatibility. For reliable replacement, compare the original board identification and application information with the replacement assembly before installation, and verify all control and communication functions after commissioning.
