1. What is the main function of the DS215KLDBG1AZZ03A?

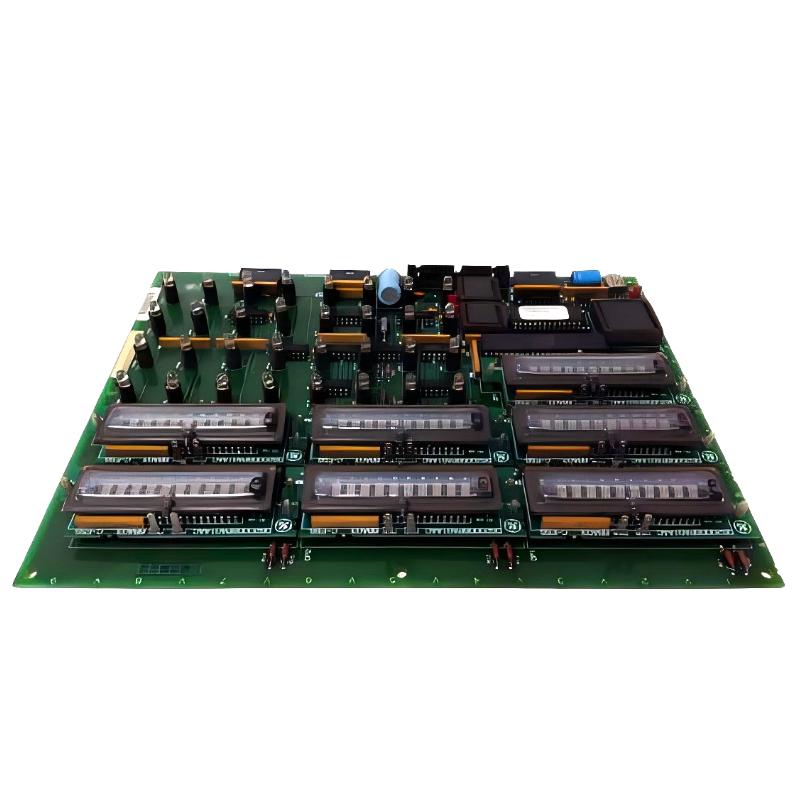

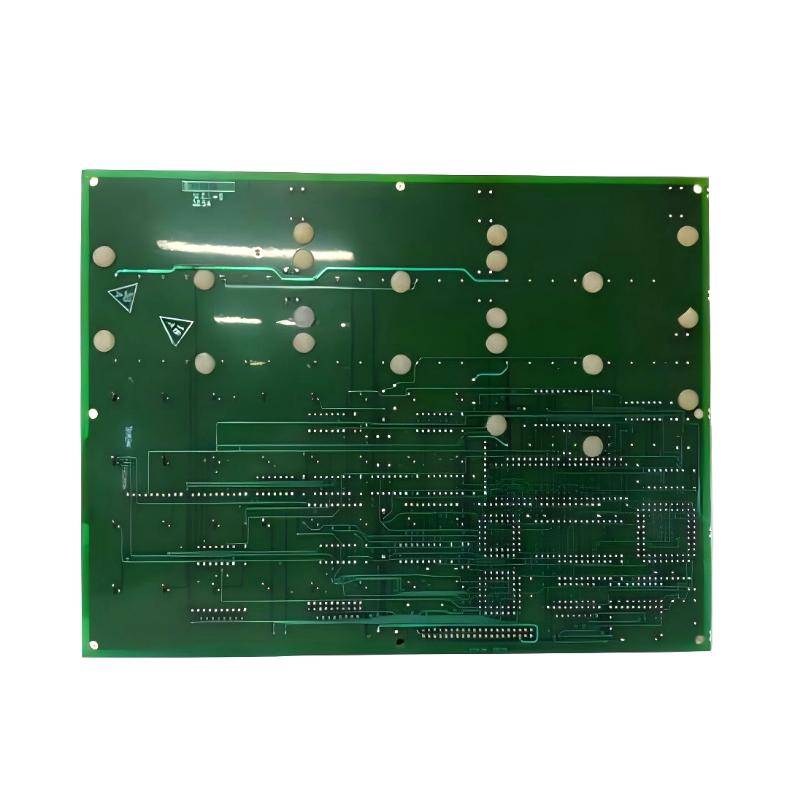

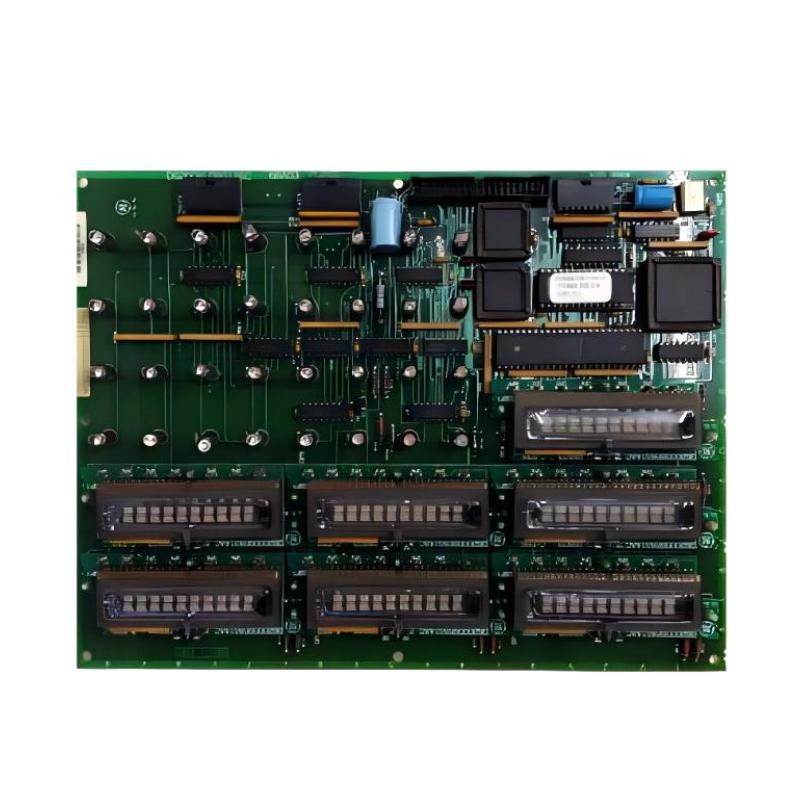

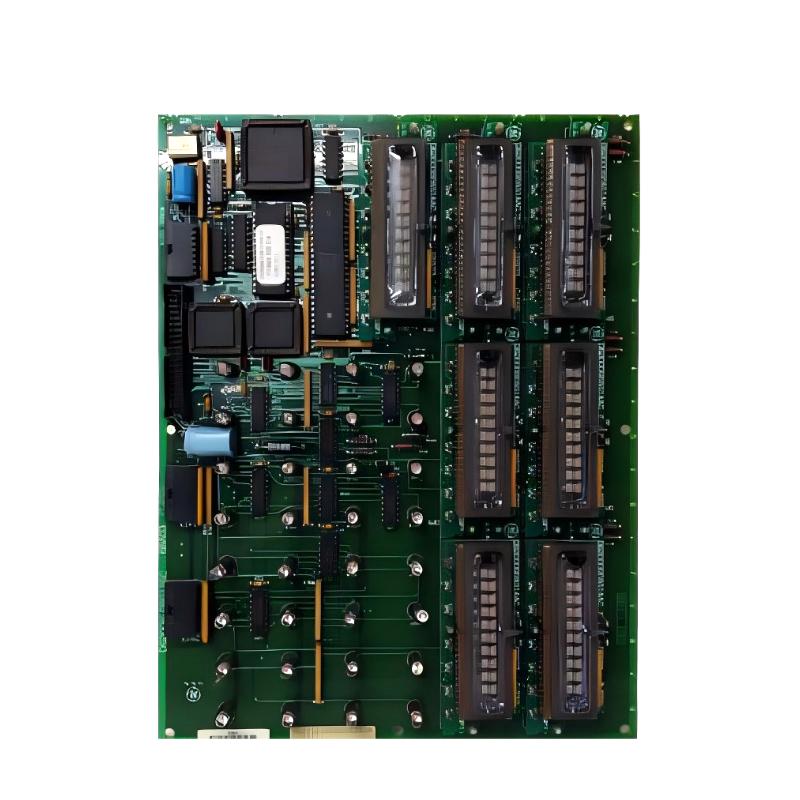

The DS215KLDBG1AZZ03A is a GE Mark V Speedtronic Display Panel assembly consisting of the DS200KLDBG1ABC and DS200DSPAG1AAC boards. Its primary purpose is to provide local operator-facing status indication and numerical display functions within the Mark V turbine control system. The DS200KLDBG1ABC provides key, LED, and display interface functions, while the DS200DSPAG1AAC provides the numerical display section. Together, these boards allow operating information, status conditions, and other control-system information to be presented locally to operators. The panel is therefore an important interface between the Mark V control electronics and personnel responsible for monitoring and operating the turbine control system.

2. What is the function of the DS200KLDBG1ABC within the DS215KLDBG1AZZ03A?

The DS200KLDBG1ABC is the Key/LED/Display Board within the assembly. It handles functions associated with operator keys, LED status indication, and display interfacing. The board contains multiple LED indicators and associated electronic circuitry that allow different operating or system conditions to be indicated locally. It also contains connectors and various electronic components used to interface the display panel with the Mark V control system. If the LEDs fail to illuminate, operator input is not detected, or display-related functions become abnormal, the DS200KLDBG1ABC, its connectors, signal wiring, and associated control circuitry should all be considered during troubleshooting rather than assuming that the complete display assembly has failed.

3. What is the purpose of the DS200DSPAG1AAC?

The DS200DSPAG1AAC is the Ten-Digit Display Board incorporated into the DS215KLDBG1AZZ03A assembly. Its main purpose is to present numerical information generated by the Mark V control system. It works together with the DS200KLDBG1ABC to provide the local display functionality required by the control panel. If the numerical display is completely blank, displays incorrect characters, or only certain segments fail to operate, the DSPAG board and its associated signal and power connections should be inspected. It is also important to determine whether the displayed information is incorrect because of the display hardware or because the upstream Mark V control system is providing incorrect data.

4. How should display problems on the DS215KLDBG1AZZ03A be troubleshot?

Troubleshooting should begin by determining whether the problem affects the entire display panel or only a specific function. If both the LEDs and numerical display are inactive, check the power supply, connectors, and interface with the Mark V control system first. If the LEDs operate normally but the numerical display is abnormal, focus on the DS200DSPAG1AAC and its associated connections. If only certain LEDs are not working, inspect the relevant LED circuits, driver circuitry, and incoming signals. If the display operates but shows incorrect information, verify the data being supplied by the Mark V control system. Separating complete display failure, partial display failure, and incorrect display data makes it easier to identify whether the problem is located in the panel or elsewhere in the control system.

5. What should be checked if the LEDs on the DS215KLDBG1AZZ03A do not illuminate?

If the LEDs do not illuminate, first verify that the display panel is receiving the required power and that all connectors are properly seated. Next, inspect the LED-related circuitry on the DS200KLDBG1ABC and verify that the Mark V system is providing the expected control signals. If all LEDs are off simultaneously, the power supply and common connections should be checked before investigating individual LED components. If only specific LEDs are inactive, the corresponding LED devices, driver circuits, and input signals should be examined. Physical inspection should also be performed for signs of overheating, damaged components, contamination, or connector problems. If the Mark V system is known to be generating the correct status signals but the corresponding LEDs remain inactive, further investigation of the board’s internal interface and driver circuitry is required.

6. What should be done if the numerical display shows incorrect information?

If the numerical display is operating but shows values or characters that do not correspond to the actual system condition, first verify whether the Mark V control system is generating the correct information. Compare the displayed value with information available through other monitoring or diagnostic interfaces. If the upstream system also shows incorrect data, the problem may be related to control logic, input signals, or another Mark V control board rather than the display panel. If only the local display is incorrect, inspect the DS200DSPAG1AAC, DS200KLDBG1ABC, and the signal connection between the display assembly and the control system. Loose connectors, signal integrity problems, and defective display circuitry should also be considered during troubleshooting.

7. What should be checked before replacing the DS215KLDBG1AZZ03A?

Before replacing the complete display assembly, confirm that the fault is actually located within the display hardware rather than the Mark V control system, power supply, signal wiring, or another control board. Record the complete model information and existing configuration before removal. Check the power connections, board connectors, LED indications, numerical display behavior, and relevant diagnostic information. If only one display function has failed, investigate the individual DS200KLDBG1ABC or DS200DSPAG1AAC section before replacing the entire assembly. If replacement is confirmed to be necessary, the replacement assembly should have compatible identification and configuration. After installation, verify LED indication, numerical display operation, operator input functions, and communication with the Mark V control system before returning the equipment to normal operation.

8. Can another Mark V display board be used as a direct replacement for the DS215KLDBG1AZZ03A?

Another Mark V display board should not be considered a direct replacement simply because it has a similar appearance or provides similar display functions. The DS215KLDBG1AZZ03A is a specific assembly consisting of the DS200KLDBG1ABC and DS200DSPAG1AAC, and its interfaces and functions must match the existing Mark V system configuration. Different display boards may have different connector assignments, hardware configurations, display functions, or system interfaces. Using an incompatible board can result in incorrect indications, missing functions, or communication problems. Before replacement, verify the complete part number, board revision, assembly configuration, and existing system requirements. After installation, all LED indicators, numerical display functions, operator inputs, and associated Mark V signals should be tested to confirm correct operation.
