1. What is the main function of the DS215LRPBG1AZZ02A?

The DS215LRPBG1AZZ02A is a GE Mark V Resolver Board designed to process resolver feedback signals within the Speedtronic turbine control system. Resolver devices provide position and rotational information that can be used by the control system for accurate monitoring and control of rotating equipment. The board receives resolver-related analog signals through its terminal connections, processes the signals through its onboard circuitry, and provides the resulting information to the Mark V control system. Its function is particularly important where accurate rotational feedback is required for turbine control, monitoring, and protection. The board works as part of the larger Mark V architecture and relies on the associated control hardware, wiring, and resolver sensors to provide reliable feedback.

2. What type of signals does the DS215LRPBG1AZZ02A process?

The DS215LRPBG1AZZ02A is designed to work with resolver signals, which are analog signals associated with the angular position and rotational state of rotating equipment. The board receives these signals through its terminal connections and processes them using its onboard electronic circuitry. The processed information is then made available to the Mark V control system for use in turbine monitoring and control functions. Because resolver feedback is used to determine important rotational information, signal quality is critical. Wiring condition, terminal connections, sensor performance, electrical noise, and the condition of the resolver board itself can all influence the quality of the feedback signal received by the control system.

3. What components are included on the DS215LRPBG1AZZ02A?

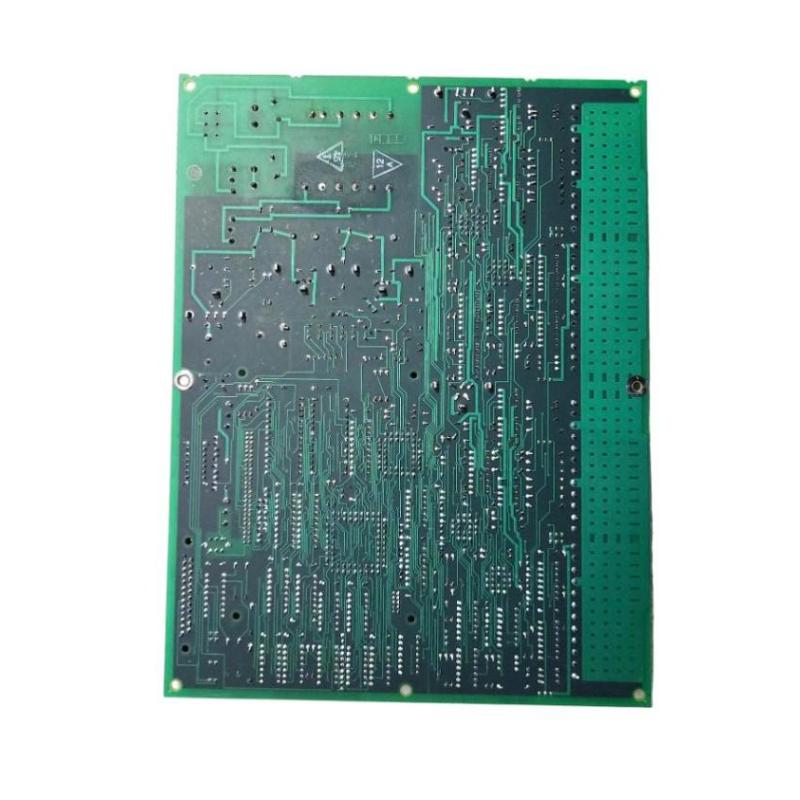

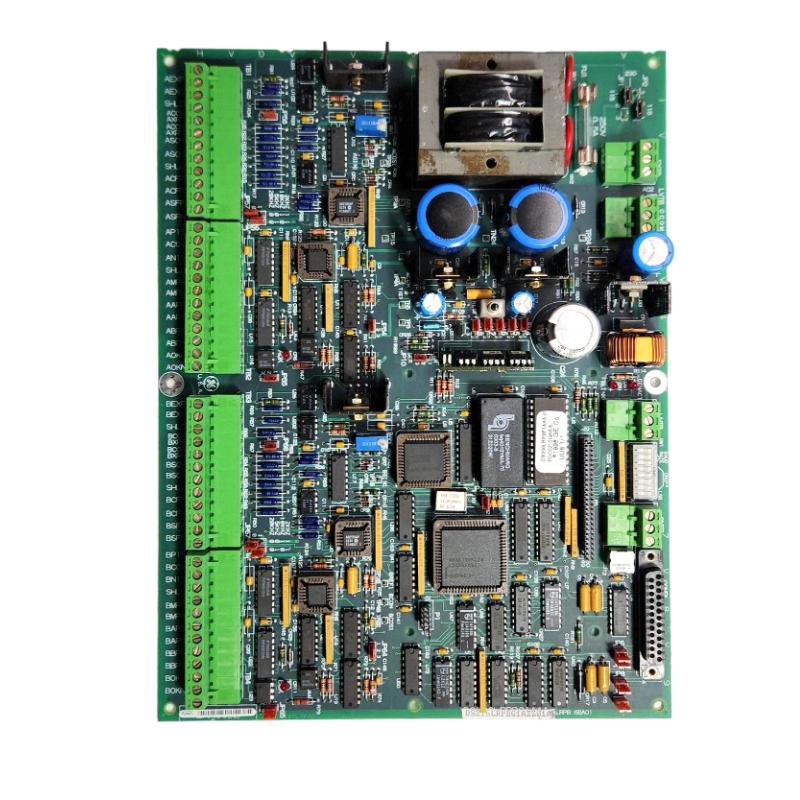

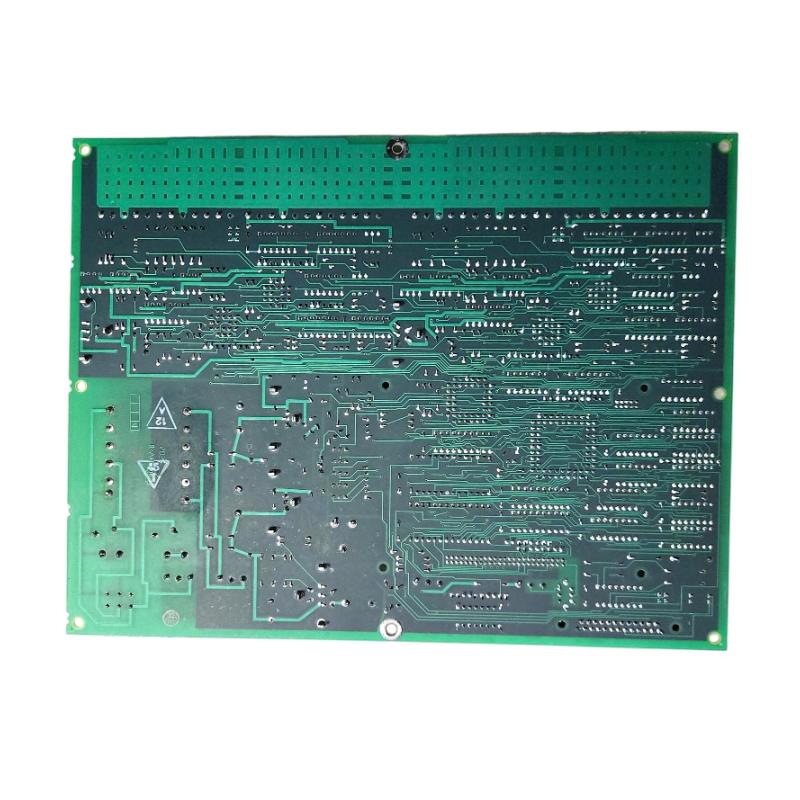

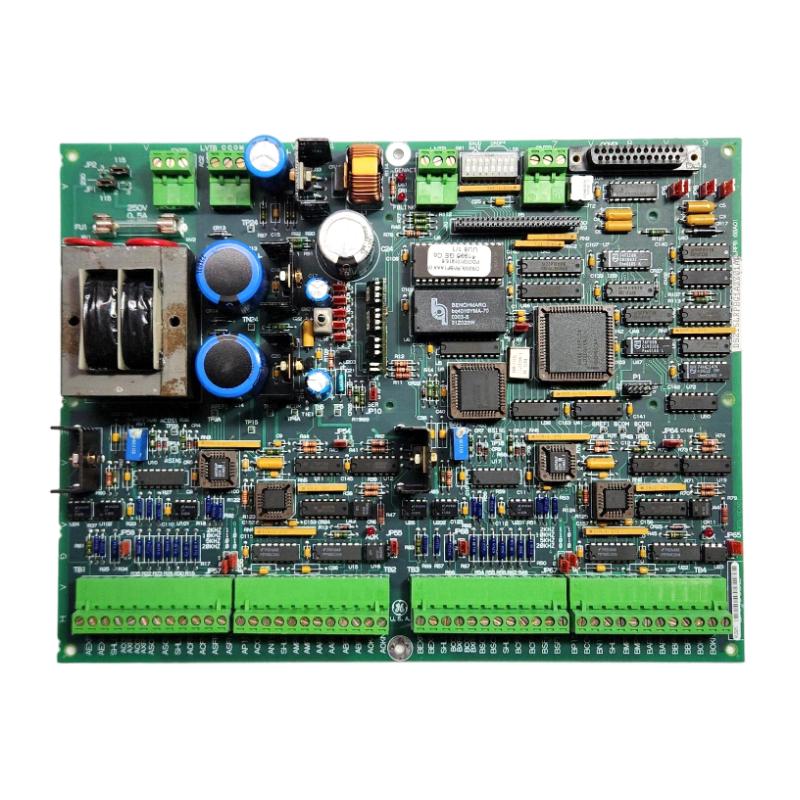

The DS215LRPBG1AZZ02A contains a variety of electronic components used for resolver signal processing and interface functions. These can include integrated circuits, jumper switches, resistor networks, relays, potentiometers, an inductor coil, transistors, capacitors, and other supporting components. The board also includes a transformer and high-voltage electrolytic capacitors, together with heat-sinked components for handling and conditioning electrical power within the board circuitry. Multiple terminal strips are provided for field and system connections, while a rear female connector provides an additional interface with associated Mark V hardware. When inspecting the board, connectors, terminals, power-related components, and areas showing signs of overheating should receive particular attention.

4. How can a resolver signal fault be diagnosed?

Resolver signal faults should be diagnosed by checking the complete feedback path rather than immediately replacing the resolver board. Start by reviewing the Mark V diagnostic information and identifying whether the fault affects one signal, several signals, or the complete resolver feedback function. Inspect the resolver sensor, field wiring, terminal connections, and connectors for loose or damaged connections. If the field wiring and resolver sensor are functioning correctly, the DS215LRPBG1AZZ02A should then be inspected for abnormal components, damaged terminals, overheating, or other physical problems. Comparing expected feedback behavior with the signal received by the control system can help identify whether the fault originates at the sensor, wiring, interface, or processing circuitry.

5. What can cause unstable or incorrect resolver feedback?

Unstable or incorrect resolver feedback can result from several different conditions. Common areas to investigate include the resolver sensor itself, wiring connections, terminal blocks, electrical interference, grounding problems, and the resolver processing circuitry on the DS215LRPBG1AZZ02A. Loose terminals can produce intermittent feedback, while damaged or degraded wiring can introduce noise or signal loss. Electrical interference from nearby power equipment may also affect analog feedback signals. If the physical signal path is confirmed to be healthy, the board’s input circuitry, processing components, and associated power circuits should be examined. The Mark V diagnostic information should be used together with electrical measurements to determine whether the abnormal feedback originates from the sensor or from the control system interface.

6. What should be checked if the Mark V system loses resolver feedback?

If the Mark V system loses resolver feedback completely, first determine whether the problem affects one resolver channel or the entire resolver input function. Check the resolver sensor and its excitation or feedback wiring, followed by the terminal connections on the DS215LRPBG1AZZ02A. Inspect the board’s connectors and look for loose terminals, damaged contacts, contamination, or visible component damage. If multiple resolver signals disappear simultaneously, the common power supply, interface circuitry, or board-level processing should be investigated before focusing on an individual sensor. If only one feedback signal is lost, the corresponding sensor, cable, terminal connection, and input circuitry should be examined in greater detail. Mark V diagnostic information can help determine whether the control system is detecting a missing, invalid, or out-of-range feedback signal.

7. What should be checked before replacing the DS215LRPBG1AZZ02A?

Before replacing the resolver board, verify that the fault has been isolated to the DS215LRPBG1AZZ02A. Check the resolver sensor, field wiring, terminal strips, connectors, associated power circuits, and other Mark V control hardware first. Record the existing board identification and configuration before removal, including connector locations and any relevant jumper settings. Inspect the board for visible damage such as overheated components, damaged terminals, burned areas, cracked components, or signs of contamination. If the external resolver signal is confirmed to be correct but the Mark V system still receives an abnormal signal, the resolver board becomes a stronger candidate for replacement. After installation, verify the resolver feedback, system diagnostics, and associated turbine control functions before returning the system to normal service.

8. Can another GE Mark V resolver board be used as a direct replacement?

A different GE Mark V resolver board should not automatically be considered a direct replacement for the DS215LRPBG1AZZ02A. Compatibility depends on the complete part number, functional revision, firmware or microprocessor configuration, connector arrangement, and the specific Mark V system application. Resolver boards that appear similar may have different electrical interfaces or hardware configurations, and using an incompatible board can result in incorrect feedback signals or system faults. Before replacement, the original part number and revision information should be compared carefully with the proposed replacement. The connected resolver sensors, terminal assignments, and Mark V control configuration should also be verified. After installation, the complete feedback path should be tested to ensure that resolver position and rotational information are correctly received by the control system.
