FAQ

1. What is the main function of the DS215TCDAG1BZZ01A?

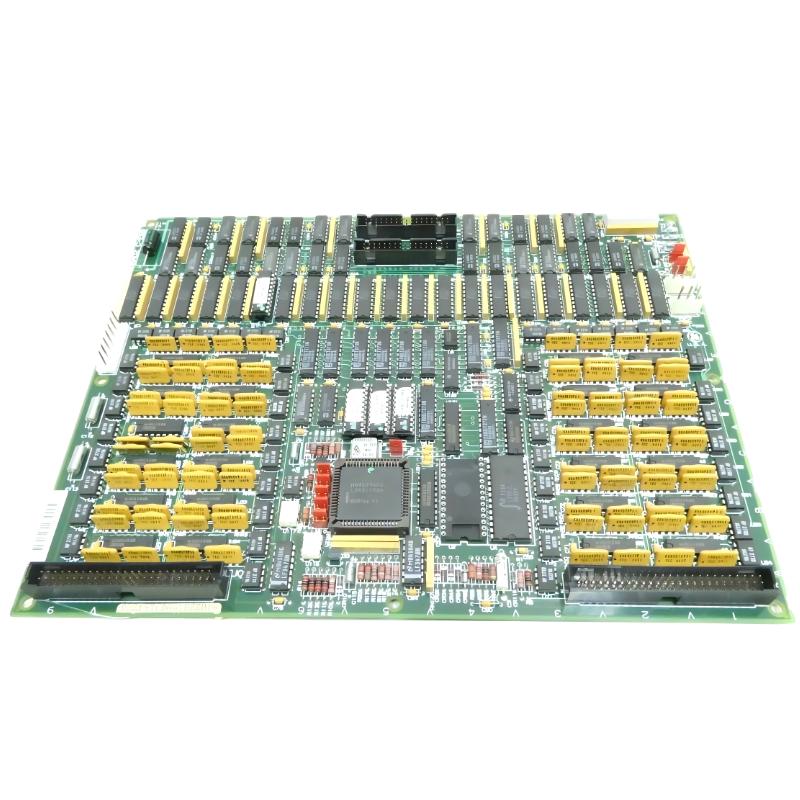

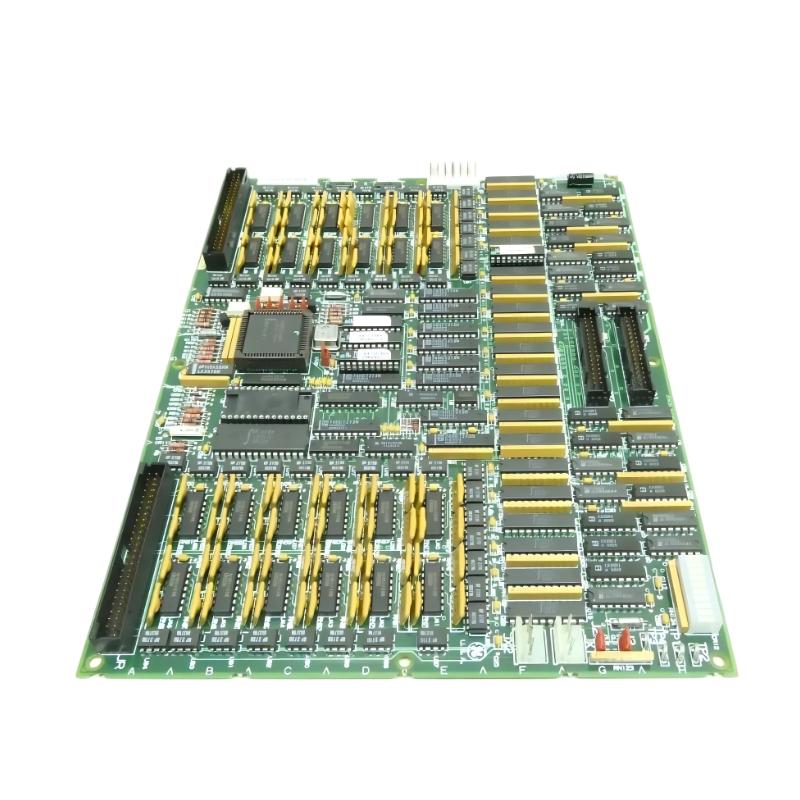

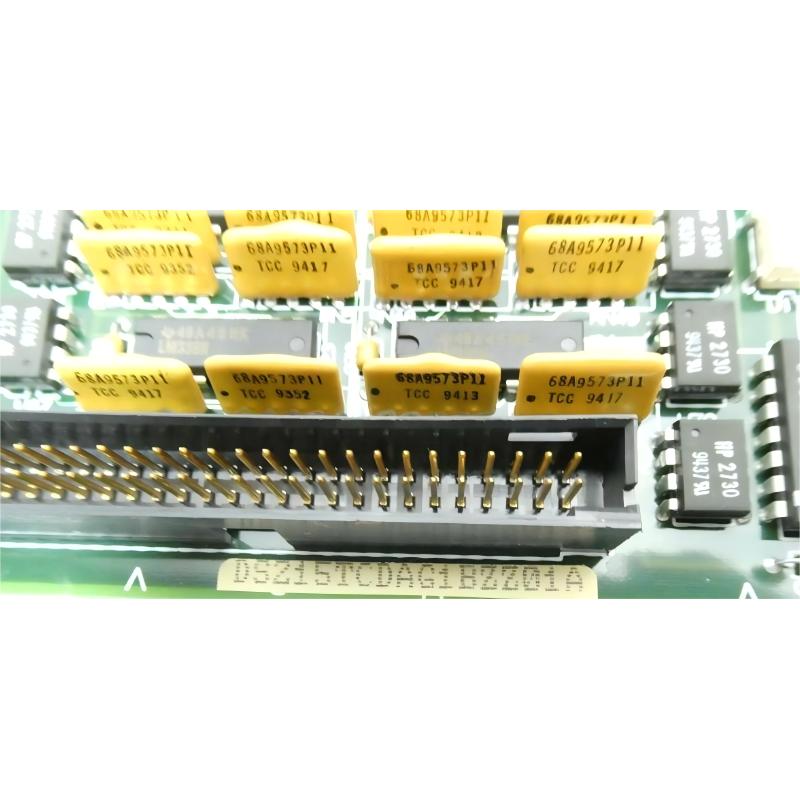

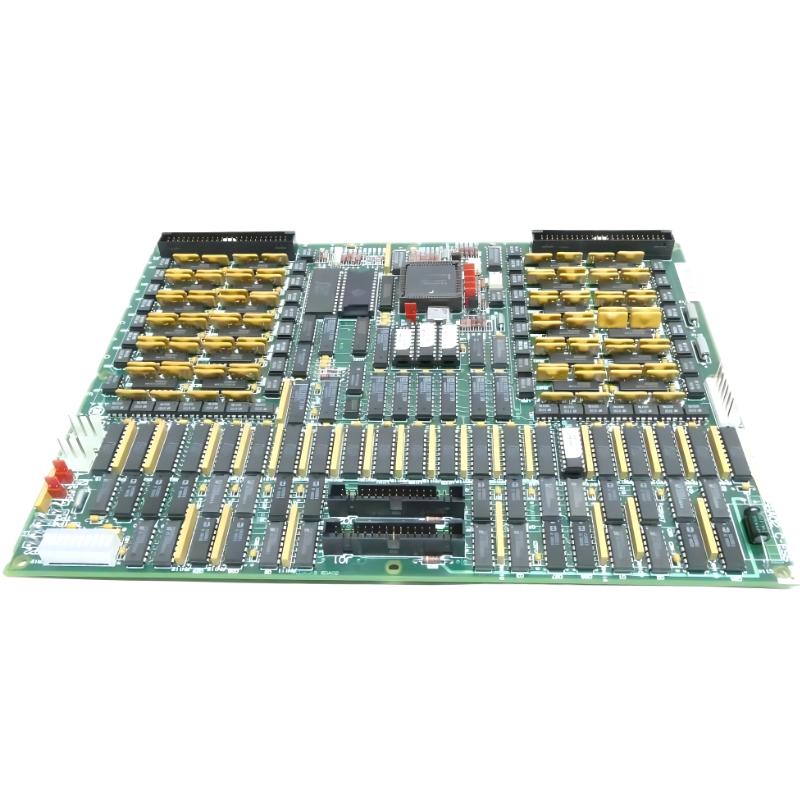

The DS215TCDAG1BZZ01A is a GE Mark V Digital I/O Board designed to process digital contact input and output signals in compatible turbine control systems. It receives digital contact information from DTBA and DTBB terminal boards and processes contact output signals associated with relay and solenoid control. The processed information is exchanged with other Mark V control components through the IONET network. The board therefore serves as an important interface between field-level discrete signals and the turbine control system. In practical applications, its operation depends on the associated terminal boards, IONET communication, power connections, jumper configuration, and system software. A problem anywhere in these signal paths can affect the behavior of the TCDA board.

2. How does the DS215TCDAG1BZZ01A communicate with the Mark V control system?

The DS215TCDAG1BZZ01A uses the IONET communication network to exchange digital I/O information with other parts of the Mark V control architecture. The JX1 and JX2 connectors provide the primary IONET interfaces. Input signals arriving from the DTBA and DTBB terminal boards are processed by the TCDA board and then transferred through IONET to the appropriate control hardware. Output commands can travel in the opposite direction to the board and then toward the relevant terminal or relay interface. For reliable operation, the physical IONET connections, board identification, termination configuration, and associated control hardware must all be correct. A communication failure can therefore be caused by either the TCDA board or an external part of the IONET network.

3. What is the purpose of the JQ and JR connectors?

The JQ and JR connectors provide interfaces for digital input signals from the DTBA and DTBB terminal boards. JQ is associated with the DTBA signal path, while JR is associated with the DTBB signal path. These connections allow field contact information to reach the TCDA board for signal conditioning and processing. If a particular digital input is missing, the corresponding JQ or JR connection should be checked along with the terminal board, field wiring, and contact device. A faulty terminal connection can produce the same symptom as an internal TCDA input fault. For this reason, signal tracing from the field device toward the control board is an effective method for isolating the actual source of the problem.

4. What should be checked if a digital input is not detected?

When a digital input is not detected, begin by checking the field contact or switch and confirming that it changes state correctly. Then inspect the associated wiring, terminal connections, DTBA or DTBB terminal board, and the corresponding JQ or JR interface. If the physical signal reaches the TCDA board, verify the software I/O configuration because contact signal inversion can affect the state interpreted by the control system. The IONET communication path should also be checked to make sure that a correctly processed input is being transmitted to the appropriate control hardware. If the field signal and configuration are correct but the input remains unavailable, further testing of the TCDA input circuitry may be necessary.

5. How can an IONET communication problem on the DS215TCDAG1BZZ01A be diagnosed?

IONET troubleshooting should begin with the JX1 and JX2 connections. Check that the connectors are properly seated and that the communication wiring is free from visible damage or loose connections. Next, verify the IONET ID configuration and termination settings because incorrect hardware jumper settings can prevent the control system from correctly identifying the board. If the board is intermittently recognized, check for unstable power, poor connections, network interference, or problems with another IONET device. System diagnostic information can help determine whether the issue is related to the TCDA board itself or another node on the communication network. It is generally better to verify the complete network path before replacing the board.

6. What is the role of the DS200TCDAG1BDB in relation to the DS215TCDAG1BZZ01A?

DS200TCDAG1BDB is the associated DS200-series board identification for the TCDA digital I/O board, while DS215TCDAG1BZZ01A represents the corresponding DS215-series assembly with its specified functional revision and firmware configuration. Both identifiers are commonly associated with the same general TCDA digital I/O function. The DS200 board designation identifies the underlying PCB assembly, while the DS215 designation provides additional information about the particular board assembly and configuration. When ordering or replacing the board, the complete part number should be checked rather than relying only on the common TCDA designation. Hardware revision, firmware configuration, jumper settings, and system compatibility should all be verified before installation.

7. What should be checked before replacing the DS215TCDAG1BZZ01A?

Before replacing the DS215TCDAG1BZZ01A, first determine whether the fault is actually located on the board. Check the field device, wiring, DTBA and DTBB terminal boards, JQ and JR connections, IONET network, power supply, and associated TCRA, TCQC, or CTBA hardware. Record the existing jumper configuration before removing the original board, particularly the IONET identification and termination settings. The replacement board should have a compatible hardware revision and firmware configuration for the existing Mark V system. After installation, inspect every connector and jumper before restoring power. Digital inputs, relay or solenoid outputs, IONET communication, diagnostic indications, and associated control functions should then be tested systematically.

8. Can the DS200TCDAG1BDB be directly used to replace the DS215TCDAG1BZZ01A?

The DS200TCDAG1BDB is associated with the same TCDA Digital I/O Board family, but direct replacement should be confirmed using the complete board identification and system configuration. Similar functionality does not automatically guarantee complete interchangeability because hardware revisions, firmware, I/O configuration, jumper settings, and system interfaces can differ. Before replacement, compare the original DS215TCDAG1BZZ01A with the proposed DS200TCDAG1BDB in terms of hardware revision, firmware requirements, connector configuration, IONET addressing, and associated terminal boards. Once compatibility has been confirmed, the replacement should be configured to match the existing system. After installation, perform a complete functional test of digital inputs, relay or solenoid outputs, IONET communication, and diagnostic functions before returning the turbine control system to normal operation.
